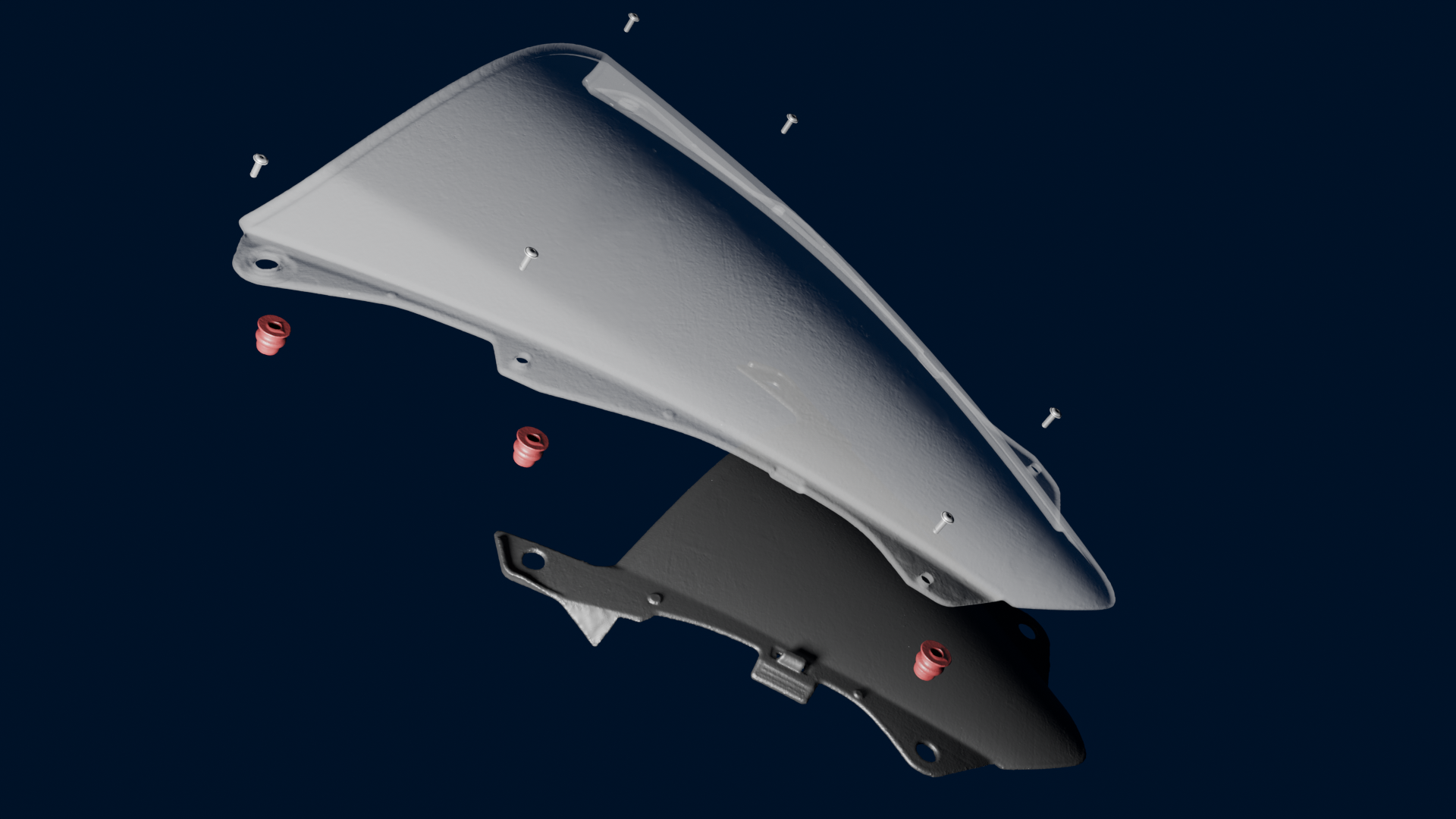

3 models are included below:

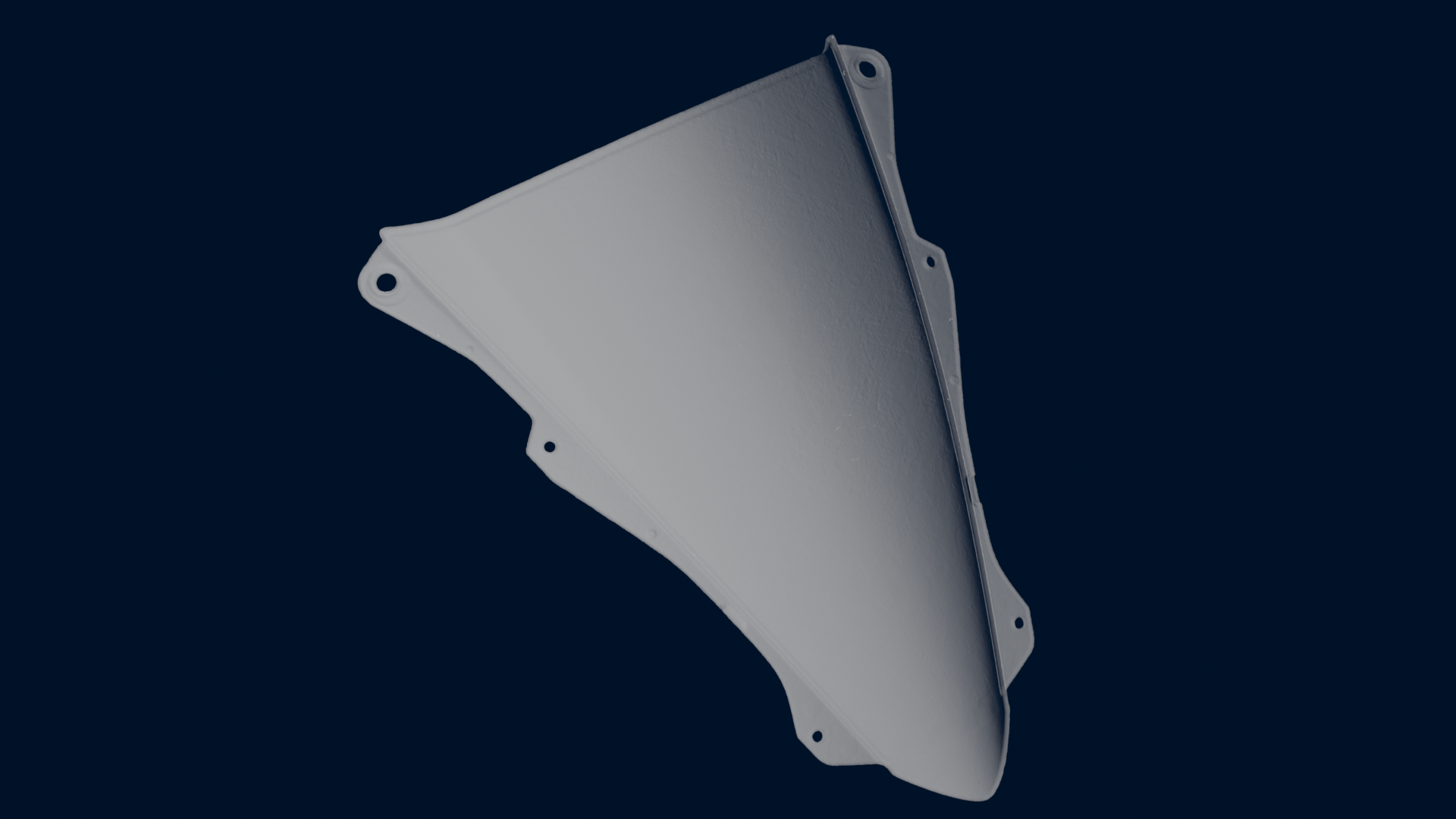

The windshield itself.

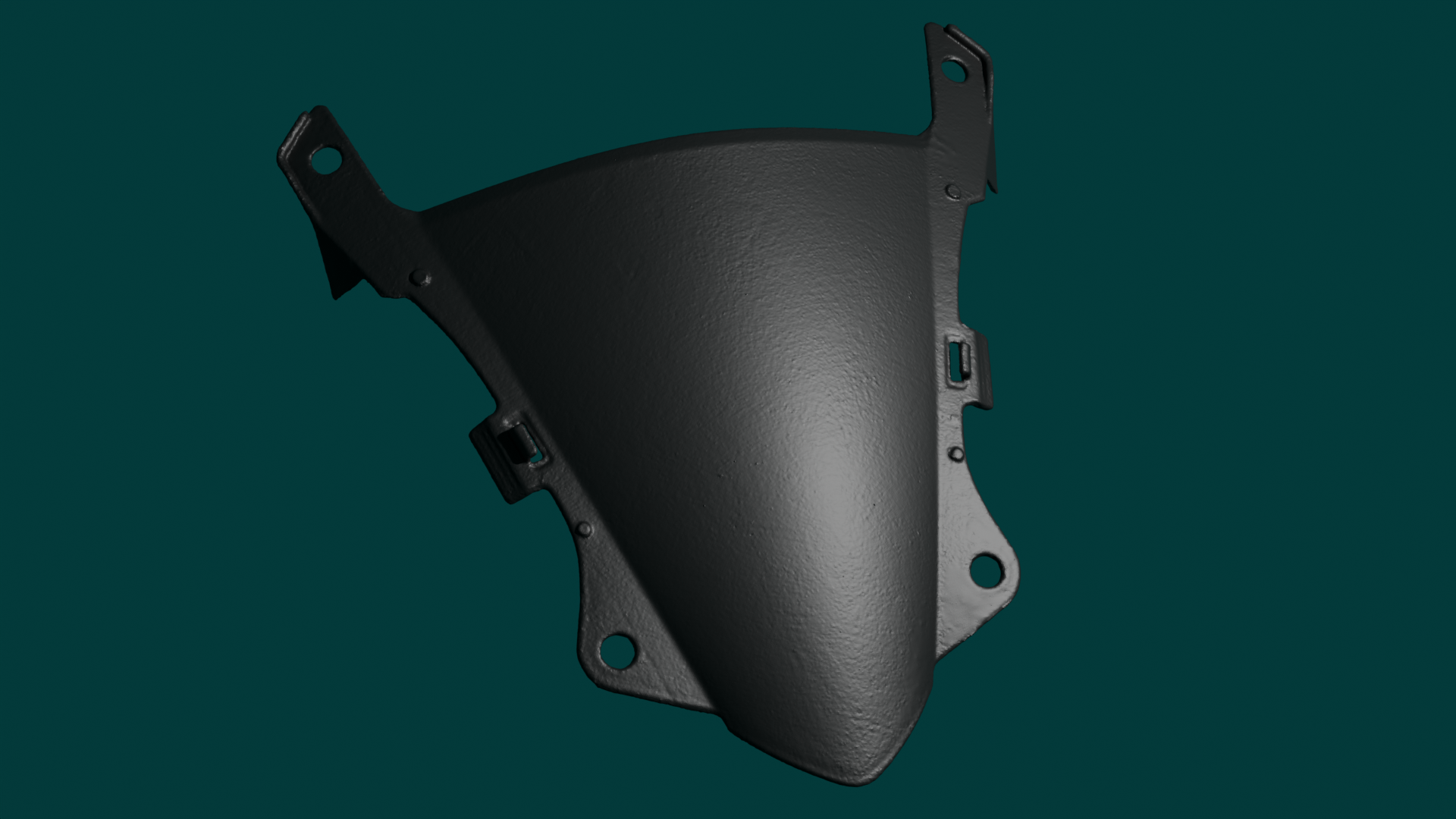

The attached black portion of the windshield covers the wiring for the dashboard.
The rubber grommet required for assembly in case you lose the original ones for some reason? print in TPU and use a threaded insert. Alternatively, you could split the model in two and print the internal section with petg or pla for the threads to grab. The windshield should be tightened loosely, so the integrity will most likely not matter. Or just use a M5 nut to hold the M5 screws attached.
The windshield was coated with baby powder and(I didn't have scanning spray lying around), as the scanner cannot scan clear objects. The windshield is 3mm thick throughout in accordance with the real model. Cleaning up the mesh and point cloud was a pain. If you ever do something like this dont or else your whole room will smell like baby powder.
AS ALWAYS, if there are any errors, please message me so I can rectify them. If you found this model useful, please give it a like, as it did take a lot of time and effort to process this one. ;)
If you have any zx4r or gear requests, let me know. If you have a modified windshield (Puige, Graves, etc...) , live in the GTA, and are willing to let me scan it, one afternoon, hit me up.
