Drone-1 Frame
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
A drone frame designed for easily-available parts on Amazon.
- Ocena
- 0 / 5
- Polubienia
- 4
- Pobrania
- 41
- Wydruki
- 0
- Wyświetlenia
- 190
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution

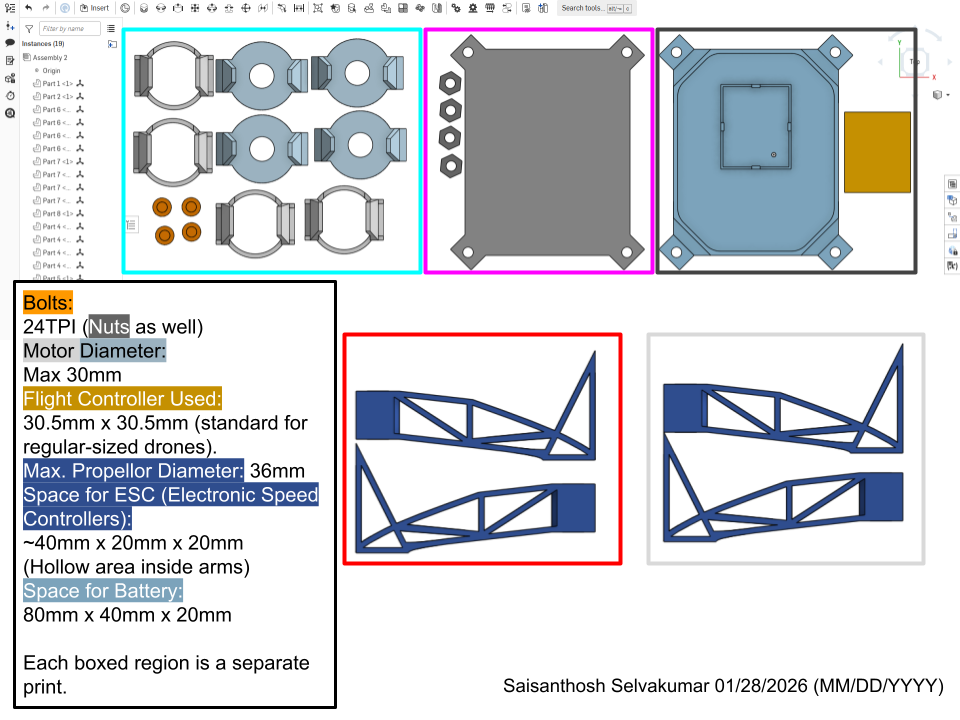

(Non-included Drone Parts) This is a 3D-printable frame for a drone compatible with the following parts:
- 30.5mm x 30.5mm flight controller
- 4S LiPo Battery
- Electronic Speed Controllers (ESCs; x4)
- Brushless Motors (max. diameter of 28mm, height of 18mm; x4)
- Propellers (max. diameter of 190mm, no height difference for overlap)
Parts based on the link below:
https://www.instructables.com/How-to-Build-the-Fastest-Quadcopter-in-3-Hours/
(Important Notes)

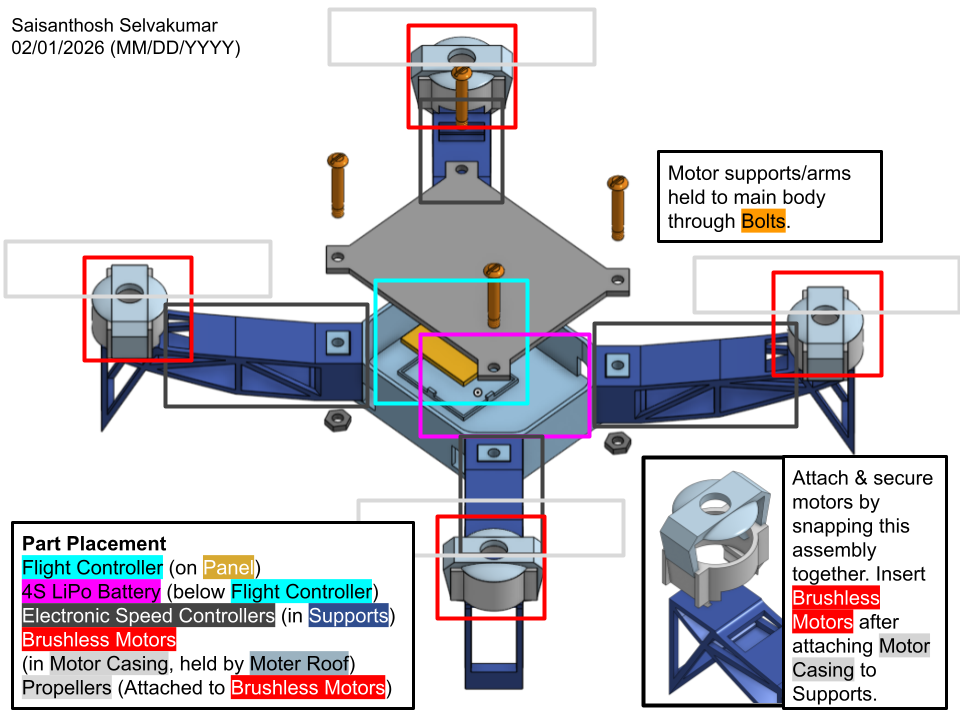

Picture attached with locations for each component. ESCs are inset within the arms of the drone, buy accordingly to the space to push one in without damaging it. I'm not a 100% if the bolts would be 3D-printed with accurate threads, but for good measure superglue should work.
