Modshelf: Modular vertical storage system
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Organizers
- Licencja
- Creative Commons — Attribution
The ultimate storage solution for any maker.
Infinitely expandable, modular, and fully customizable. This shelving ecosystem is designed to cleanup your workshop and contain all kinds of things, from tiny screws and electronic components, to entire air blowers or soldering irons.
Usage guidelines:
Baseplate should be mounted at the desired location where the storage system is to be installed using M4 screws.

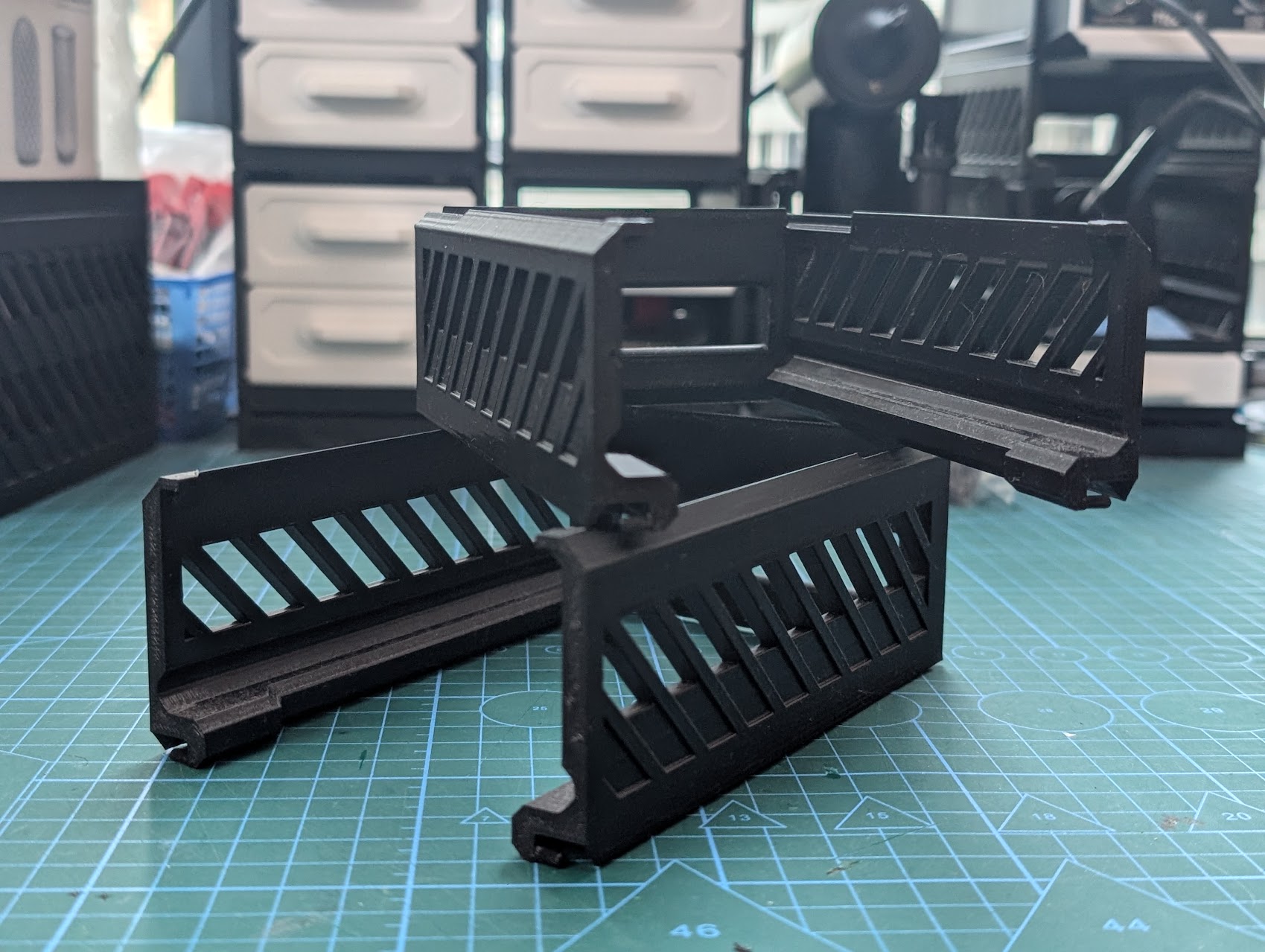

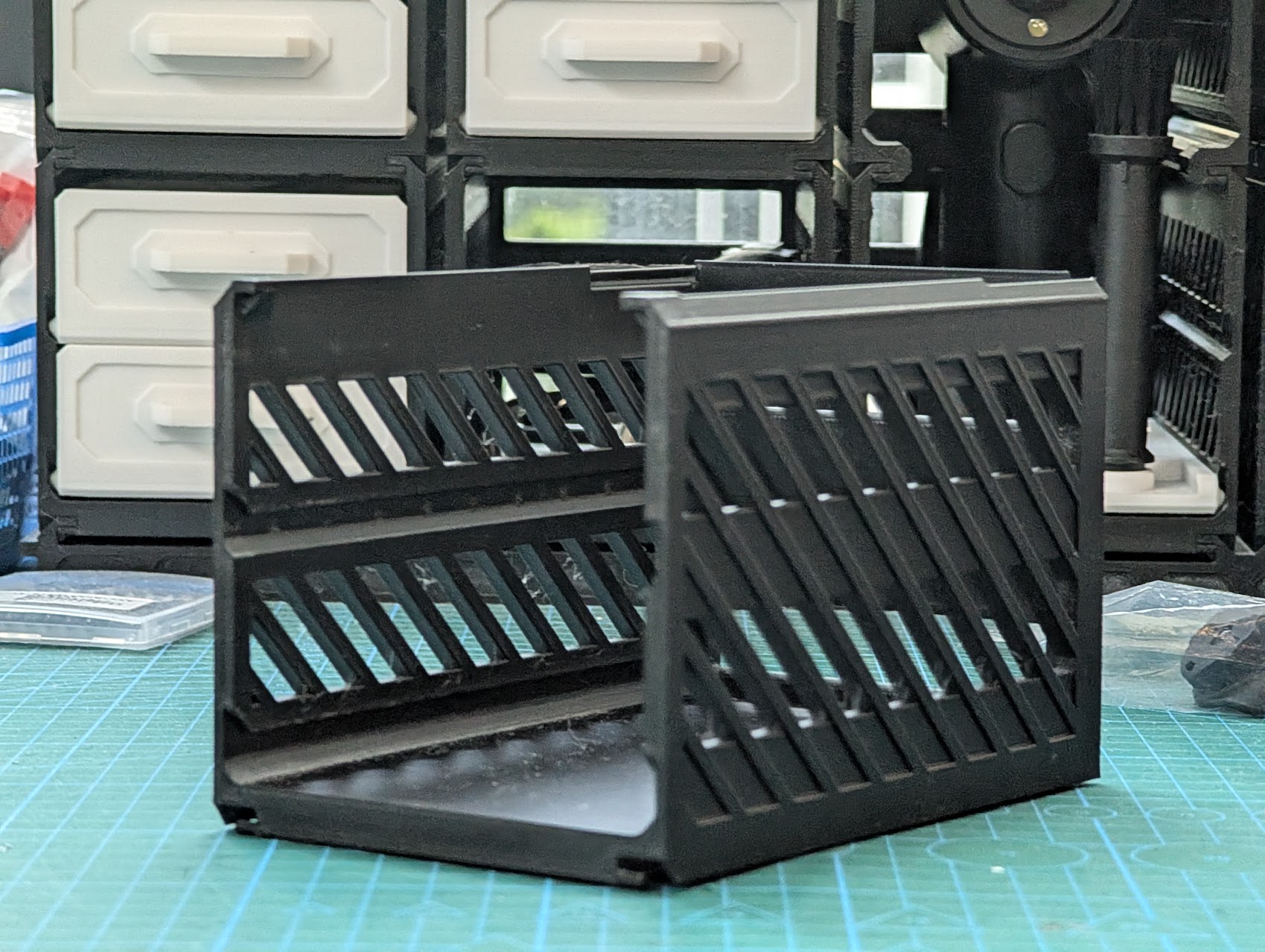

Shelf units can be attached onto baseplates by aligning the front pins in the slots of the baseplate, and rotating the unit about the pin till the back of the unit clicks into place.
Further shelf units or unit spacers can be attached on top of previous shelf units/spacers.

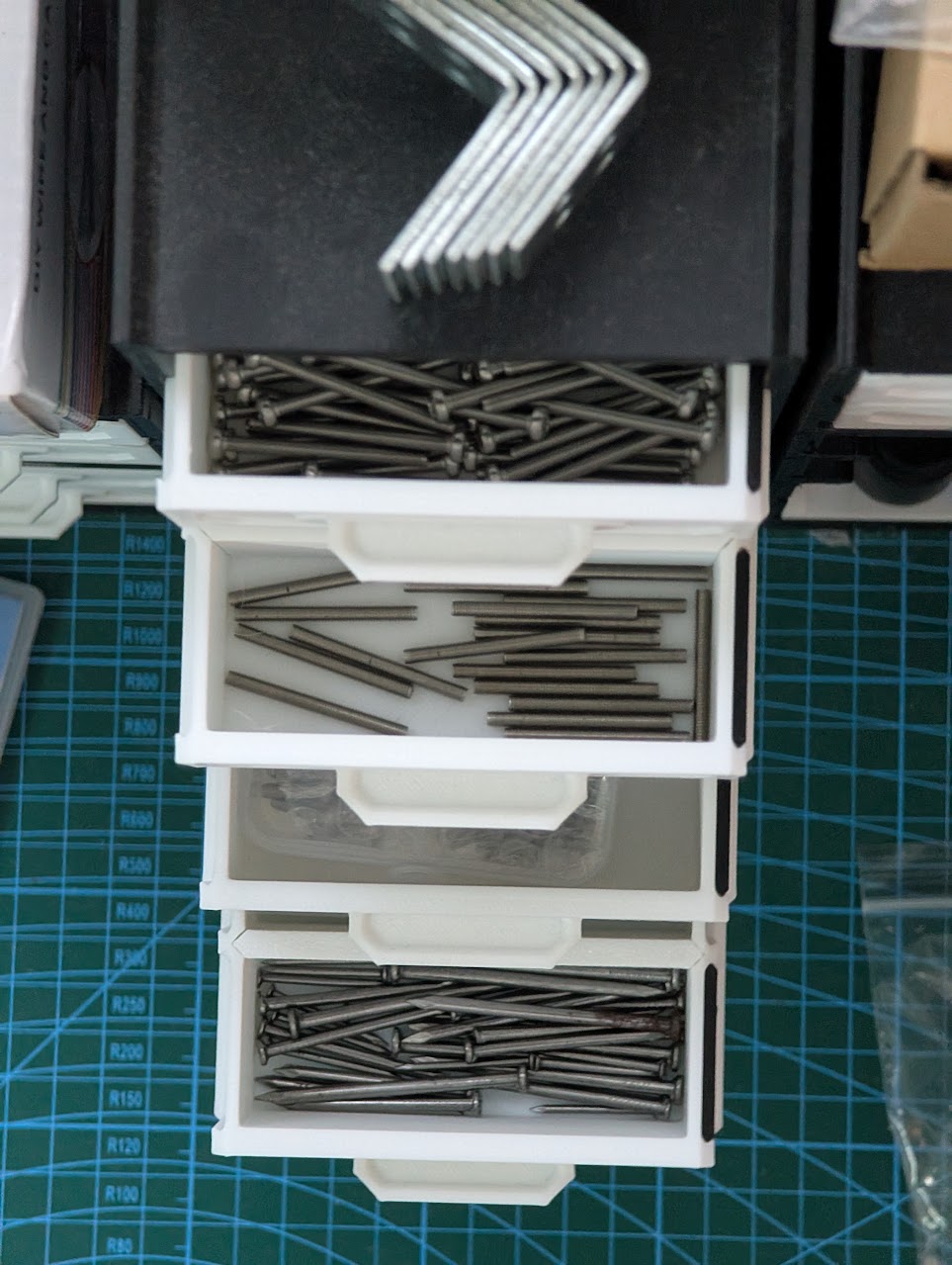

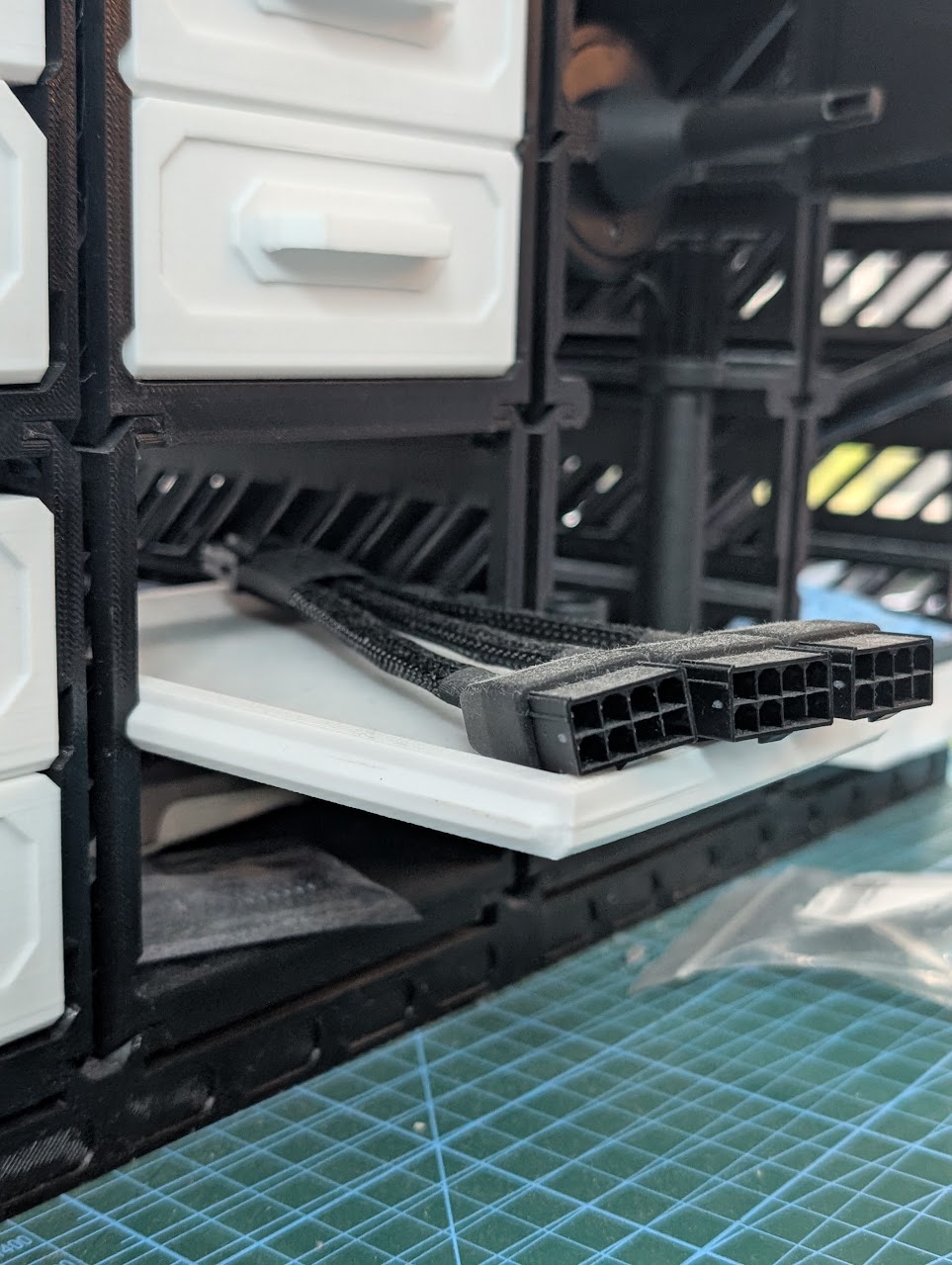

Each shelf unit can contain 2 cabinets or flat shelves, which can be slid in.

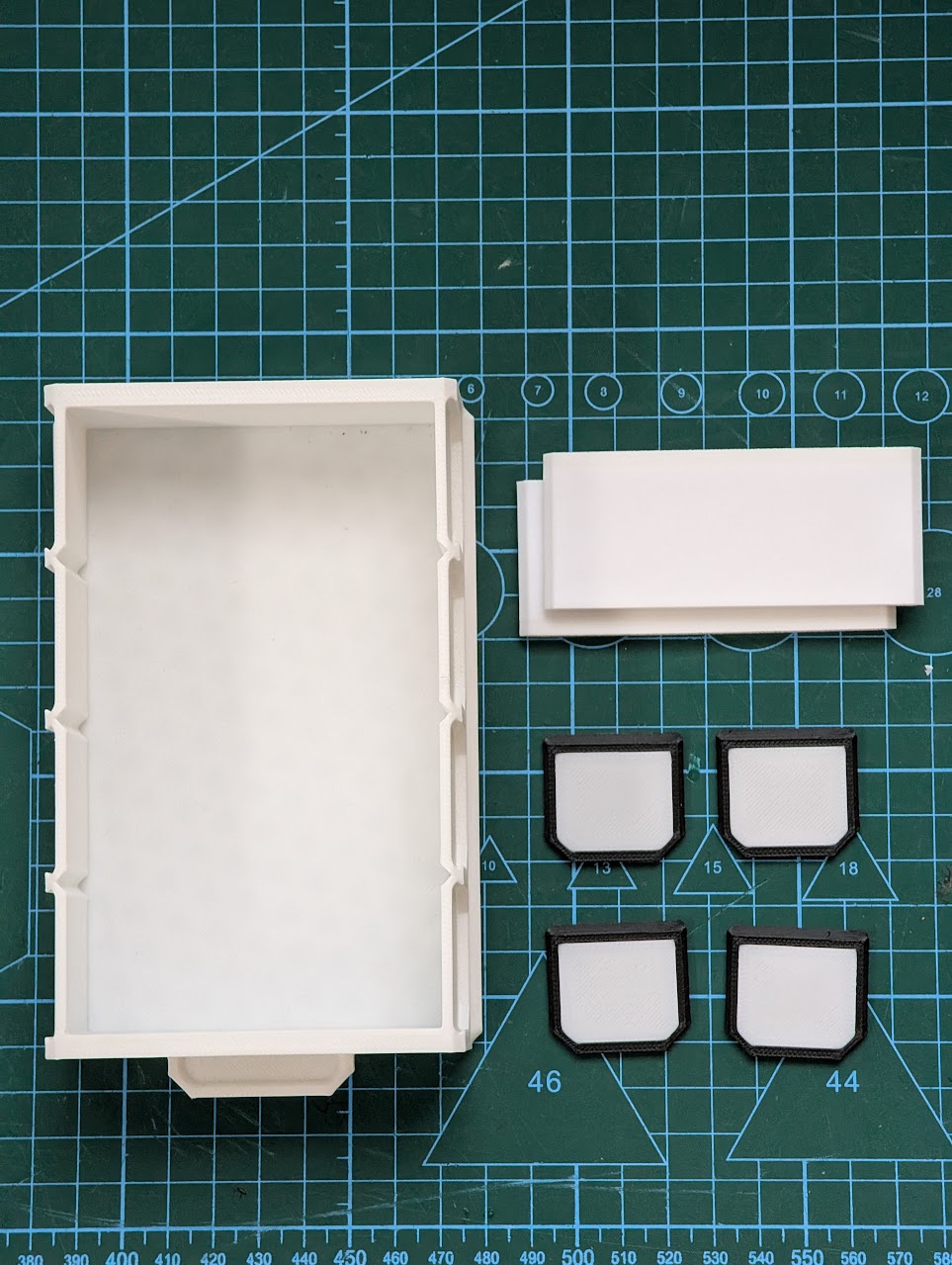

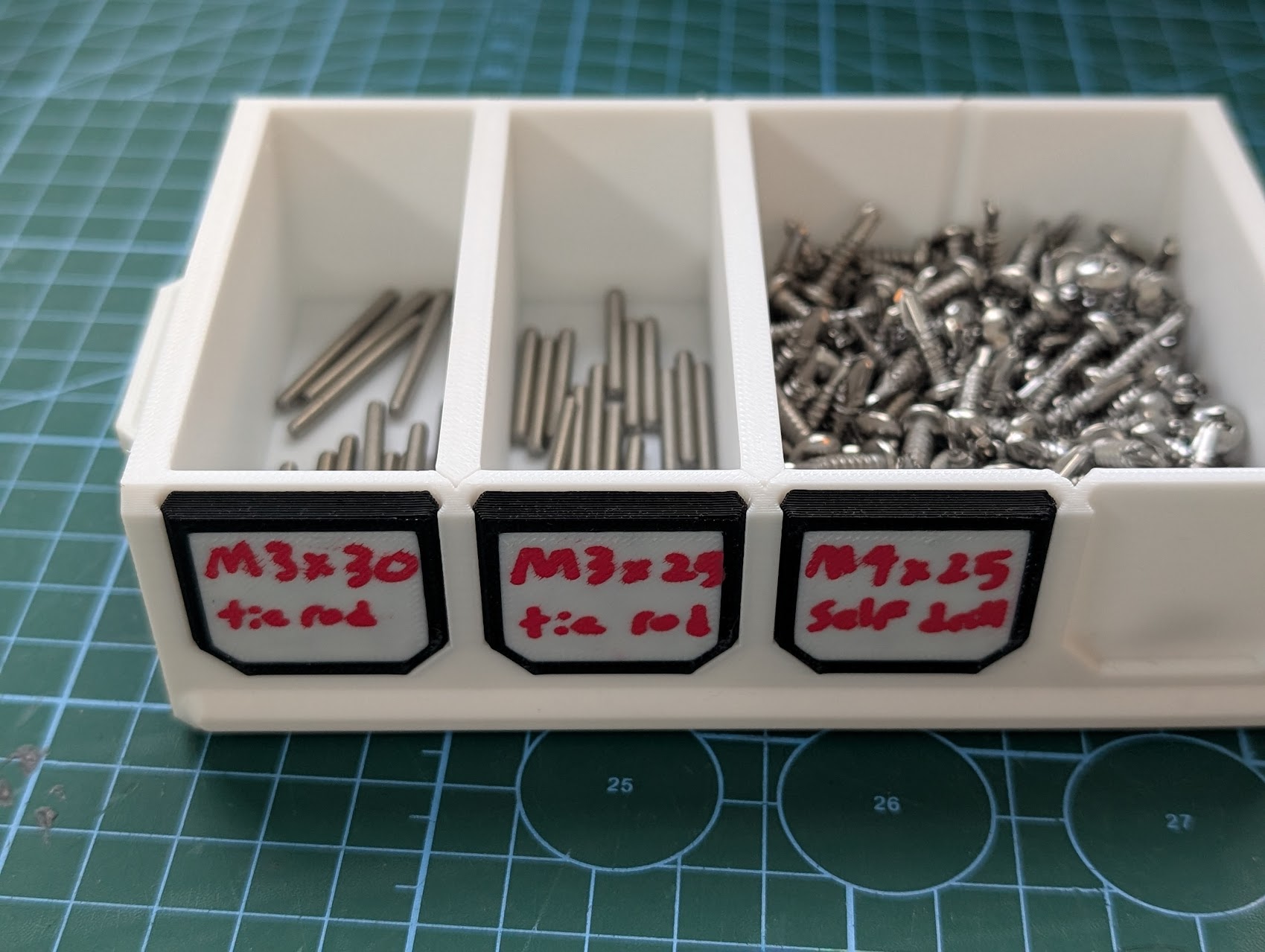

Cabinets can accomodate 3 Cabinet dividers and 8 Cabinet tags on the side.
Print Settings:
Shelf units/unit spacers should be printed vertically, where the back of the unit faces into the buildplate.
Files are designed to be printed with tree supports and 3 wall loops.
