Printer Air Filter (Bento Box)
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

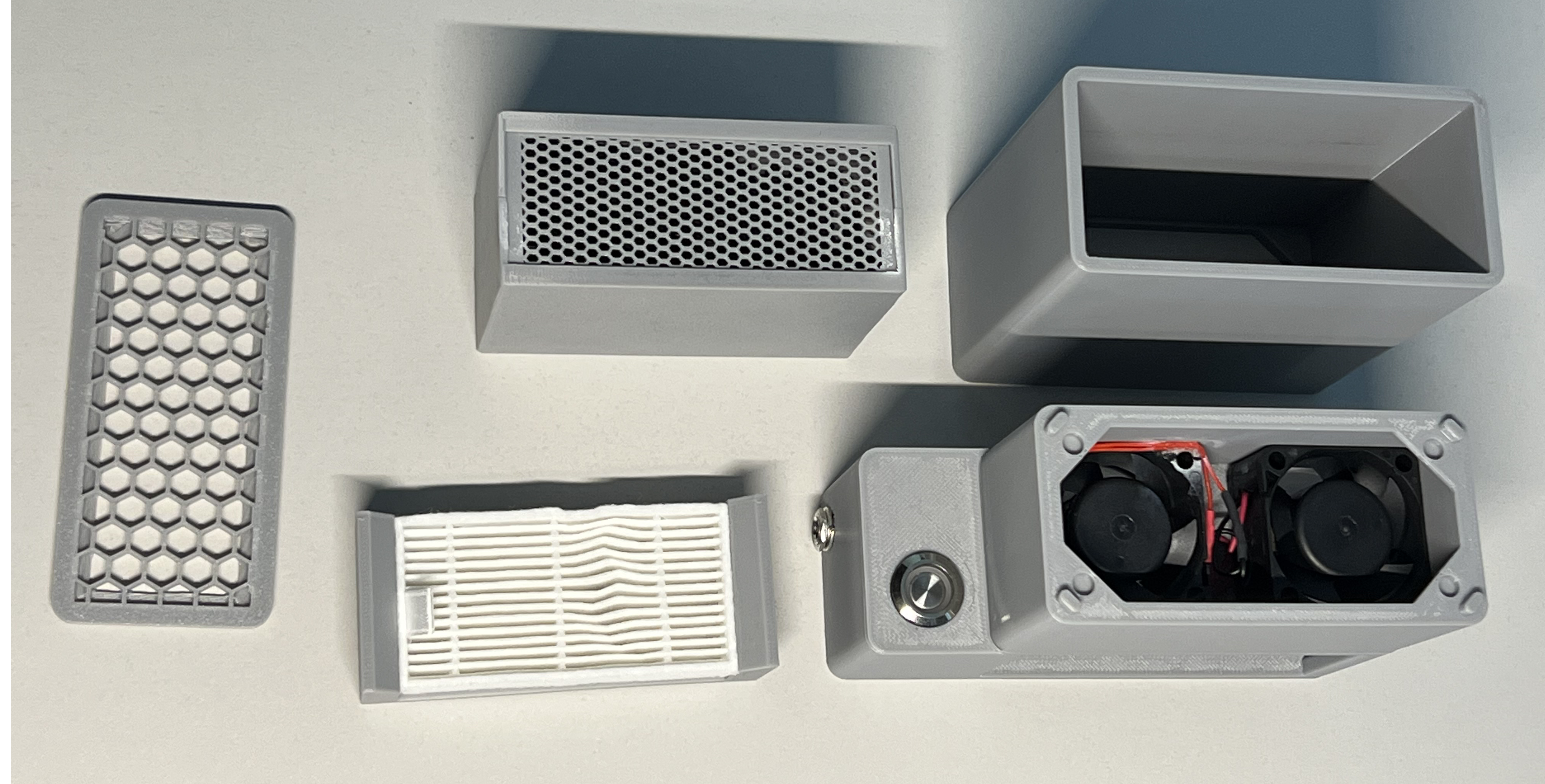

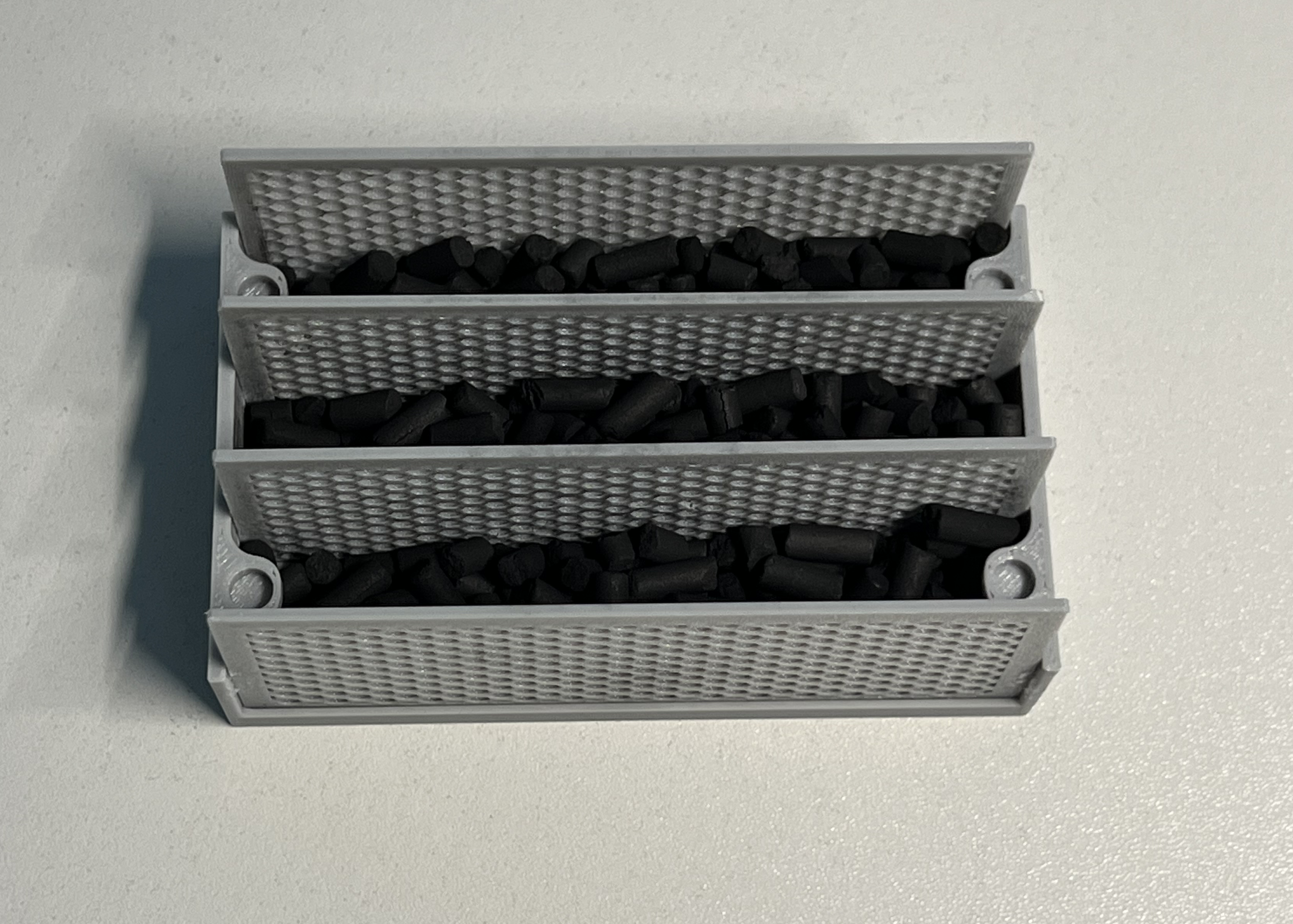

Uses two 40x40x20mm two pull air though the HEPA filter and then the activated carbon (acid free!!). Purifies the air significantly. Filter as well as the carbon is very easy to change.

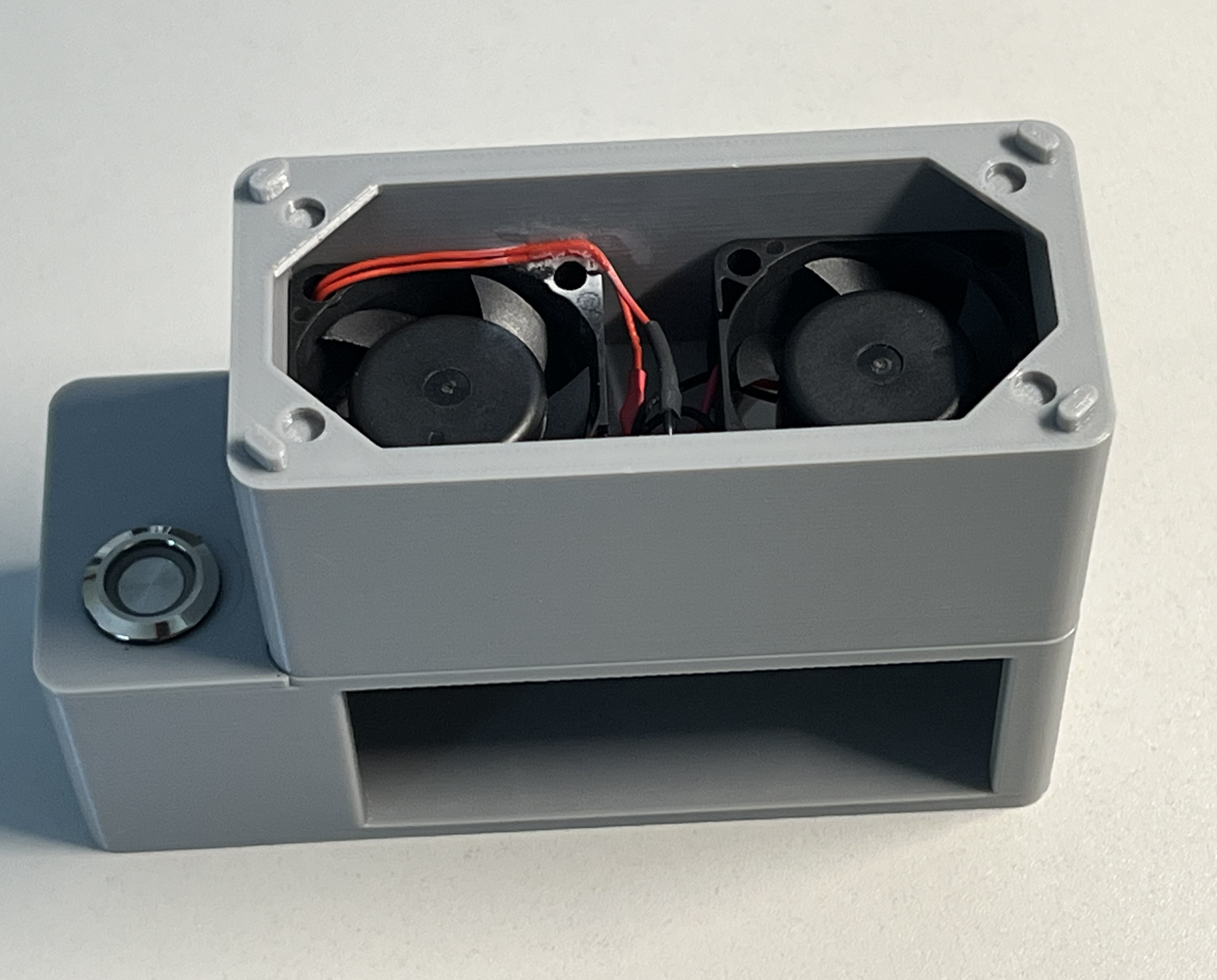

The fans I used are 24V and could therfore by directly powered by the printer PSU.
The honeycomb were created in Prusa Scicer by setting the top and bottom layers to zero and the infill to honeycomb.
Total size is about 135x50x190mm. Hole for power button is 16mm in diameter.
Fans I used: SUNON MF40202VX-1000U-A99 (but they are a bit loud)
If you have any questions or requests, feel free to contact me.
