Mini Cooper Powersteering Pump Control Plug
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Automotive
- Licencja
- Creative Commons — Attribution

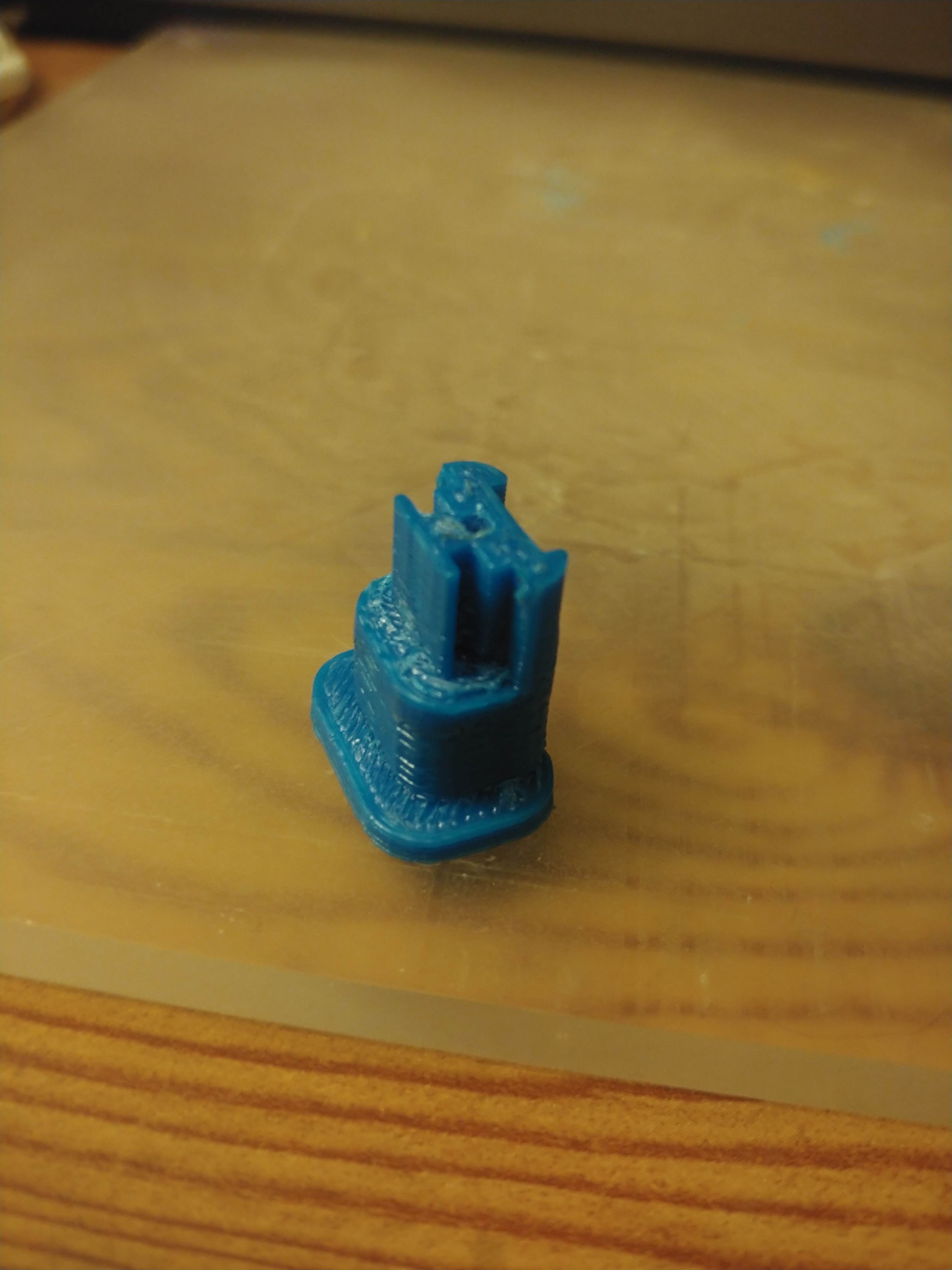

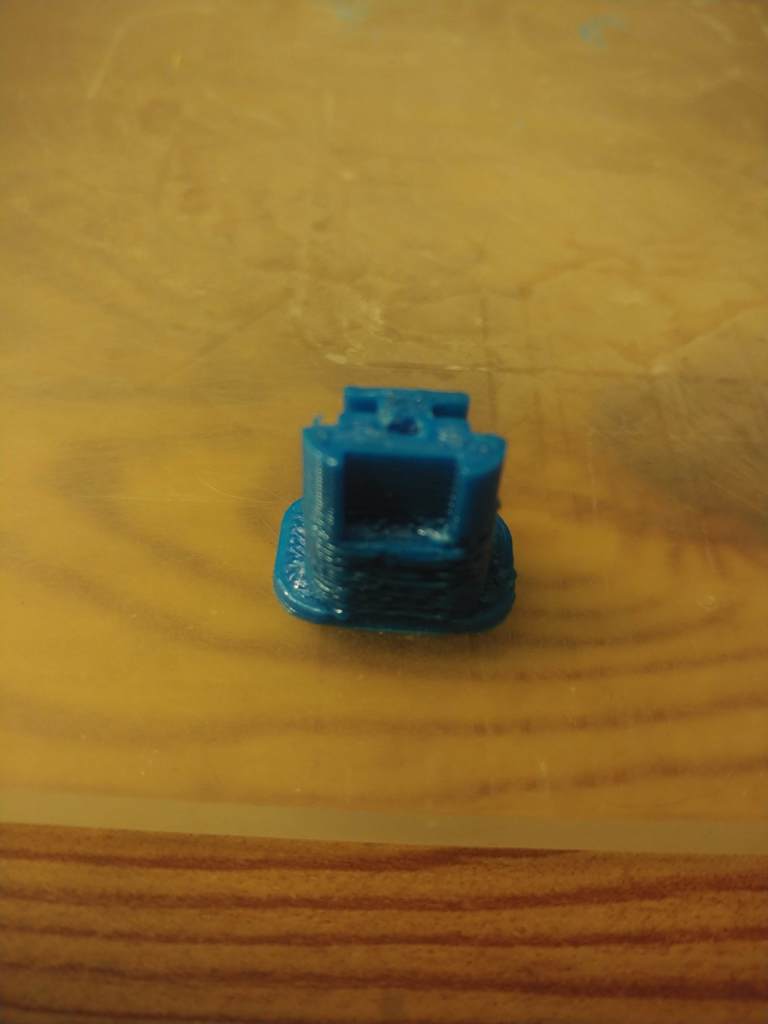

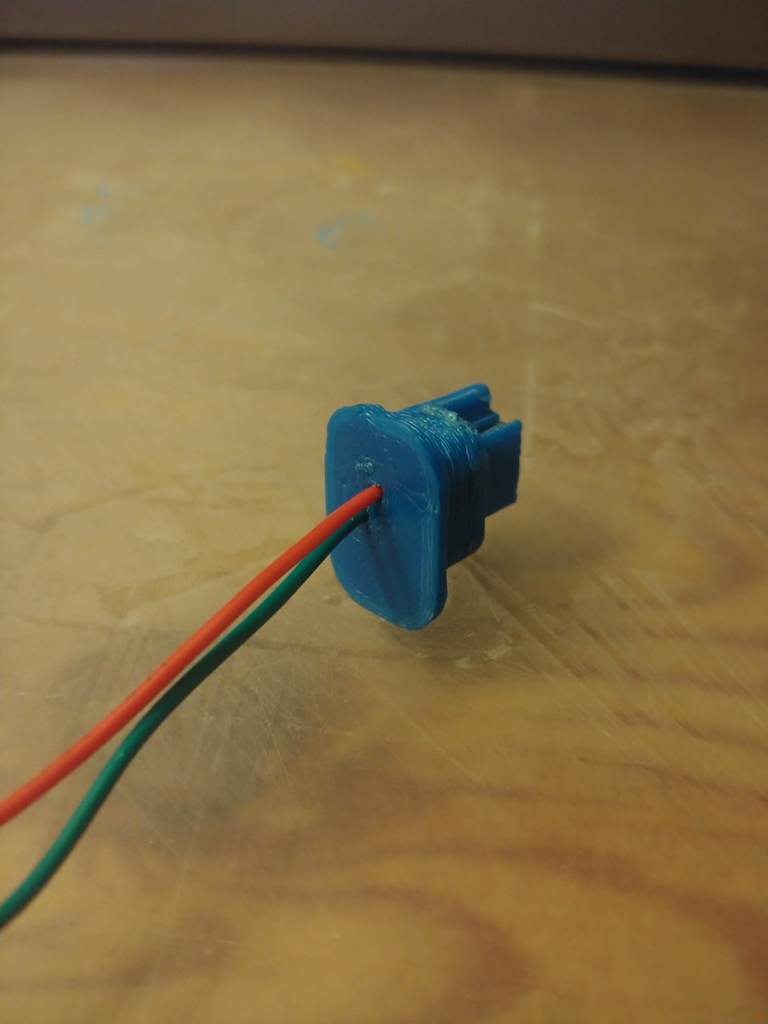

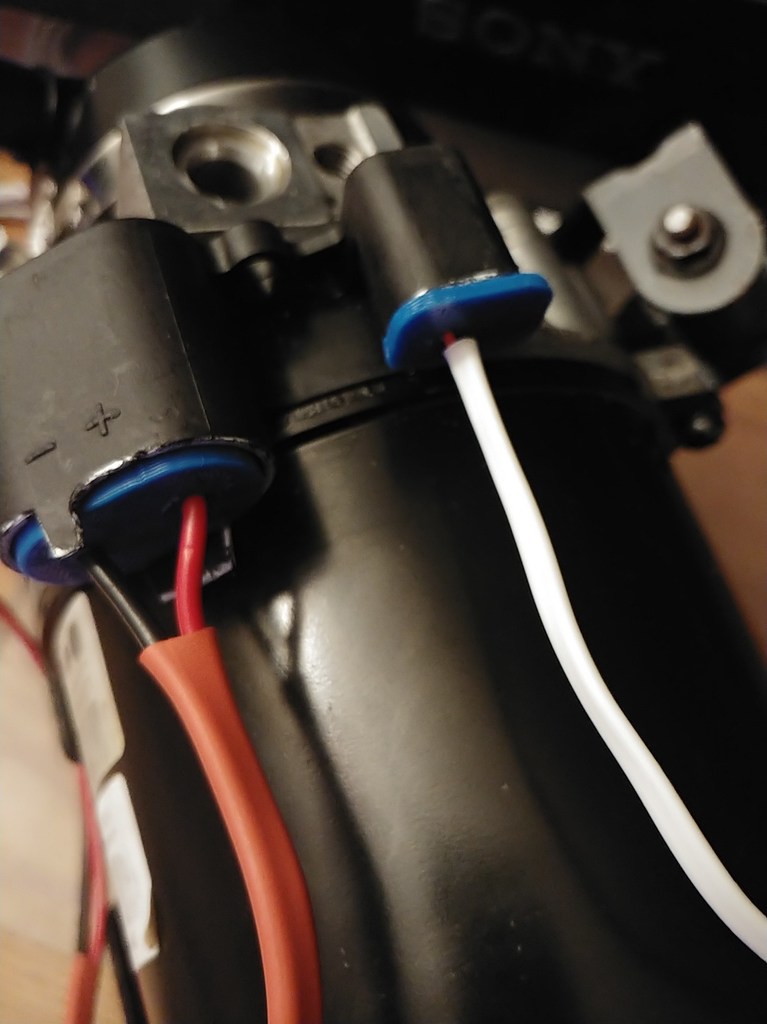

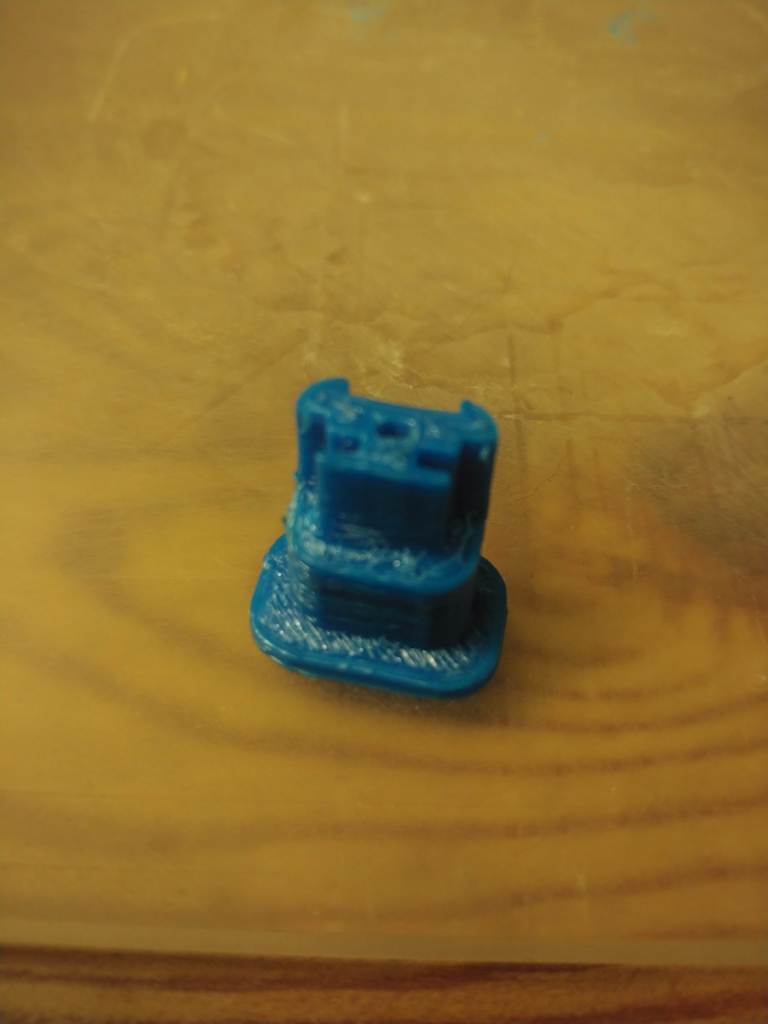

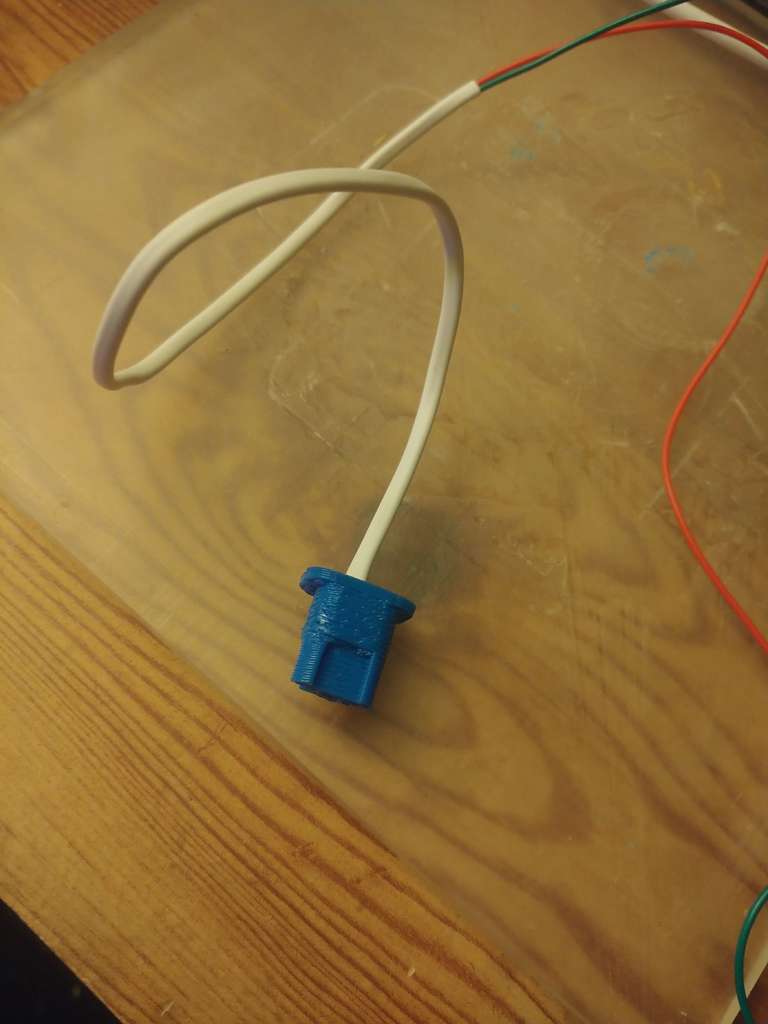

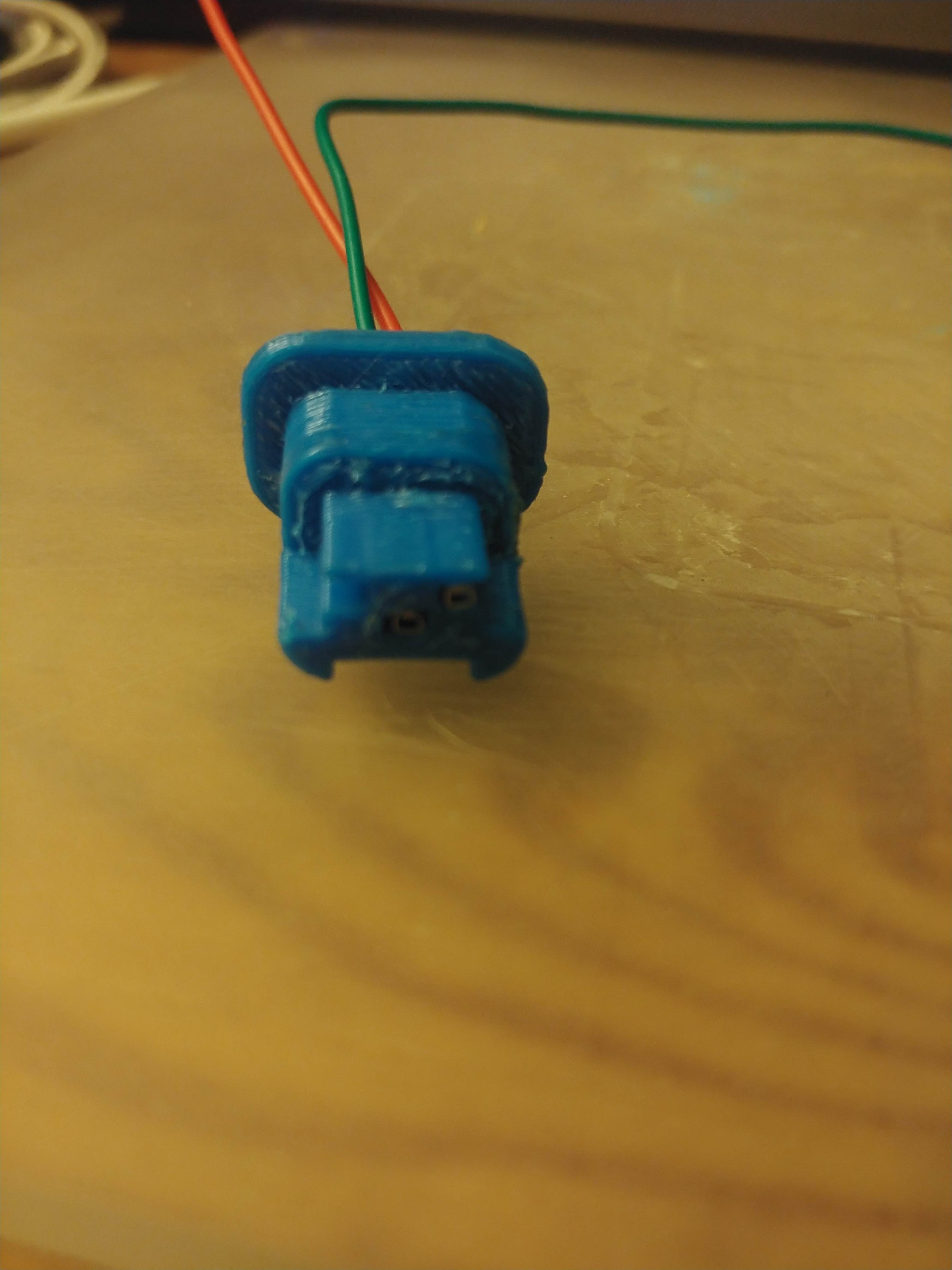

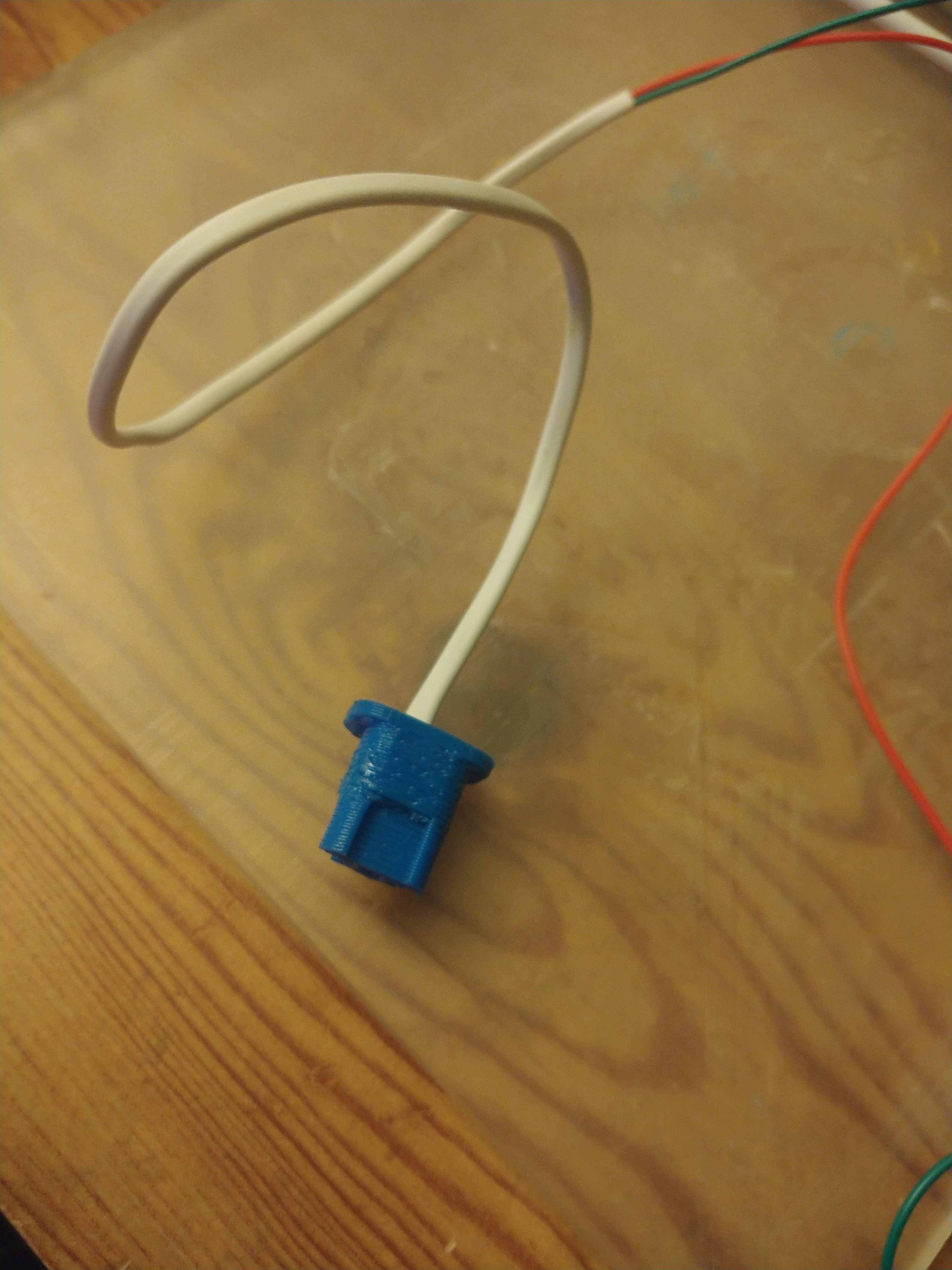

This connector plug fits the control port on a electric power steering pump to 02-08 Mini Cooper's. The units have 3 control pins and a main 12v power plug. To start the pump, pin-1 needs to be connected to 12v+, and then pin-2 needs only be temporary pulsed once on 12v+ for a second or two. In other words pin-1 should be connected to your ignition switch and pin-2 connected to your distributor so that the pump only starts once the engine is running.
This pump makes for a good custom electric power steering conversion in hot rod applications.
If you need the main power connector there's one here --> https://www.thingiverse.com/thing:4668634
Print Settings
Printer Brand:
Creality
Printer:
Ender 4
Rafts:
No
Supports:
No
Resolution:
.4
Infill:
5%
Notes:
Have fun and drive safe
Category: Automotive
