Fire Extinguisher Horizontal Wall Mount/ Quick Release

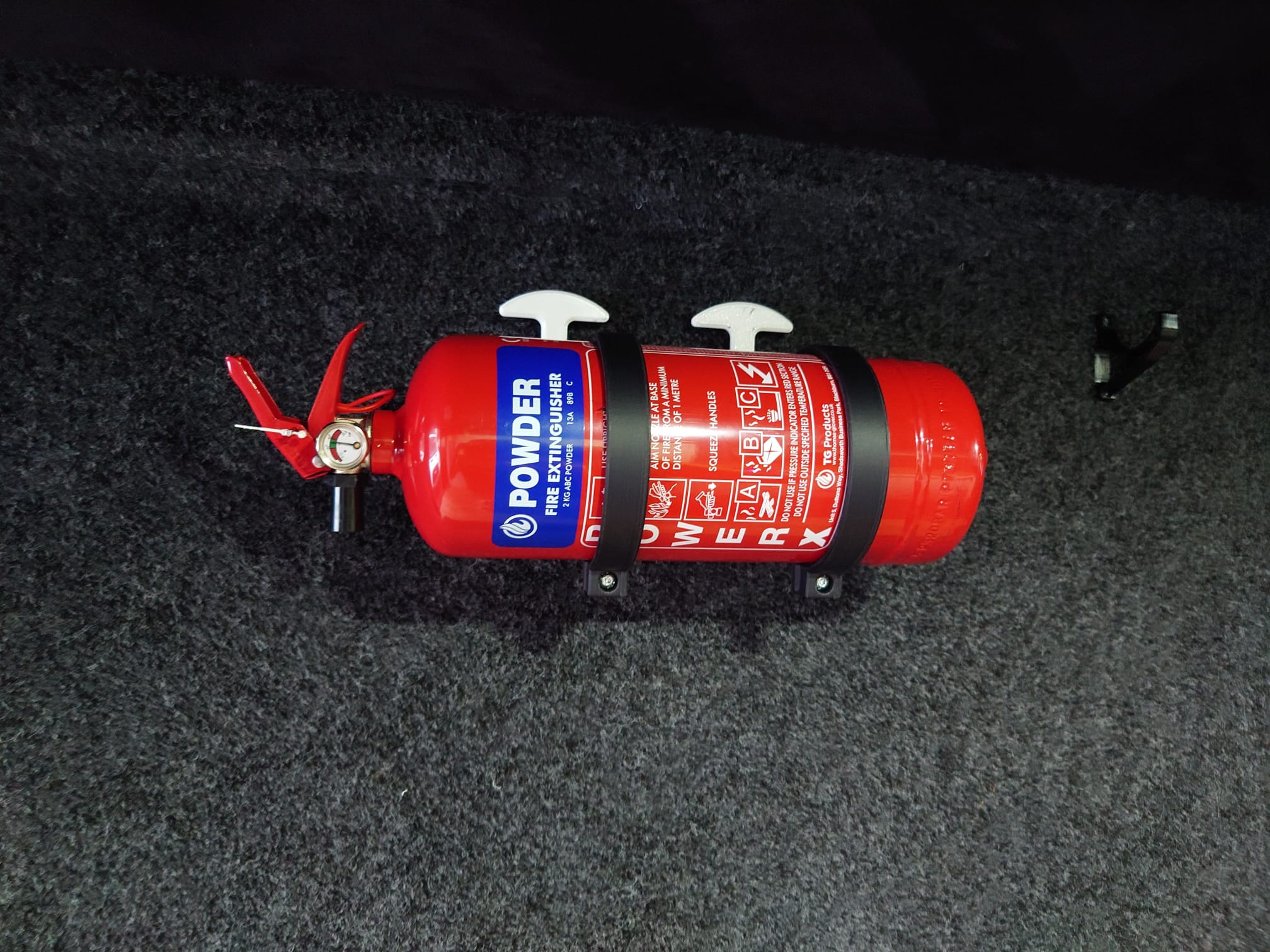

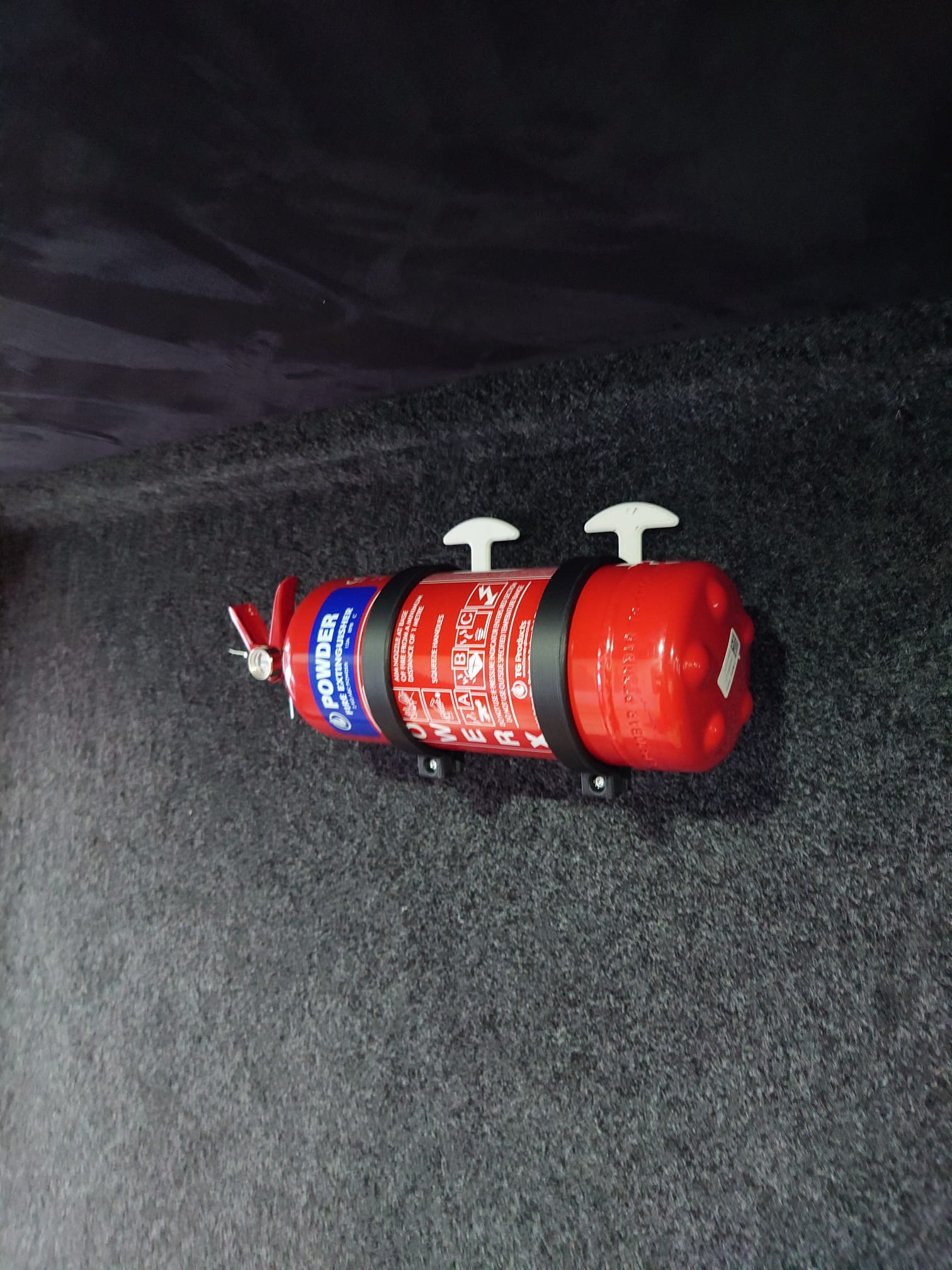

This wall mount design enables a 2kg fire extinguisher (~110mm diameter) to be mounted horizontally, ideal for fitting high up the wall of a van to minimize impact to internal space and ensure accessibility even when the van is heavily loaded. The extinguisher remains quick and easy to access when needed.

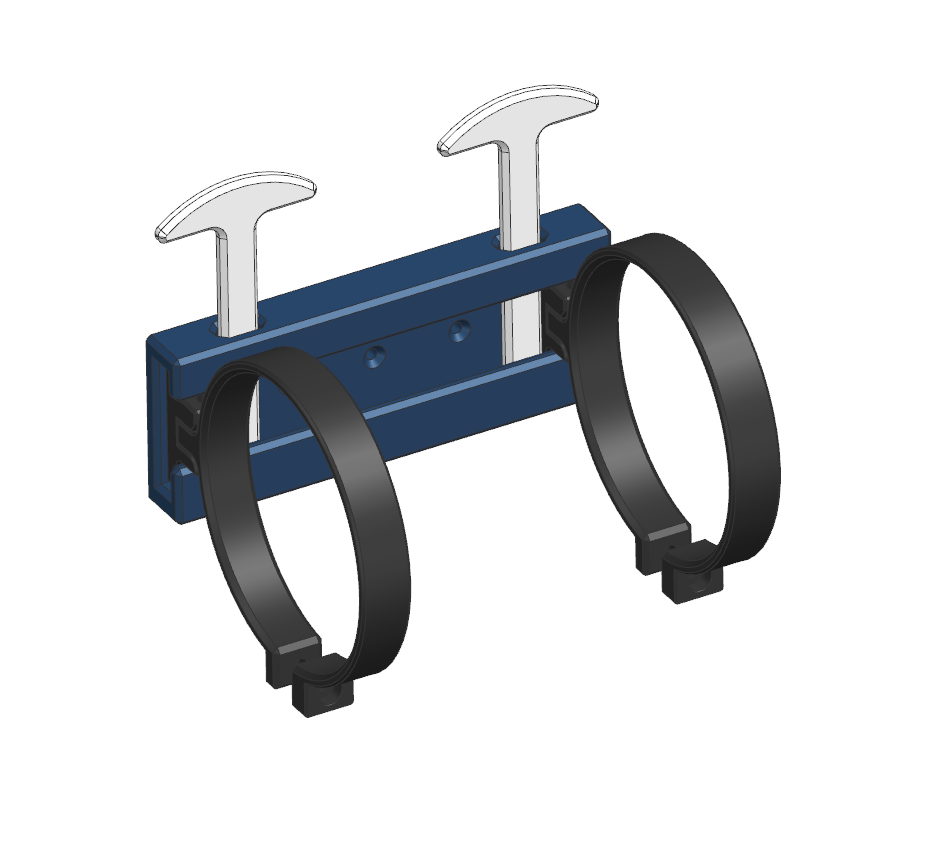

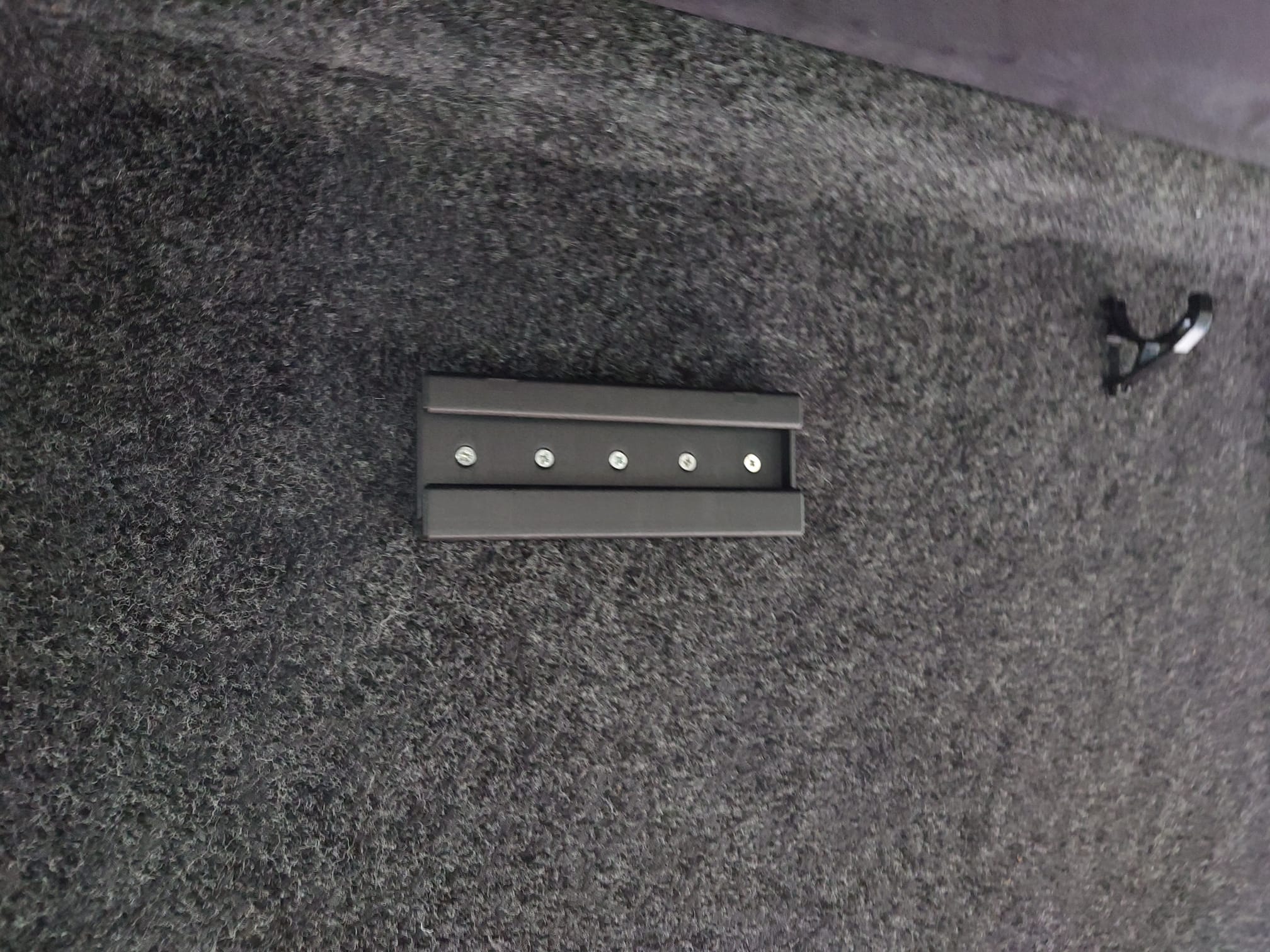

The mount is a C-channel rail that can be screwed to a wall.

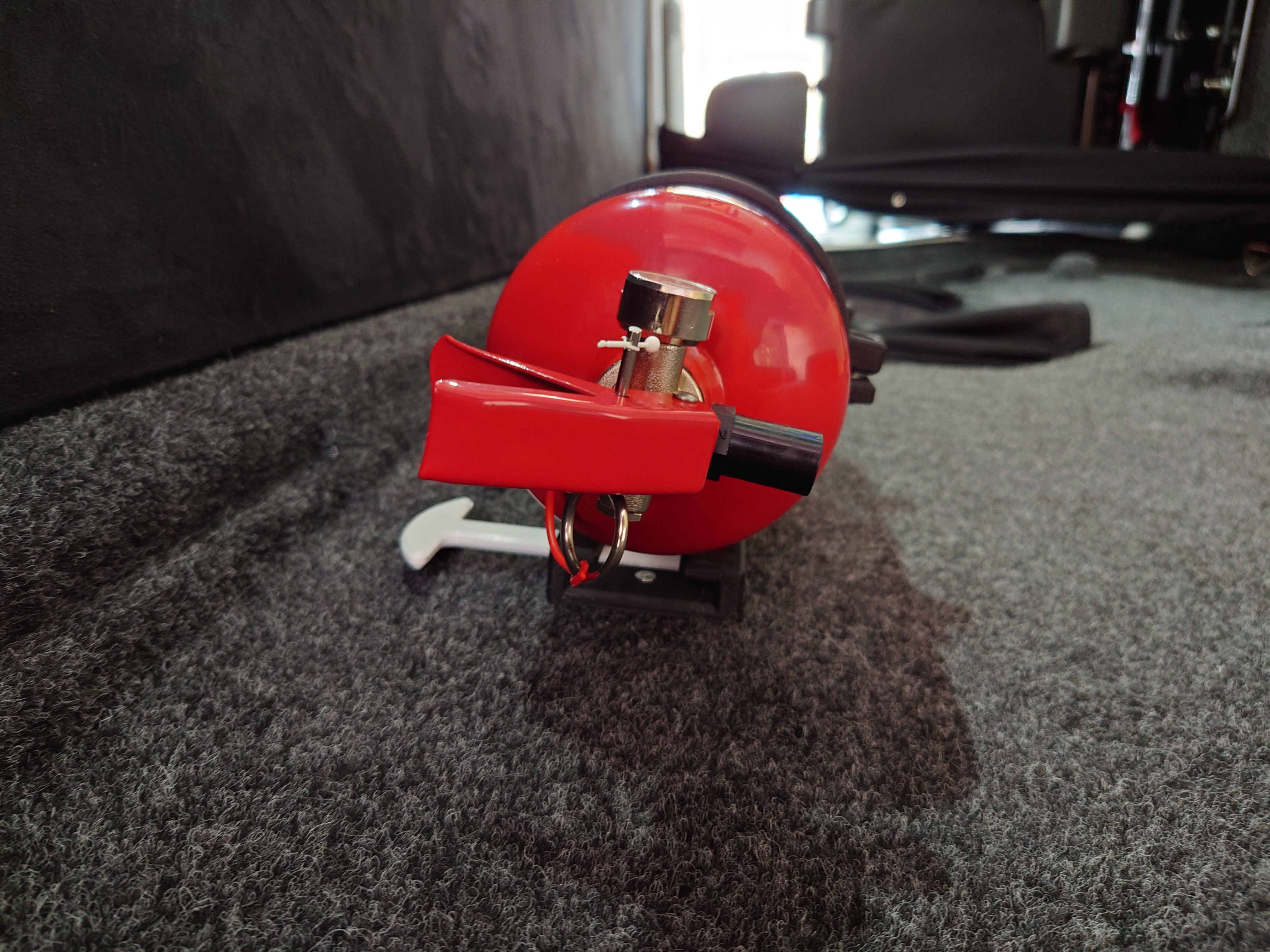

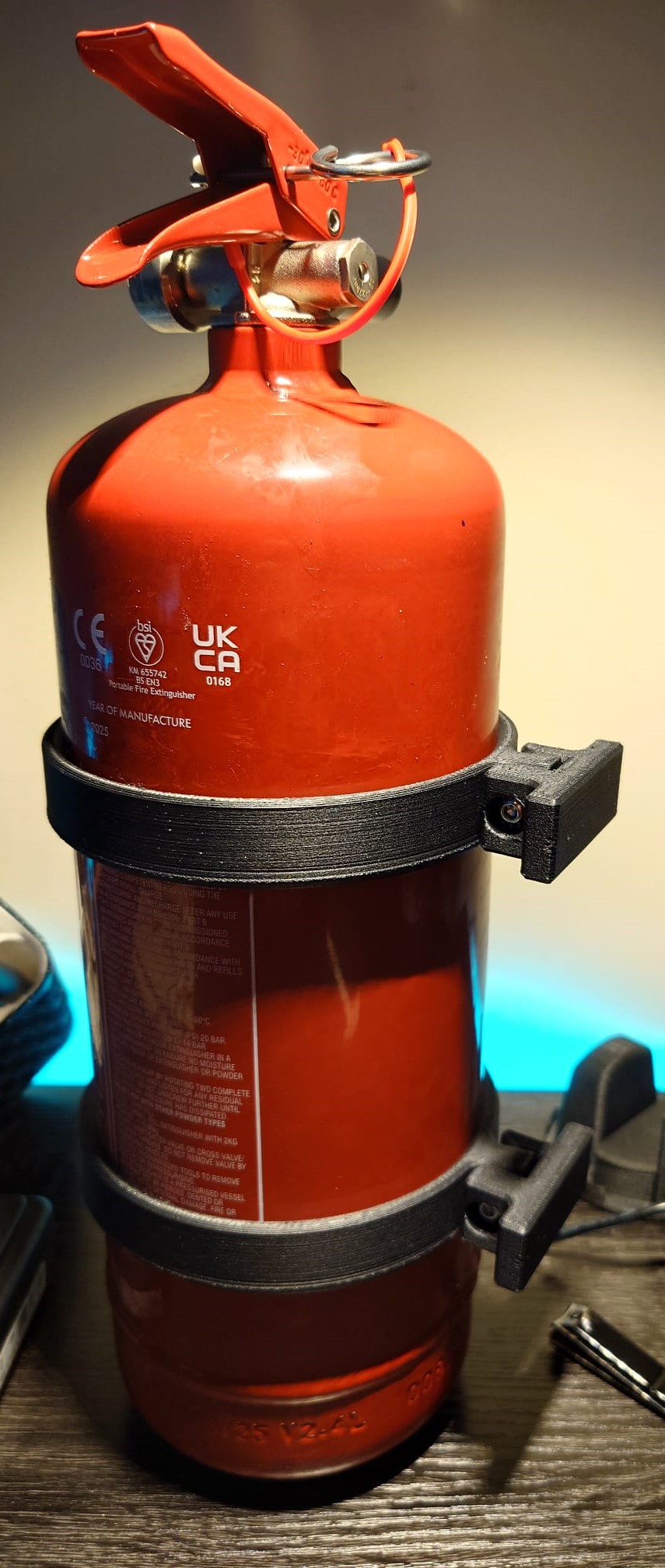

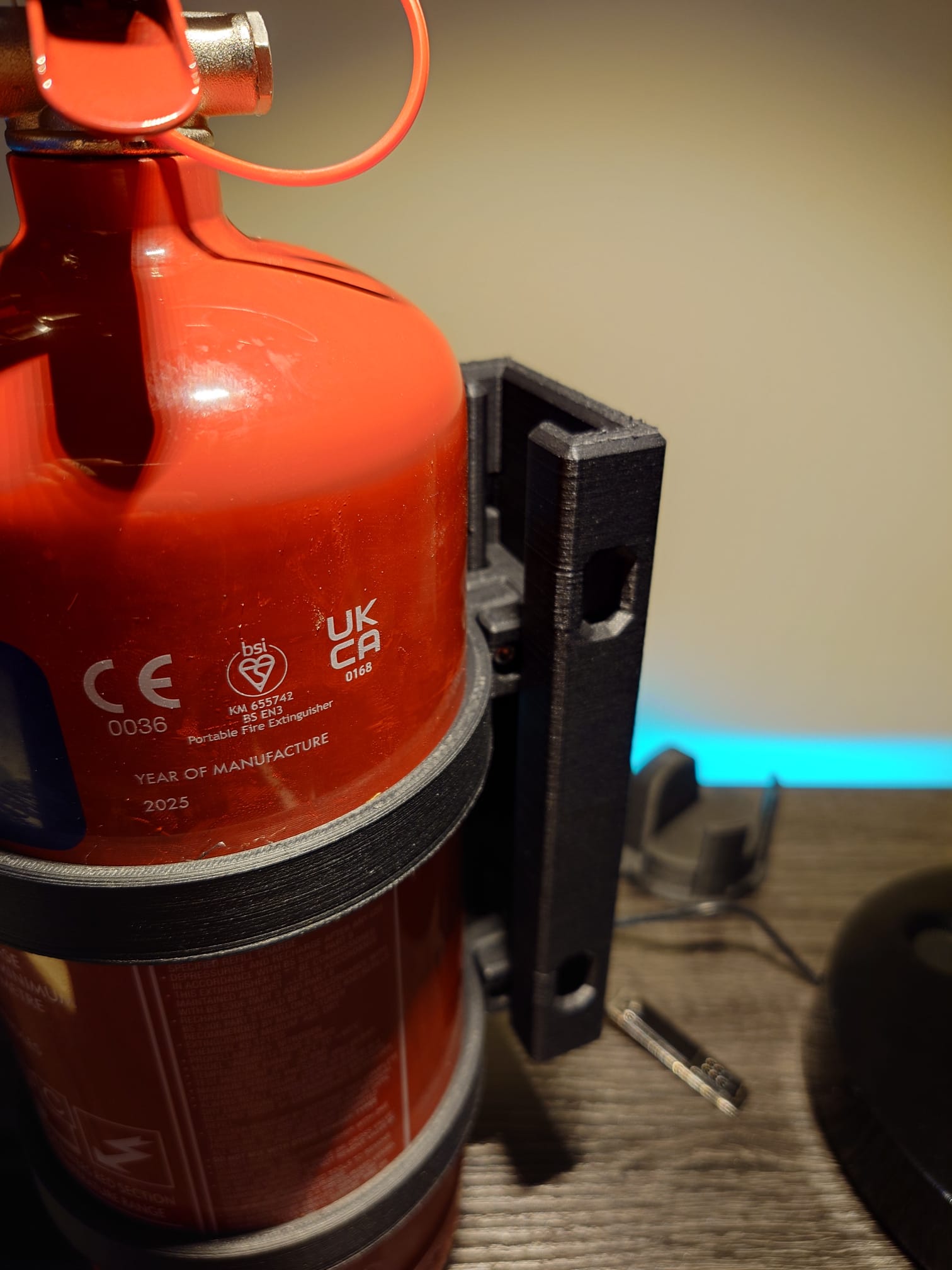

Two bands secure the extinguisher and allow it to be slid into the rail. Two release tabs are fitted to prevent the extinguisher from sliding out unintentionally. To use the extinguisher pull out the two white handles, slide the extinguisher off the rail and use as normal.

Printed in PETG-CF with 5 perimeters and 20% infill to ensure robustness.
