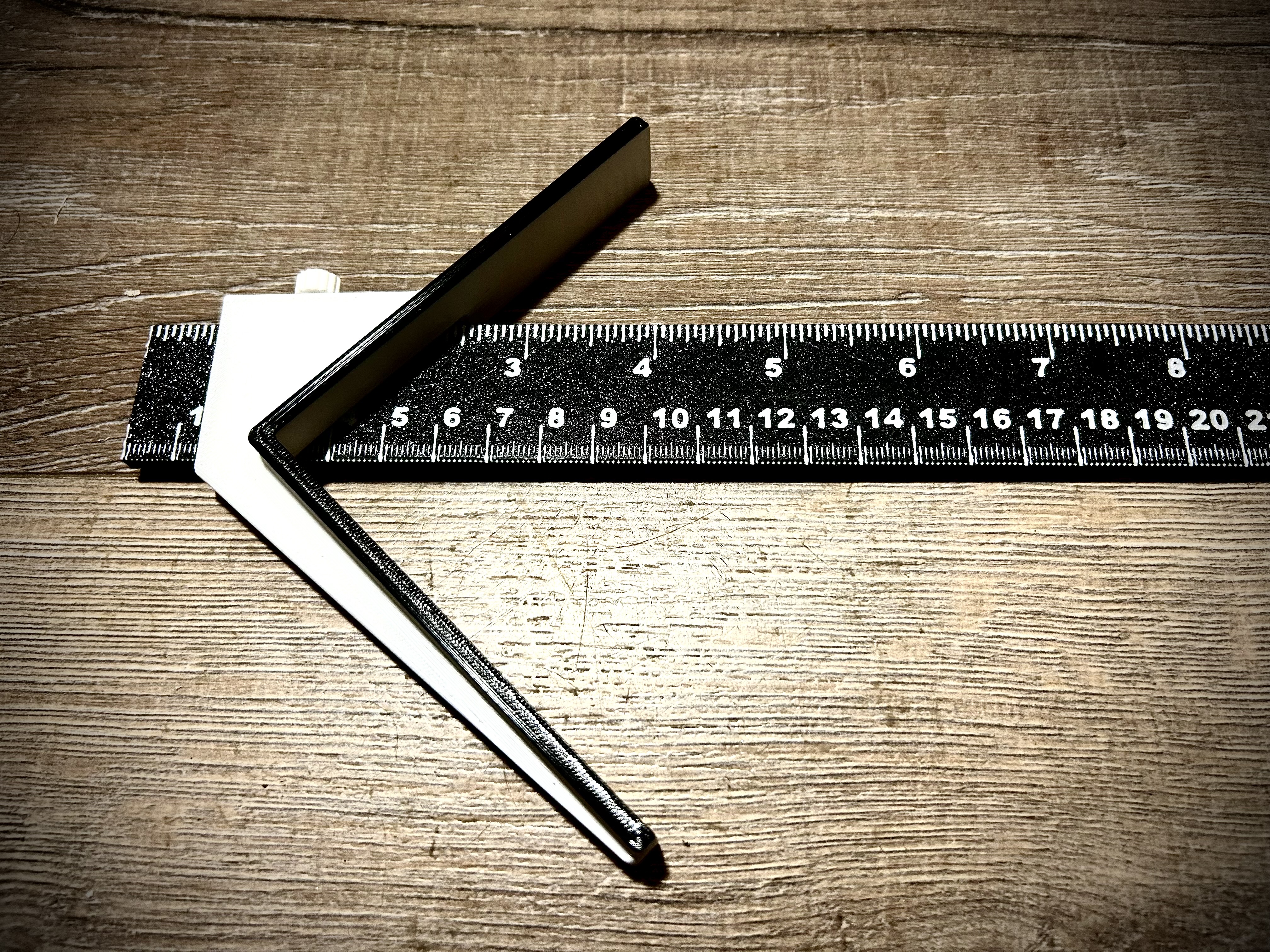

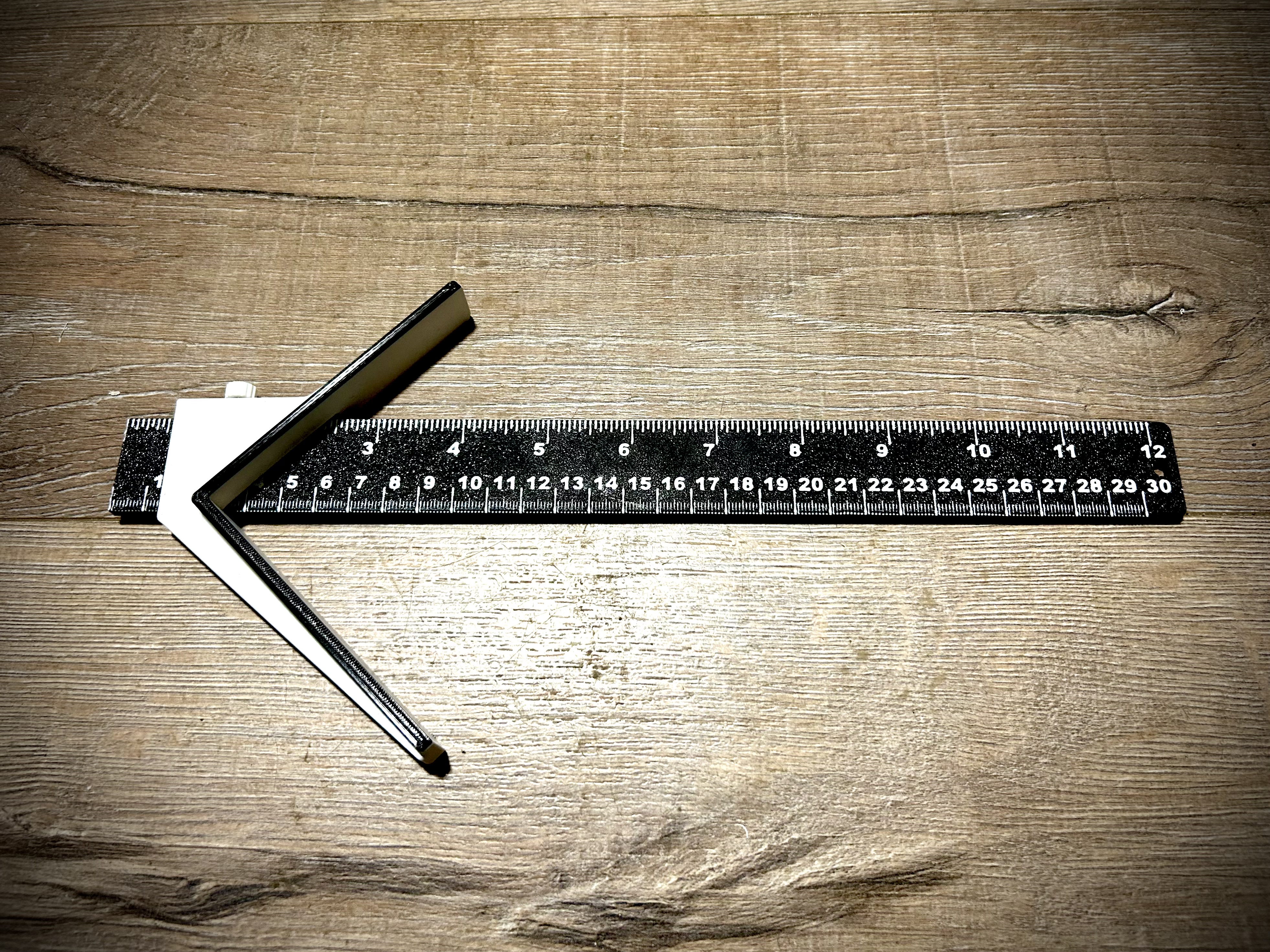

This is the first attempt to make an easy 3D printable centre finder tool using the flat 3D printed ruler design.
Design Iterations
Revision | Comment |
|---|---|
v1 | This locking mechanism needs refinement. It's not perfect and needs improvement to completely eliminate play. |
Printing the Centre Finder

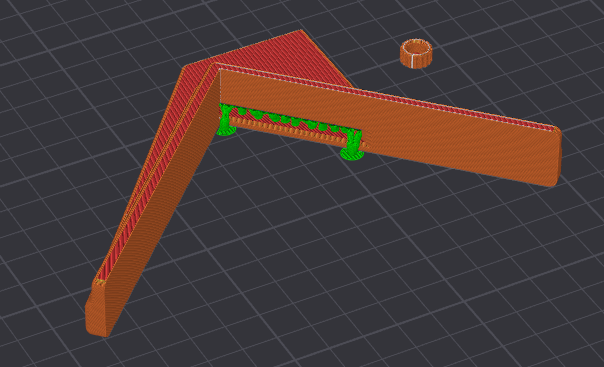

Just load the print layout as is and enable tree support.
Printing the ruler

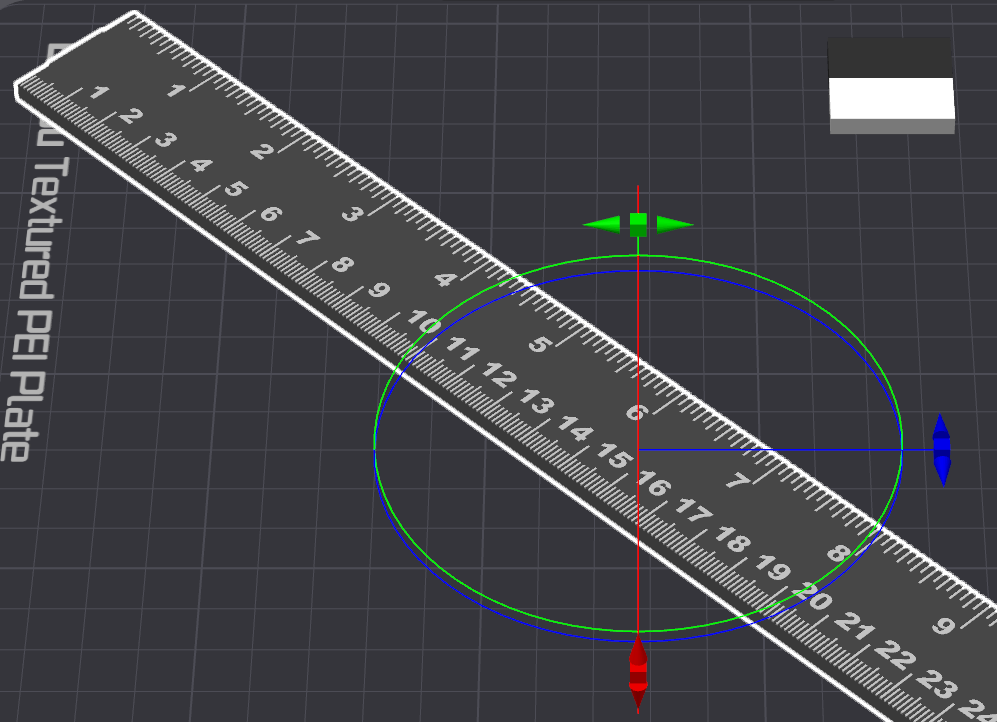

Load the ruler .3mf file into the slicer. and rotate to 45 degrees.

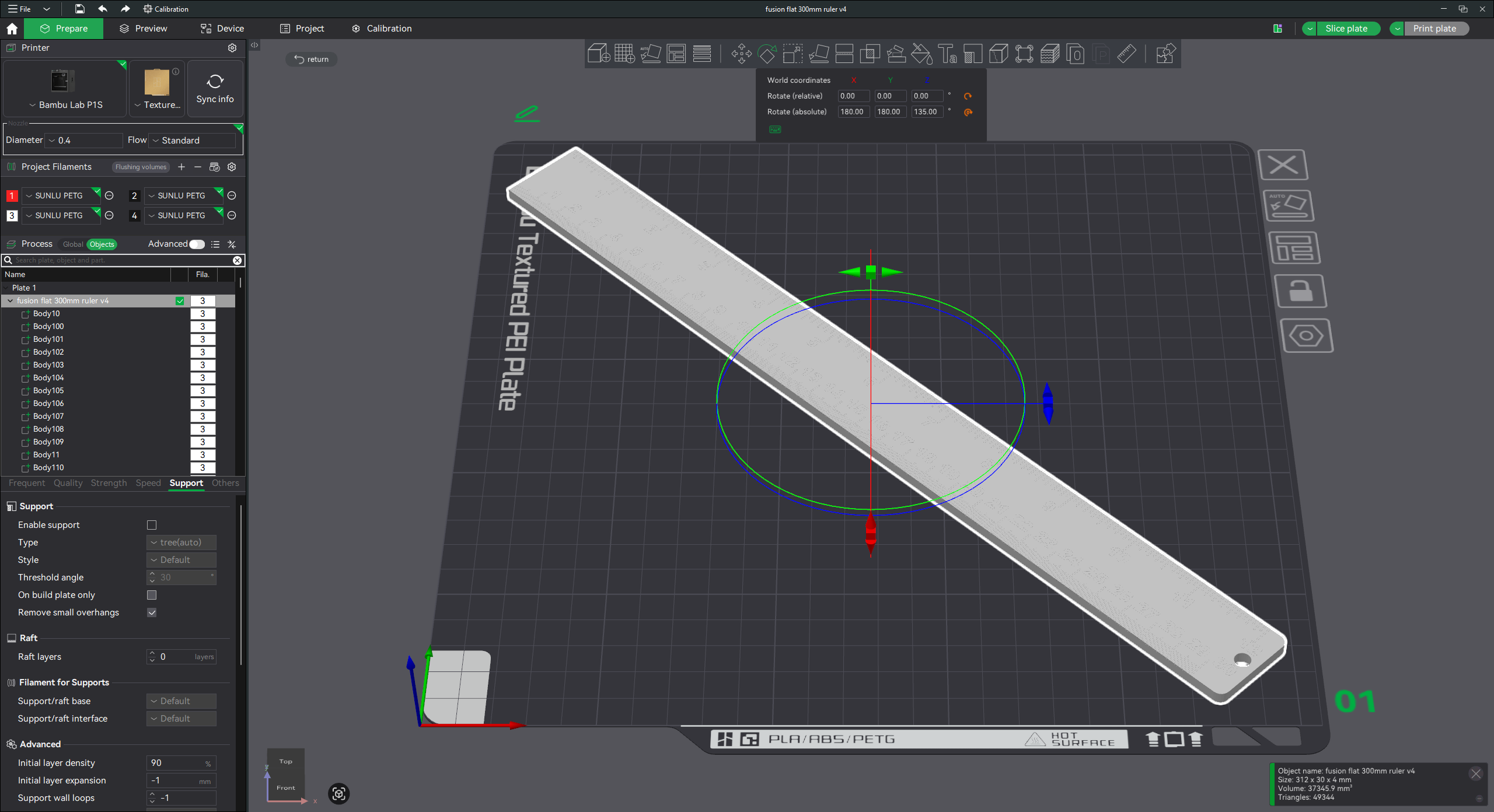

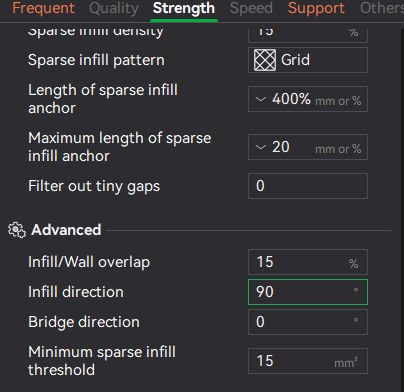

On the strength tab set infill to 90 degrees.

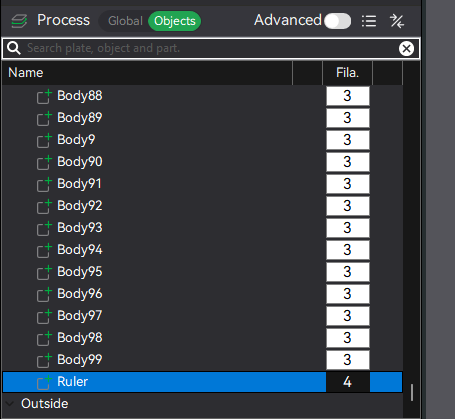

Select objects and change the "ruler" filament to the contrasting colour of your choice.
Optionally flip the ruler over on it's face for a really smoot printed surface finish.
Set printing and monitor the first layer. encase some blobs drop or text gets smeared.
Assembly

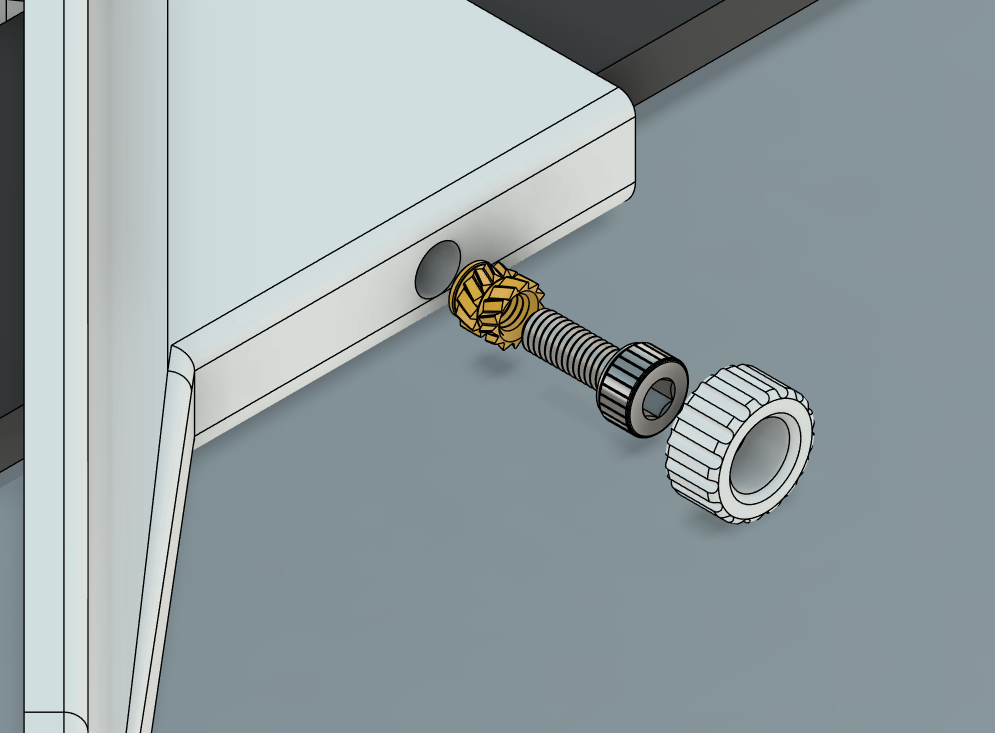

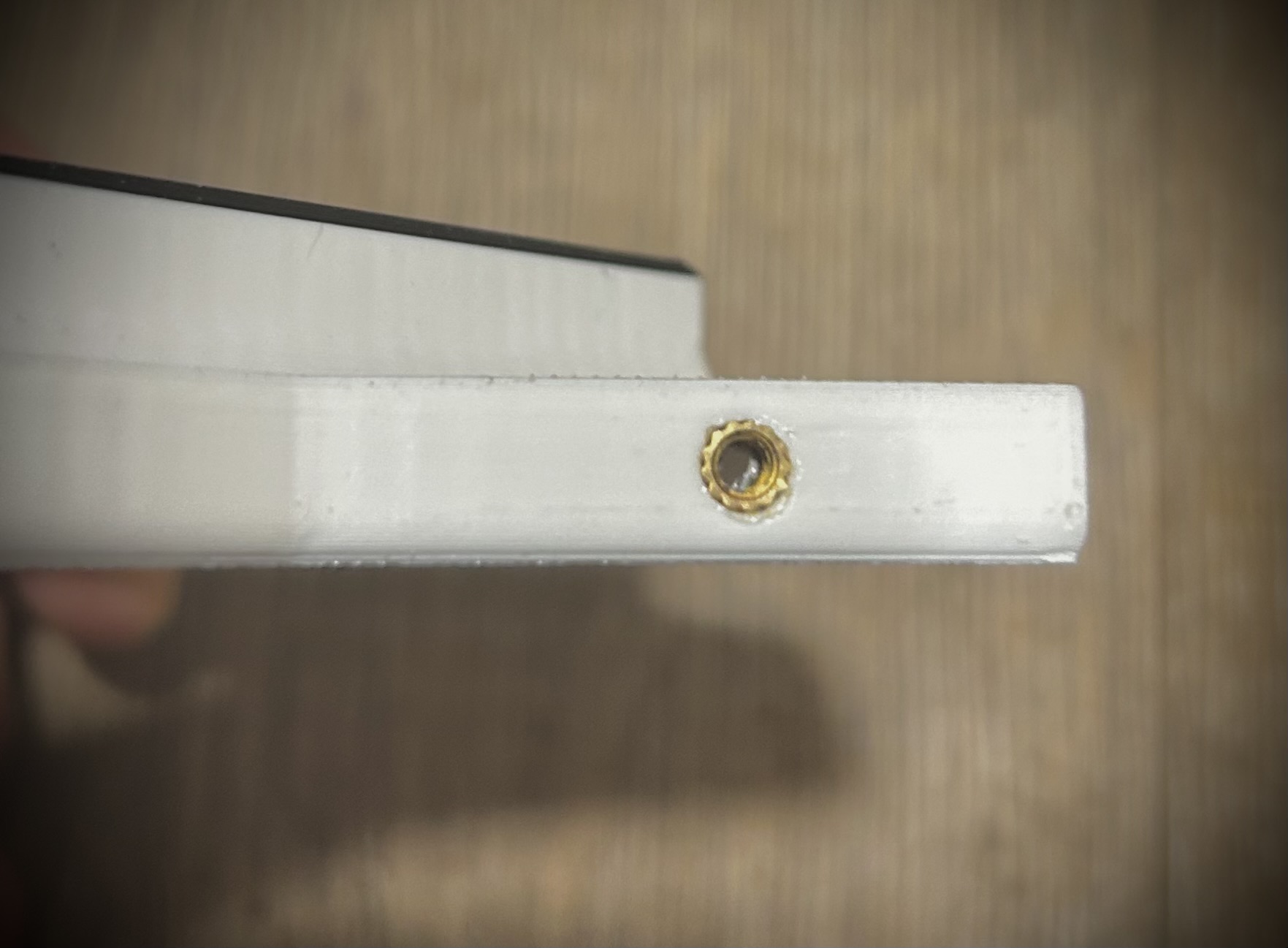

For assembly you need one M3 heat insert and one M3 x 10mm Hex Cap Screw
