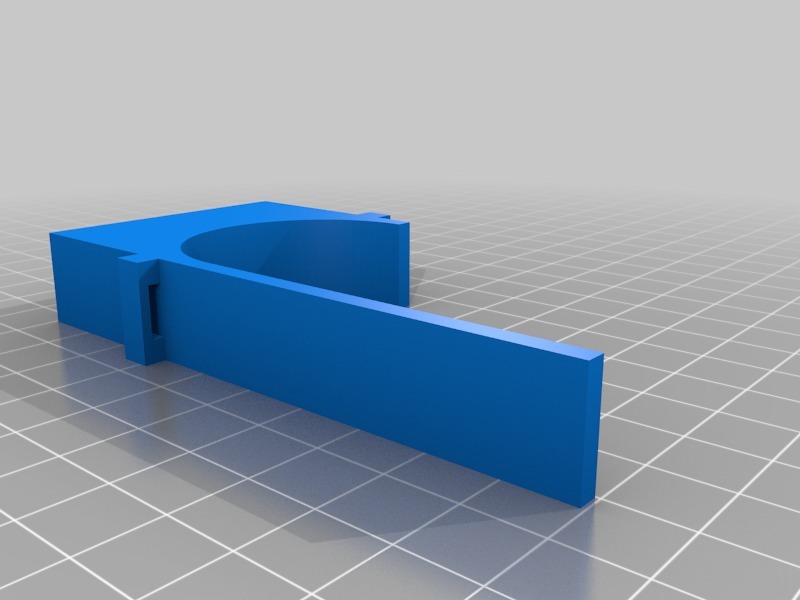

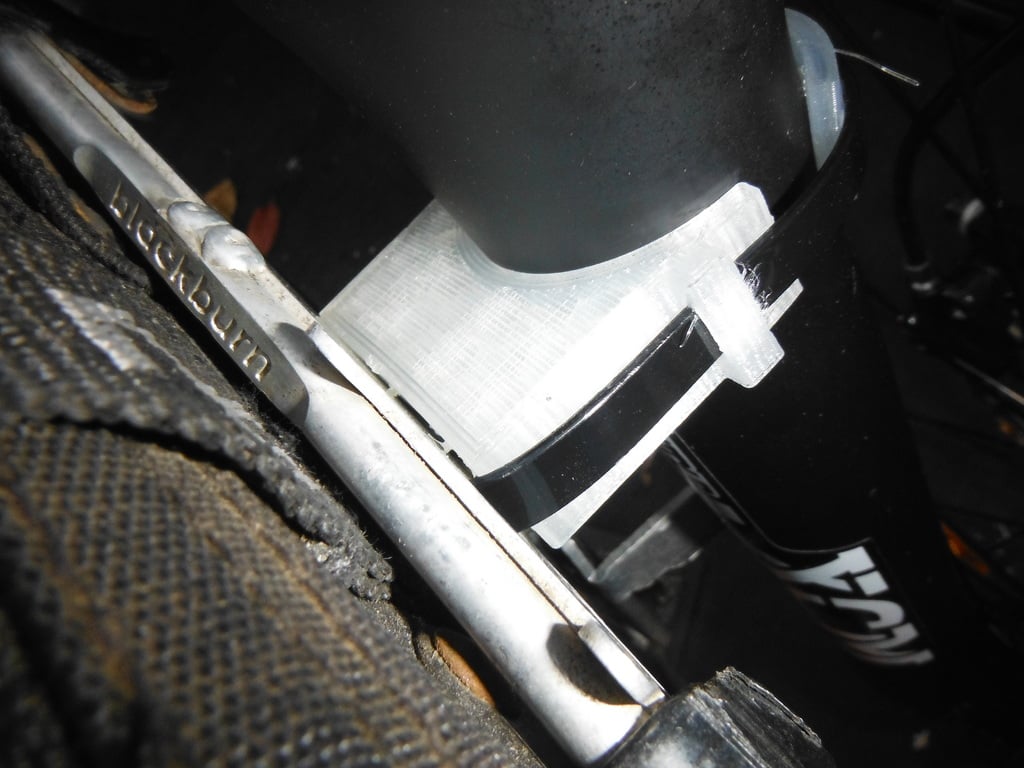

I needed to mount a flat thing (front pannier rack) to the front forks of my bike. I bent a Aluminium bracket to mount to the bootm hole to the mudgard mount but needed to tie the top to the front forks. So I designed this mount to be used with a cable tie, printed in Ninjaflex so that it grips nicely and does not scratch. Alternativly you could print in solid and use a strip of rubber on the inner surface.
The include files are my some standard things for drilling holes the right size (rodsandholes.scad) and an algorithm for getting walls to be an integer number of threads thick (thread_calc.scad and printer_settings.scad) if you put your nozzle diameter and layer height in the printer settings file thread_calc does the calculation.
