UPDATE 2:
I have fixed the pieces to at least be SLIGHTLY different, not very obvious but the geometry doesn't allow for much more.
UPDATE 1:
I just noticed the face with the smallest triangle has 3 of the same edge pieces, leading to some parity issues/unsolvabe states. Working on a solution!

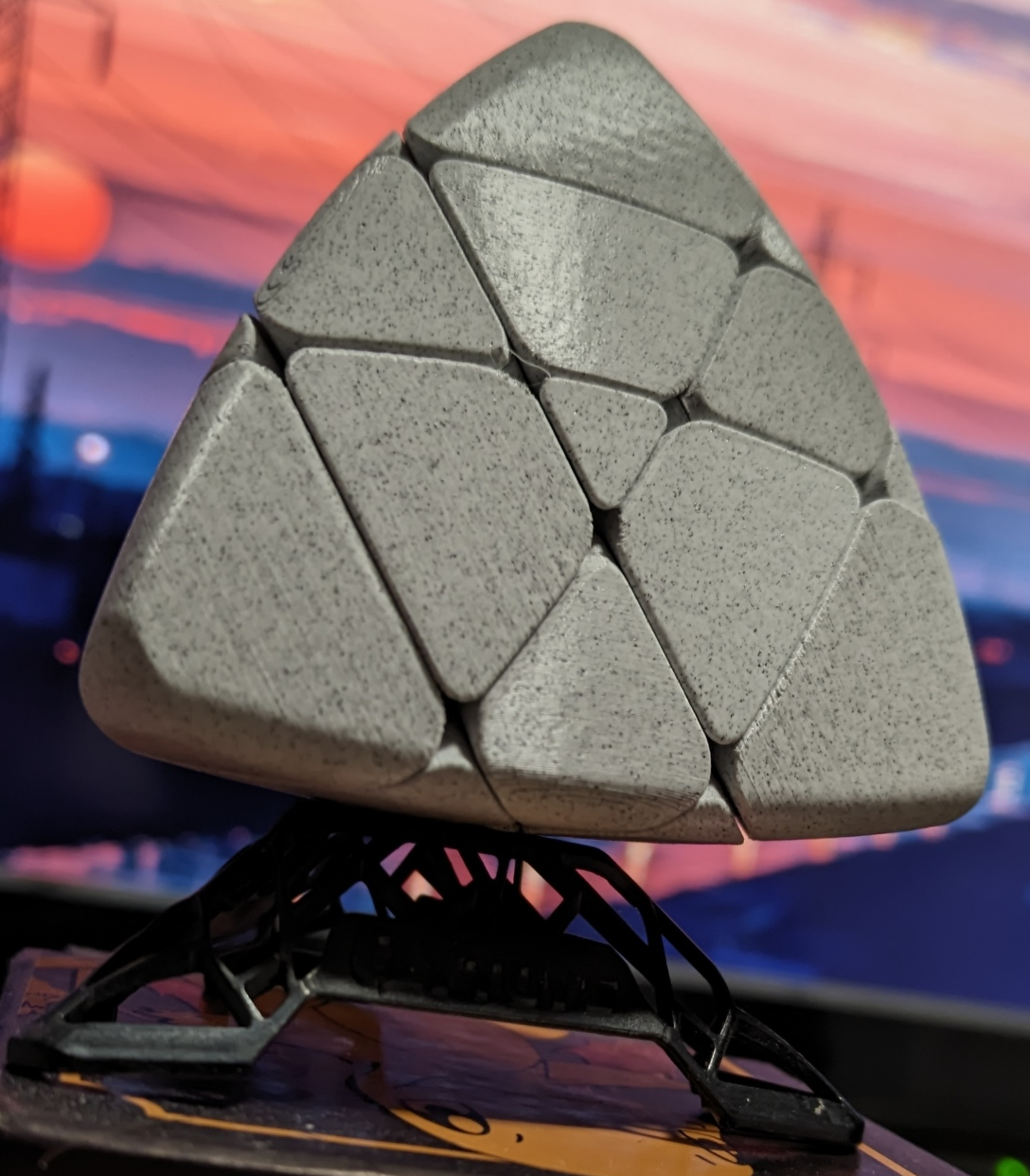

A mirror-modified version of a MasterMorphix cube.
Recommend printing settings:
Nozzle: .25mm (.4mm probably works, but haven't tried)
Layerheight: .12mm
Perimeters: 4, less would probably work but I like the shell being strong
Infill: 10% gyroid, less if you're brave, more if you like weight
This model does require the screws and springs of an existing cube, I used an old MoYu Meilong M V2, but I'm sure other core hardware also works
