Daisy Pod Case - Rev 5

Designed specifically for the Rev 5 Daisy Pod, this professional snap-fit case keeps both the Daisy Seed and Pod safe in a stylish and highly functional box.

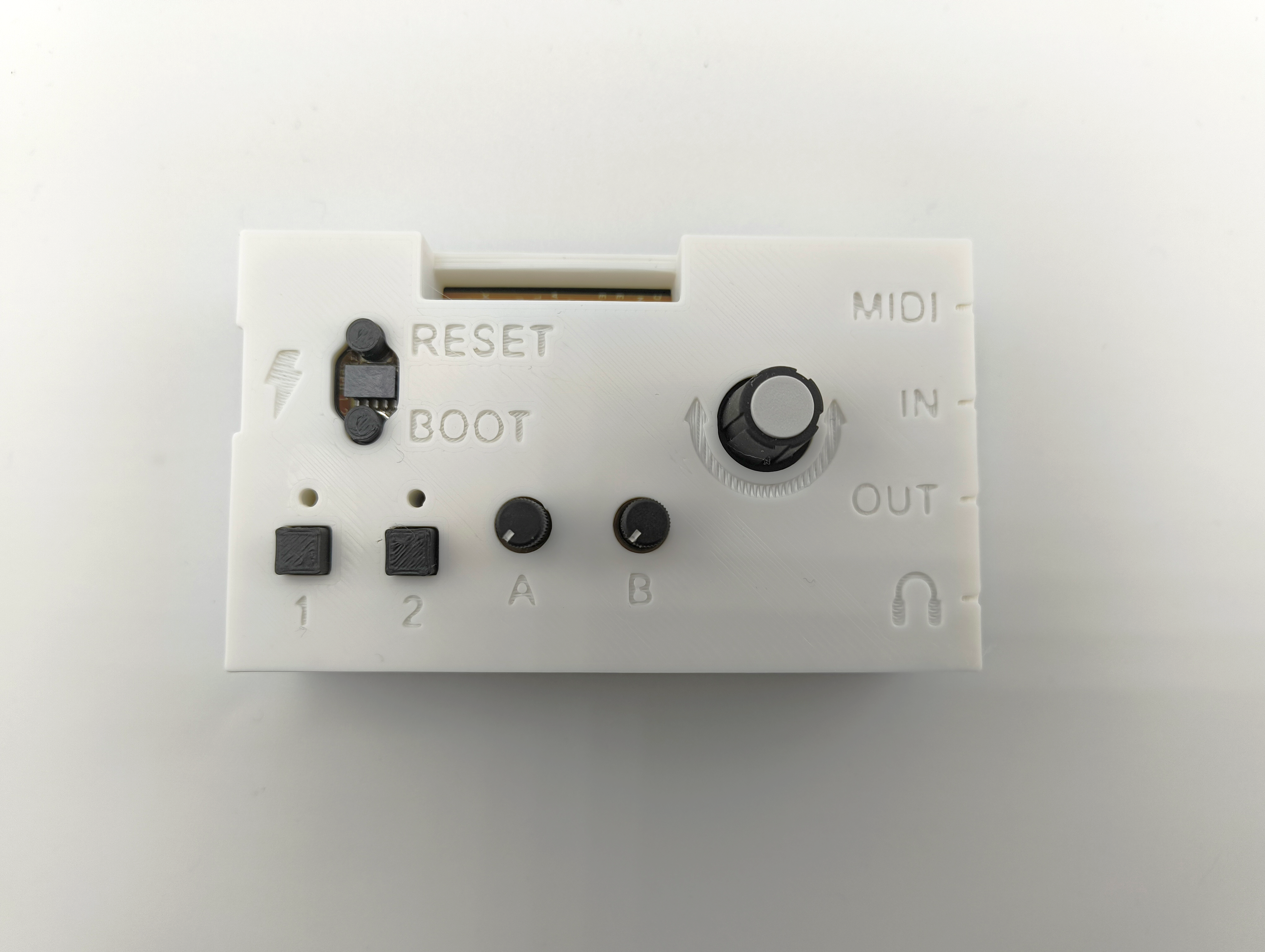

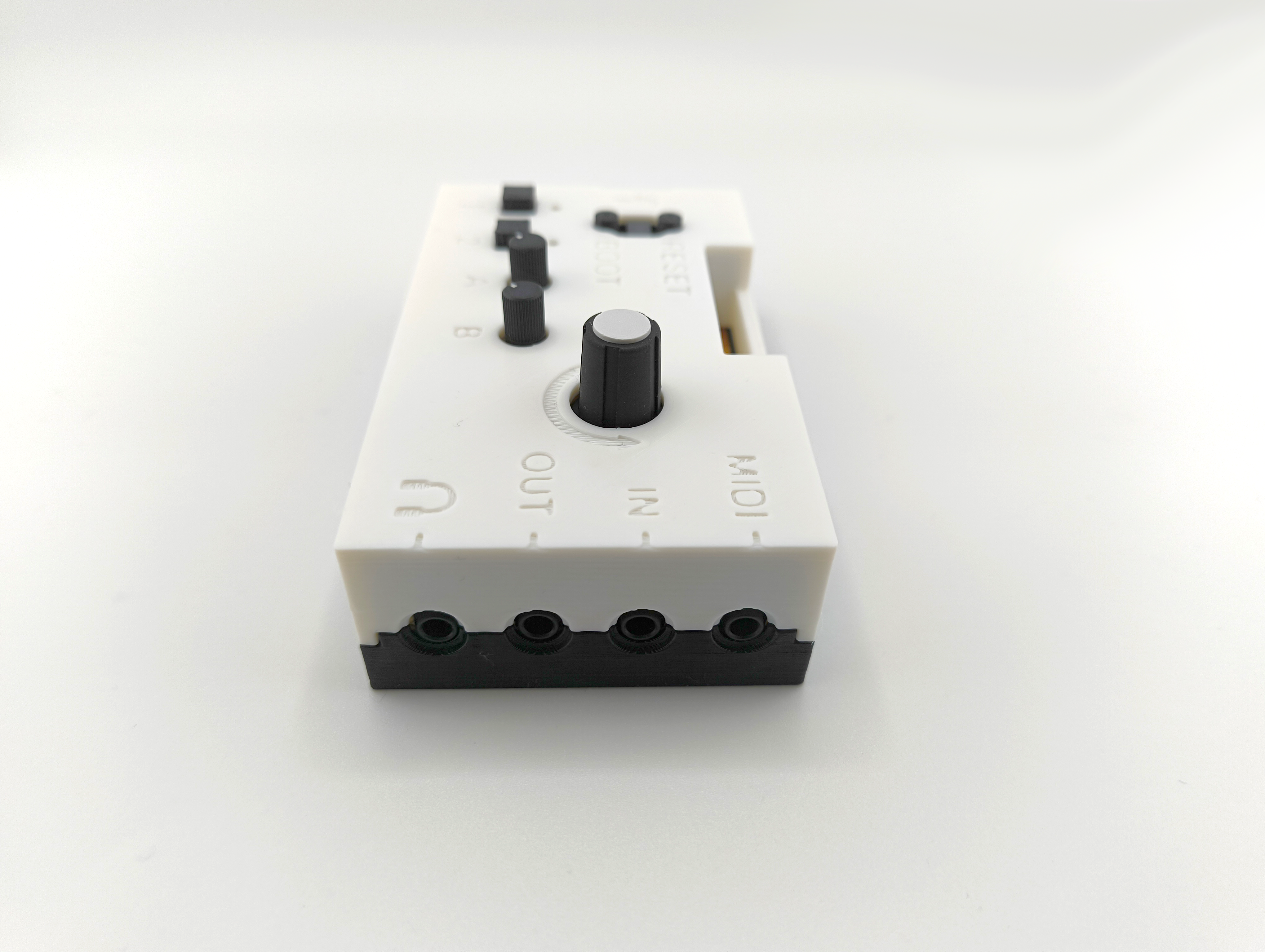

Featuring push button inserts, a snap-fit design as well as useful text/icons indicating the function of each port, you have access to all the ports and headers without needing to take the board out of the case.

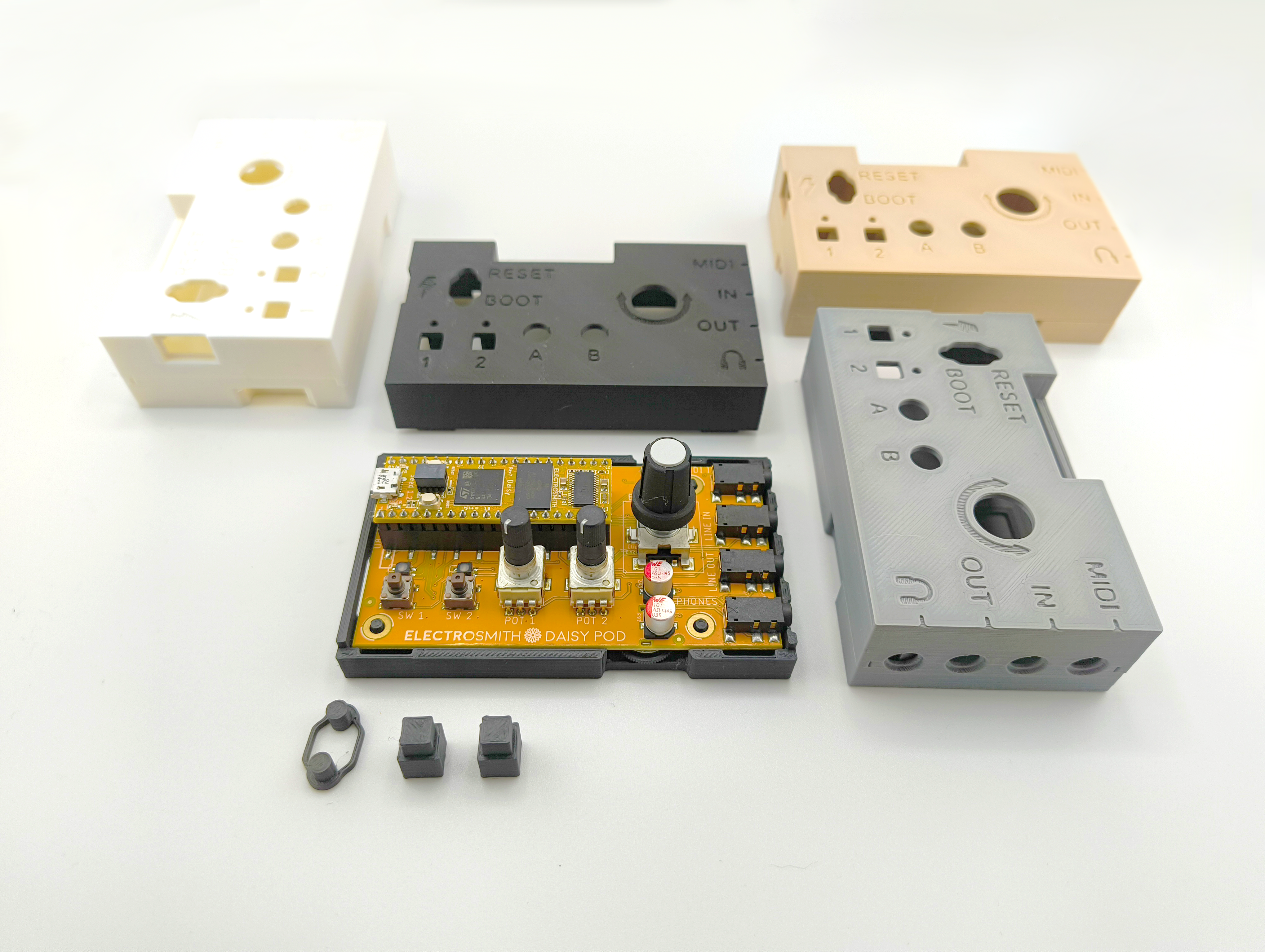

IMPORTANT: This case is ONLY compatible with the 2022 Rev 5 version of Daisy Pod - check images for compatibility! Cases for the older / newer Daisy Pod boards are available on my profile.

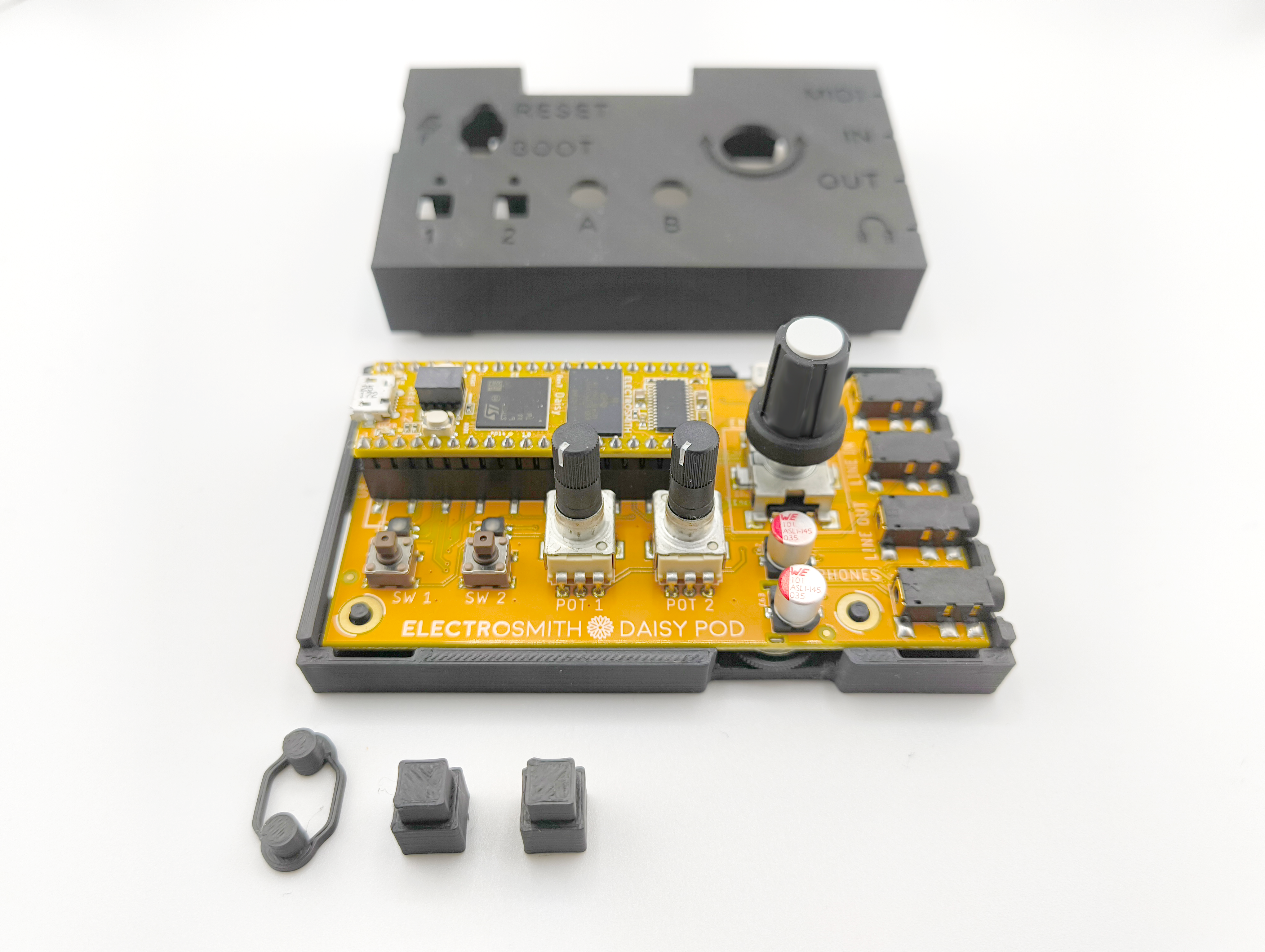

When assembling the case, you must push the sides of the case inwards as you clip the case together otherwise you risk snapping the locks!

If you find that your machine struggles to print tight tolerances accurately and the case is too tight, try selecting a finer layer height / slower preset or print the MK1 case instead.

Print Settings:

• Layer Height: 0.2mm

• Material: PLA

• Supports: Recommended for port overhangs but should print fine without

• Infill: 15%

Any issues or queries, please reach out and we'll get back to you as soon as possible.
