case for MgcSTEM LVP Module
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
I wanted an enclosure for a MgcSTEM LVP Module to protect the board from possible short circuits due to foreign objects coming in contact with exposed connections & traces on the circuit board.
The LVP module is one of these : https://www.amazon.com/dp/B0G7J22RQG

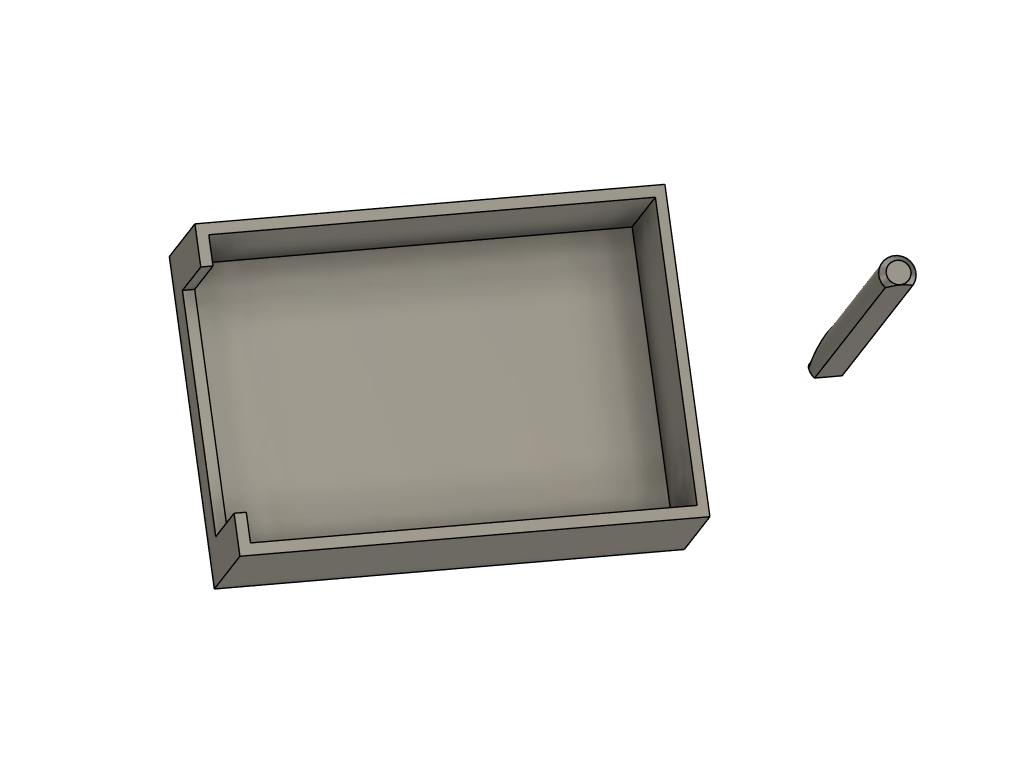

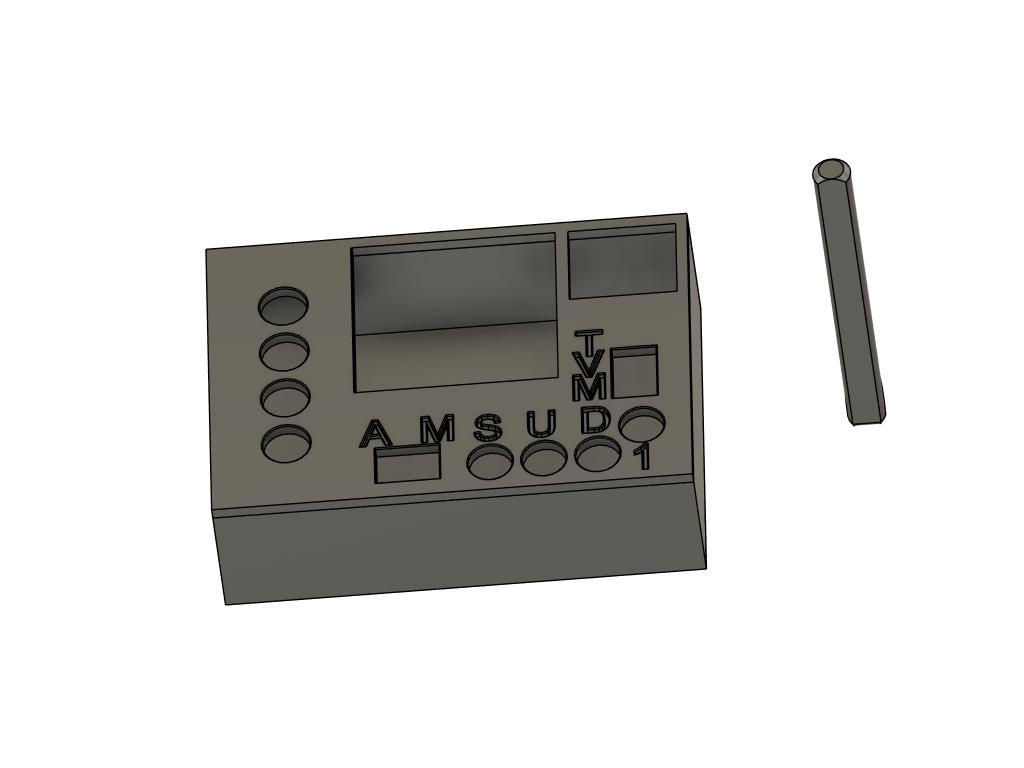

My enclosure consists of two parts, a base and a lid. Openings allow access to terminals, controls and indicators. I also include a "stylus" model for use in programming the board after install. It is sized to permit manipulation of slider switches and push buttons via the lid openings. Single letter markers on the lid document switch functions. A= automatic M=manual S=set U=up D=Down T=time V=voltage M=mode 1= Switch 1.

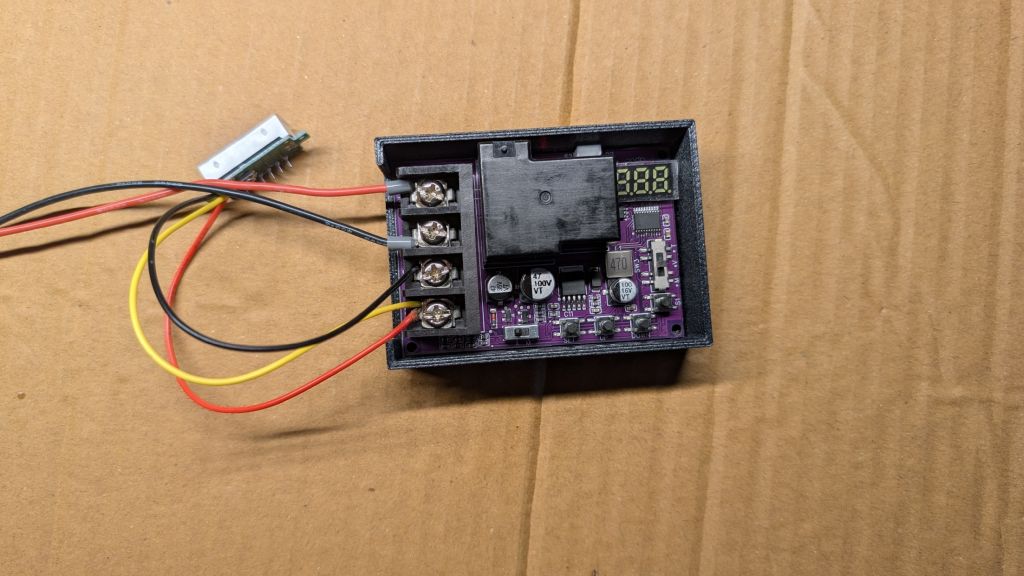

Print models in their native orientation. Assembly is just inserting the board in the base and attaching the lid with a couple of dabs of CA glue.
