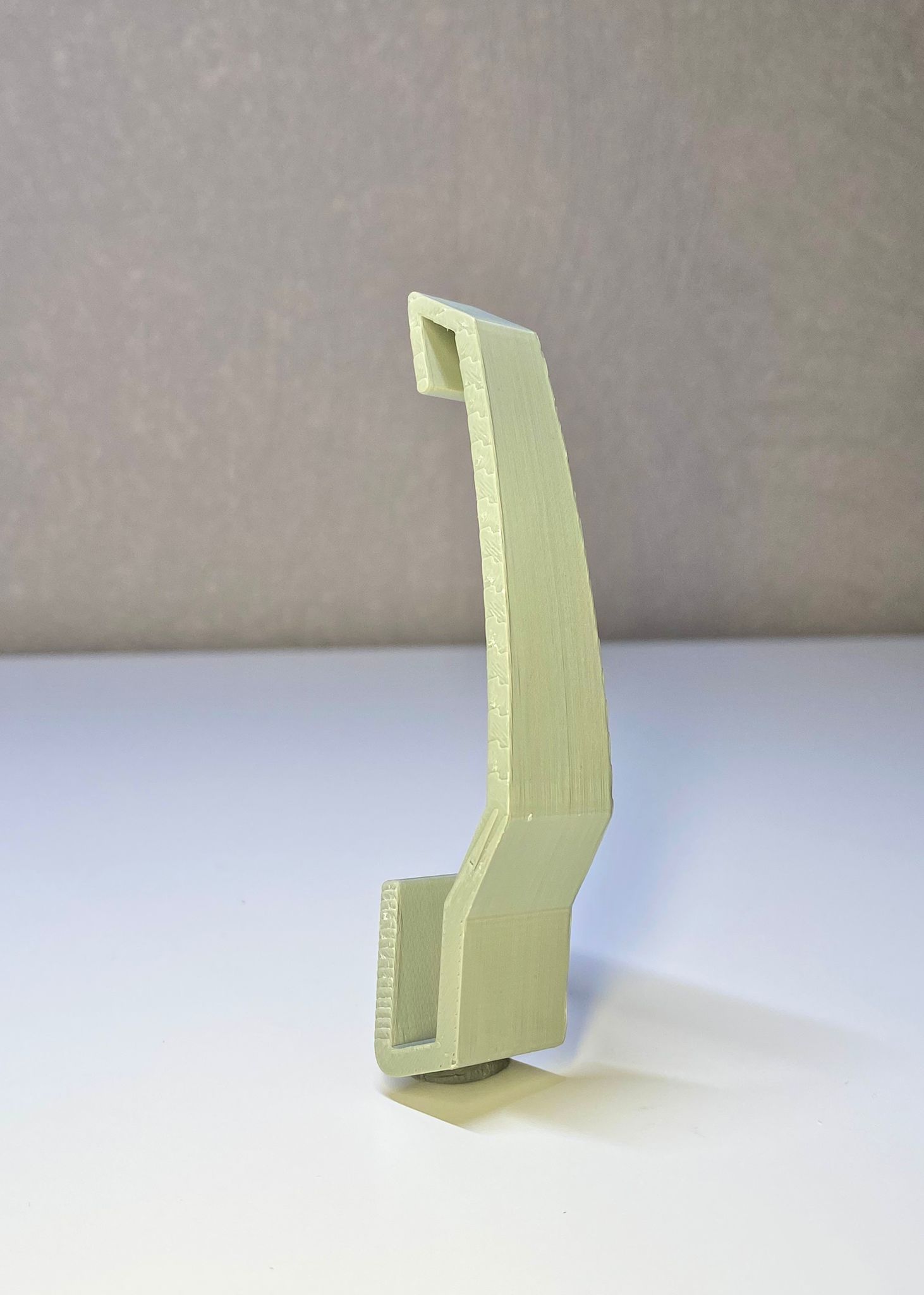

Smith Code helmet goggles clip

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Winter Sports
Licencja
Creative Commons — Attribution — Noncommercial — Share Alike
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

!!! READ DESCRIPTION !!!

General:

  • This clip has only been tested on my XL model of the Code helmet so I cannot guarantee it will fit on smaller sizes. I recommend trying to print it anyways, STF files are included (normally)

  • My clip is printed in PLA and works fine outdoors. In PETG I recommend bumping up infill and wall loops. I found PETG a little bit too soft as I could feel it vibrate on lifts with regular print settings.

  • The model is not an exact copy of the original clip, but the insert part into the helmet should fit well.

  • Don't use this model commercially. You can gift printed out versions for free, I just don't want pottential legal issues with Smith 'n co.

For printing:

  • reduce speed on first layer suffieciently (I used 50mm/s with PLA) or use brims. I found that otherwise it comes loose easily. It doesn't ruin the print since the supports stay attached, but will need polishing then and doesn't look great cosmetically.

  • regular supports worked best for me

  • don't print the model vertically for durability purposes

I’m always open for feedback and help! I wish good snow upon everyone out there




Story if you really want to know:

My goggle clip fell off somewhere on the mountains. I searched online to buy/print a replacement but couldn’t find any pre-existing models for Smith’s Code helmet (at the time) so I gave up.

After needing to hike up half an icy black slope because my goggles fell off during a fall I signed up to TinkerCad.

I modeled it myself with the only goal of it working. It obviously doesn’t have the same dimensions as the original, instead I focused on the dimensions of the insert part into the helmet.

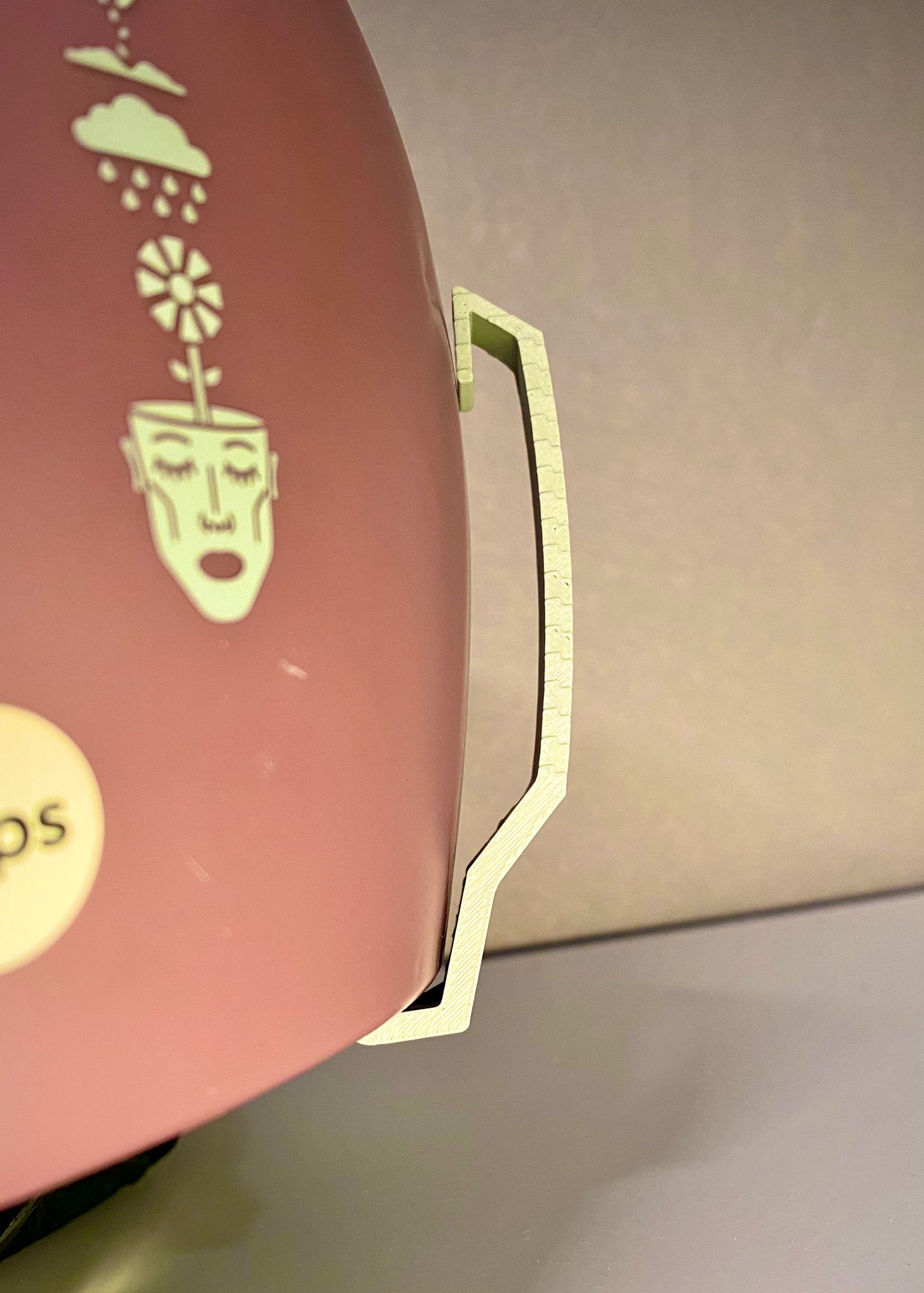

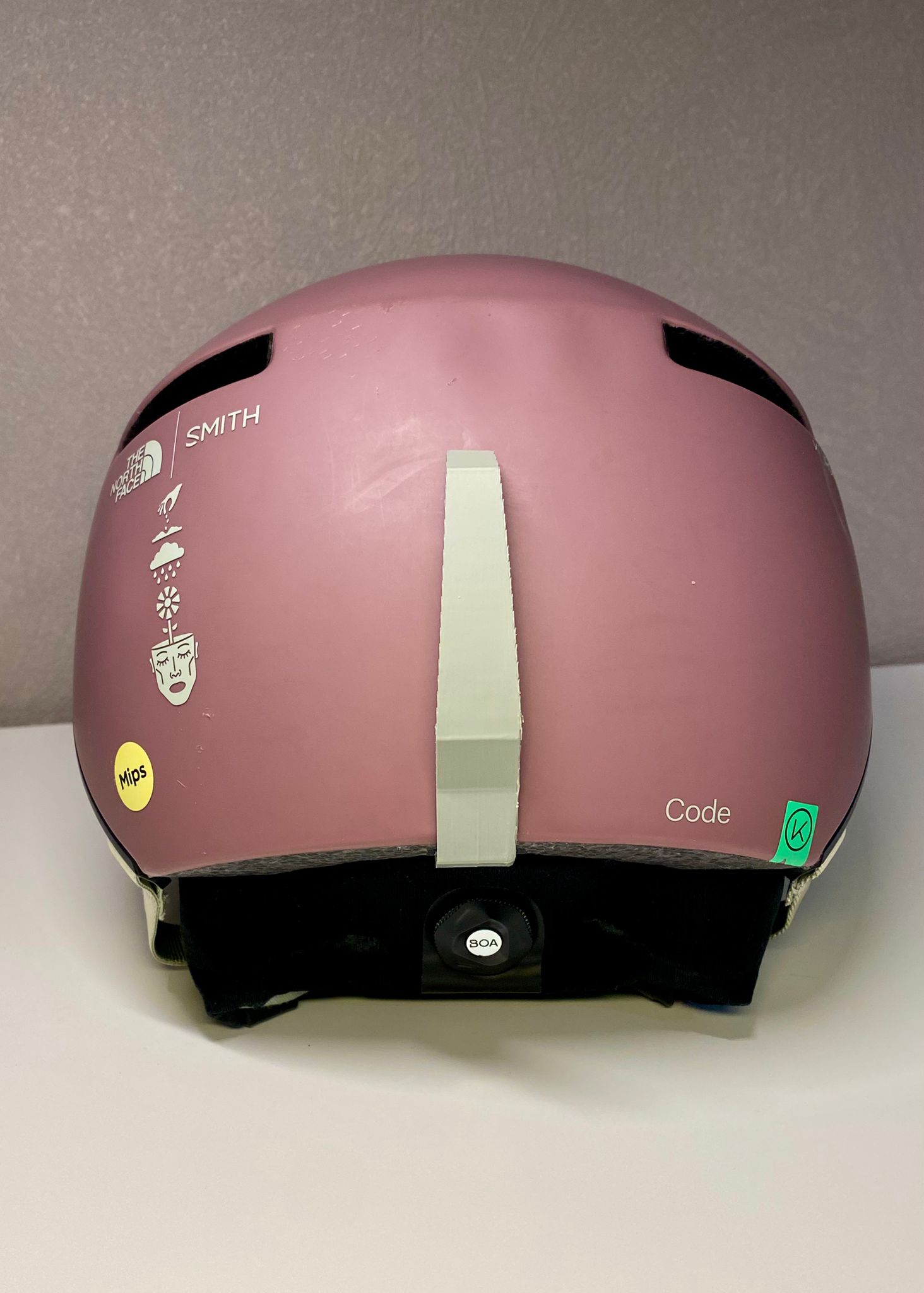

It fits my helmet well, hasn’t come off (yet), even after multiple falls. Actually surprisingly good at absorbing impact if you hit the back of your head straight on. I hope it can help out others as well.

I printed in PLA because of the color and it works nice in the mountains. You can totally print in PETG, but I do recommend bumping up infill density and wall loops. Choose the material you prefer
