Rolladen Stopper
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Simple piece that prevents roller shutters from disappearing into the roller shutter box. Each roller shutter should have two stoppers at their lower end. I was horrified when a friend told me, no my shutters don't have any stops. I just have to be careful when pulling up the shutters. Here you are.

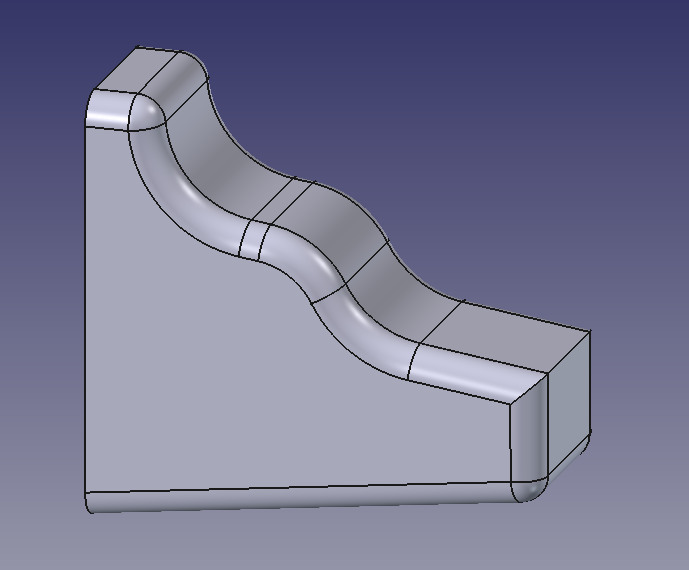

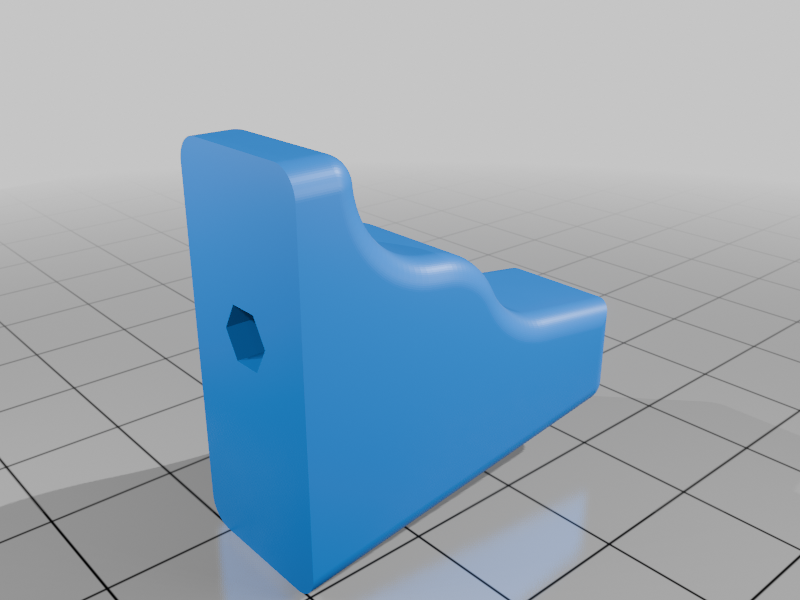

The design is for self cutting screws 25 mm long, 4.6 mm diameter. The length of the Stoppers is 32 mm, because the gap at the shutter box is ca. 25 mm here. But hey, it is parametric, find the FreeCAD sketch that defines the hexagon hole and adapt to your needs.
Category: Outdoor & Garden
