Eclipse Board Game Piece Lock
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Board Games
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

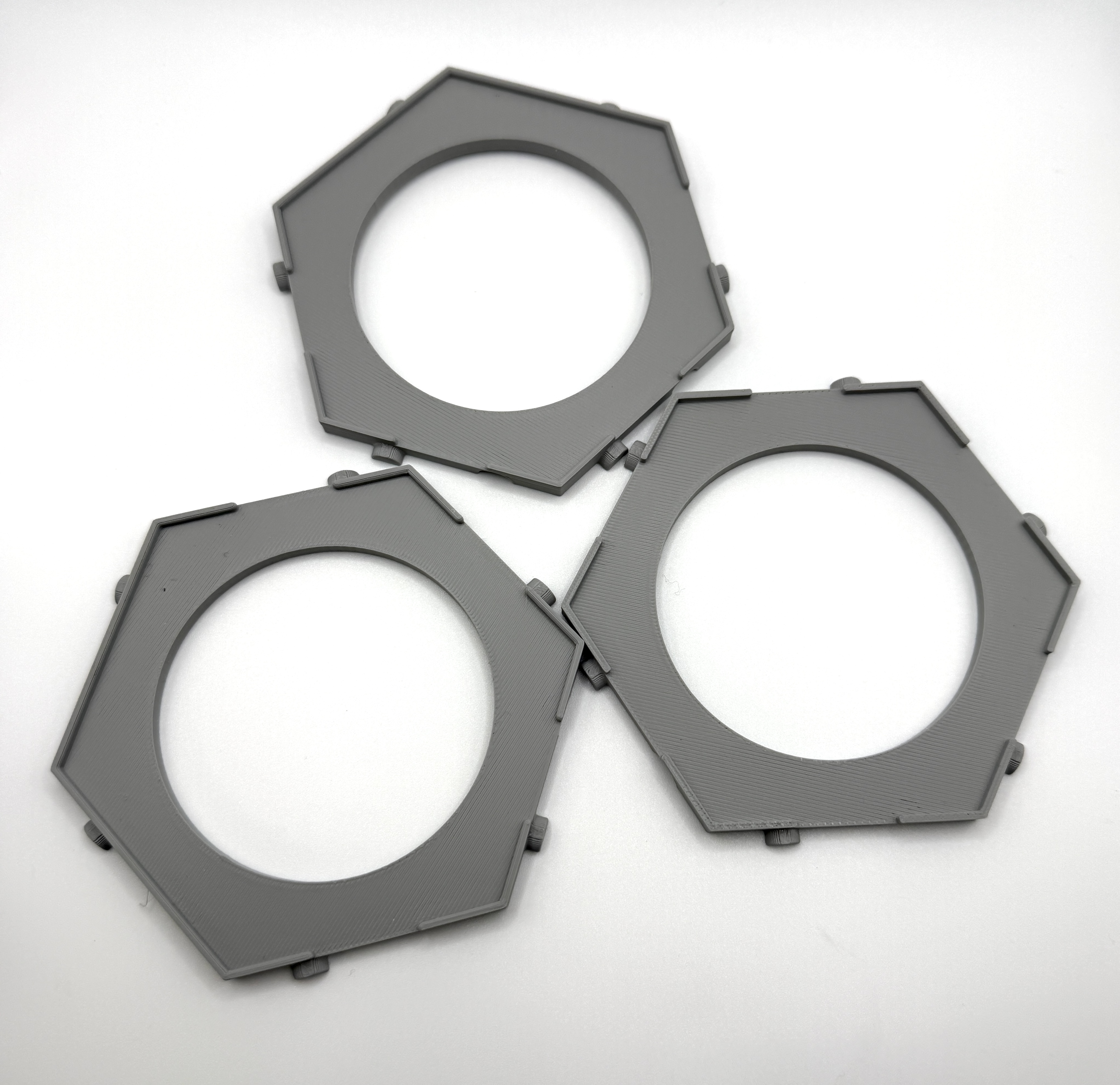

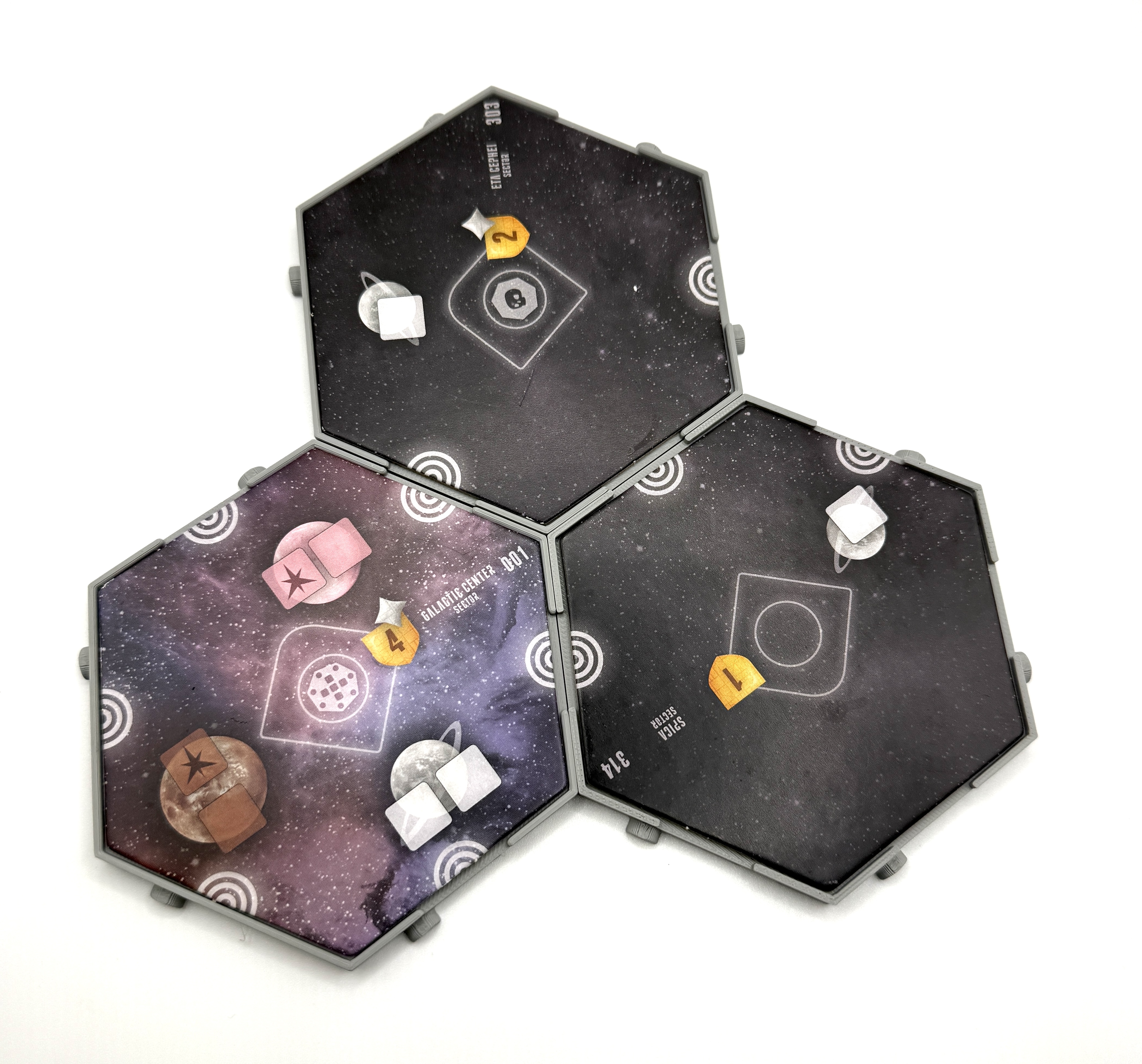

This really helps keep the board in place during the game. There are three types of lock pieces

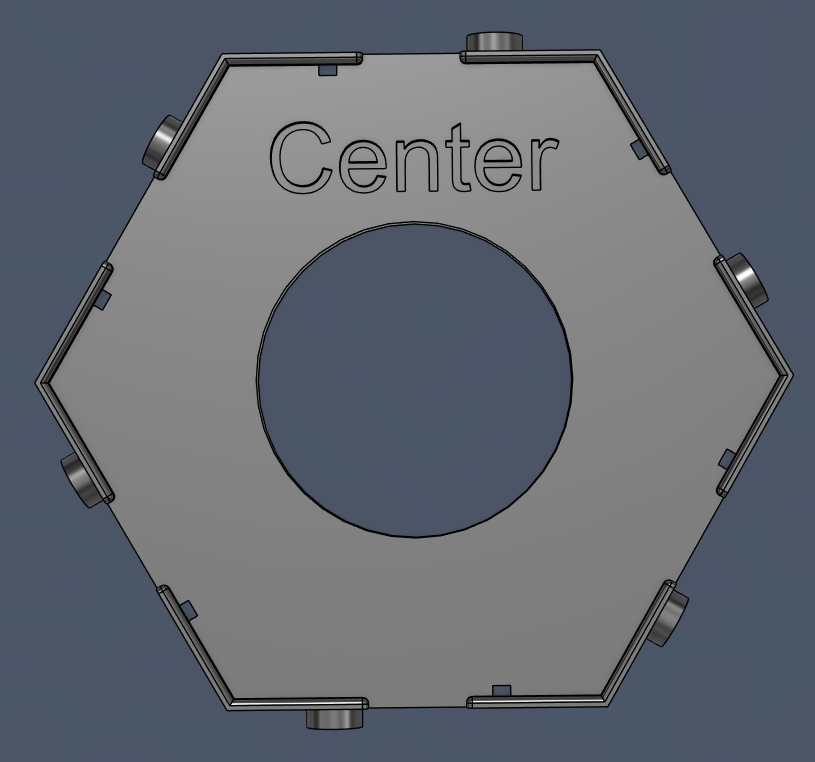

The center tile is for the center starting piece (1 only)

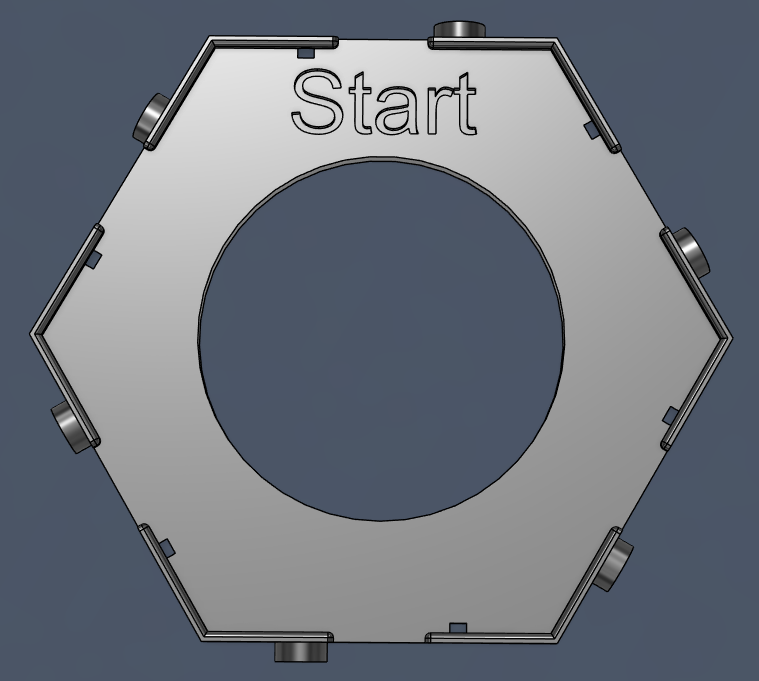

The start tiles are for the home worlds of each player (1 per player)

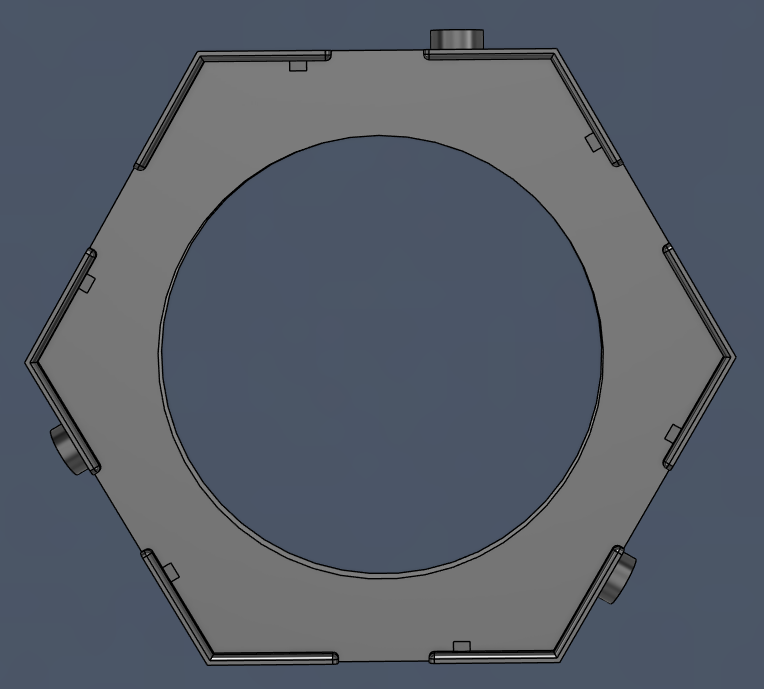

The normal tiles are for all the rest of the tiles (as many as you need)
The center tiles and start tiles are a bit special in that they are 1 mm thinner. This allowed me to put in a recessed hole for some rubber feet. The feet I used are 3mm high, so they are designed to protrude by 1mm. The rubber feet on these tiles help keep the board anchored to the table.
You don't need to use these special tiles. You could just use all normal tiles. They will still keep the board together and locked. Note that if you are not going to use rubber feet, then use only the normal tiles since the other tiles will not be high enough.
I would recommend printing with supports. It helps to keep the recessed holes for the rubber feet a little cleaner.
Note: This is designed for the first edition of Eclipse. I understand there is now a second edition, and I do not know if the board pieces are the same size.
