DIY Enclosure AD5M (NO EXTRA SCREWS / TOOLS)

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Other Printer Parts & Upgrades
Licencja
Creative Commons — Attribution — Noncommercial — Share Alike
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

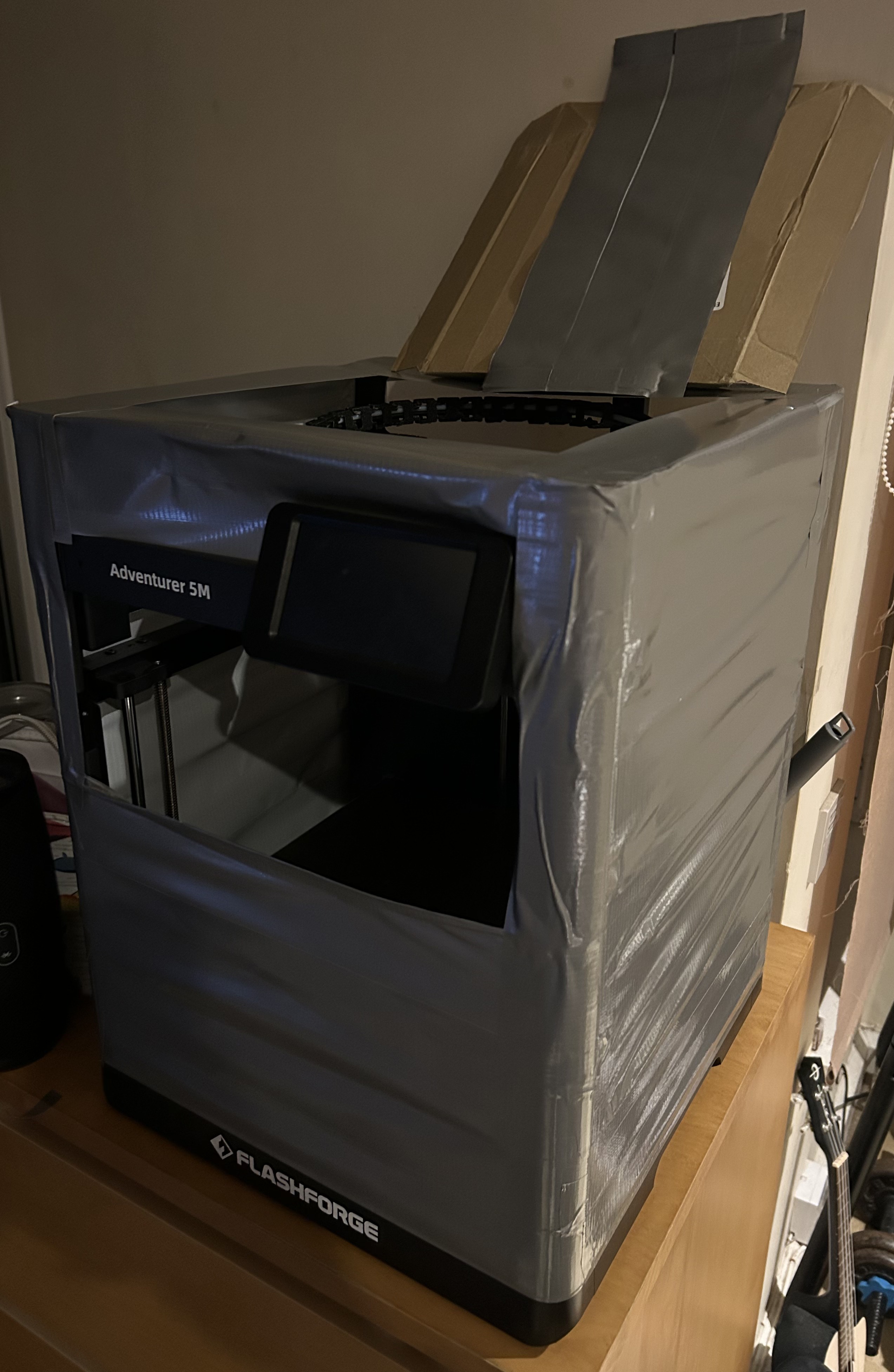

Using tape and the printed mounts you can create a full enclosure for your AD5M. Its not pretty but it works. The original upgrade kit is around £40 and requires you to print most of it yourself …

Disclaimer : Keep all tape / external material away from build plate and heater. Secure them thoroughly to avoid materials touch any hot parts.


Requires:
- Roll of Tape (I used approx. 30m of Duct Tape)

Steps

  1. Print out parts

    1. Print out 3 X Printer Corner Piece and 1 X Printer Corner Piece Back Left

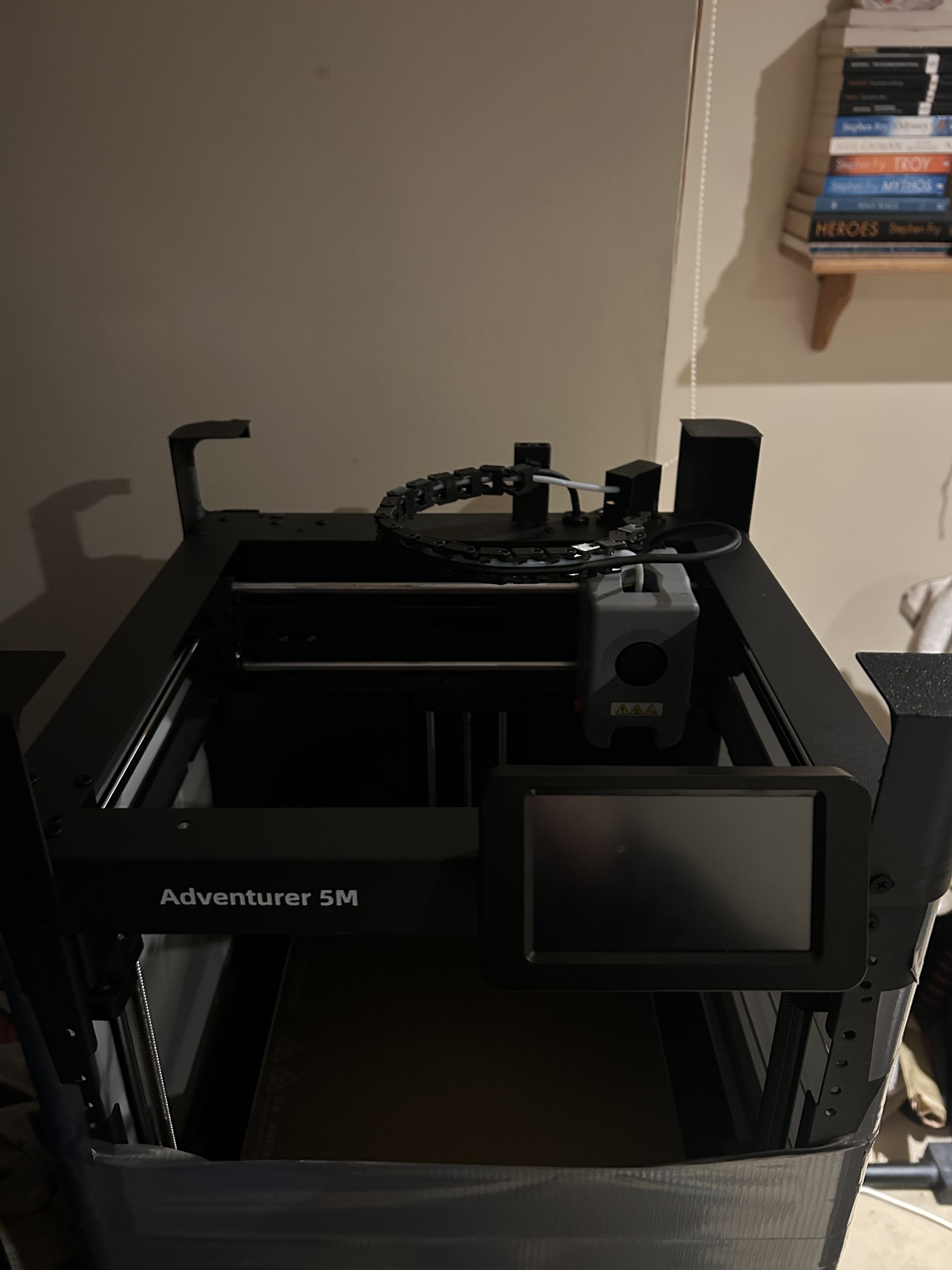

  2. Install the corner pieces

    1. Unscrew the top corner panel screws

    2. Use those screws to screw in corner mounts

  3. Tape up the sides completely

  4. Tape up Front about half way up

    1. It's a bit DIY so decide for yourself if you want front access or only top access

  5. Tape around the top mounts sides

  6. Tape over the top to create a perimeter of tape

  7. Create a makeshift lid

Check out my other post on how to do the other part of the enclosure kit without any additional parts / tools :
