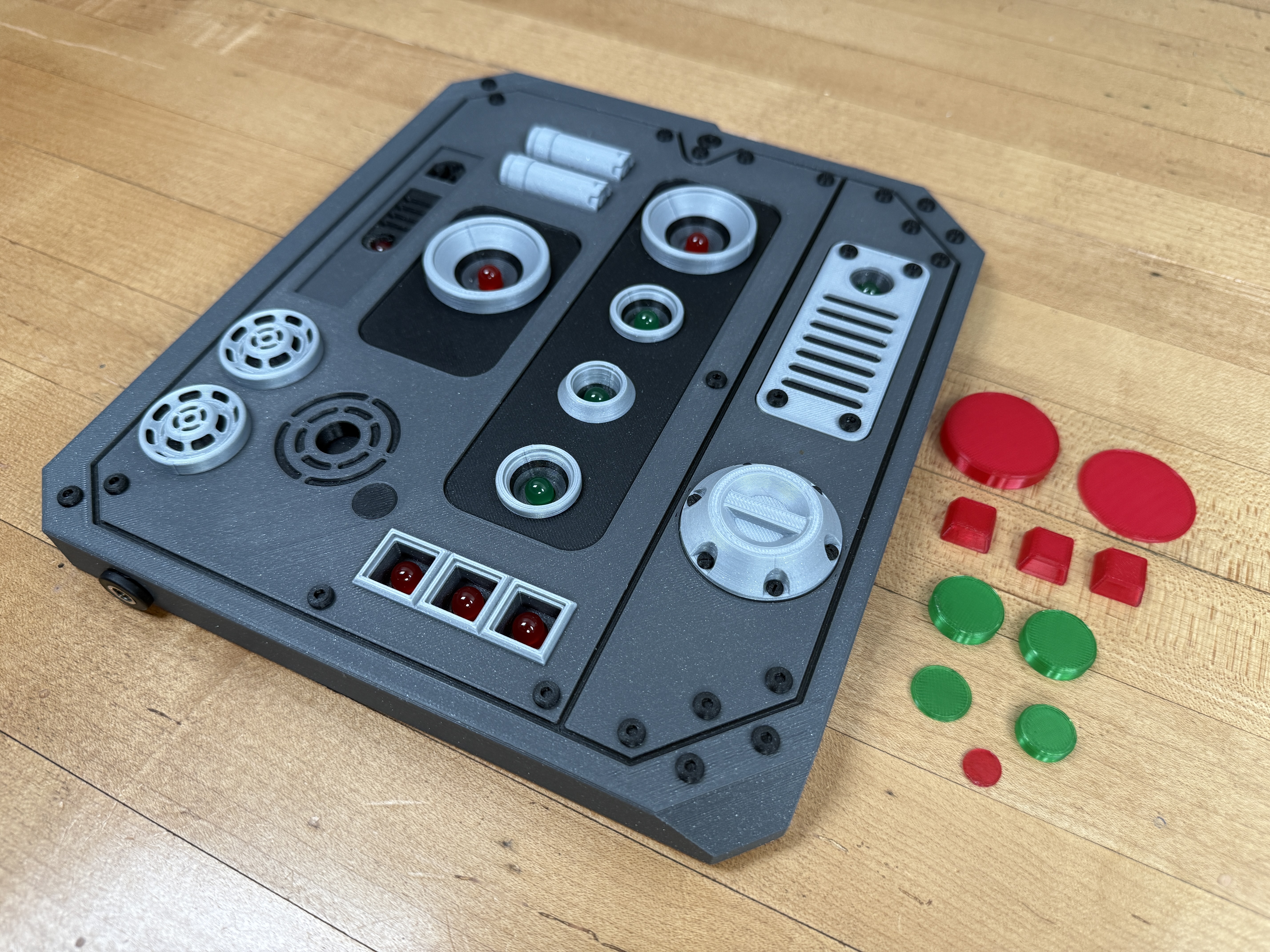

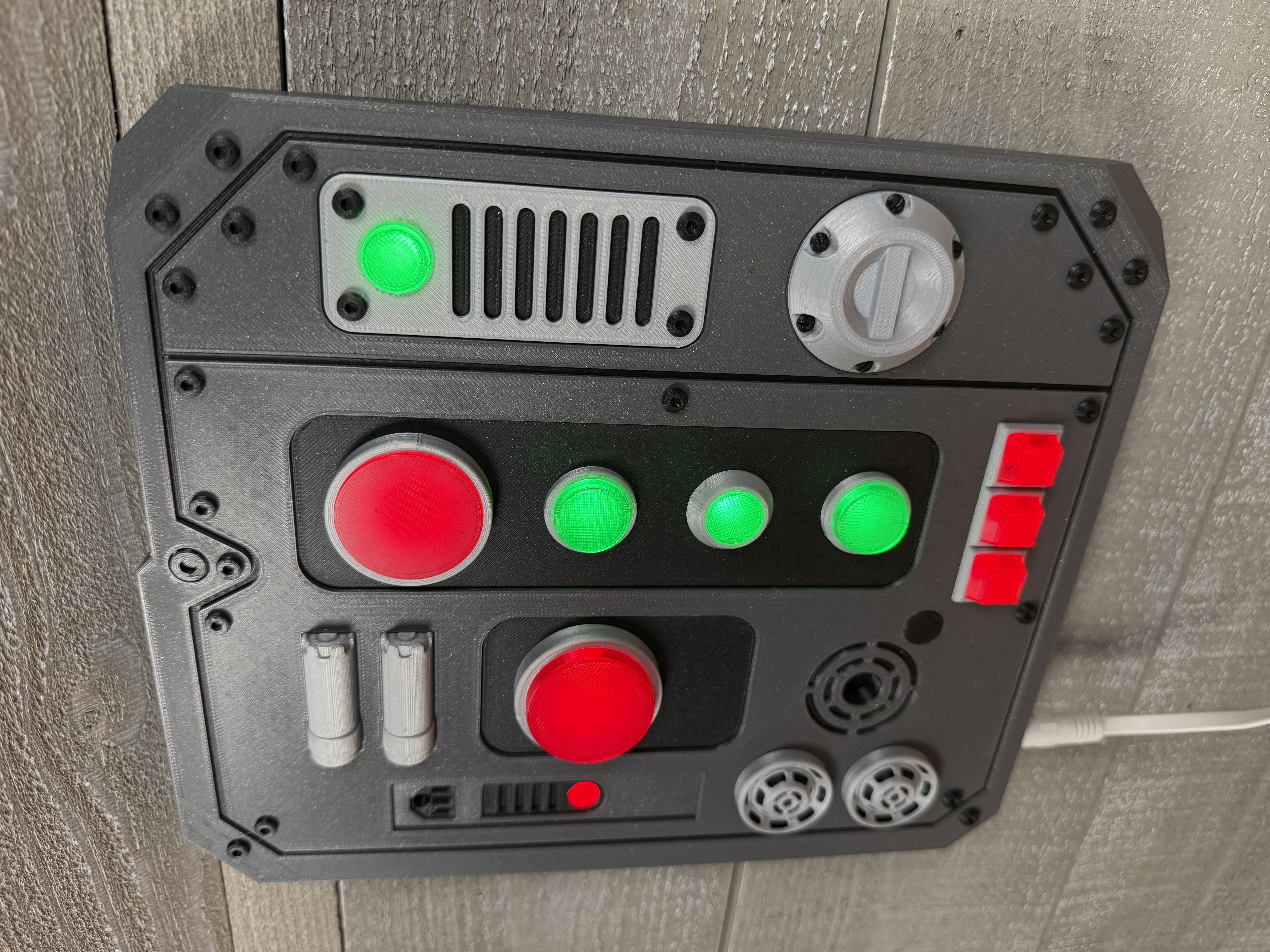

This is the illuminated version of the Control Panel I released previously. Like the previous one, the stl’s for this one are also split to be printed in multi-color without supports. The lenses are printed separately and are glued in, I printed them in semi-transparent PETG and turned ironing on.

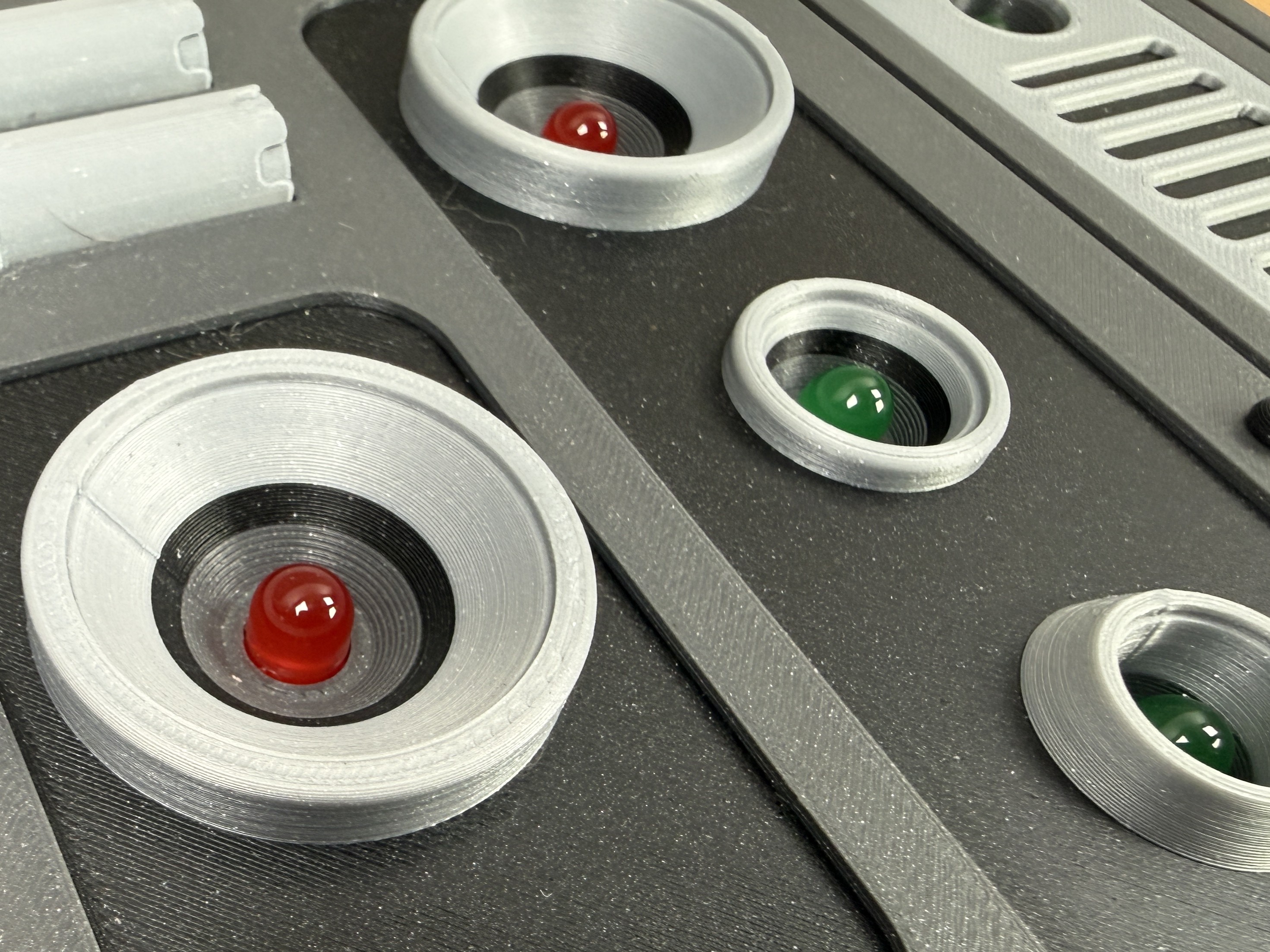

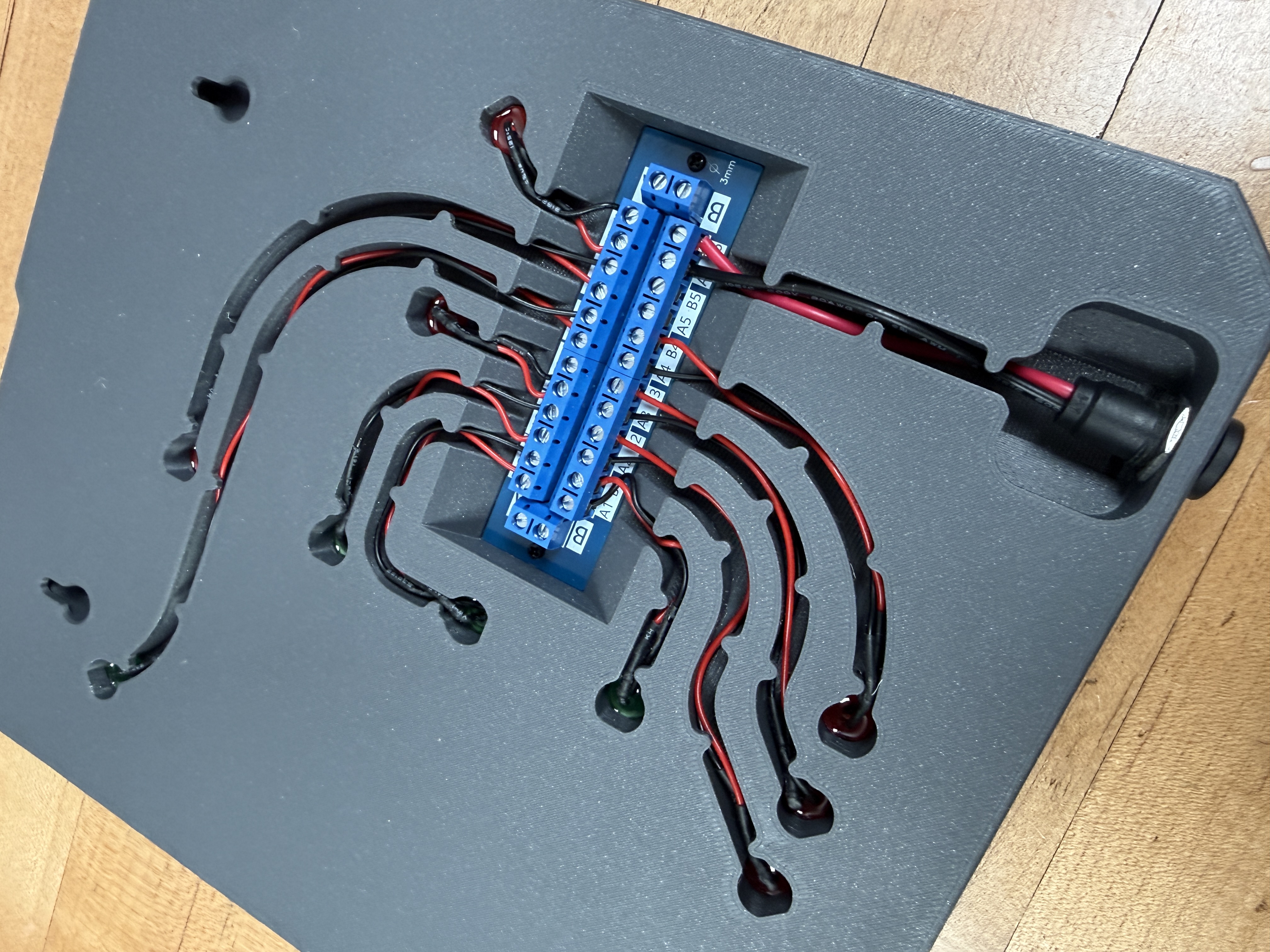

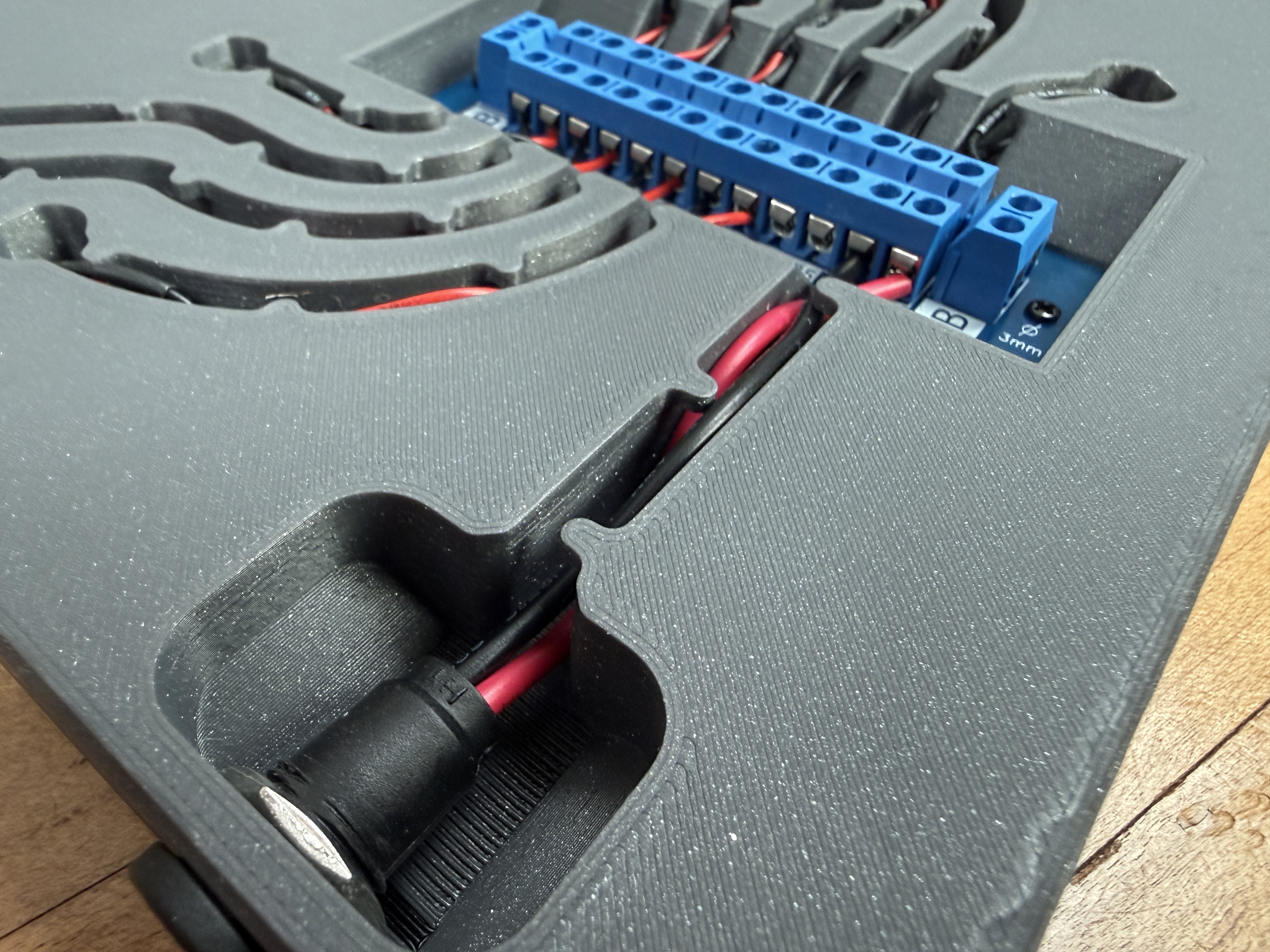

Soldering is not required as I utilized 8mm prewired 24v LEDs and a 2x12 screw terminal power distribution board. You only need to cut and strip the wires to length and terminate them into the board. Put the LED’s in the hole from the back side, aligning the flat on the LED. Then rotate the LED 180 degrees, to lock them in place. I also used a prewired jack to power the board. You will need 2mm x 6mm screws to secure the board. I purchased a 24V 3w Power Supply to power mine.

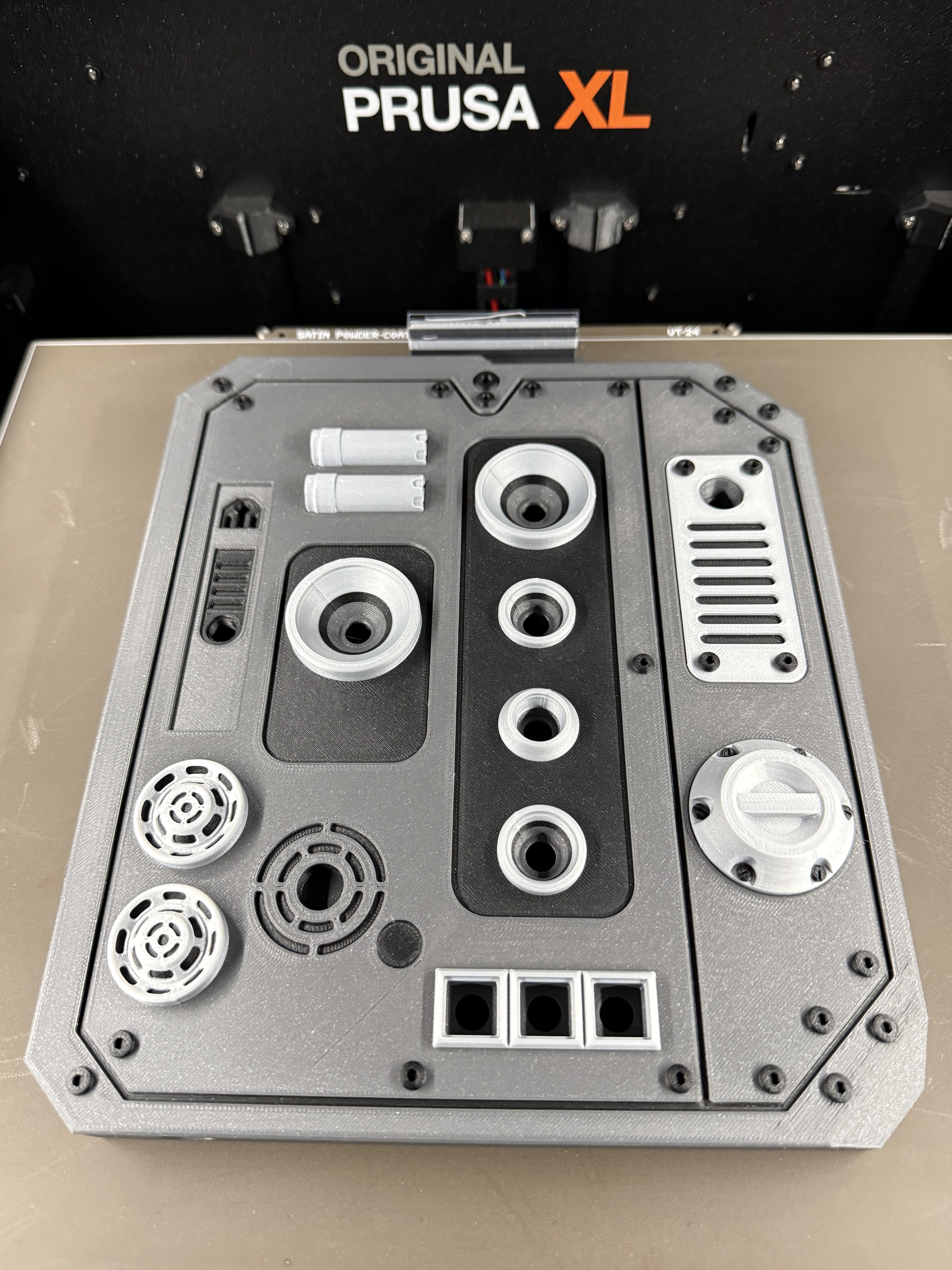

I printed it on my Prusa XL(aff.) with Polymaker Metallic Pro PLA
