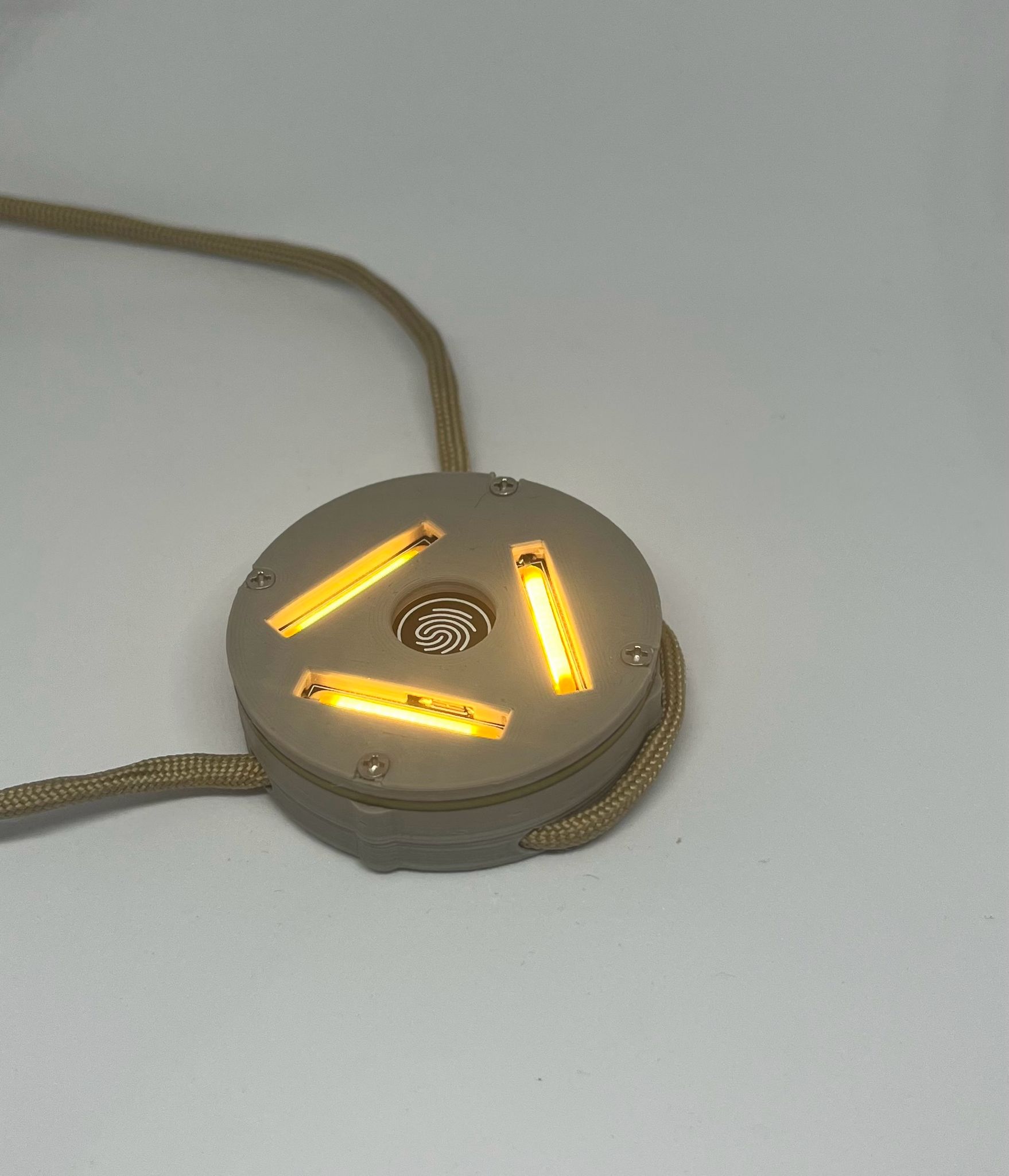

Ultralight Backpacking Lamp

This project transforms a cheap 5V lamp kit from China into a mini 5 cm x 1.5 cm portable light.

Perfect for searching through bags, backpacks, or dark spaces

Key Features:

• Compact design optimized for portability

• Smart touch control: tap for 30 seconds of light or hold for 5 seconds for continuous maximum brightness

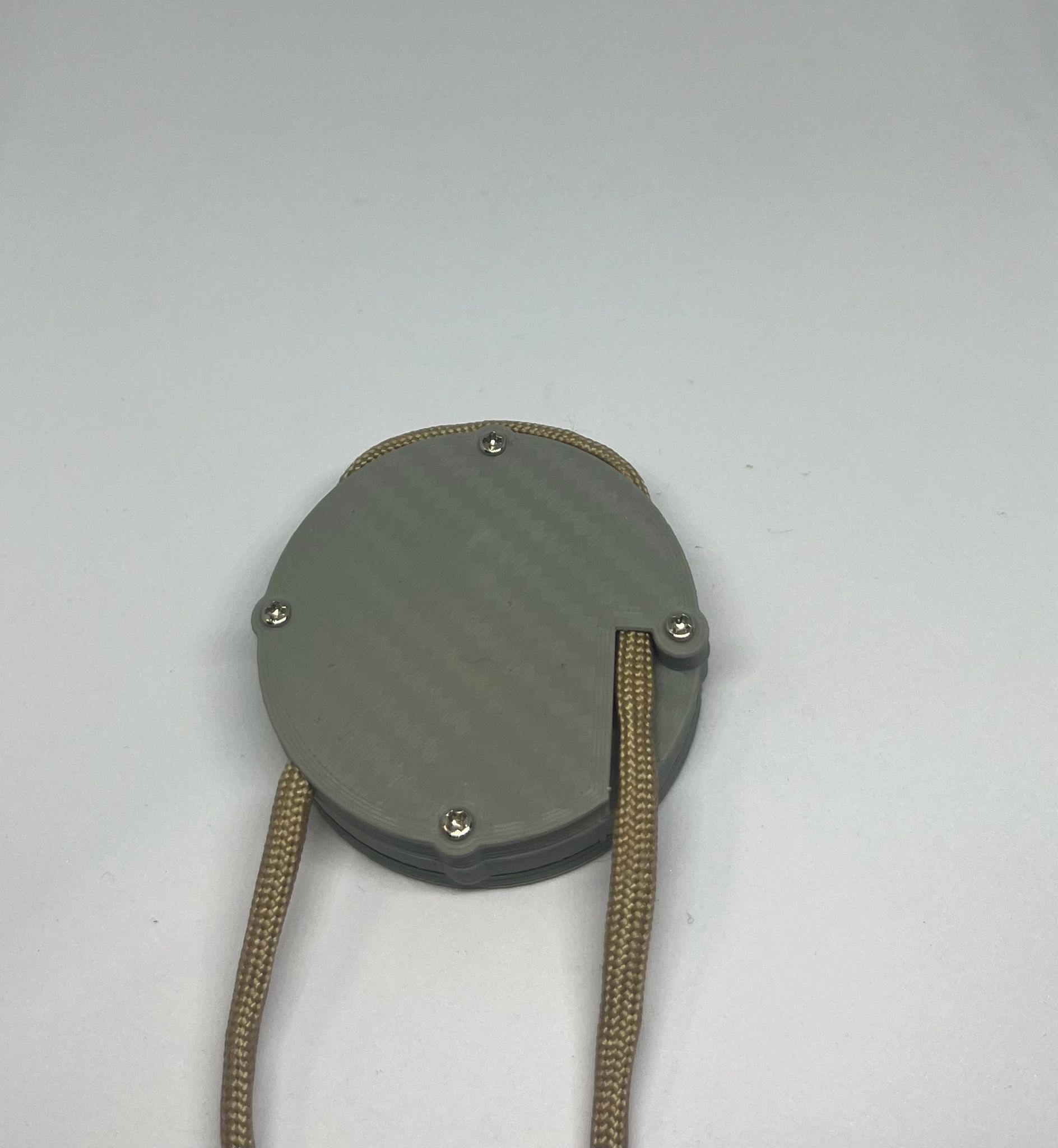

• Loop holes for paracord and/or carabiner

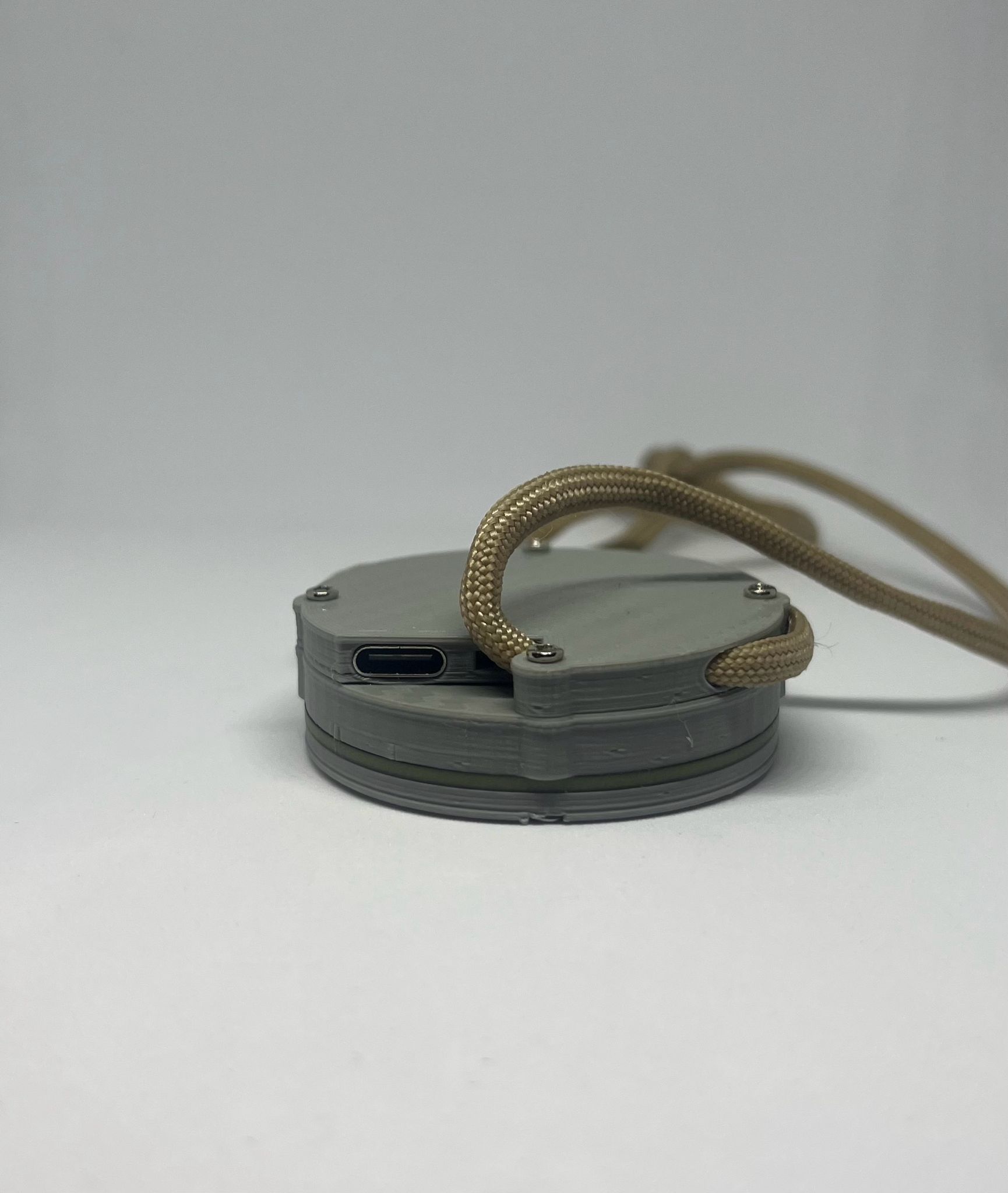

• Protected type-C charging

Parts Needed:

1x 150mAh lipo battery

4x m2x6 screws

1x MH-CD42 charge/discharge module

1x type-c female module (2pin)

10cm thin wire

1x Lamp kit  --->

https://www.aliexpress.com/item/1005008970162847.html?spm=a2g0o.detail.pcDetailTopMoreOtherSeller.7.290euW9vuW9vK2&utparam-url=scene%3Asearch%7Cquery_from%3Apc_back_same_best%7Cx_object_id%3A1005008970162847%7C_p_origin_prod%3A&algo_pvid=e2d29fd7-6cc4-4dea-8e5b-e5c4e4cb141a&algo_exp_id=e2d29fd7-6cc4-4dea-8e5b-e5c4e4cb141a&pdp_ext_f=%7B%22order%22%3A%226272%22%2C%22fromPage%22%3A%22search%22%7D&pdp_npi=6%40dis%21GBP%213.94%211.89%21%21%2135.69%2117.12%21%40211b431017714529681592455eb095%2112000047412657319%21sea%21UK%216185884075%21X%211%210%21n_tag%3A-29919%3Bd%3A28da4c57%3Bm03_new_user%3A-29895

Any questions don't hesitate to ask in the comments.
