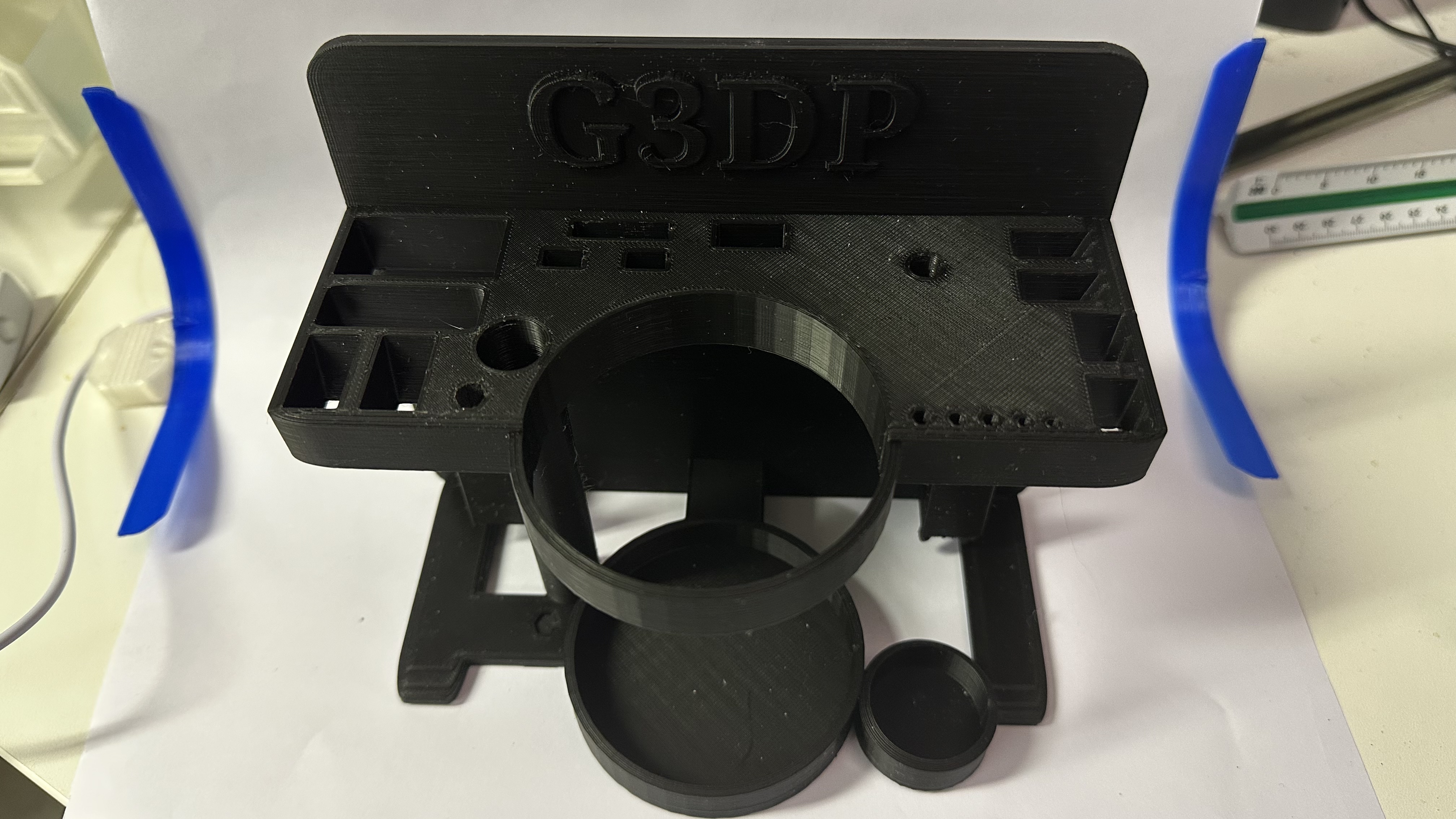

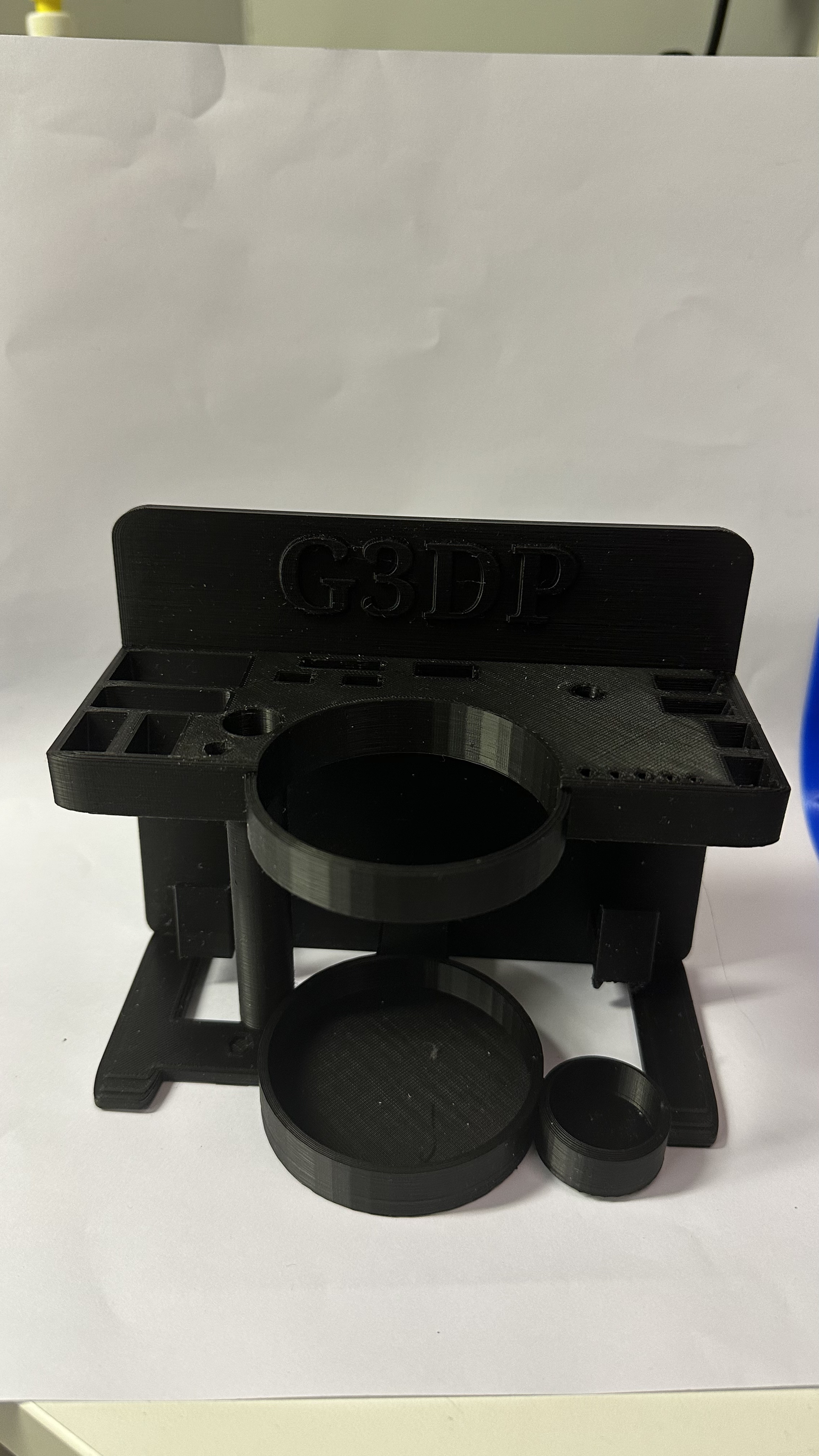

Desktop 3D Print Tool Caddy

Needed a tool rack that housed my tools, I have a few different pliers, cutters, glue, brushes, etc, and could never find a rack to suit me. So, what do you do, you make your own.

Note this is a version one and I will be improving it over time, expecting an update already by next weekend.

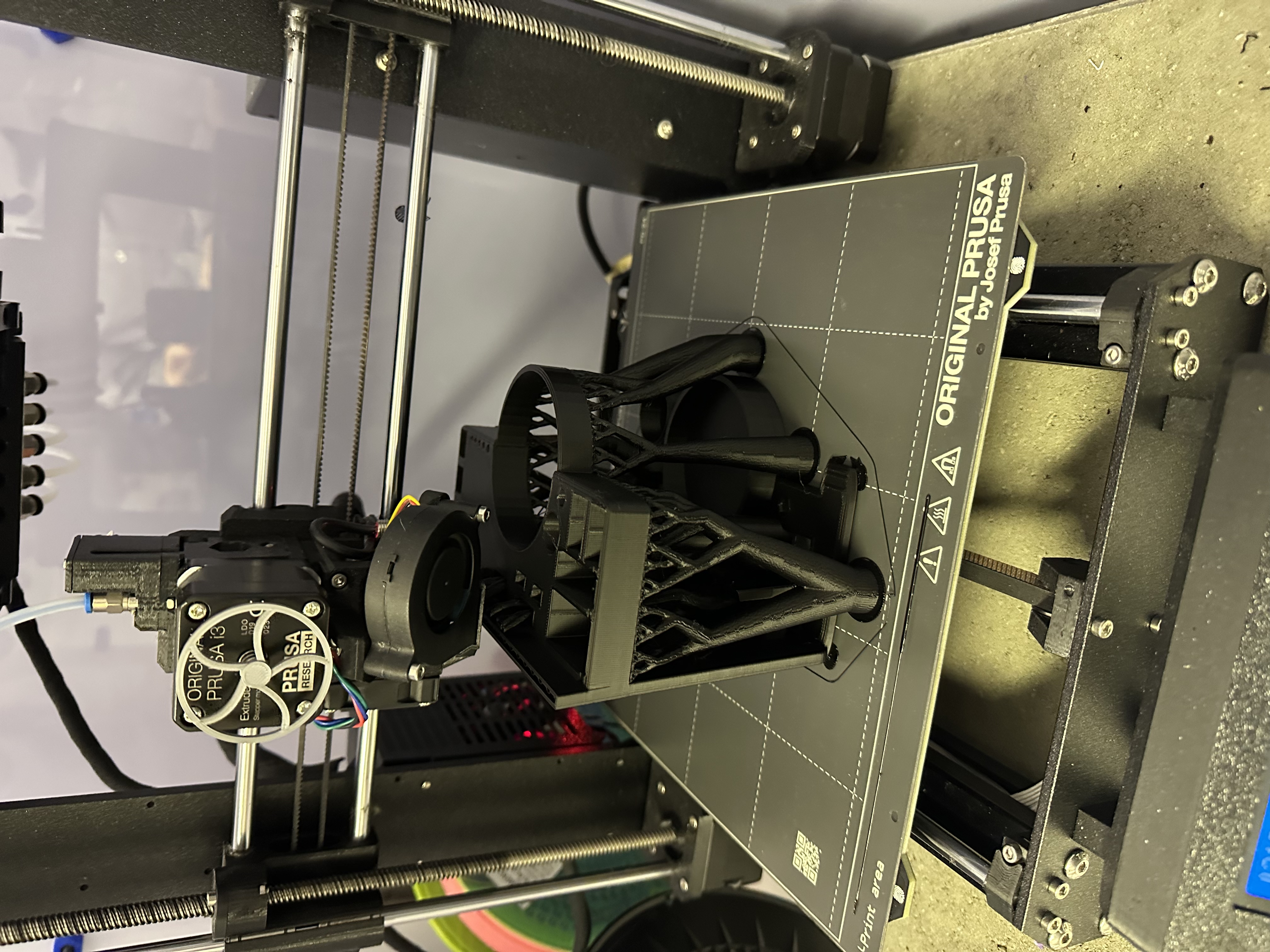

Printed on a Prusa MKs3+ using non-brand PLA for test version.

• 0.4mm Nozzle

• 15 % infill (Gyroid)

• Support everywhere (used organic 0.2 detachable, though there is a bit of an issue under the Overhang for the tools with this, some strings not connecting properly)

• Ironing on top surfaces

• Seam at rear

• 217 degrees nozzle temperature

• Solid layers top 6 and bottom 4

Pretty sure I can get a better solution in place for this. perhaps printing it on the side would be better.

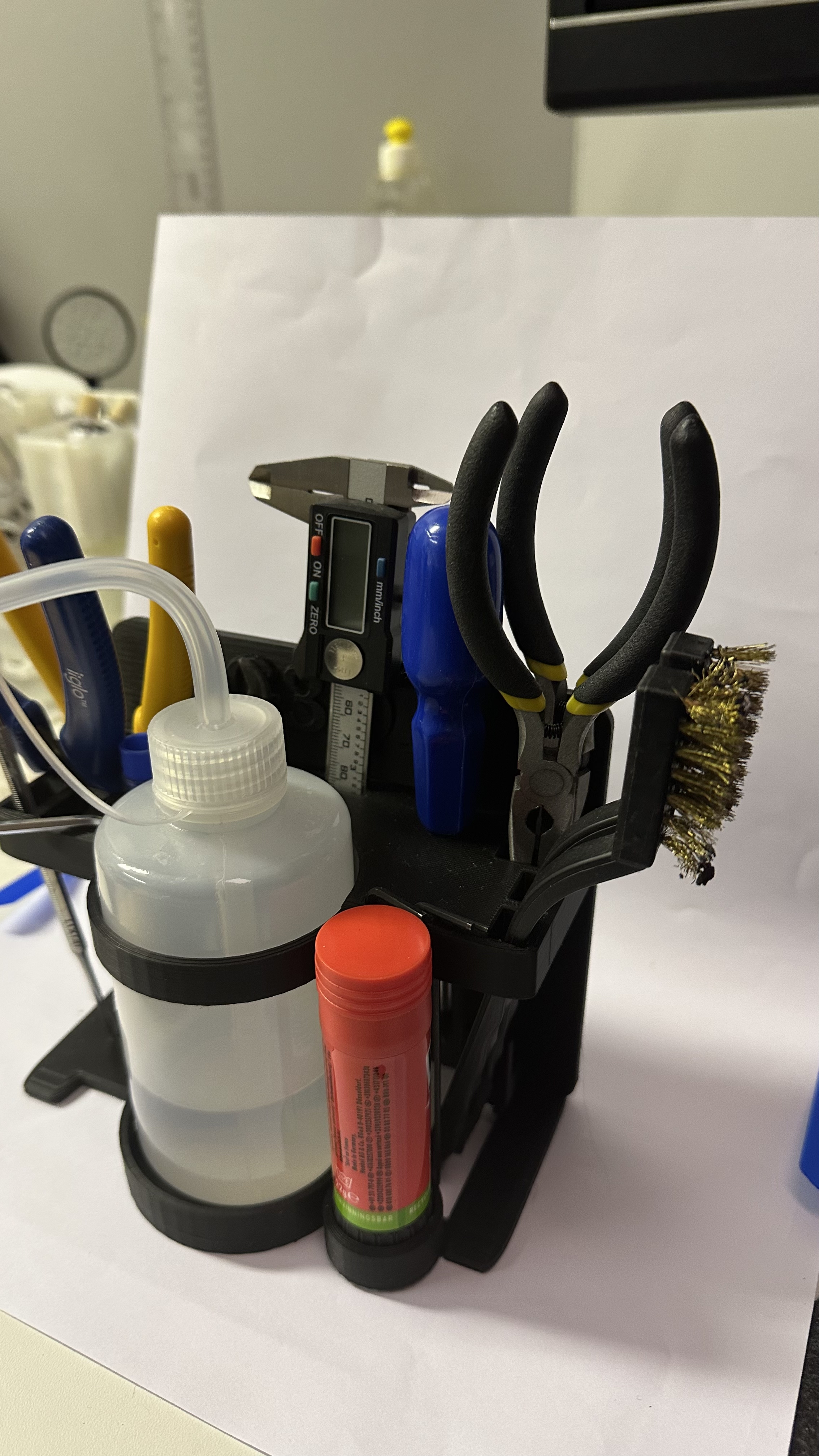

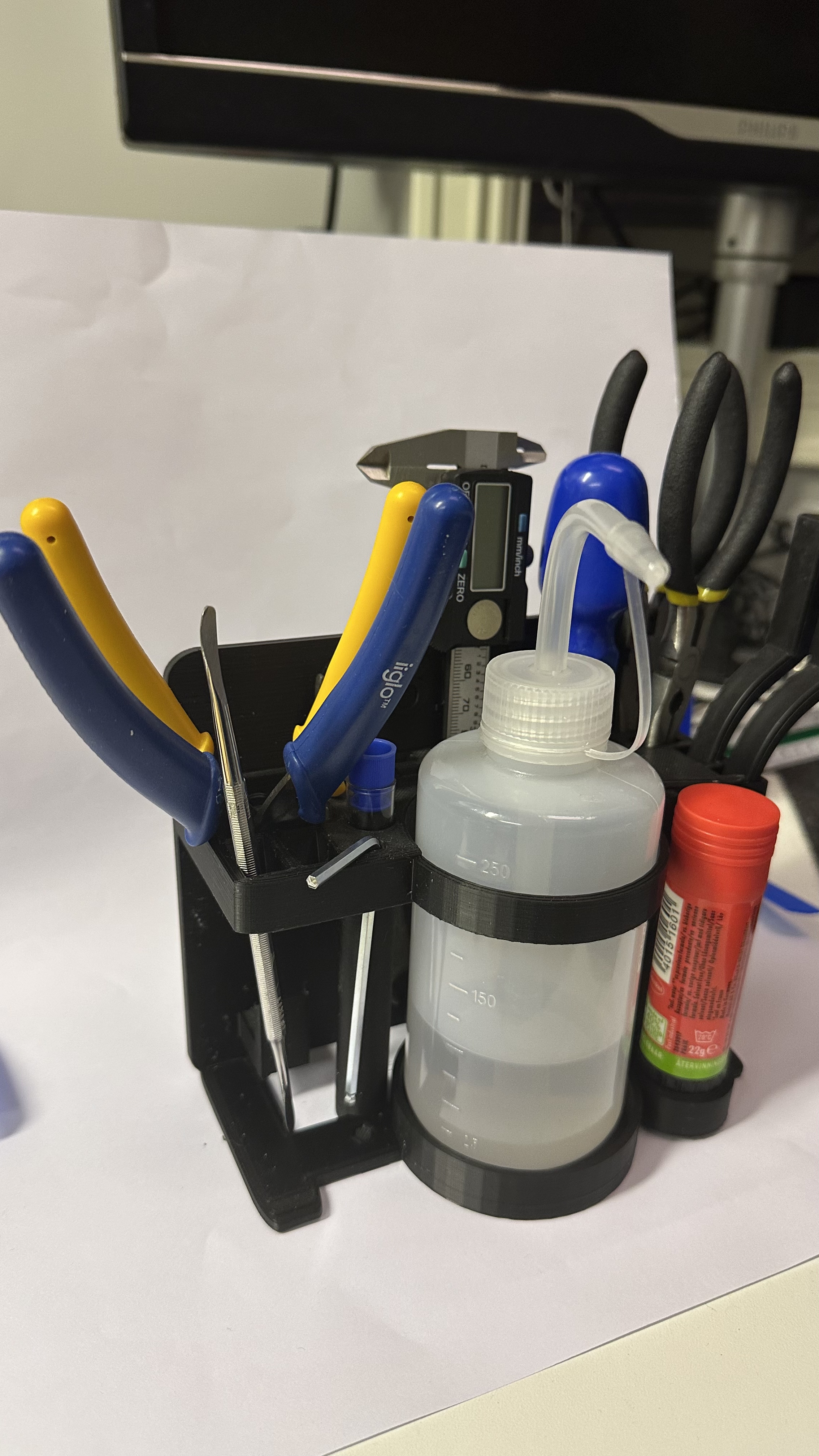

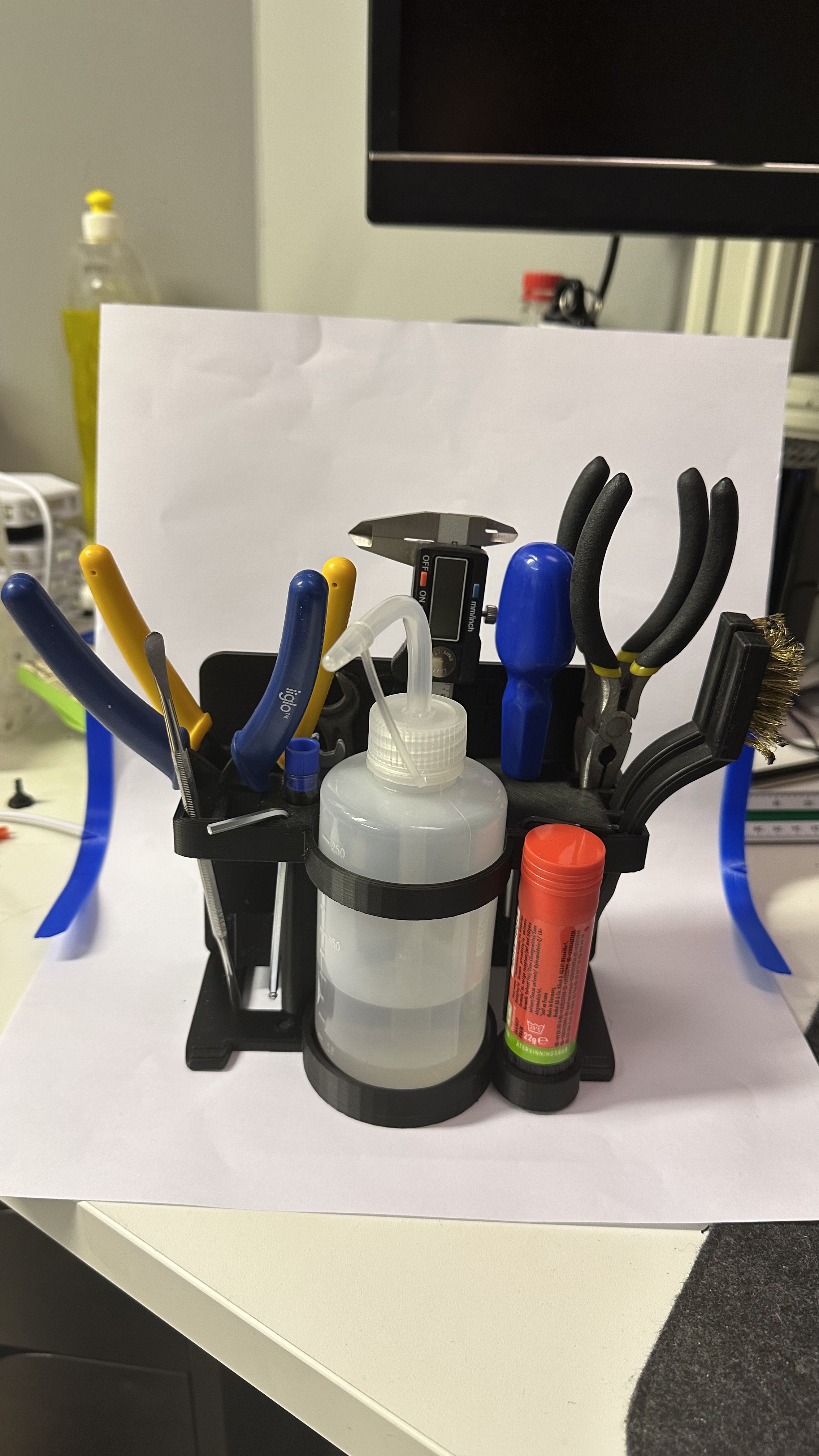

Space for:

• 2 Cutters

• 2 Needle nose pliers

• 5 allenkeys

• 2 brass brushes

• 1 skrewdriver

• 1 digital caliper

• 3 (varying size) wrenches

• 1 bed scrape

• 1 special tool for removal of supports

• 1 gluestick

• 1 bottle for isopropanol

• 1 Vial holder for needles

• 1 large hole for (well what ever you need it for)

• 1 pegs on the backplate for resting a tool on. I use it for my larger caliper)

Version 2 upgrades will include.

• Bigger holes for allenkeys

• Deeper holes for needle nose pliers

• Deeper holes for Cutters

• Moving hole for screwdriver

• Bottom plate for digital calliper

• Increasing hole for special tool for removal of supports. It works but a bit too tight.

• + and more
