Google home mini Circle lamp
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial — NoDerivatives

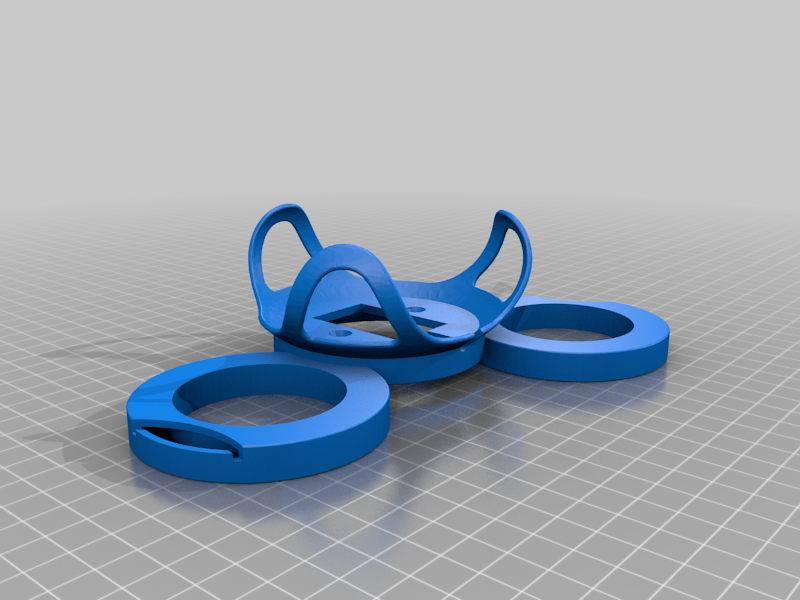

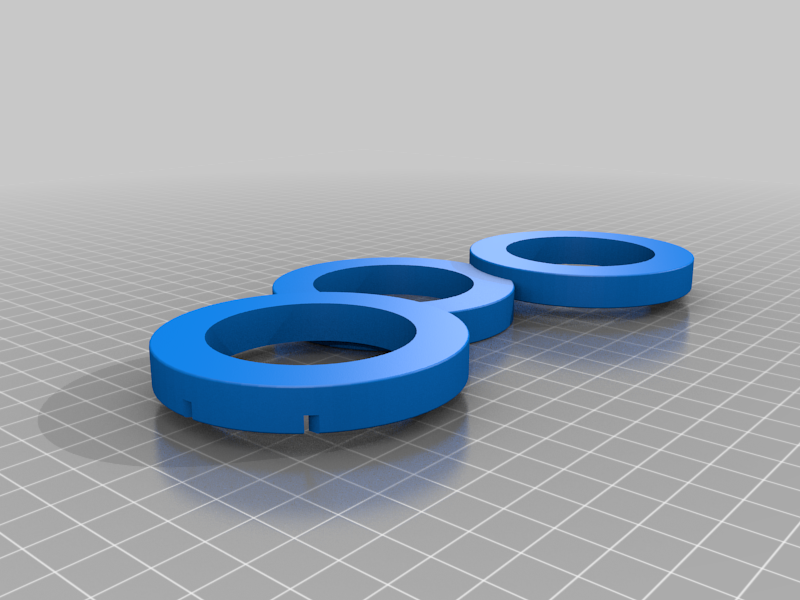

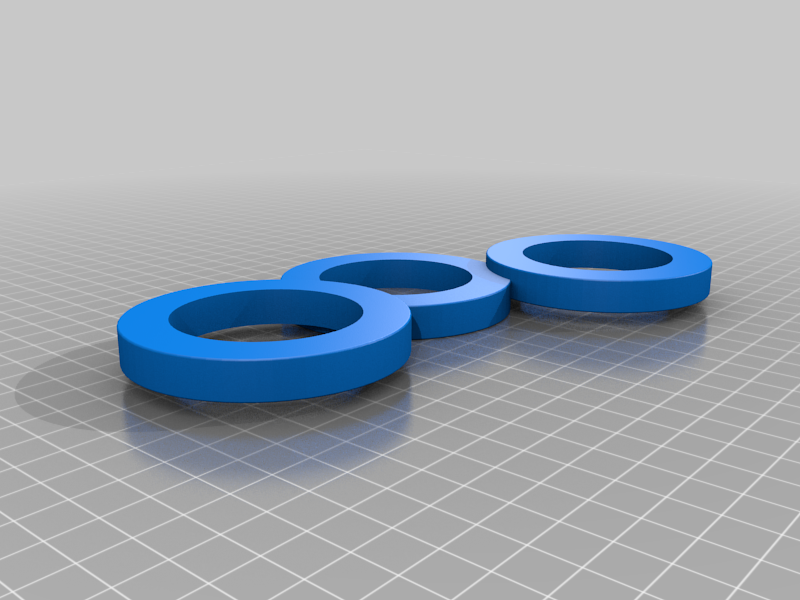

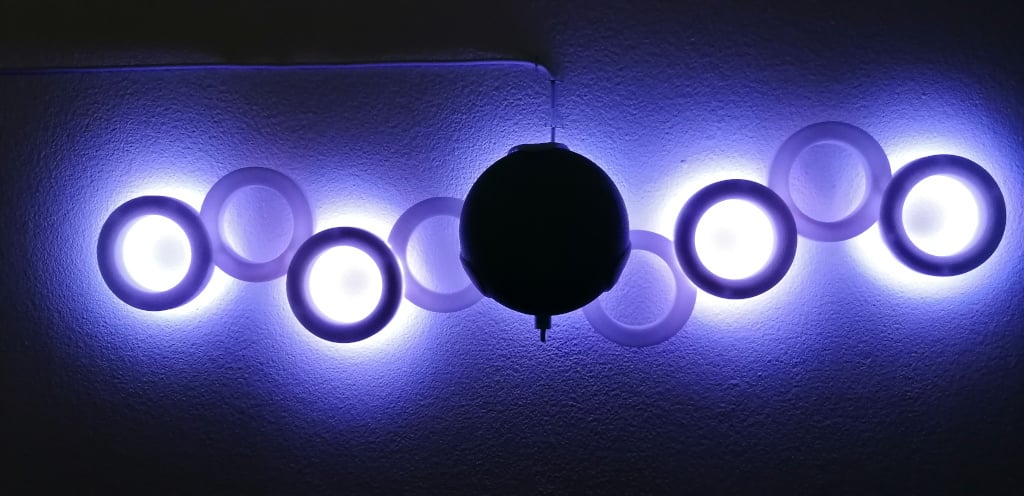

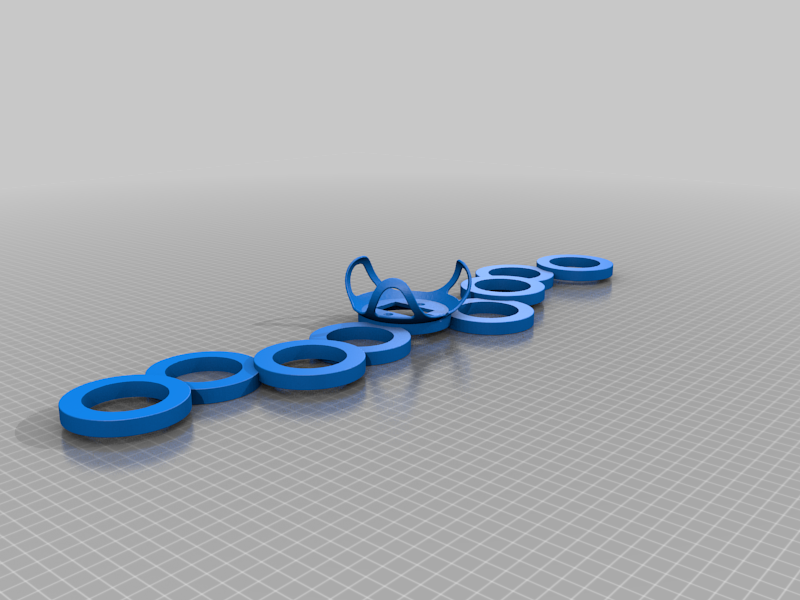

A wall mount lamp for the Google home mini. The design is printed in 4 parts, the central part that holds the Google Home Mini, two sets of three rings that are glued to the center. One wallmount. Behind 5 of the 9 rings I mounted Neopixel rings that are controlled by a ESP01 that is in the mount/base of the lamp. The Google home and the lamp run on the same power supply. The ESP01 is running WLED.
The original holder was designed by https://www.thingiverse.com/maxr525
Print Settings
Printer Brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
20%
Notes:
Take care when wiring, the data line should go from left to right (or vide versa). I ran the data wire from the center and then need to half the amount of LEDs in WLED
Post-Printing
Category: Electronics
