Unfortunately Fairphone 6 volume buttons are prone to breaking and are not provided by the company for own replacement. The buttons are hidden under a seal that is also prone to leaking when the button cracks, so it is impossible to get the repair done on warranty in some cases.
As I've struggled a lot with this, a friend helped me make a copy of the button and I'm uploading it so others don't have to deal with months of back and forth and unresponsive support.

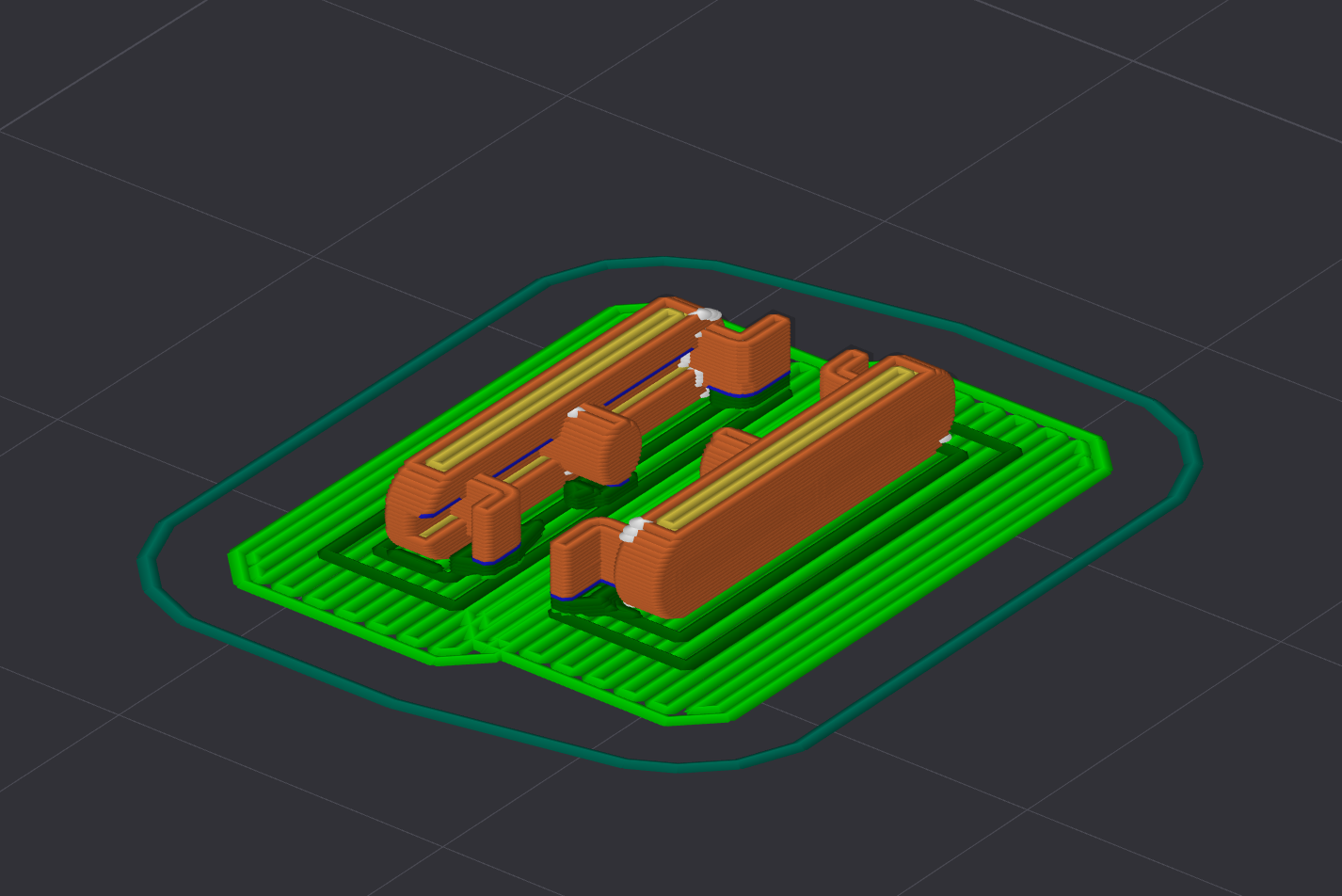

Printed well in FDM with PETG, with custom settings to the supports, oriented flat on the build plate and 0.1mm layer height. Needs 2 layers of raft and removed top gap to make sure there's no sagging. Suggested orientation attached. Supports are removed with sidecutters.
Hope it helps!
