Qidi Box hub offsetter
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
This part (red in the image) holds the qidi hub lower, so that you have room to add a PTFE y-splitter without trimming the stock PTFE length or creating a sharper bend. This extra distance does increase the filament change time by 5-10 seconds. The splitter will now allow you to use your external spool holder.

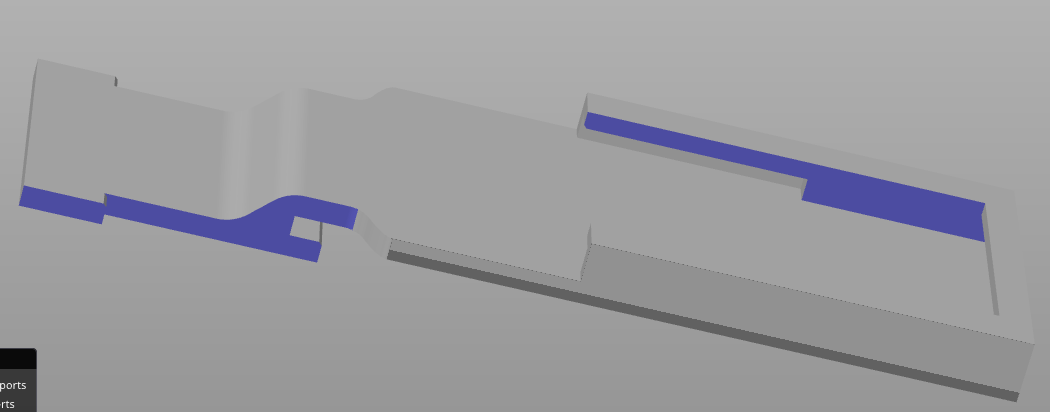

Use 3 perimeters and 20% infill. Orient the part as seen in the image and add a brim. Use snug supports, painted on only the surfaces shown in the other image. The orientation and supports are already painted in the 3mf file.
The modified spoolholder mount can be found here
