V8 Engine

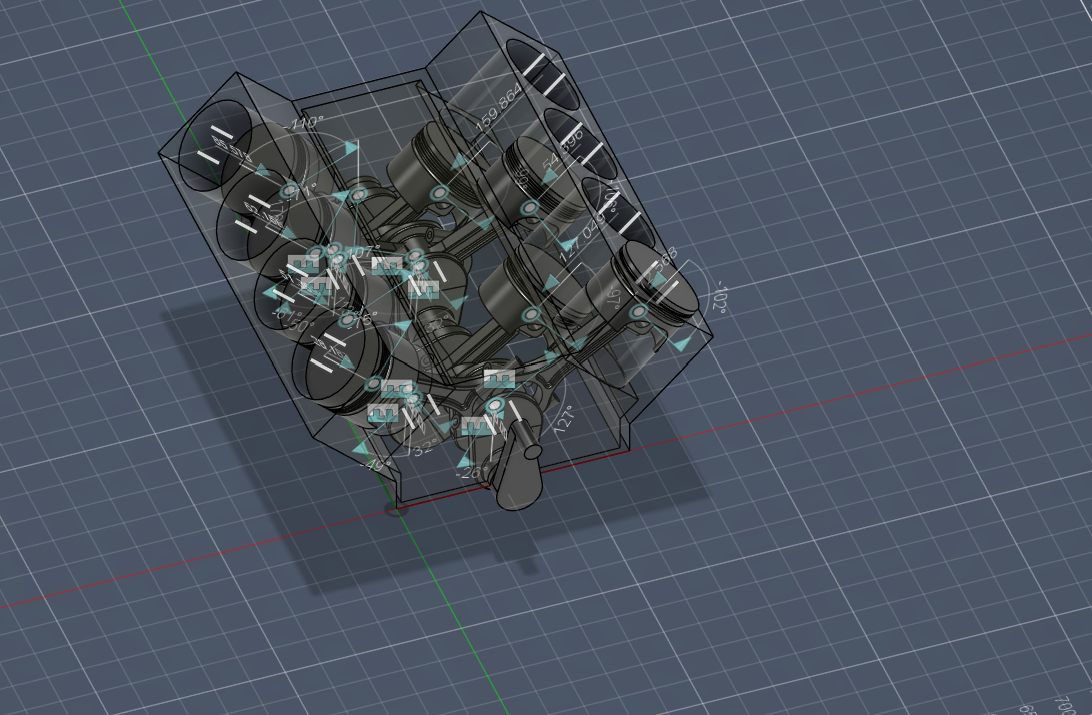

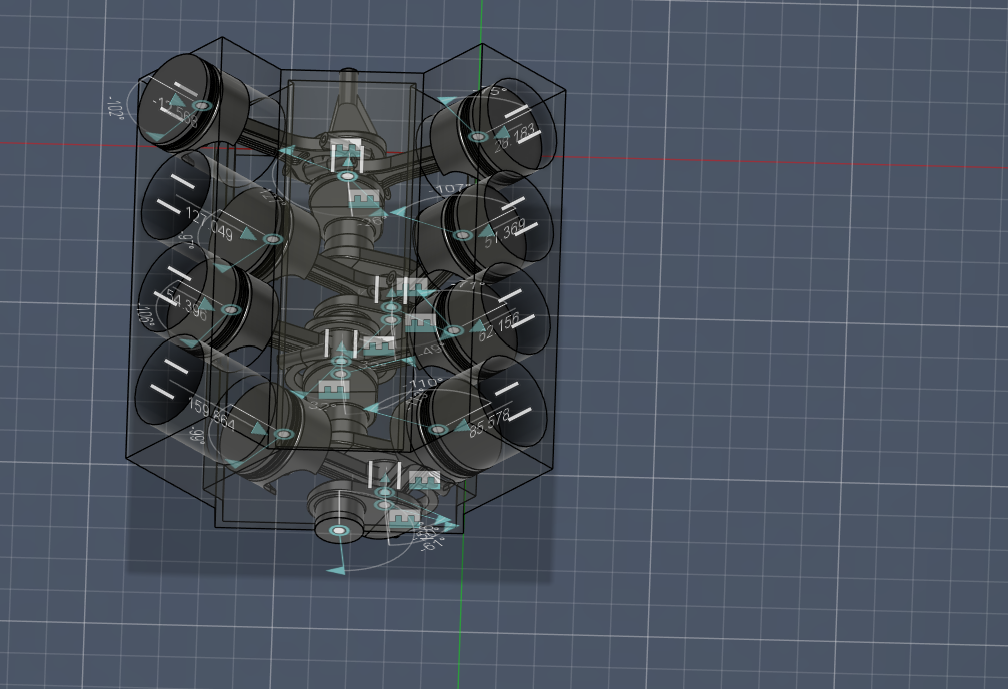

This is a 3D Printable Model of a V8 Engine.

Assembly Instructions

Step 1: Preparation & Post-Processing

Before assembly, ensure the following for all printed parts:

• Clearance Check: Sand the PistonHead outer walls and the EngineBlock cylinder bores until the pistons slide freely without resistance.

• Hole Clearing: Use a drill bit to clean out the pivot holes in the ConnectingRod and Crankshaft to ensure smooth rotation.

• Support Removal: Ensure all support material is fully removed from the internal oil channels or crankshaft journals.

• Also We need Glue.

Step 2: Crankshaft Installation

1. Lay the EngineBlock upside down.

2. Drop the Crankshaft into the main bearing saddles.

3. Note: If your design uses printed "Main Caps," screw or press-fit them over the crankshaft journals now.

4. Test: Spin the crankshaft by hand. It should rotate with zero friction.

Step 3: Piston-Rod Sub-Assembly

1. Take one PistonHead and one ConnectingRod with Glue.

2. Align the wrist pin holes and insert your pin (this could be a piece of 1.75mm filament or a small metal rod).

3. Repeat this for all 8 pistons.

Step 4: Final Integration

1. Push each PistonHead into its respective cylinder bore from the bottom of the block (or top, depending on your specific design's geometry).

2. Align the "Big End" of the ConnectingRod with the corresponding throw on the Crankshaft.

3. Place the ConnectingRodCap over the crankshaft journal and secure it to the rod using M3 bolts or plastic cement/superglue.

   • Warning: If using glue, be extremely careful not to let it seep onto the crankshaft itself, or the engine will seize.

Step 5: Lubrication & Timing

• Lubrication: Apply a small amount of white lithium grease or silicone lubricant to the cylinder walls and crankshaft journals.

• Testing: Turn the output shaft of the crankshaft. Observe the firing order to ensure no rods are hitting the interior of the block walls.
