LED to E10 - Adapter

Update: I have improved and clean up the design a little so it will be better for printing.

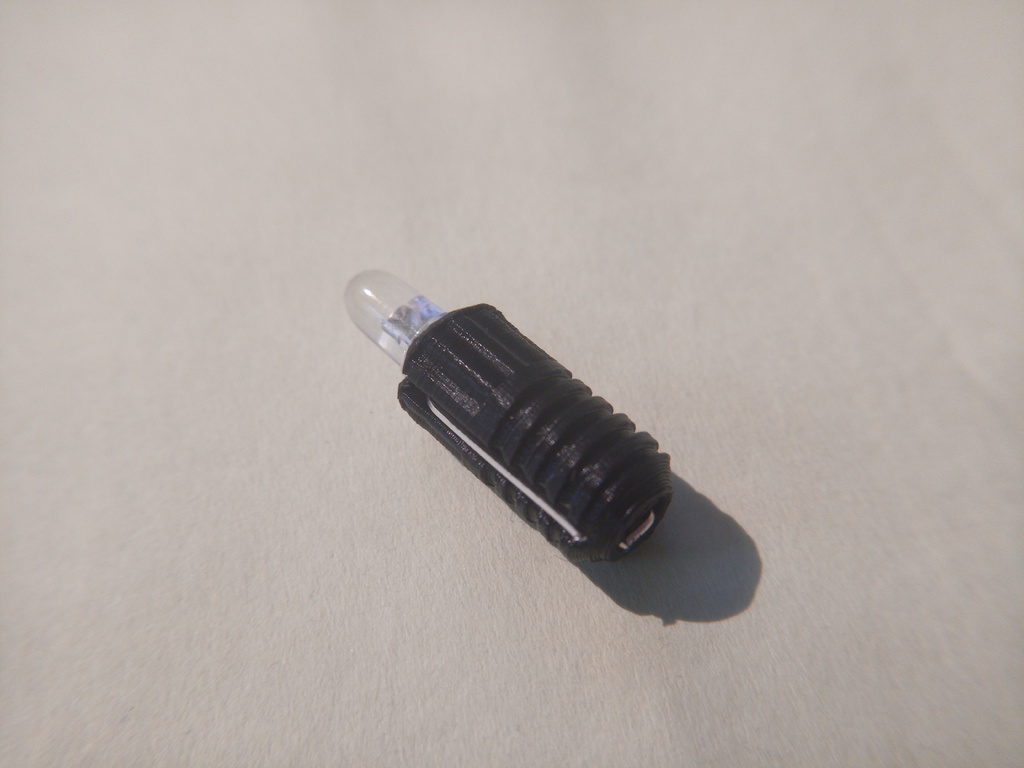

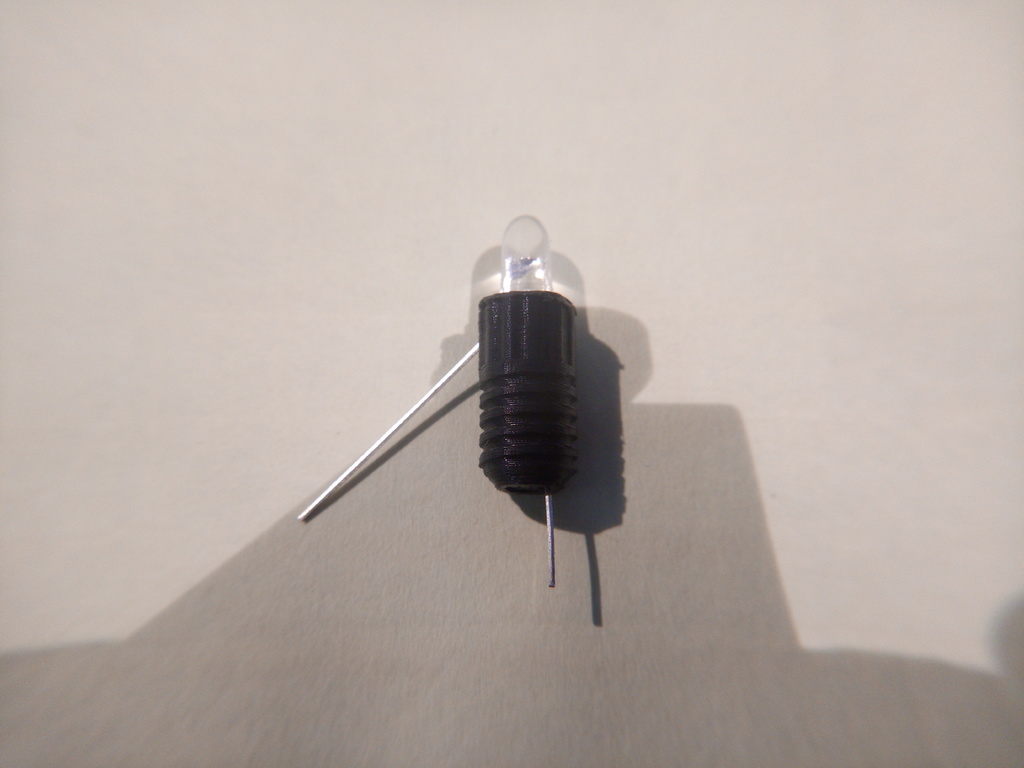

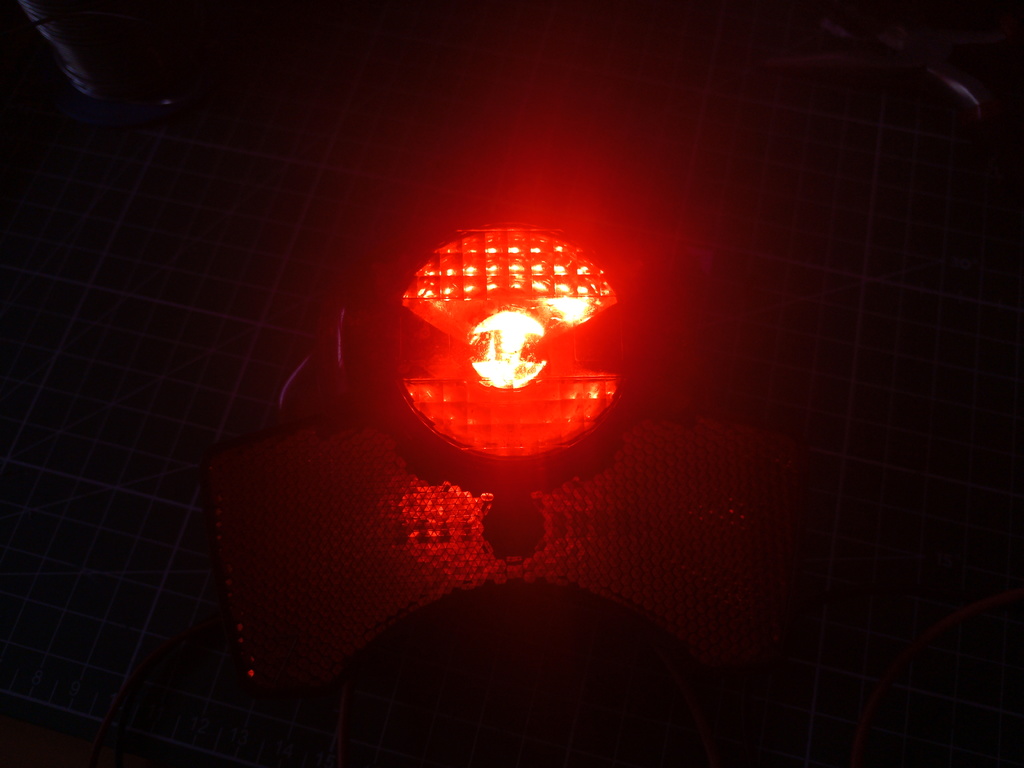

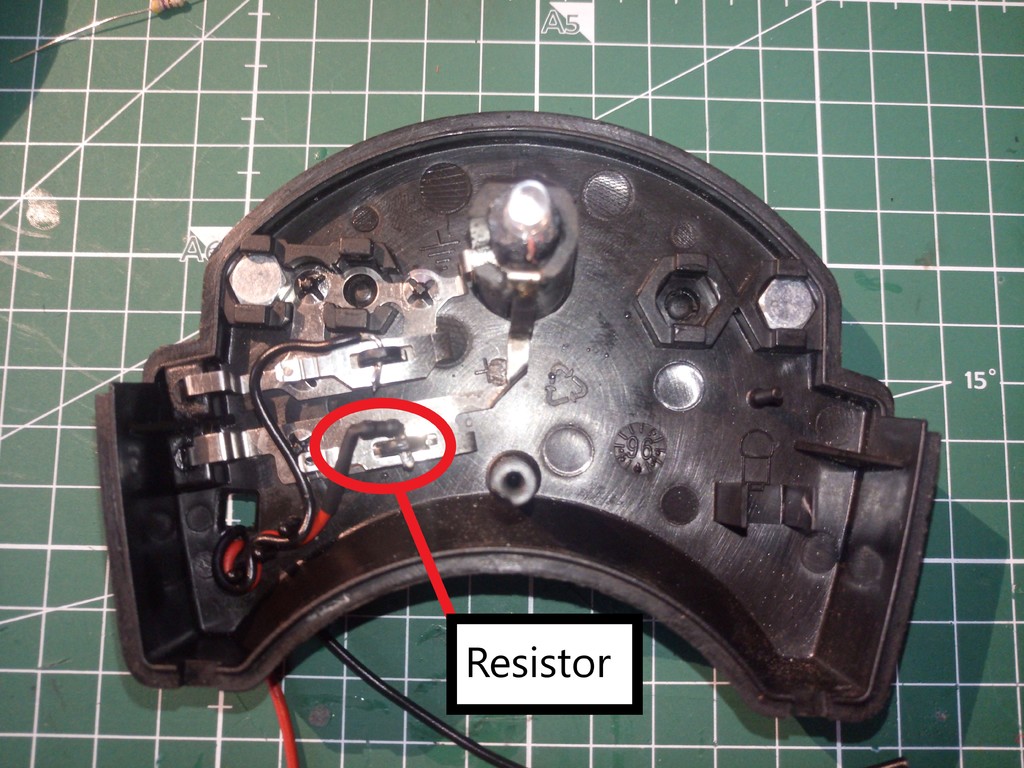

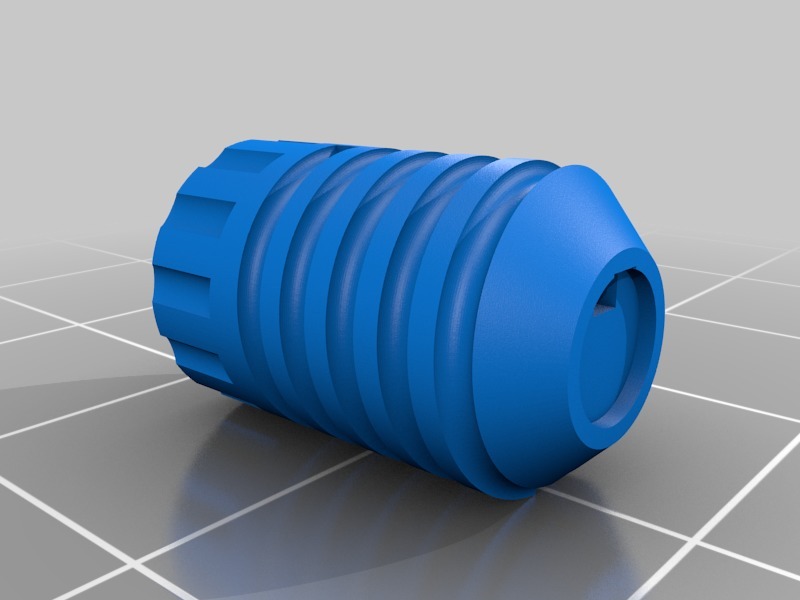

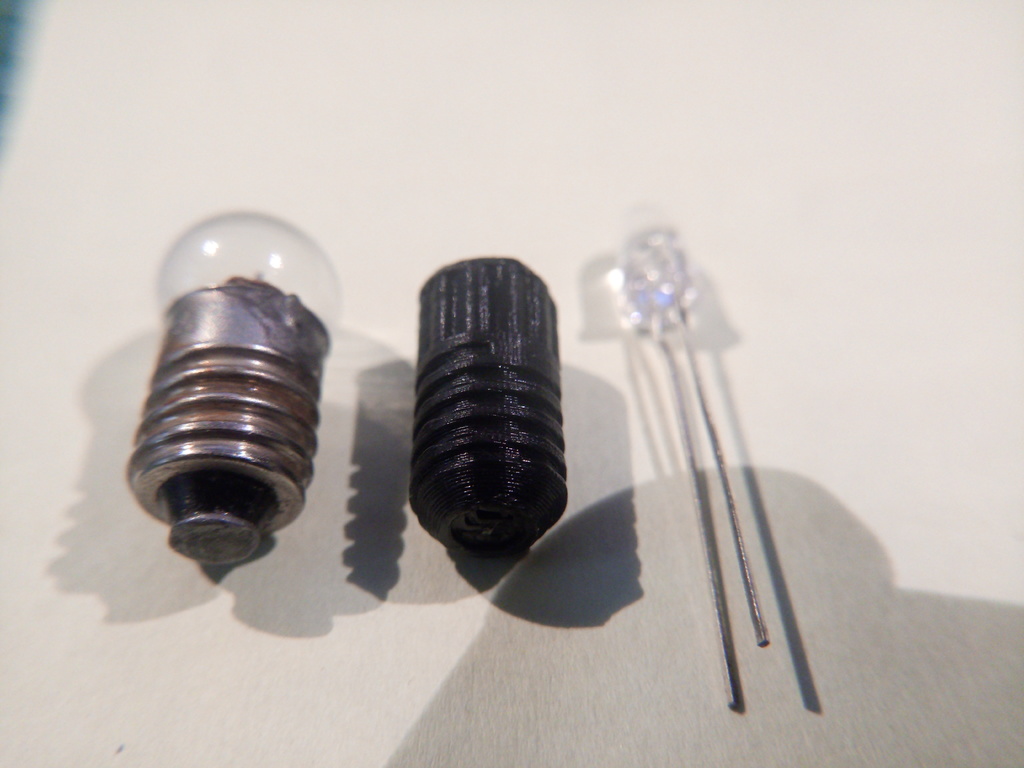

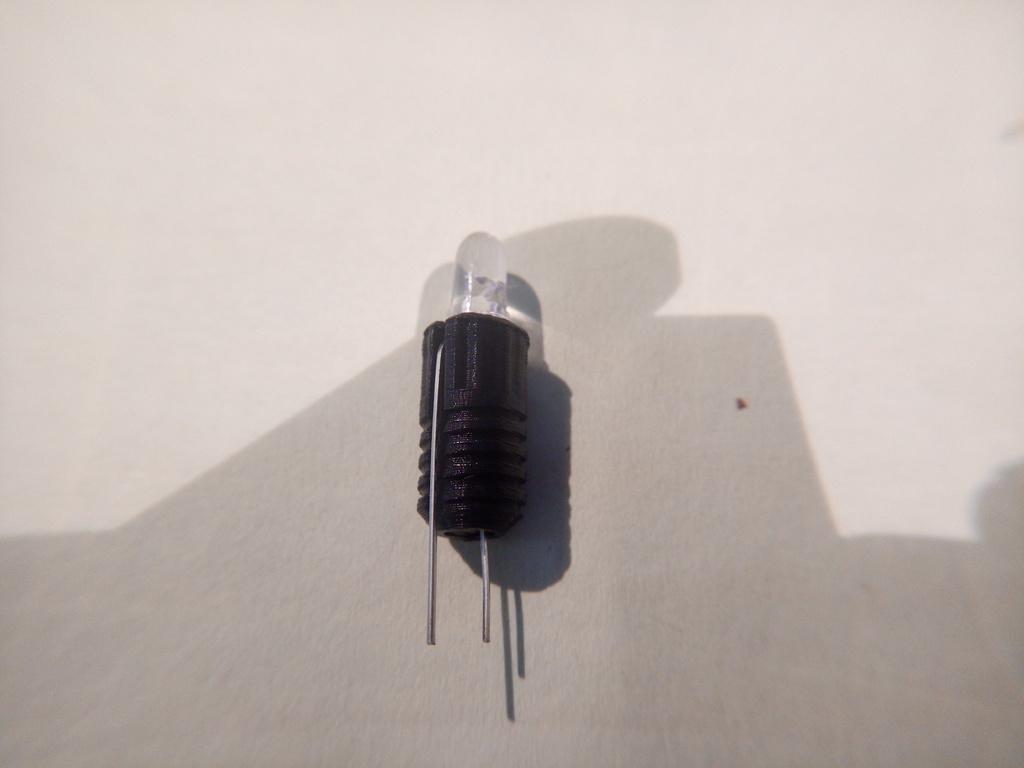

This thing is to adapt a standart 5 mm LED to the "Edison 10 socket" (E10) mostly used in old bicycle lights. I use it to re-equip old bicycle rear lights with light bulbs to LED. Especialy the nice old "Soubitez" from the pictures. As you can see I integrated the resistor into the light enclosure.

Notice:

• It is maybe not allowed to use it in bicycle lights or other vehicles (check the law in your country) ...
• you should use a external resistor and overvoltage protection to prevent the LED from damage.
• It is recomendet to use the adapter only in rear lights. And to use there bright red led's.

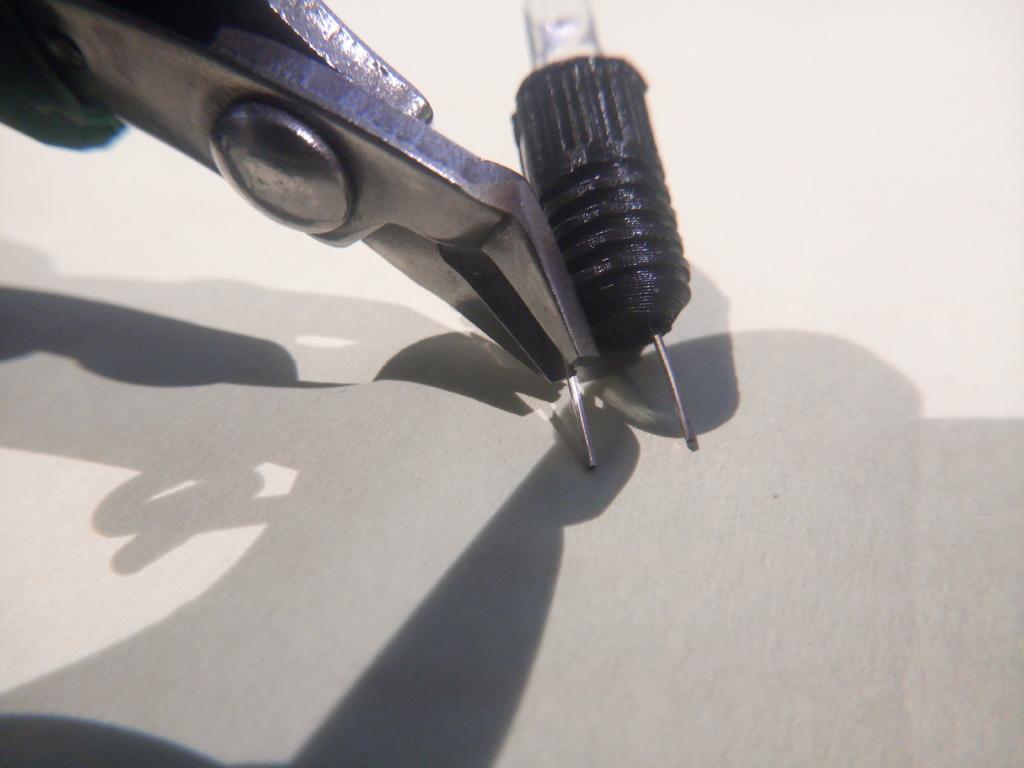

• You maybe have to drill out the center hole with a 1mm drillbit after printing. Thats because of the meltet and compressed first layers. To prevent from that you should print with 2 bis 5 layer raft.

Print Settings

Printer:

Prusa i3 plus

Rafts:

Supports:

Resolution:

Infill:

Filament: - PLA/ABS -

Notes:
