DeckBox MTG & TCG

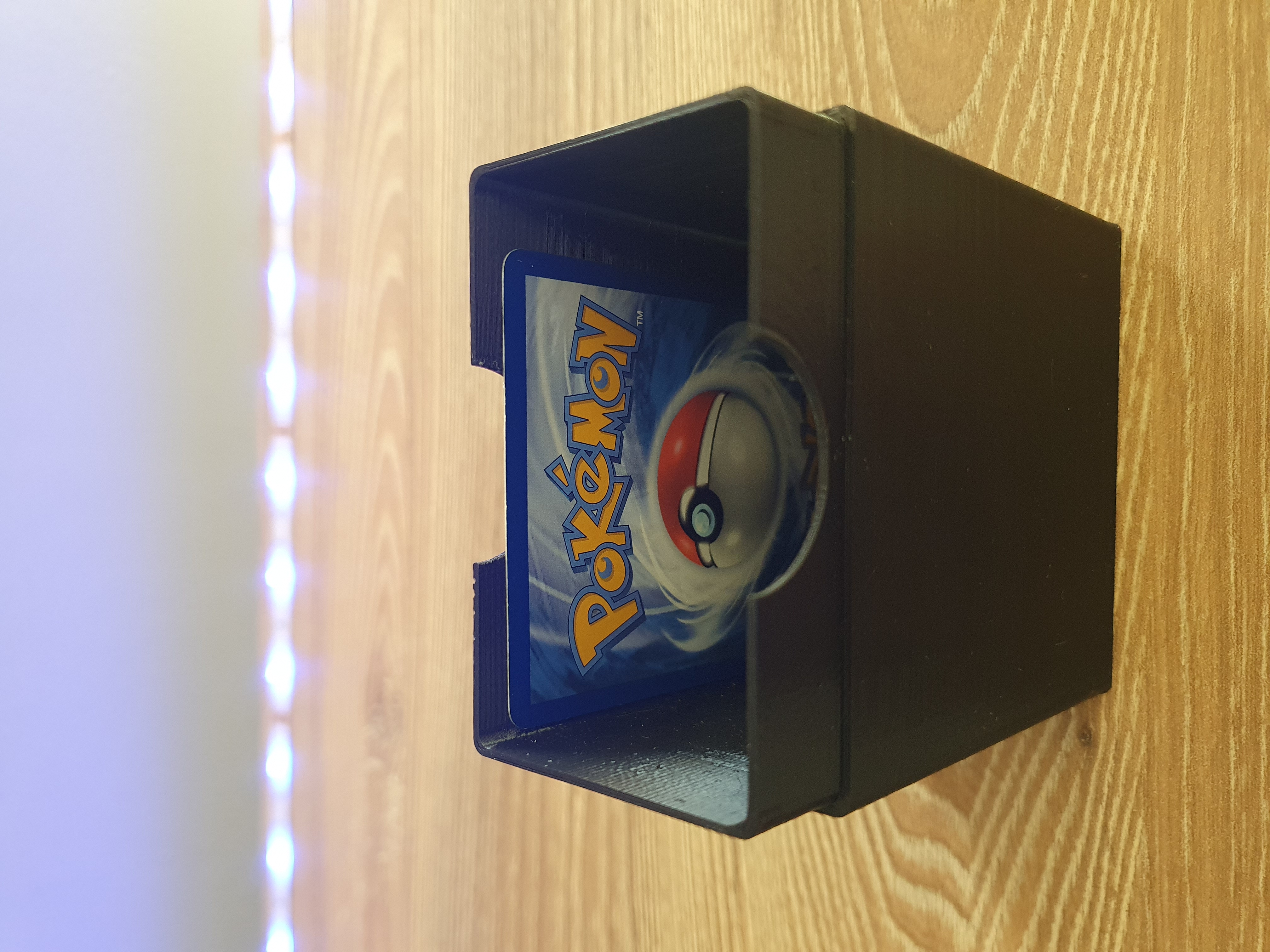

TCG / MTG Deck Box with optimized capacity for 80 single-sleeved cards

Compatible decks:

• Pokémon

• One Piece

• Magic: The Gathering

• Digimon

• Disney Lorcana

• Star Wars: Unlimited

• Yu-Gi-Oh!

• Any deck with sleeves up to 67 x 92 mm

Technical Details

• Optimization: Specifically designed to be printed at 0.2 mm layer height with a 0.4 mm nozzle.

• Resistance: Reinforced walls to protect your deck in any situation.

• Closure System: Easy and secure lid anchoring using friction points.

• Simplicity: Very easy to print and does not require supports.

Dimensions

• Depth: 42.8 mm

• Width: 71.8 mm

• Height: 92.4 mm

Printing Recommendations

• Rigidity: To ensure walls are resistant, it is recommended to print with 6 walls or at least 3 walls for maximum rigidity.

• Calibration: The design features a 0.15 mm tolerance between the lid and the body. Ensure your printer is well-calibrated, as the closure may feel tighter depending on your material flow.

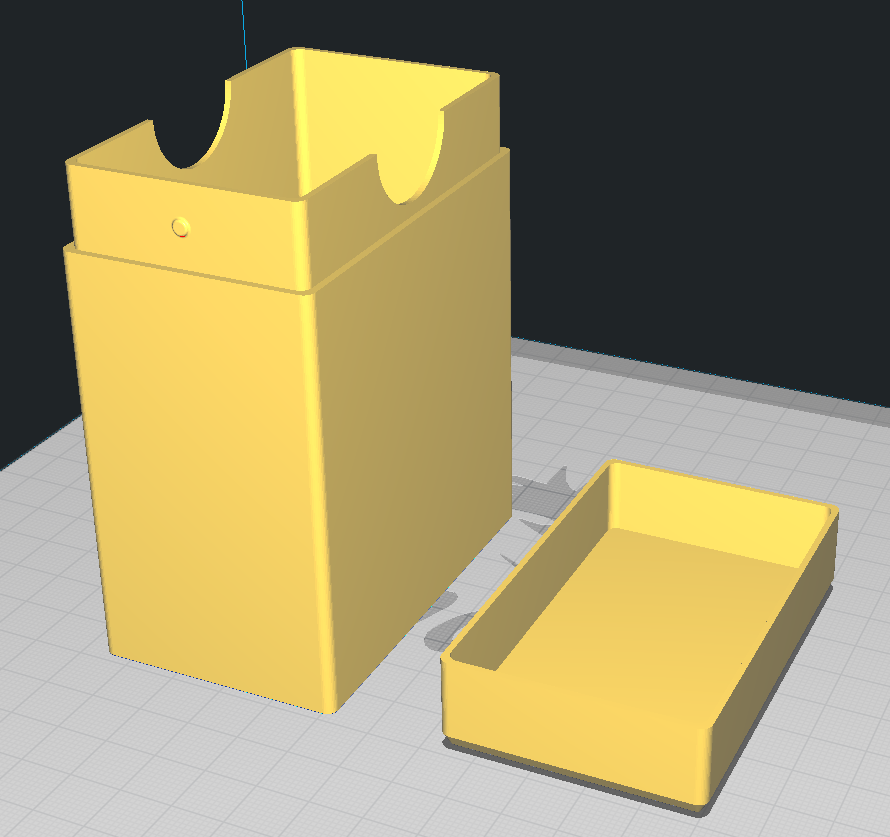

• Slicer layout:



Includes

• STL File: Box_v2.stl & Cover_v2.stl

• 3mf Cura Settings File for Cover: Cura_Cover_Pattern_v2_.3mf

Extra Tip

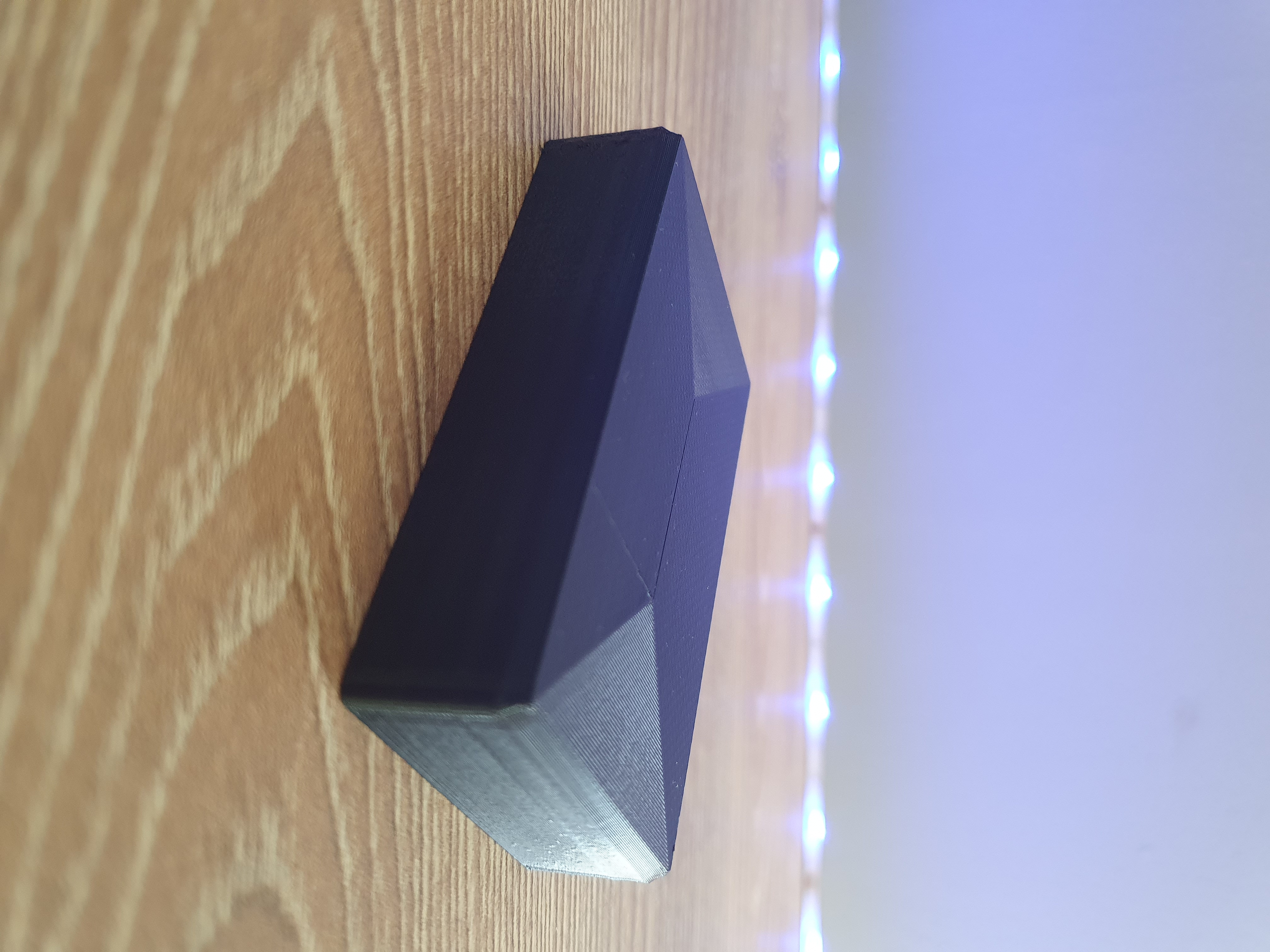

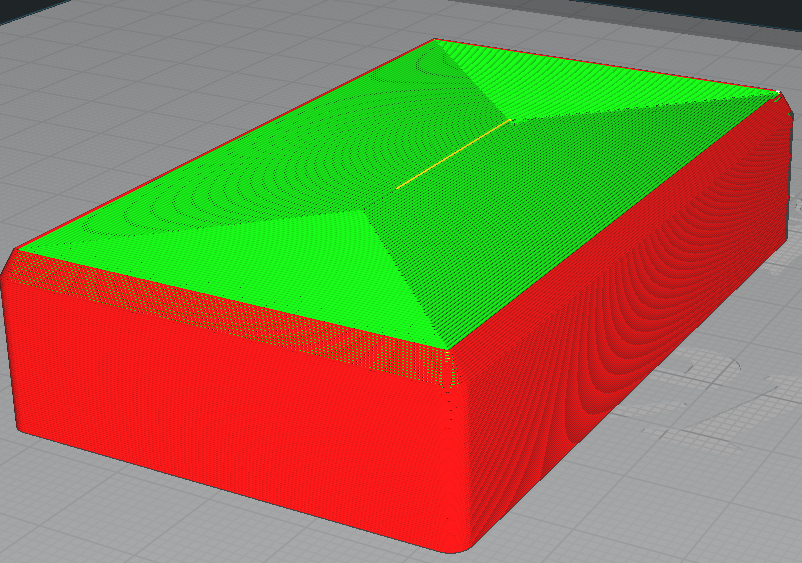

If you want to achieve the same pattern on the top of the Cover, you must use a high Wall Line Count value; I used 99 with Ultimaker Cura slicer. If you prefer, you can download the TapePattern.3mf file to get the same result.

>>> UPDATE: Adjusted the cover tolerance from 0.2mm to 0.15mm for a much stronger and reliable snap fit. I also added locking holes to the cover to improve the grip.

Personalize your build. Print in any color to match your favorite deck!
