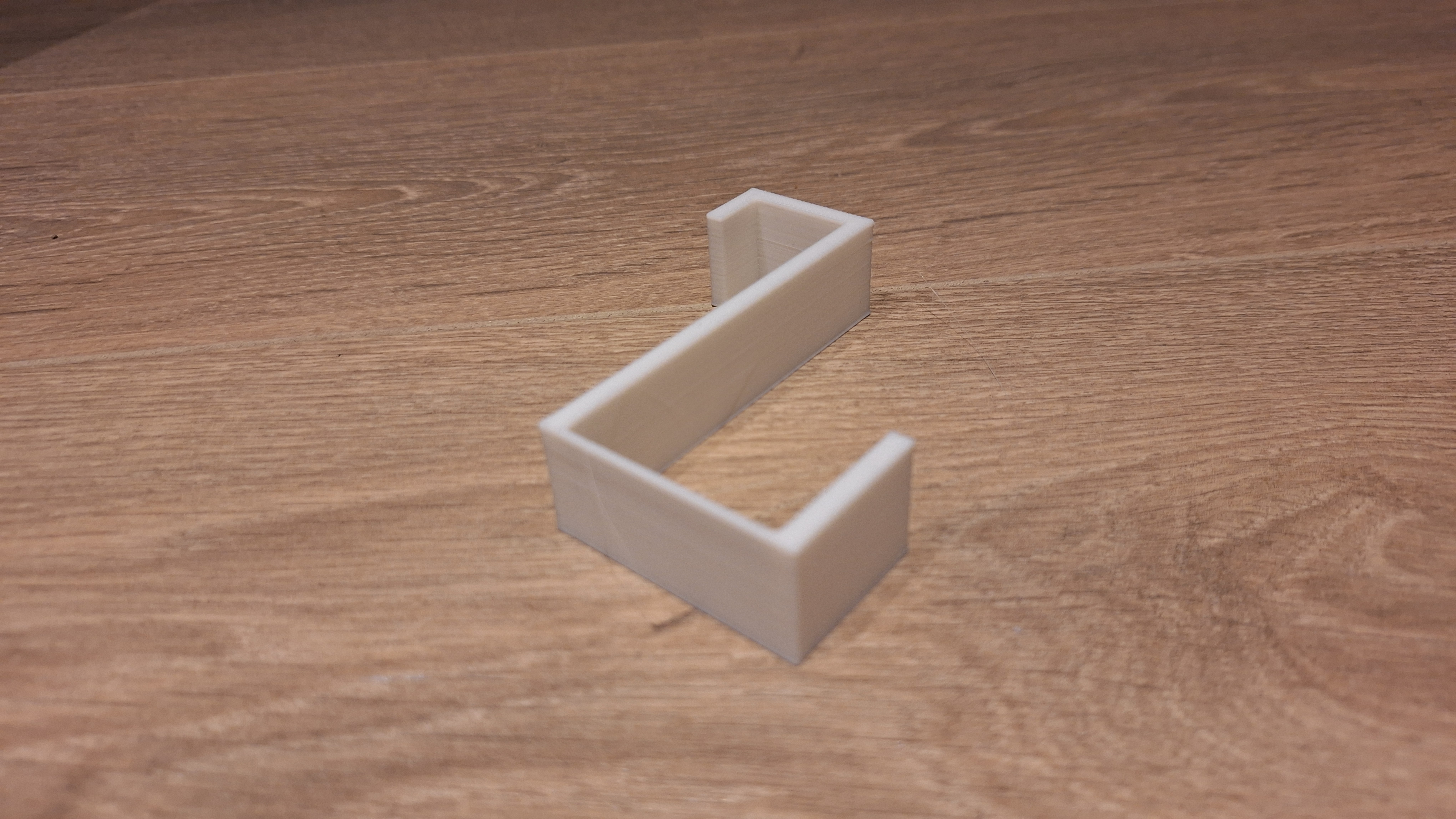

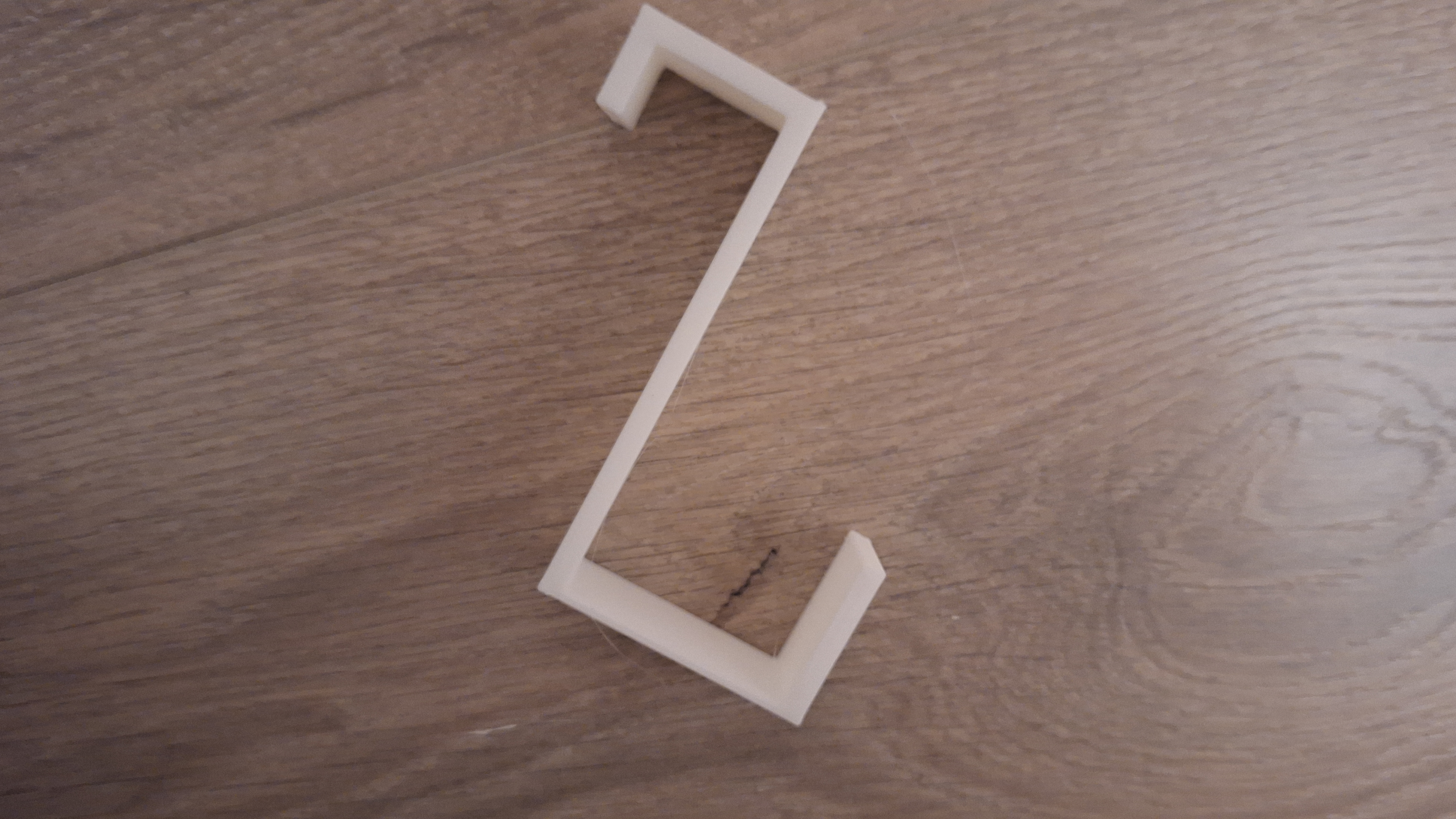

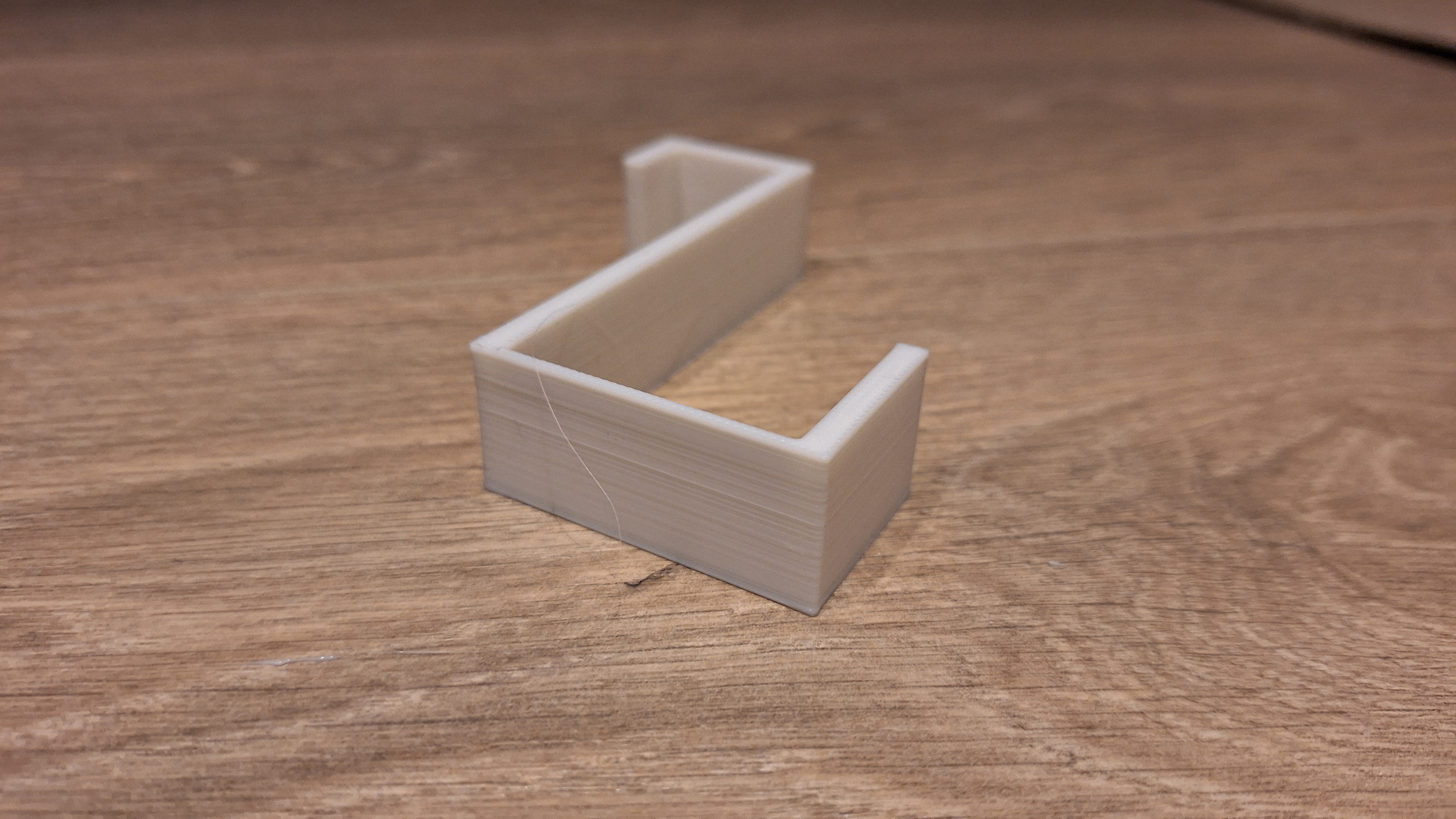

Universal Door Hook Generator

Tired of door hooks that wobble, block your door from closing, or snap under the weight of a heavy winter coat? This Universal Door Hook Generator solves all those problems. By inputting the exact measurements of your door, you get a perfect, custom-fit hook that sits flush and secure.

🛠 What can you customize?

• Door Thickness: Measure your door (standard is usually 40mm) and get a perfect friction fit without any rattling.

• Top Clearance: Doors with tight frames need a thinner top plate (e.g., 1.5mm) to close properly. You have full control.

• Arm Thickness: Need to hang a heavy backpack? Just bump the arm thickness from 4mm to 6mm for massive strength.

• Dimensions: Adjust the hook width, drop length, and lip height.

• Double Hook Mode: Enable a secondary, smaller hook halfway down the main arm. Perfect for hanging a hat above your coat.

🖨 Print Settings
For a hook that doesn't break, orientation and settings are important. This model is generated flat on its side to maximize layer strength.

• Material: PETG, ABS, or ASA are highly recommended for their flexibility and impact resistance. PLA works fine for lighter items like towels.

• Orientation: Print flat on its side. Never print it standing upright, or the layers will snap along the Z-axis under load.

• Walls: 4 to 6 walls. Wall thickness provides much more strength than infill.

• Infill: 15-20% Gyroid or Honeycomb. Even more to make it even stronger.

• Supports: 100% support-free.

❤ Share your setup
Did you print a massive hook for your gym bag or a tiny one for some cables? Please share a photo in the reviews! It helps others see the potential of this parametric design. If you give permission, I will add your photo to the main model images.

Happy printing!
