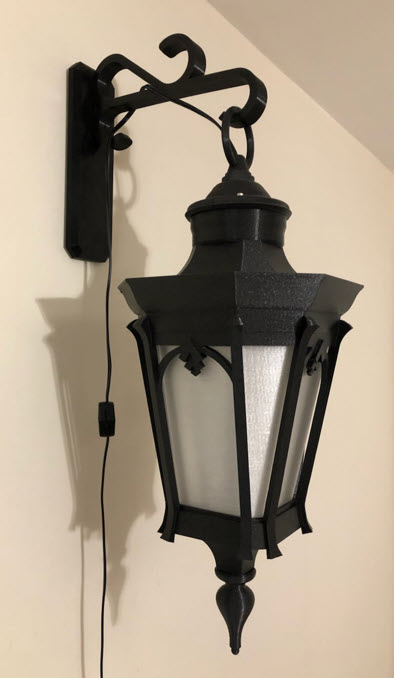

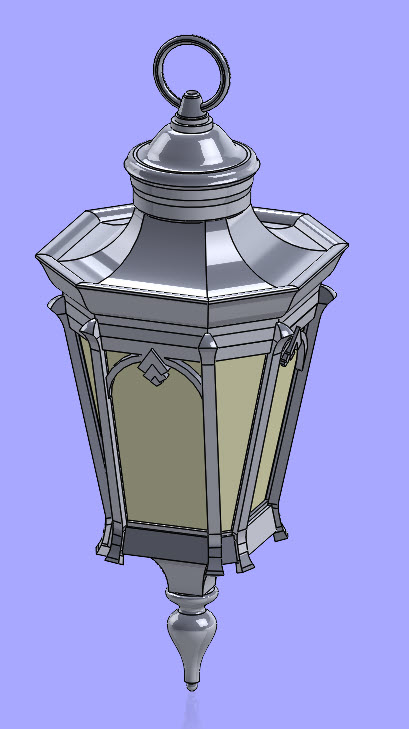

Colonial Hanging Lantern

For everyone obsessed with lighting, a full size lamp for your printing enjoyment.

Hardware needed:

• 10x M3x30mm
• 6x  M3x10mm socket cap screws
• super glue
• clip in bulb socket (E12) such as https://www.amazon.com/Creative-Hobbies-7110A-Replacement-Christmas/dp/B01LVZ5ZD3/ref=pb_allspark_purchase_sims_desktop_sccl_2/132-0945912-7719127?pd_rd_w=KPfcE&pf_rd_p=a1d1c068-dee3-40e3-b447-9c25978d3ec6&pf_rd_r=J7DXZFPVXVKFZVHE1PFD&pd_rd_r=81e8b8c7-bb07-464d-9996-da237ebc523c&pd_rd_wg=wyDIs&pd_rd_i=B01LVZ5ZD3&th=1
• or battery operated tea light
• led bulb (E12), a flicker flame bulb is a nice touch.
• wall hook https://www.printables.com/model/165021-wall-hook

Print one of each part with the exception of the “glass” files.  Choose between either “glass” or “glass open”  glass open has an opening for use with a tea light.  The "glass" should be printed in a translucent filament.  I used a 0.2 layer height.  These parts need support are the top 1 and bottom 2.  The others will print just fine without supports.

Thread the screw holes.  There are pilot holes in bottom 1, top 1, and the one of the two halves of the top with the loop.  Using an electric driver, carefully run the screw into the hole and back out.  This will create threads without having to use a tap.

Glue bottom 1 to bottom 2 to bottom 3.

Drop in the glass to the fully assembled bottom.  Install clip-in-bulb socket to top 1 and secure to fully assembled bottom.  Run the cord between the two pieces of top loop 1 and 2.  Secure to top 1 with screws.

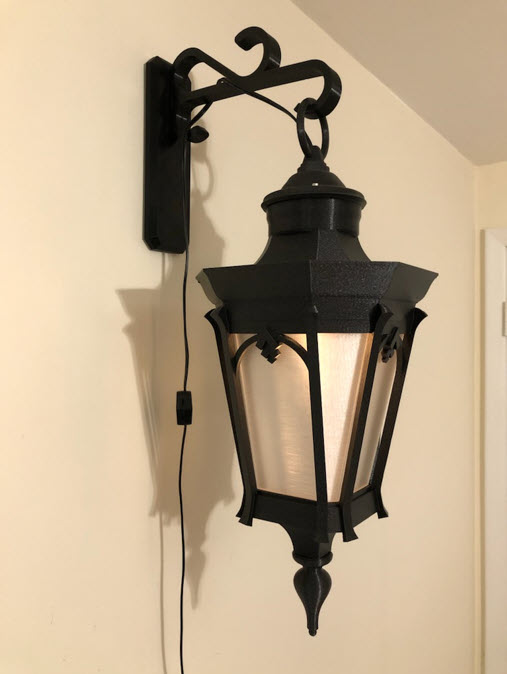

Print hook.  Mount hook to wall and hang lamp.
