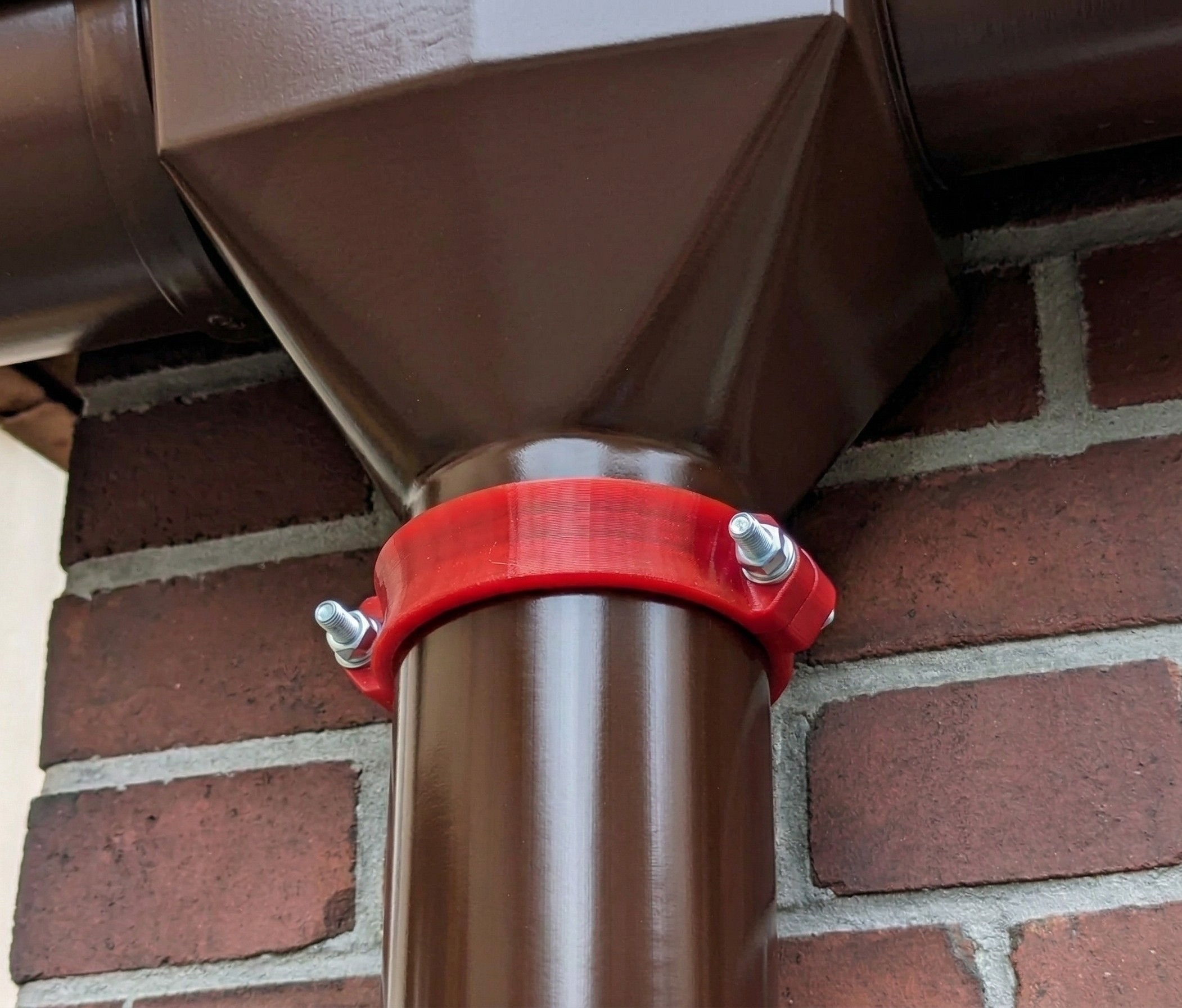

Simple Water Pipe Clamps
for 110 mm pipes (KG 110) and others (see list below)
1-sided or 2-sided fastening / with or without mounting option (zip tie)
For M8 screws (or smaller with washers)
To clamp two pipes, one or two vertical slots must be cut into the upper pipe.
Printing
5 or more perimeters/walls recommended
PETG or better recommende for outdoor use
Print in given orientation
Sizes > scaling
Outer ⌀ | Scale | Usage | ||
EU | DN 160 | 160 mm | 145,50% | Underground sewer |
DN 125 | 125 mm | 113,60% | Collector pipe | |
DN 110 | 110 mm | 100,00% | Soil stack / WC | |
DN 75 | 75 mm | 68,20% | Waste pipe | |
DN 50 | 50 mm | 45,50% | Branch pipe (Sink, shower, bath) | |
US | 6" | 6.625" | 153,00% | Underground sewer |
5" | 5.563" | 128,50% | Collector pipe | |
4" | 4.500" | 103,90% | Soil stack / WC | |
3" | 3.500" | 80,80% | Waste pipe | |
2" | 2.375" | 54,80% | Branch pipe |
