AWT Works Benchmark v1.0 - All-in-One Printer Test

Test your 3D printer's performance in one single print with the AWT Works Benchmark v1.0. This compact test plate covers the most common printer calibration tests in a single print at a constant speed of your choice. Do not use adaptive speed. Compare results between speeds to find your printer's sweet spot.

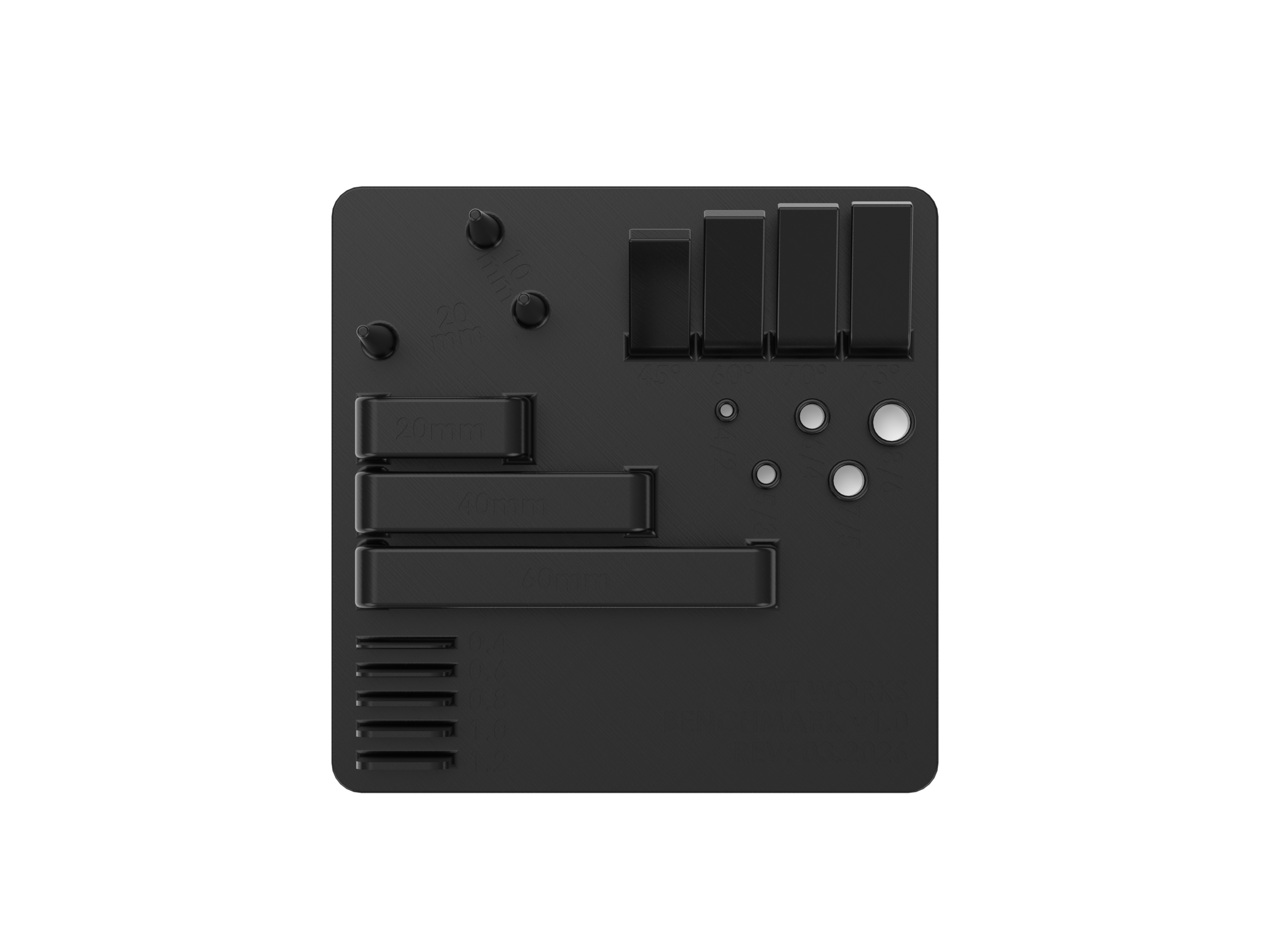

Tests Included:

• Stringing: 3 tapered pins in triangle formation with 10mm and 20mm gaps.

• Overhang: 45°, 60°, 70° and 75°.

• Bridging: 20mm, 40mm and 60mm

• Tolerance rings: 4/2, 5/3, 6/4, 7/5 and 8/6mm (outer/inner diameter).

• Wall thickness: 0.4, 0.6, 0.8, 1.0 and 1.2mm.

Design Philosophy:

Most all-in-one test prints combine multiple tests into single compact structures. I chose to keep each test separate and clearly labeled for one simple reason, it's much easier to evaluate the results.

• Separate overhang angles mean you can instantly see exactly where your printer starts to struggle.

• Individual bridge spans make it obvious which lengths your printer handles cleanly.

• The tolerance rings give you both inner and outer diameter to measure with calipers in one go.

• Tapered stringing pins in a triangle formation test multiple gap distances and directions simultaneously.

Every design choice was made to maximize readability of results, not to minimize print time.

Print Settings:

• No supports required

• 2-3 walls, 10-15% infill

• Print at a constant speed of your choice.

• Layer height: 0.20mm

Build plate required: 105 x 105 mm or larger.
