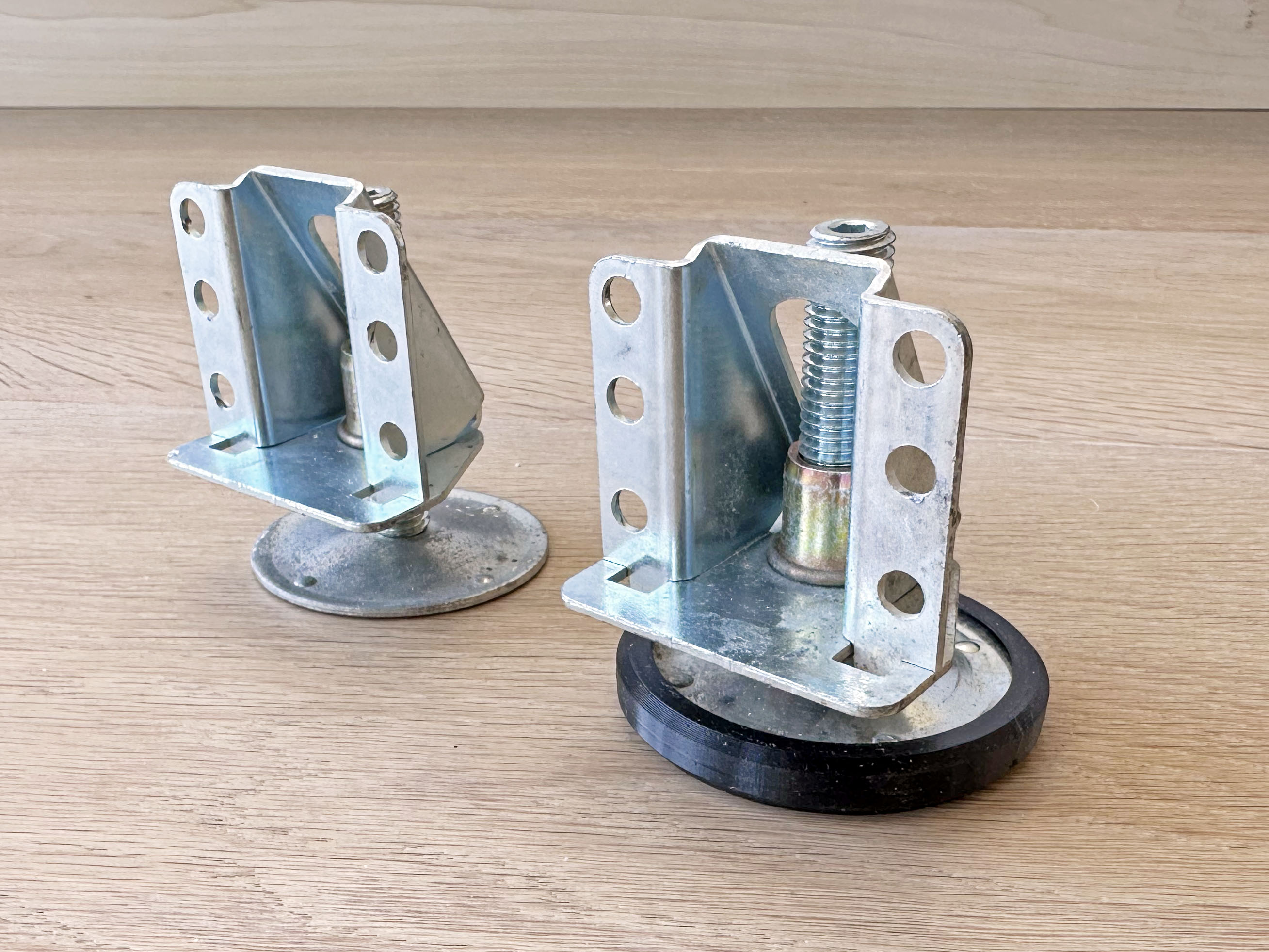

I salvaged some adjustable leveling feet which didn't have rubber pads on them, so I modeled them. The adjustable feet I have are not labeled/stamped in any way. Mine happen to be 2 3/8" diameter and 2.6mm thick. I figured it is unlikely others will want this exact dimensioned model, so I made this fully parametric.

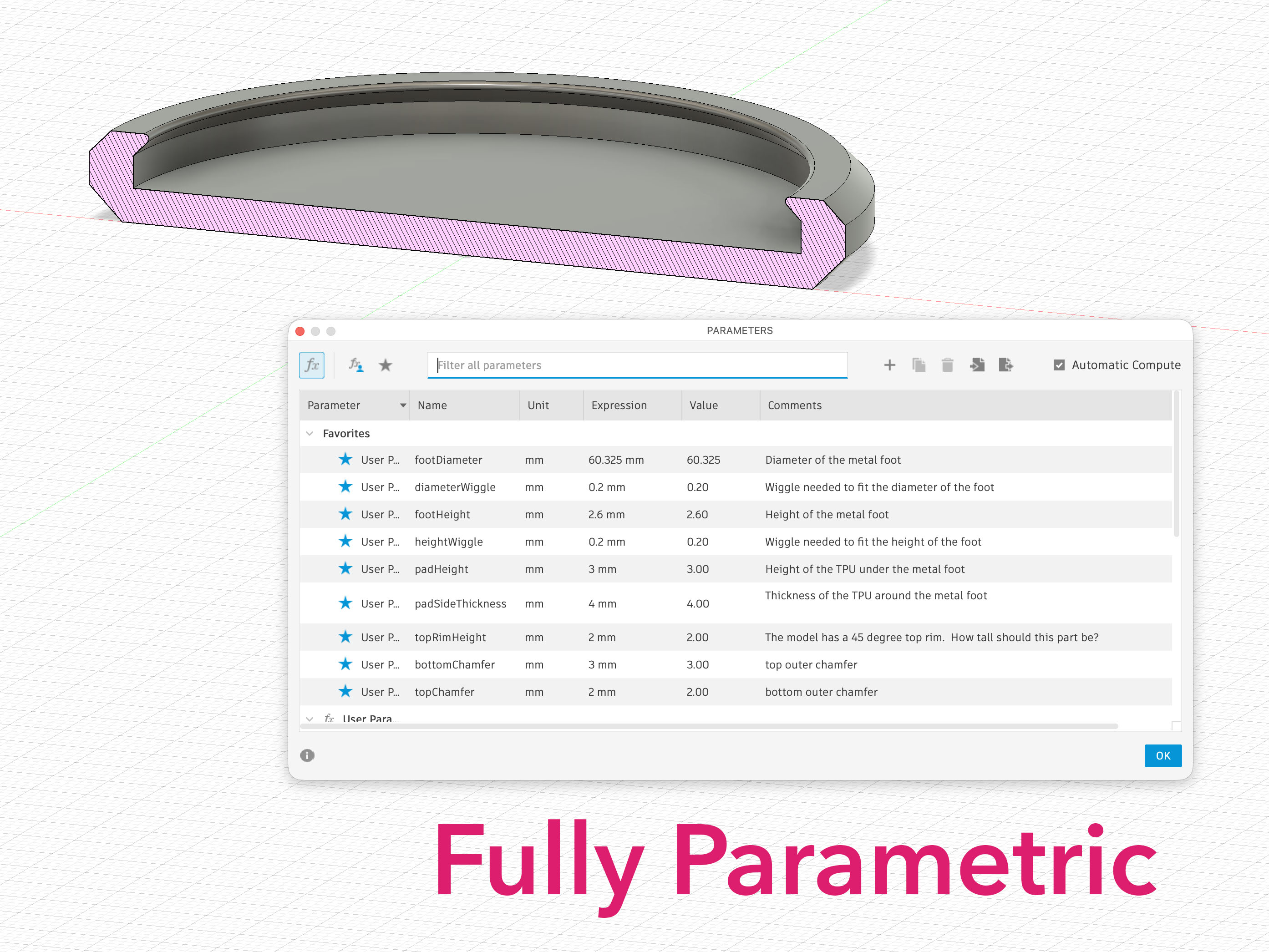

To customize:
as long as you can load and export a model in Fusion, you can adjust this model via MODIFY > Change Parameters.
you can also Customize this on MakerWorld.
Note:
You must print this in TPU, as this model is designed to flex around the foot.
No supports are needed.
I printed with Varioshore TPU (92A) and used these settings: https://forum.bambulab.com/t/my-varioshore-tpu-settings-on-the-h2d/172752
