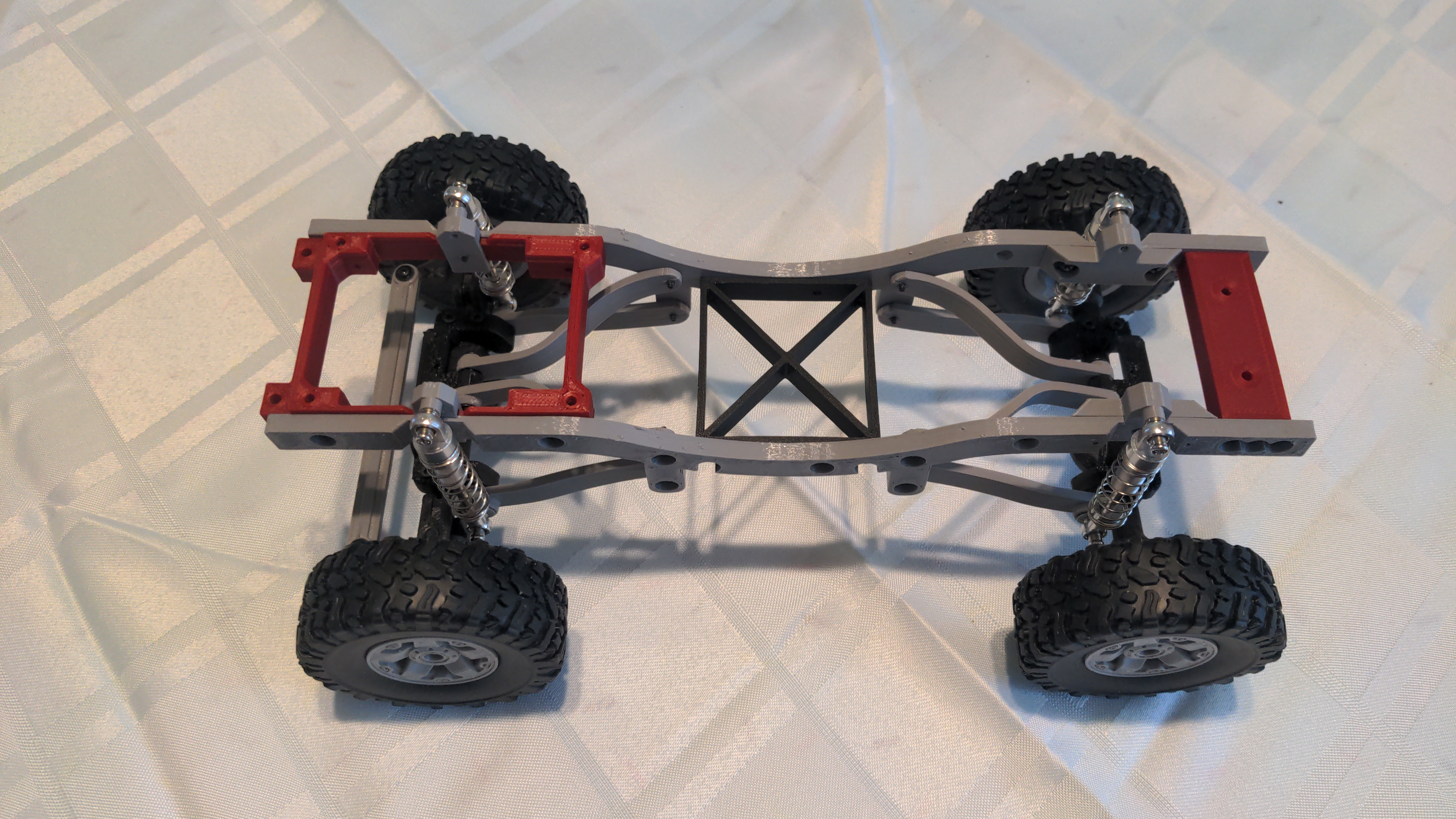

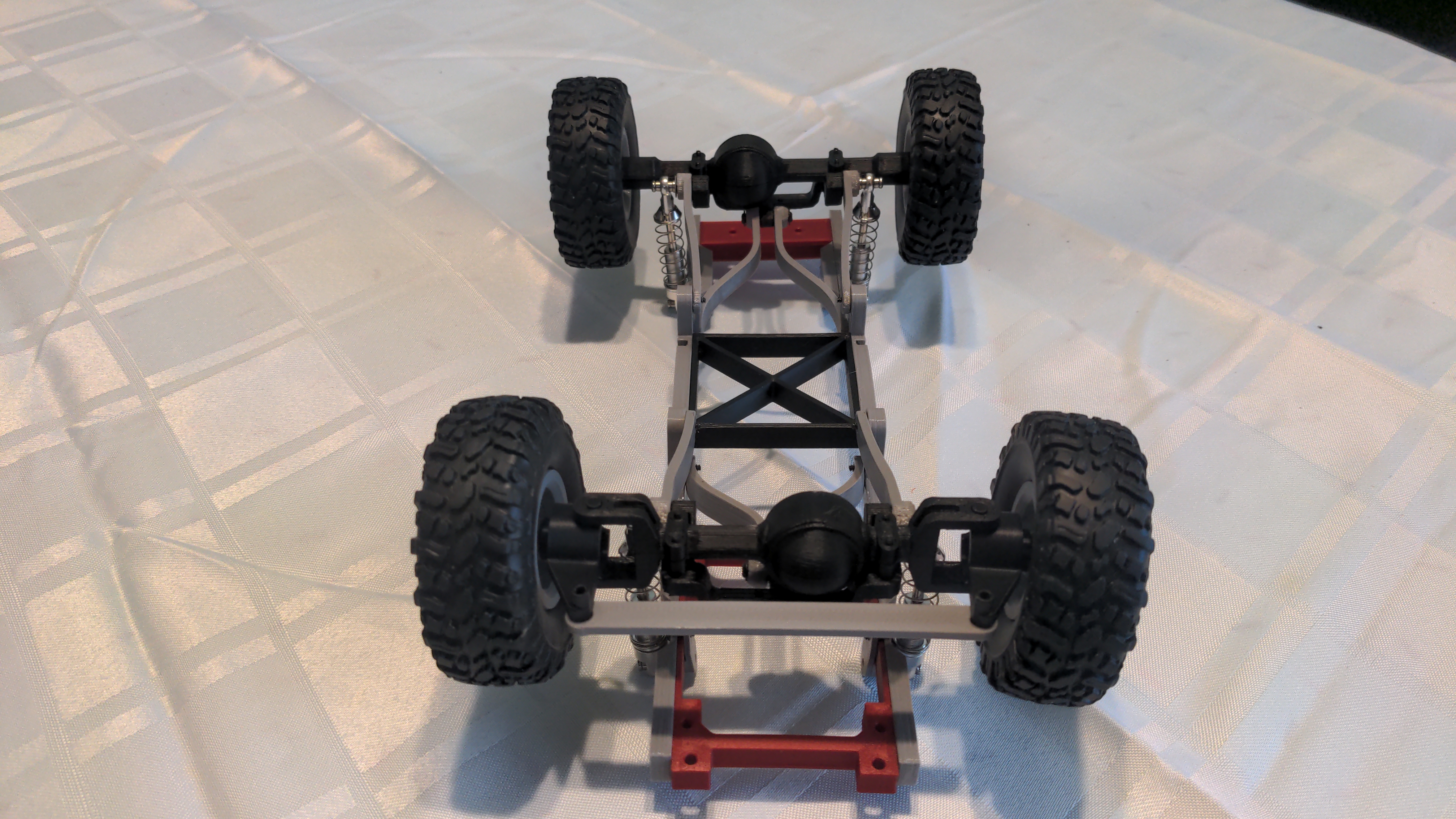

1:16 Truck/Crawler Flexible Rolling Chassis
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
This is a non-RC display chassis compatible with some RC bodies listed below. More into RC's? Check out this chassis instead!
Compatible RC Bodies
Required Hardware & RC Products
30x M2.3x6mm coarse-thread washer-head screws. 4 extra screws needed if using the two pieces frame.
8x M2x16mm screws.
4x M2.5x12mm screws.
4x M2.5x8mm screws.
WPL Tires + 3D printed wheels or MN/WPL wheels & tires.
Print Settings
The easiest way to print this project is by using the provided plates / .3mf files. They have the proper print settings applied to each individual objects. You might need to change your printer, if so make sure to transfer the settings over when you do so.
General Print Settings for all the .stl files
0.15mm layer height
4 perimeters, 30% infill
PLA or PETG (tested both but axle-truss_x2.stl may be too fragile in PLA)
All files should be printed in the orientation they come with
Note:
Make sure you have excellent bed adhesion and that your printer is tuned correctly.
What to print?
If you have a Prusa mini or other small printer, print plate_frame_mini.3mf or frame_a and frame_b from the base_stl folder. Otherwise print plate_frame.3mf or the frame-left.stl and frame-right.stl files from the base_stl folder.
Print plate_everything_else.3mf or print all the parts in the base_stl folder, except for the frame. At the end of the filename is the amount of that part that needs to be printed.
Assembly
This video covers assembling the chassis.
