Simple Reference Model for a Small Linear Stage (75mm stroke). NOT DESIGNED FOR PRINTING
- Ocena
- 0 / 5
- Polubienia
- 13
- Pobrania
- 66
- Wydruki
- 0
- Wyświetlenia
- 368
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution
NOT DESIGNED FOR PRINTING

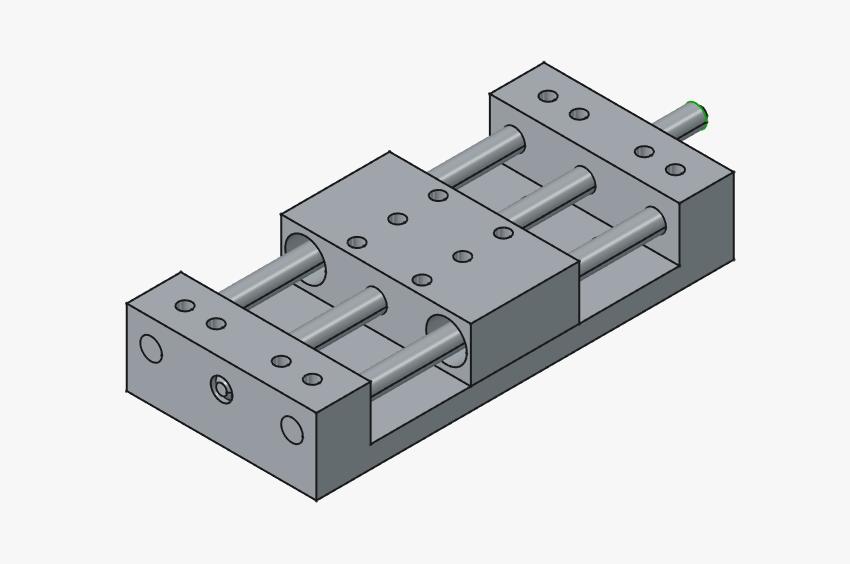

I have a Simple Reference Model for a small linear stage.
The linear sliding axis is based on a somewhat common design I can find on places like Aliexpress, Ebay and Amazon.
This one is based on a stage with a 75mm stroke.
Some dimensions might be slightly off, as a fully defined Technical Drawing reference could not be found.
I will update the file once I get hold of the physical slide and can measure the uncertain dimensions.
Made in FreeCAD V1.1 (with the Fasteners WB Addon)
The design file includes a basic assembly of the parts as an additional reference.
