Camera Tally Light System (Modular Design)
This project is a custom-designed tally light system with a focus on modularity and ease of use.

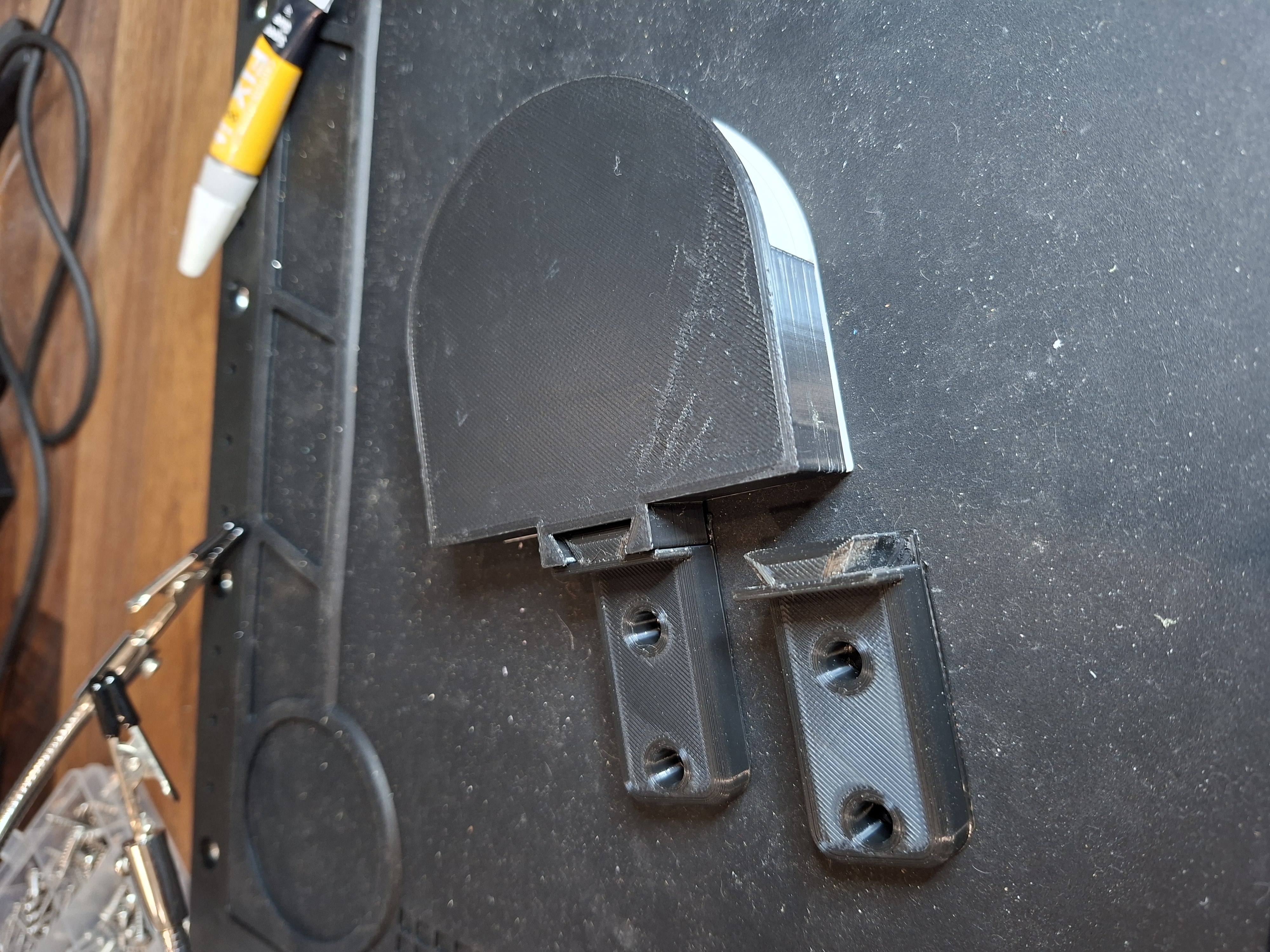

The design includes a compact light housing and a custom bracket that securely mounts to the camera. The key feature is that the light unit can be quickly removed, allowing you to swap or design different brackets for various mounting scenarios without needing to rebuild the entire system.

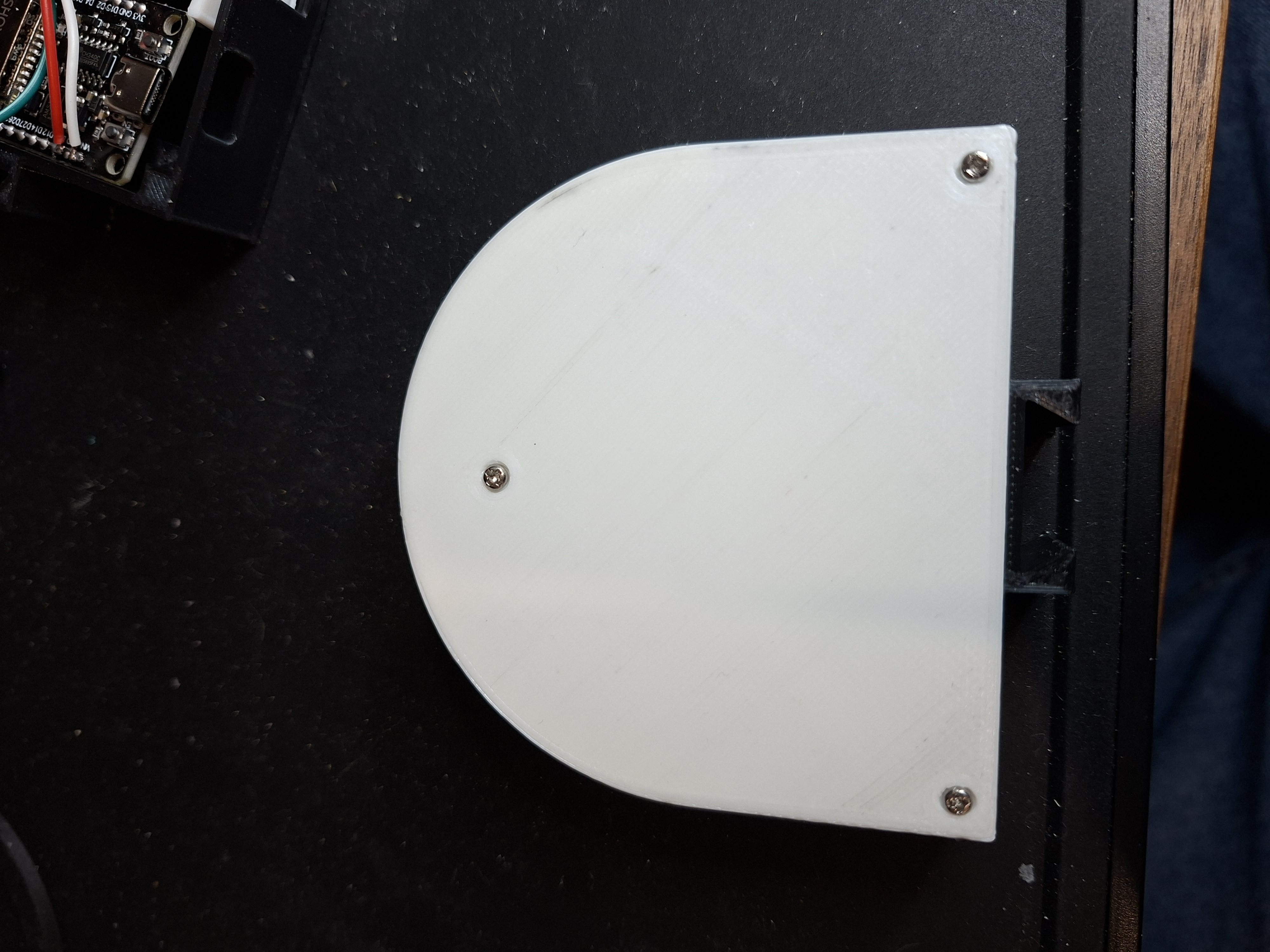

The lid is printed in white to act as a diffuser, making the tally light clearly visible not only to the front (audience/view direction) but also to the camera operator behind the camera. The brightness is sufficient to be seen from the front of a church, even when cameras are positioned at the rear.

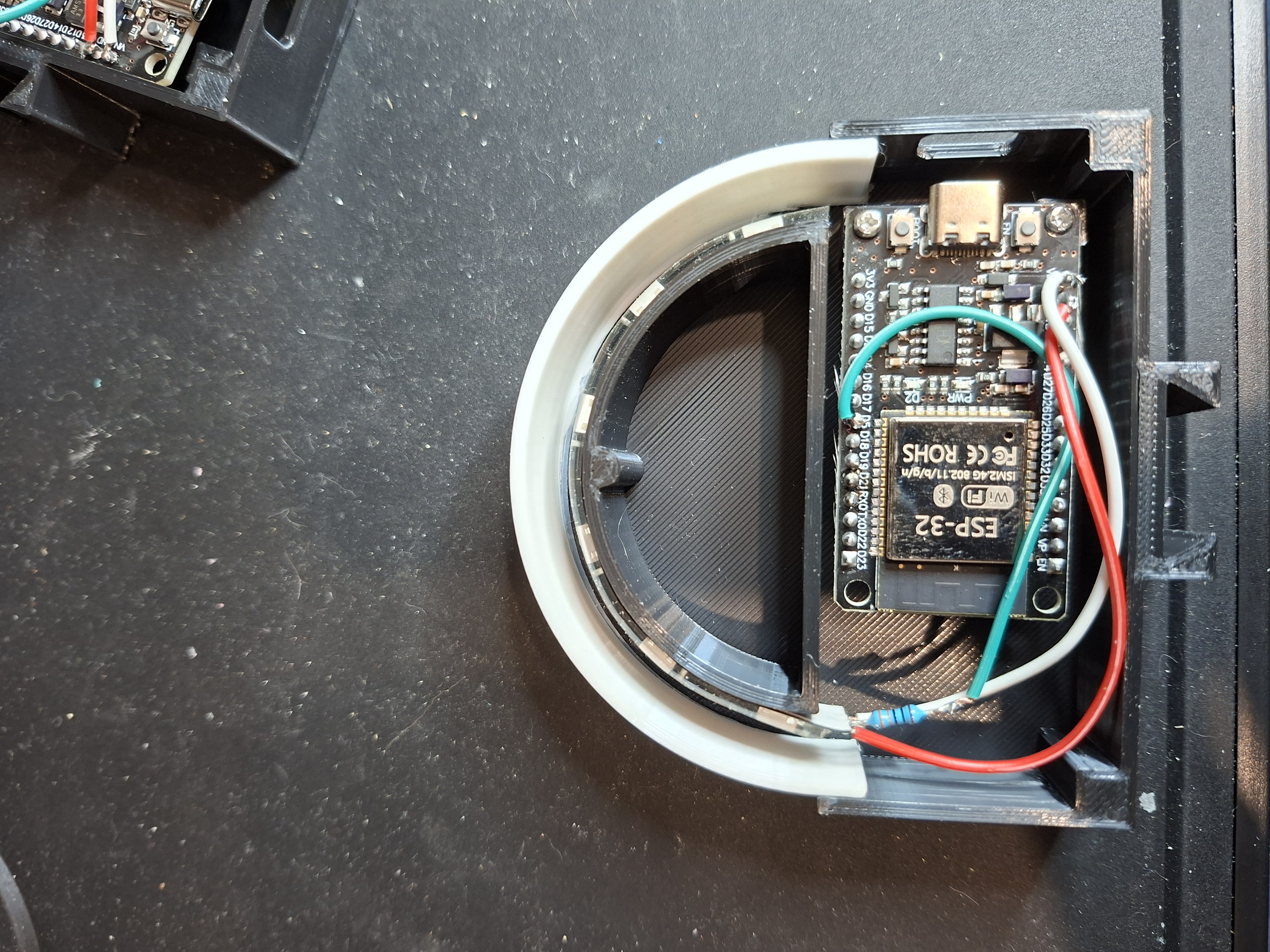

Hardware Used
ESP32 WROOM module
6-LED strip
Resistor on the data line
Software / Setup
This build follows the excellent work and instructions provided here:
Code: https://github.com/AronHetLam/ATEM_tally_light_with_ESP8266
Wiki / Setup Guide: https://github.com/AronHetLam/ATEM_tally_light_with_ESP8266/wiki
Key Features
Modular light + bracket system
Easy removal and reattachment
Customizable mounting options
High visibility (front and operator side)
Clean, compact enclosure design
Ideal for churches, live production setups, or anyone using ATEM switchers who wants a reliable and customizable tally light solution.
