Background
I wanted a way to bring some pills with me on an upcoming bike trip so I designed this easy-to-print TPU pill box. My primary requirements were that it needed to stay closed while rattling around in my bike bag and that it needed to hold about 4 pills.
Design

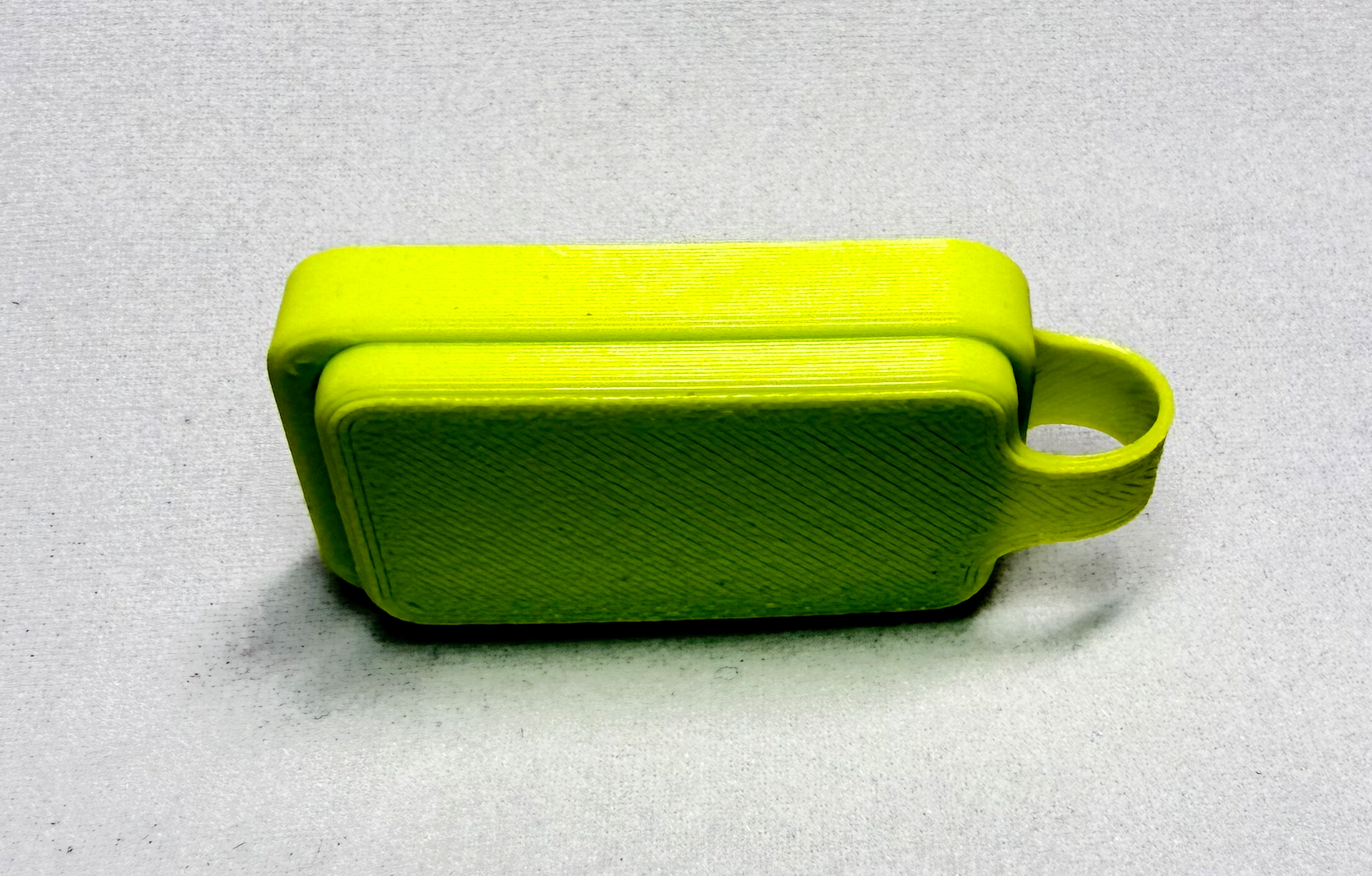

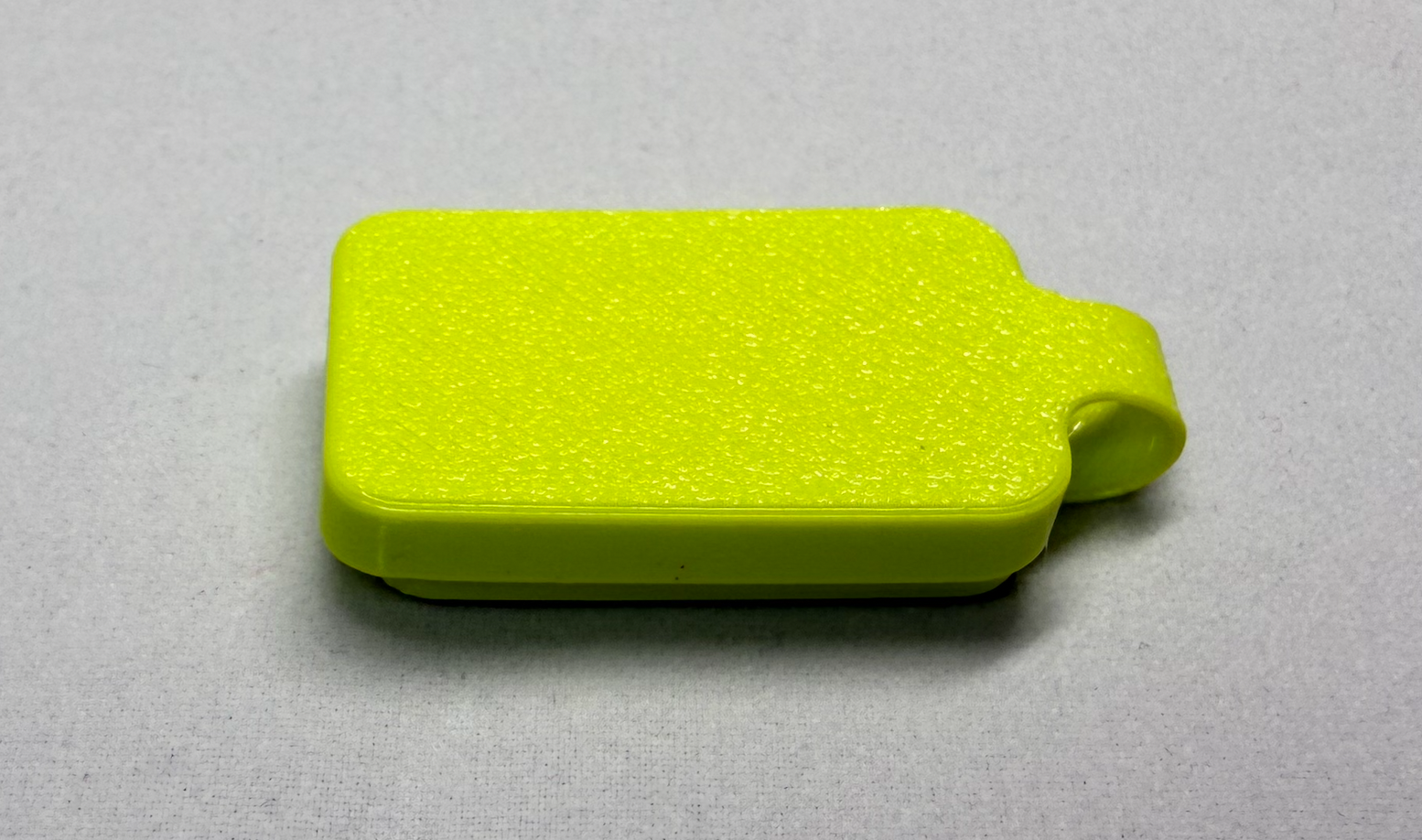

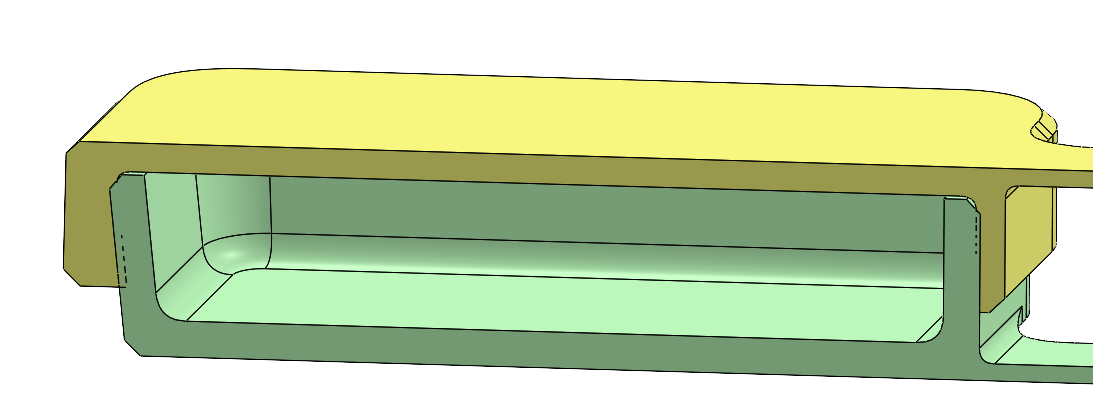

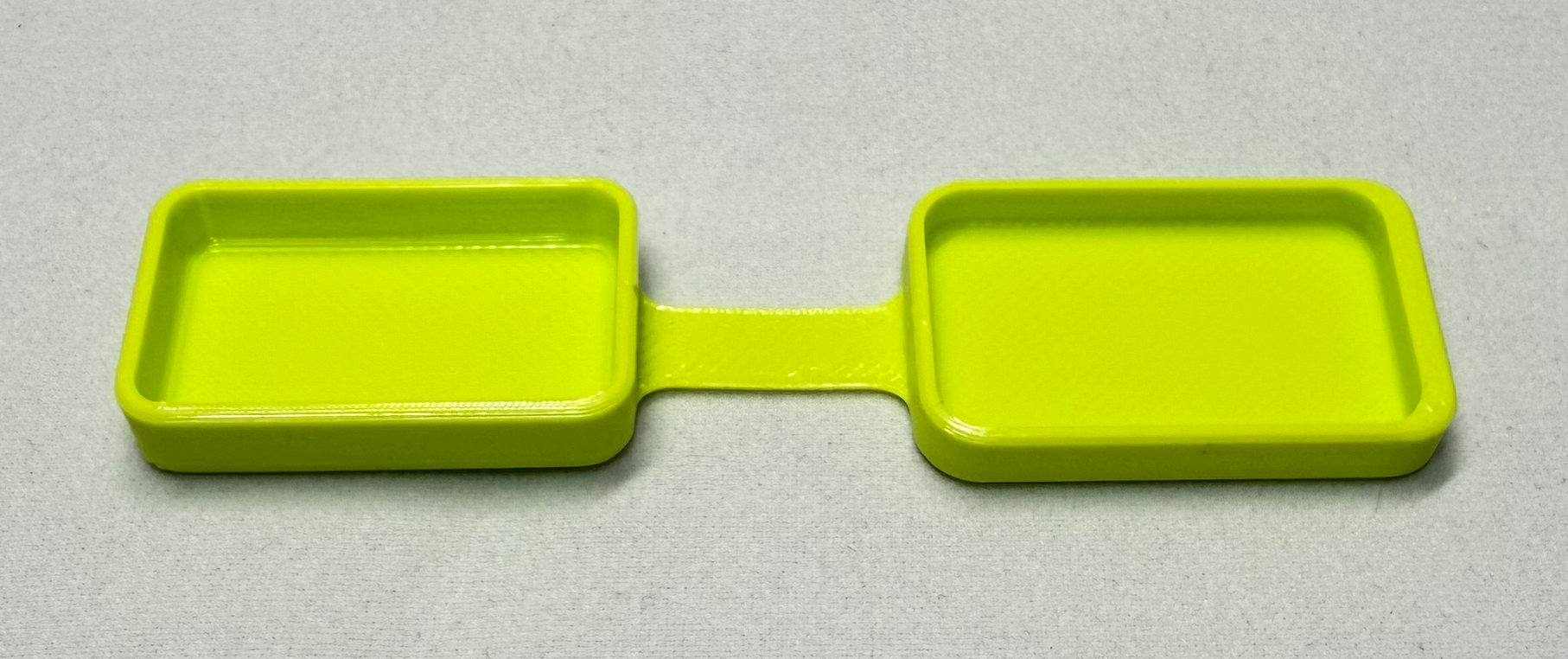

TPU is a fun material to print and I made use of its flexibility by including a living hinge as well as a cover that "snaps" over the main compartment. The end of the cover has been extended a bit to provide a lip to make it easier to open.
Printing
I used a 95A Overture TPU but I'm sure almost any TPU would work. It prints very quickly and obviously needs no supports. I used standard settings of 0.2mm layer height and a 0.4mm nozzle. It should scale up pretty well, but let me know if you would like a larger size model.
I hope you find this useful, and please post your makes!
