A simple door stopper model
As I live in a oldish house, I looked at my door stoppers and notices that they need to be changed. And currently I am without a mode of transport, I drew this model in OnShape of course inspired by the old door stopper.
I have printed these model in PLA, but there should not be any reason it could not be printed in other types of filament.

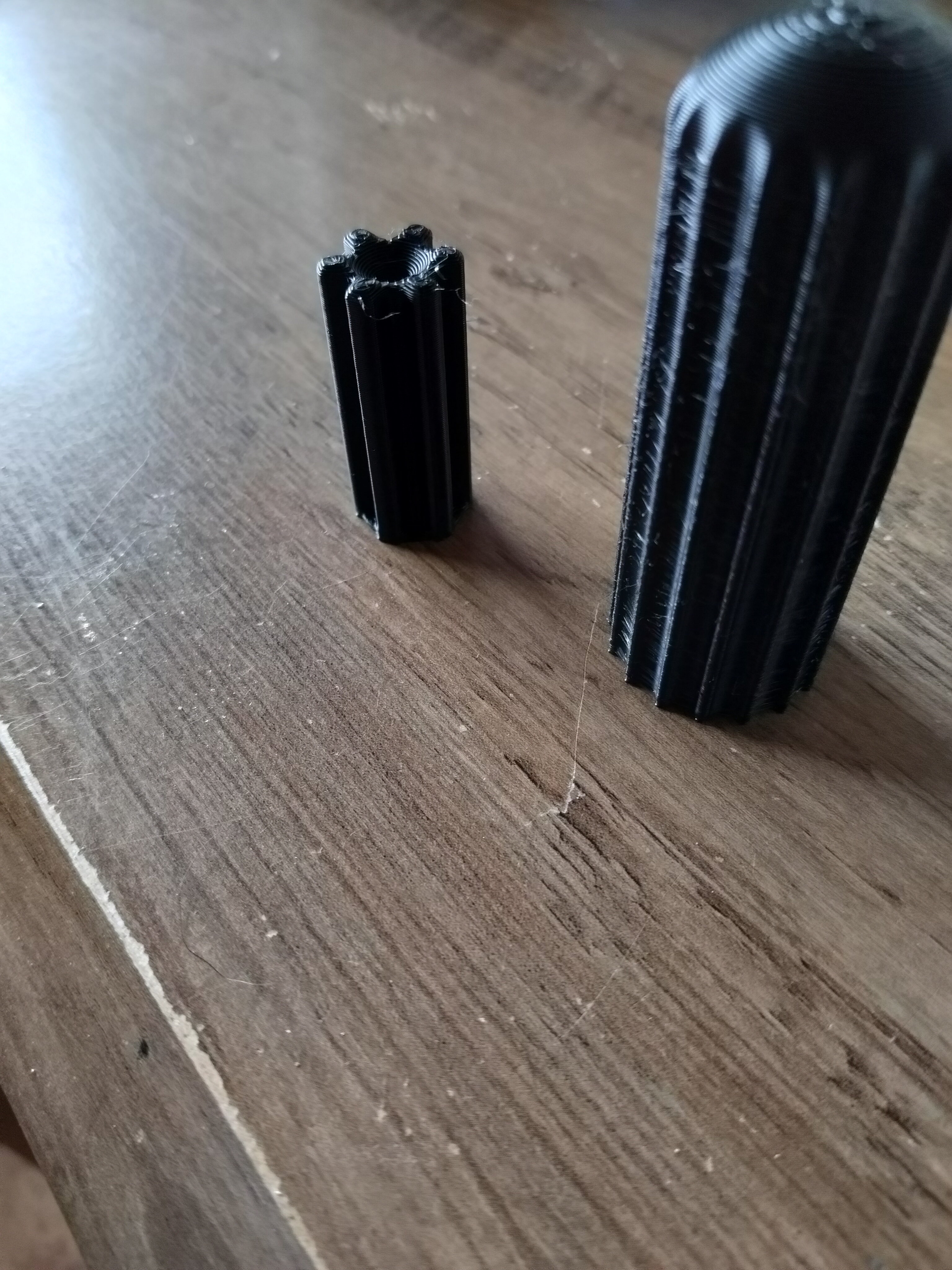

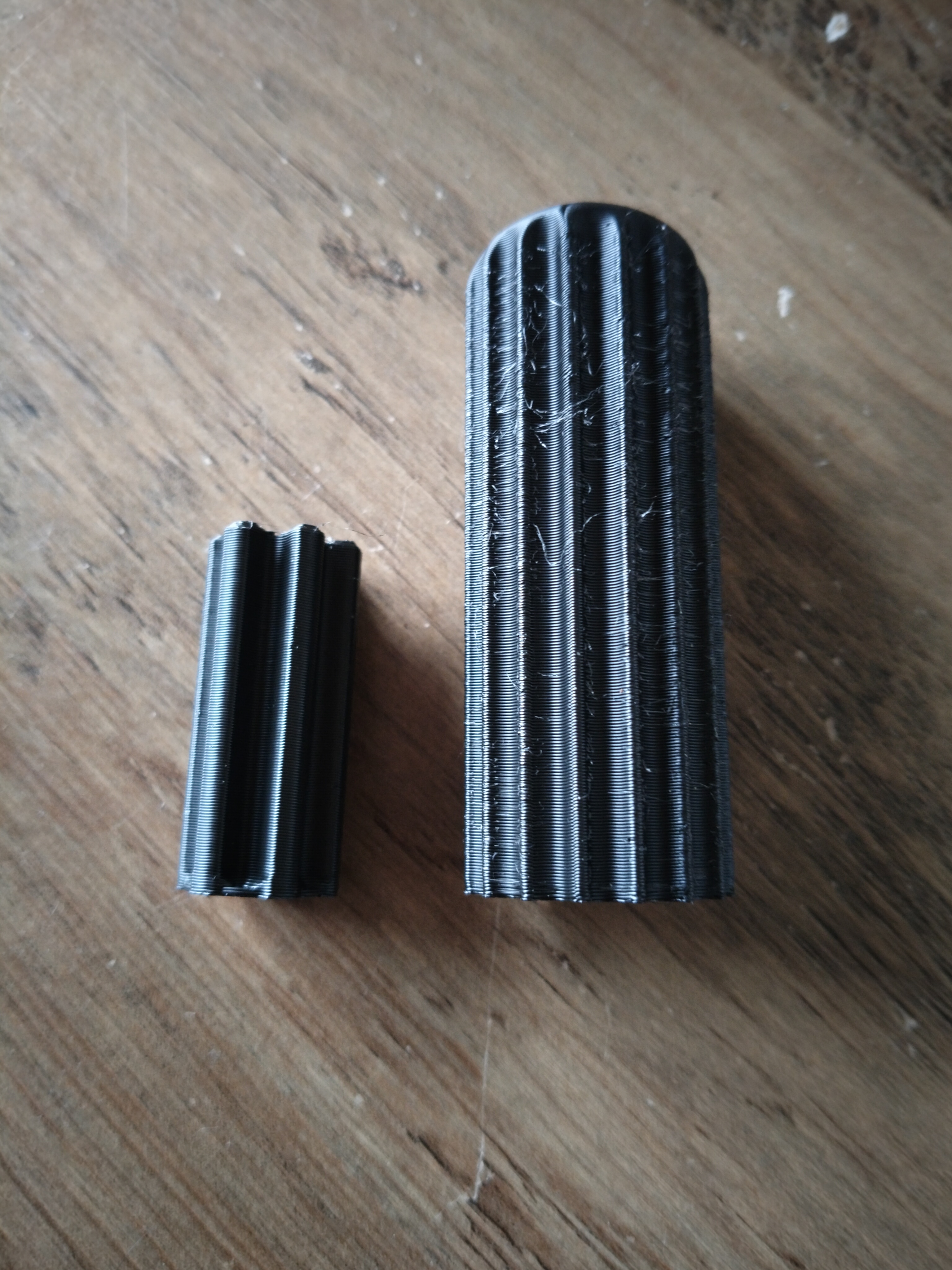

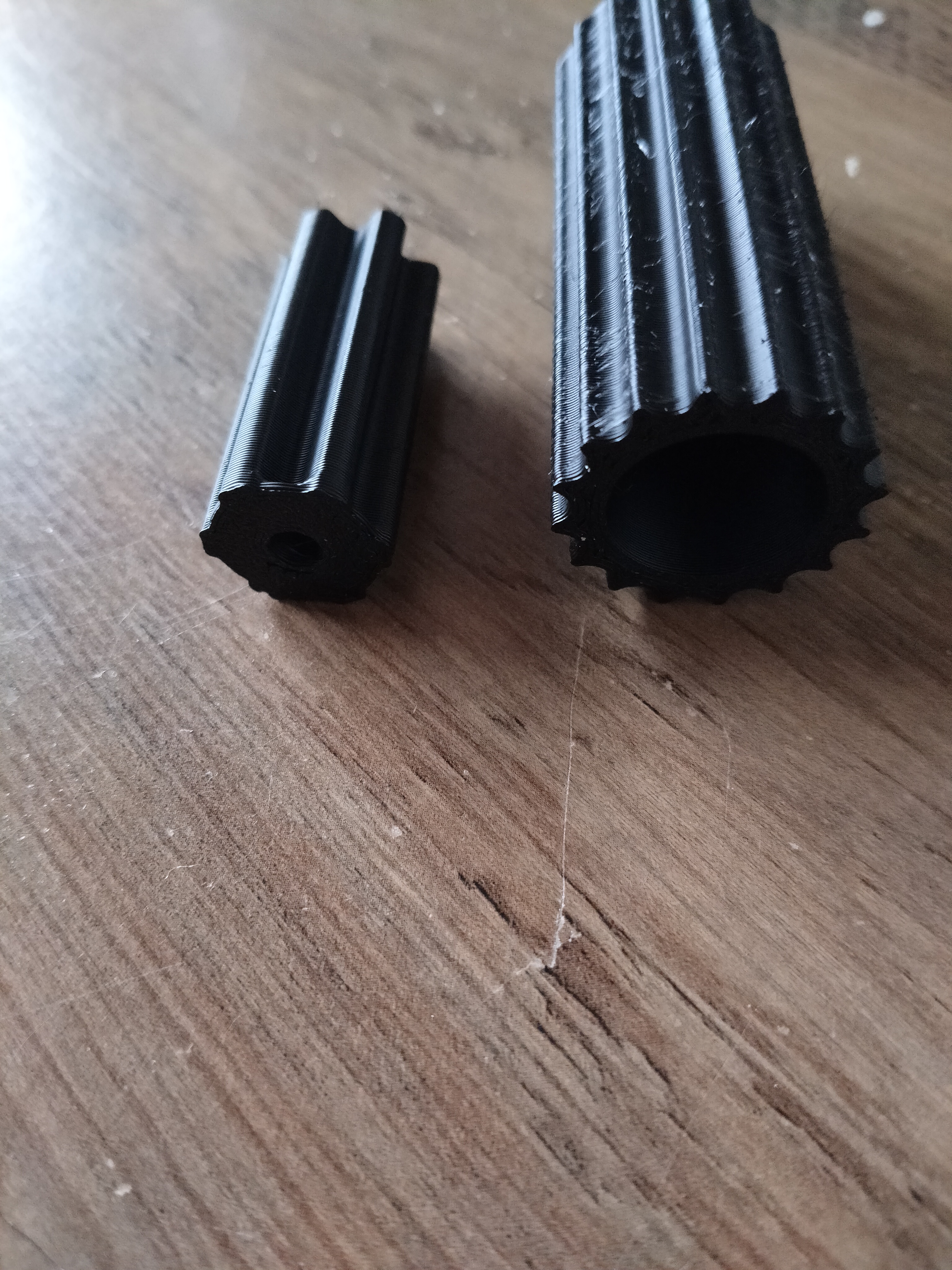

The STEP files should be under files, so it is easier for modifications.
Mounting guidelines
Screw the mount to the wall
Slide the shell over
Mounting in colour pictures |
|---|
 Photo 1: The original door stopper from cirka 1973 |
 Photo 2: The original door stopper mount |
 Photo 3: The new mount installed |
 Photo 4: The new shell in progress of install |

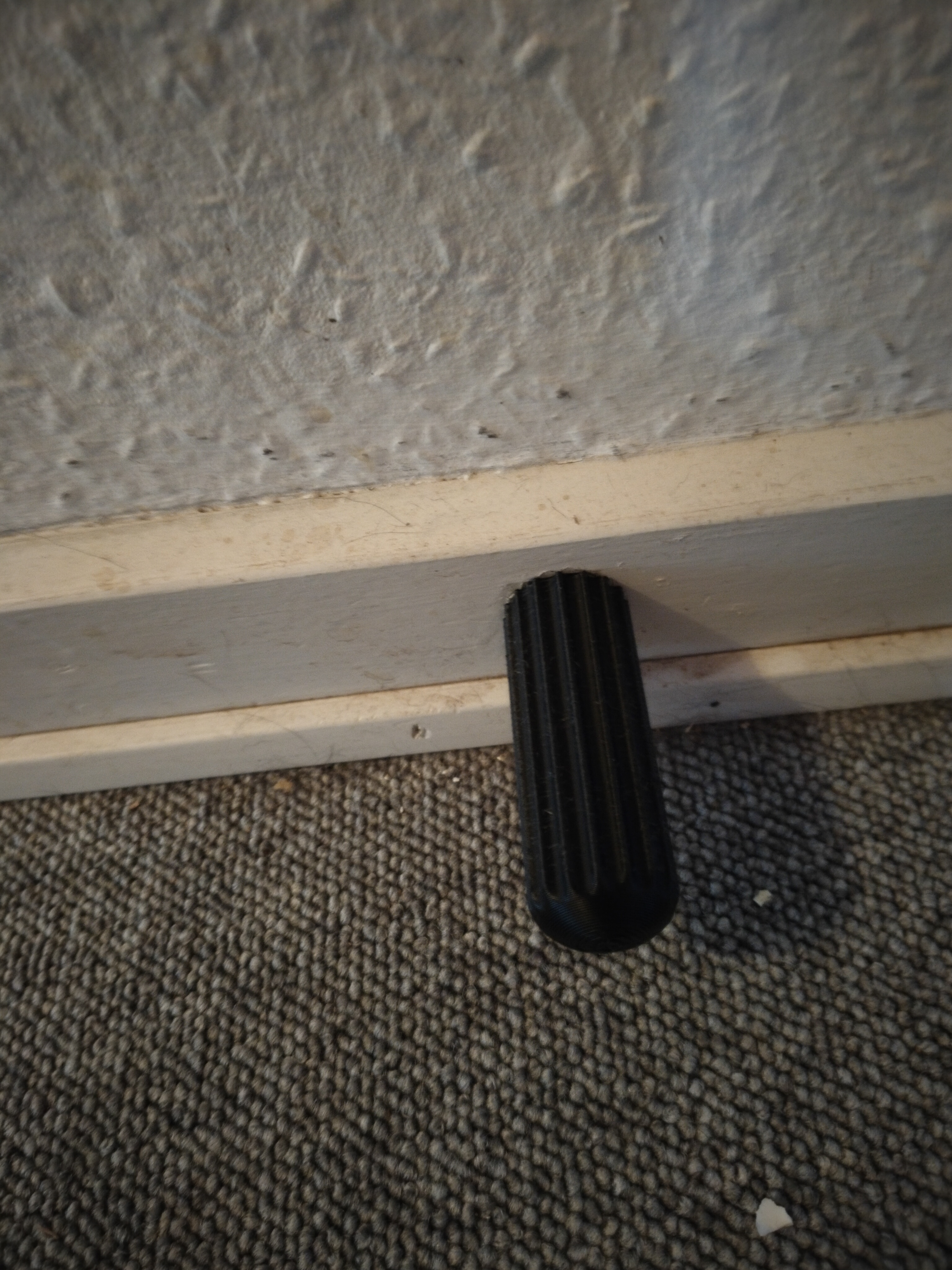

 Photo 5: The new shell installed |
In the CAD program I made the hole 5mm in diameter, if you get a small amount of engagement from the screw it should be fine otherwise I have provide the STEP files. Make the change and remix my model :)
Print guidelines
Mostly you should make do with the default print settings on your printer.
PLA infill: 25% should make it last longer
