Case for USB-C PD trigger PCB "CMTPD"
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Just a simple case for an AliExpress PD trigger PCB
- Ocena
- 0 / 5
- Polubienia
- 1
- Pobrania
- 20
- Wydruki
- 0
- Wyświetlenia
- 93
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Public Domain

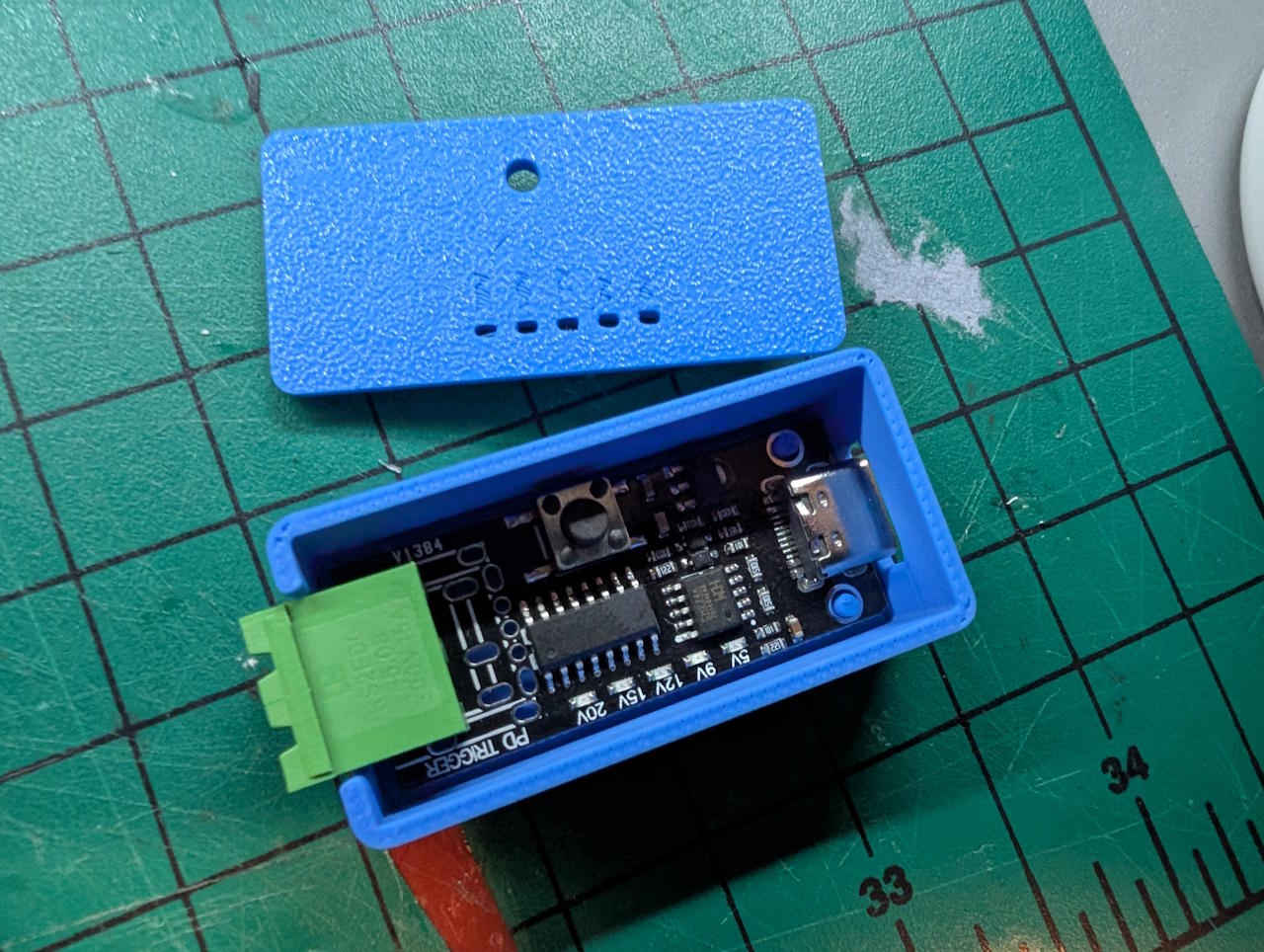

This is a pretty neat PCB you can get very cheaply off AliExpress. You can plug in a USB-C PD power supply and get 5/9/12/15/20V out. You can either switch the output using the button or (better) solder a wire link on the rear to fix the output. It does seem to remember the last setting though. I bought a bare PCB and fitted a generic 5.08mm (I think) terminal blocks and made this case to hold it. The lid has pieces which hold the PCB down securely.
I was lazy and the lid just fits loosely - you'll need to glue it down or tape it or something. I might make a version where it slides in and screws or something.
