Scope Dope Chart Holder

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

2x M3 Screws/Bolts: One must be at least 20mm in length. (Note: Mine uses a 20mm and a 16mm).
1x M3 Split Washer * 2x M3 Heat Set Inserts

Note: The M3 screws are a tight fit for the existing holes. They do not move freely and will seem to cut their own threads into the print.

Prepare the hinge: The longer M3 screw will go on the side with the dope chart. The chart can be mounted on either side depending on your preference.
Install the inserts: Press the M3 heat set inserts into the bottom part of the bracket. Note that the holes for these do not go all the way through.
Stack the components: Pass the longer screw through the top piece first (identified by the relief cut for the screw/bolt head), then through the split washer, and then through the hole on the chart.
Secure the chart: Thread the screw into the bottom piece and tighten until it stops. Try to keep it as tight as you can, as it helps keep everything rigid.

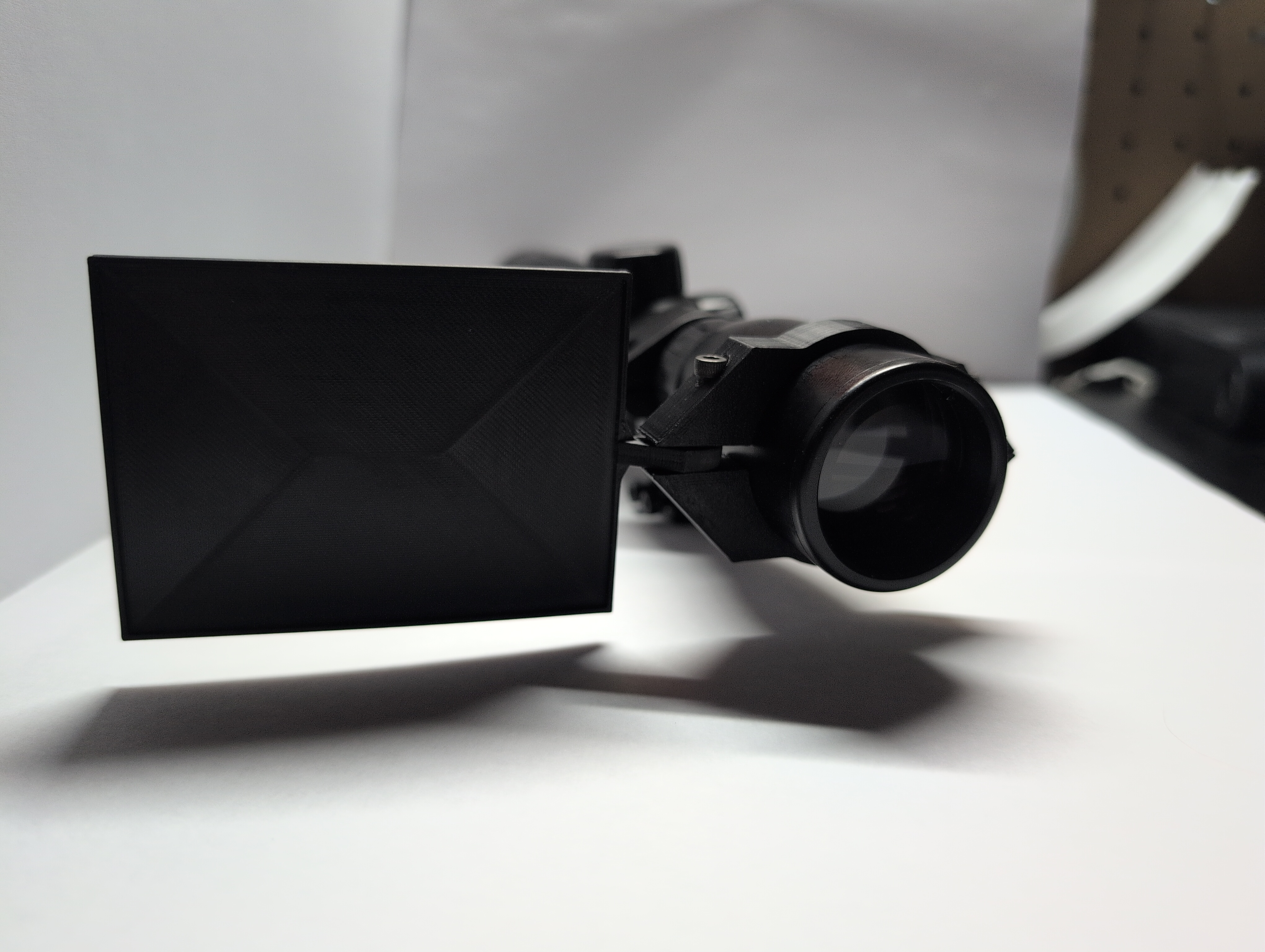

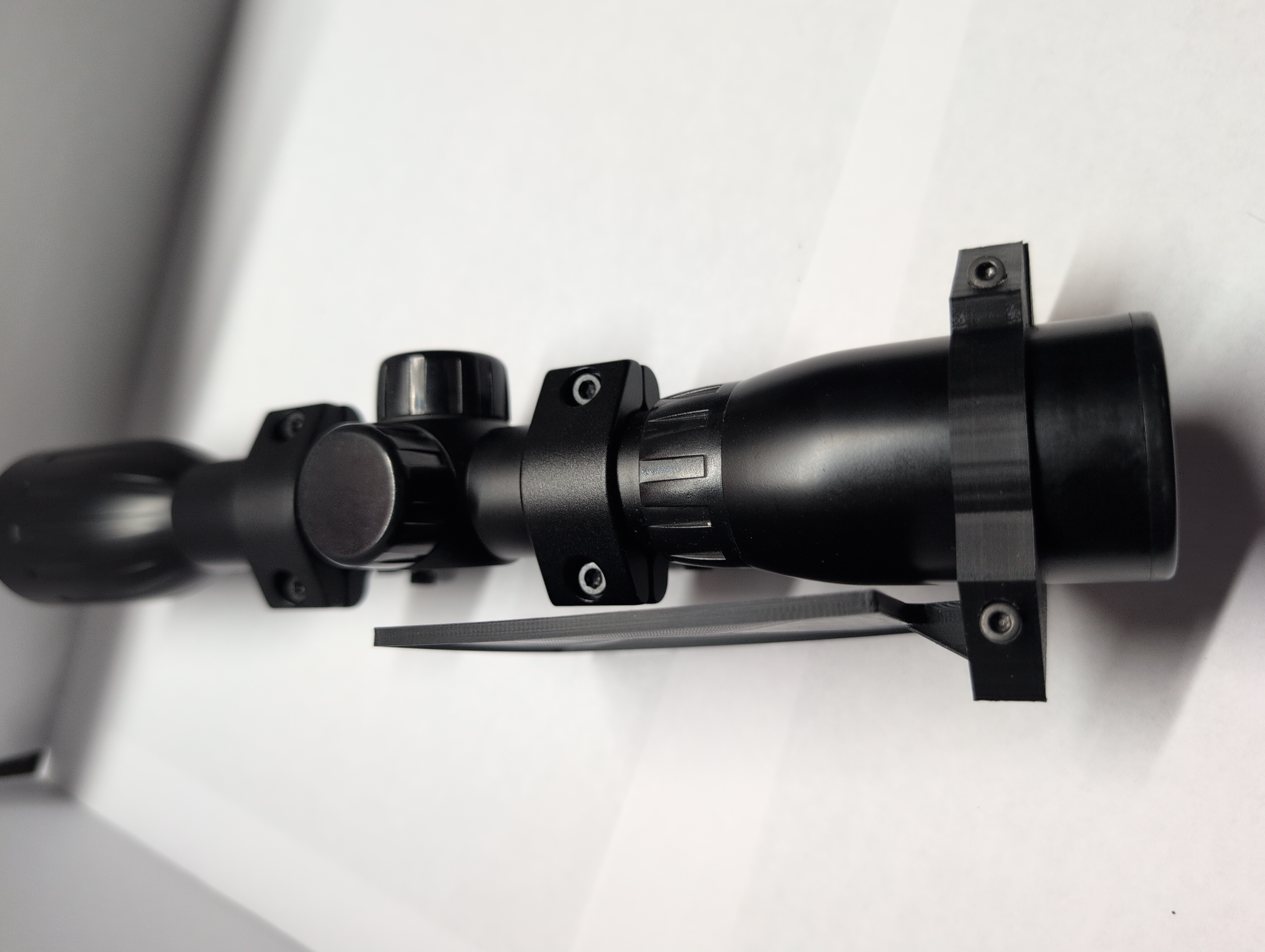

Mount it: Place the assembly around your scope and add the second screw/bolt to lock it in place!

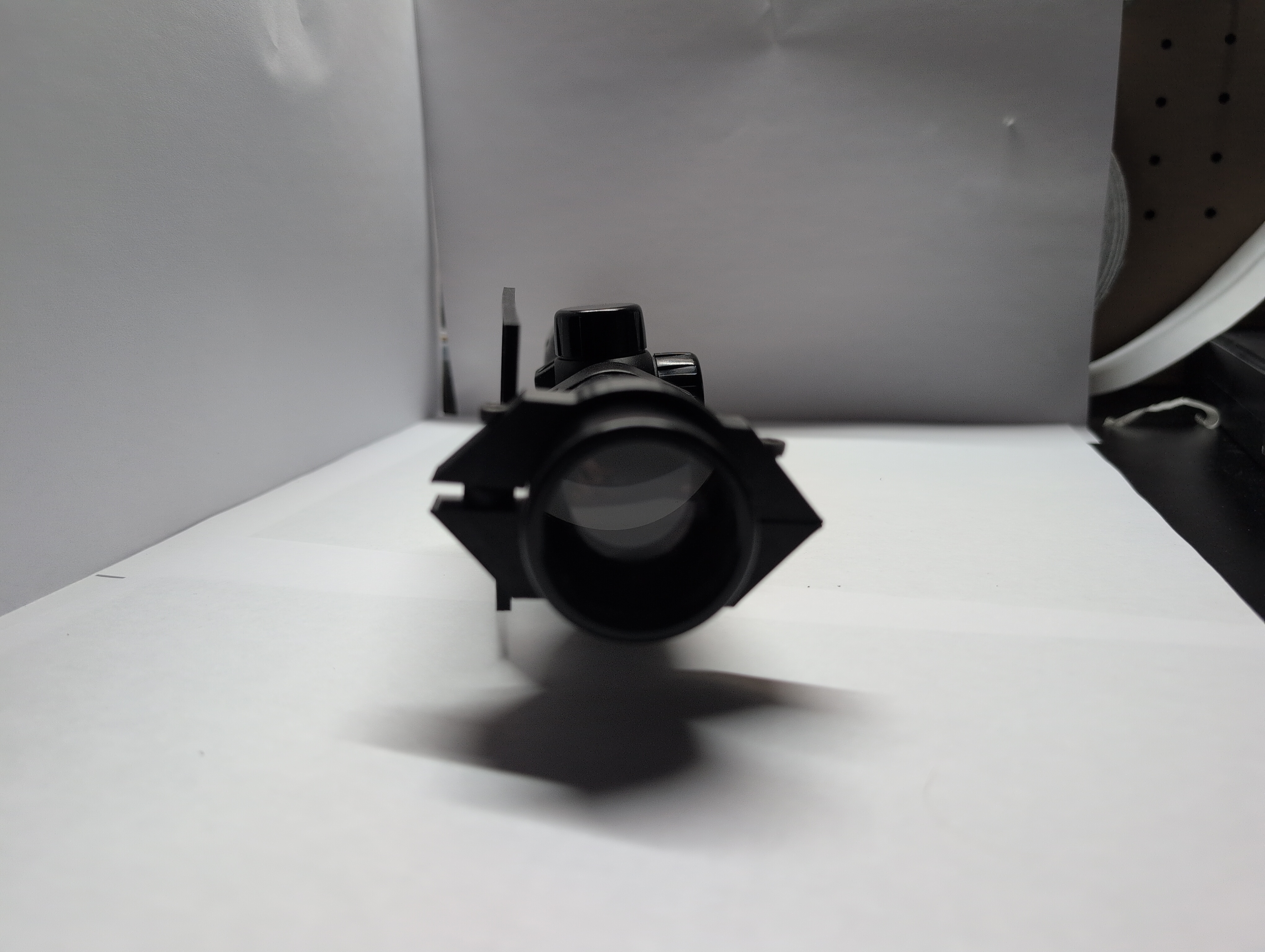

This is sized to fit 40mm scope tubes. It may work on larger tubes, but it will most likely not work on smaller ones.

***Full Disclosure: I used AI to format this because my writing style is nearly incomprehensible unless I spend an ungodly amount of time on it.***
