Digital Multimeter Organizer

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Tools
Licencja
GNU General Public License v3.0

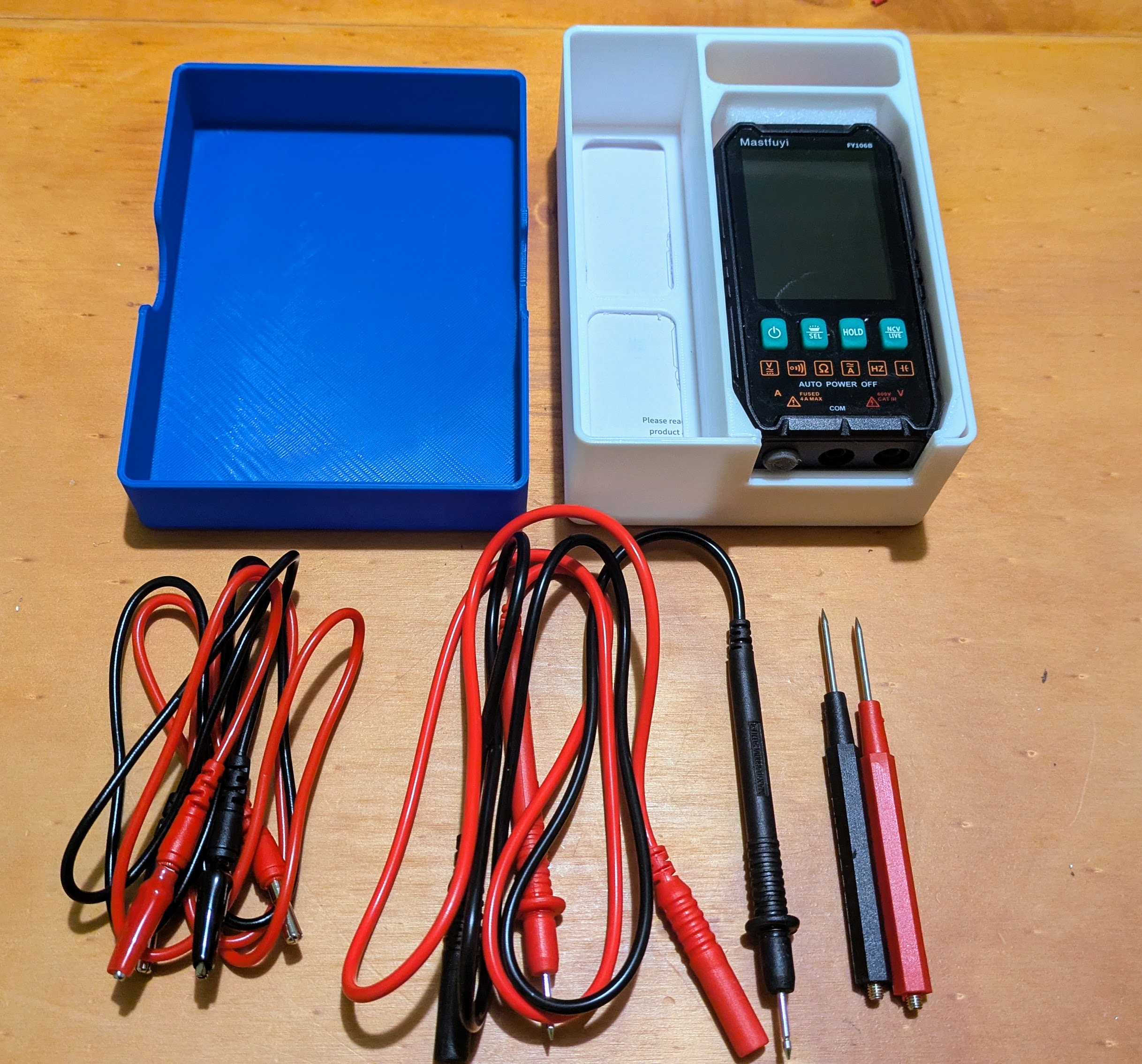

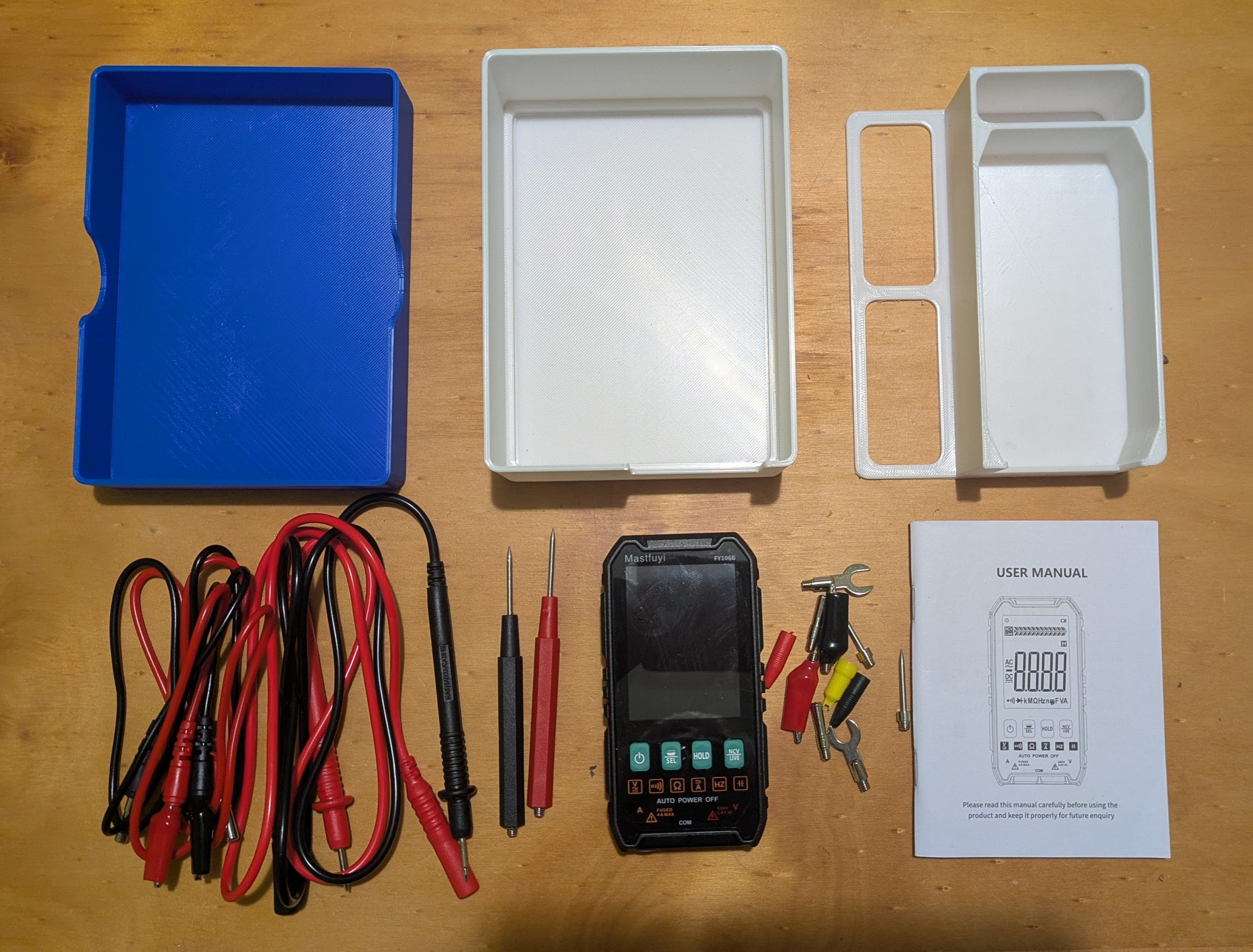

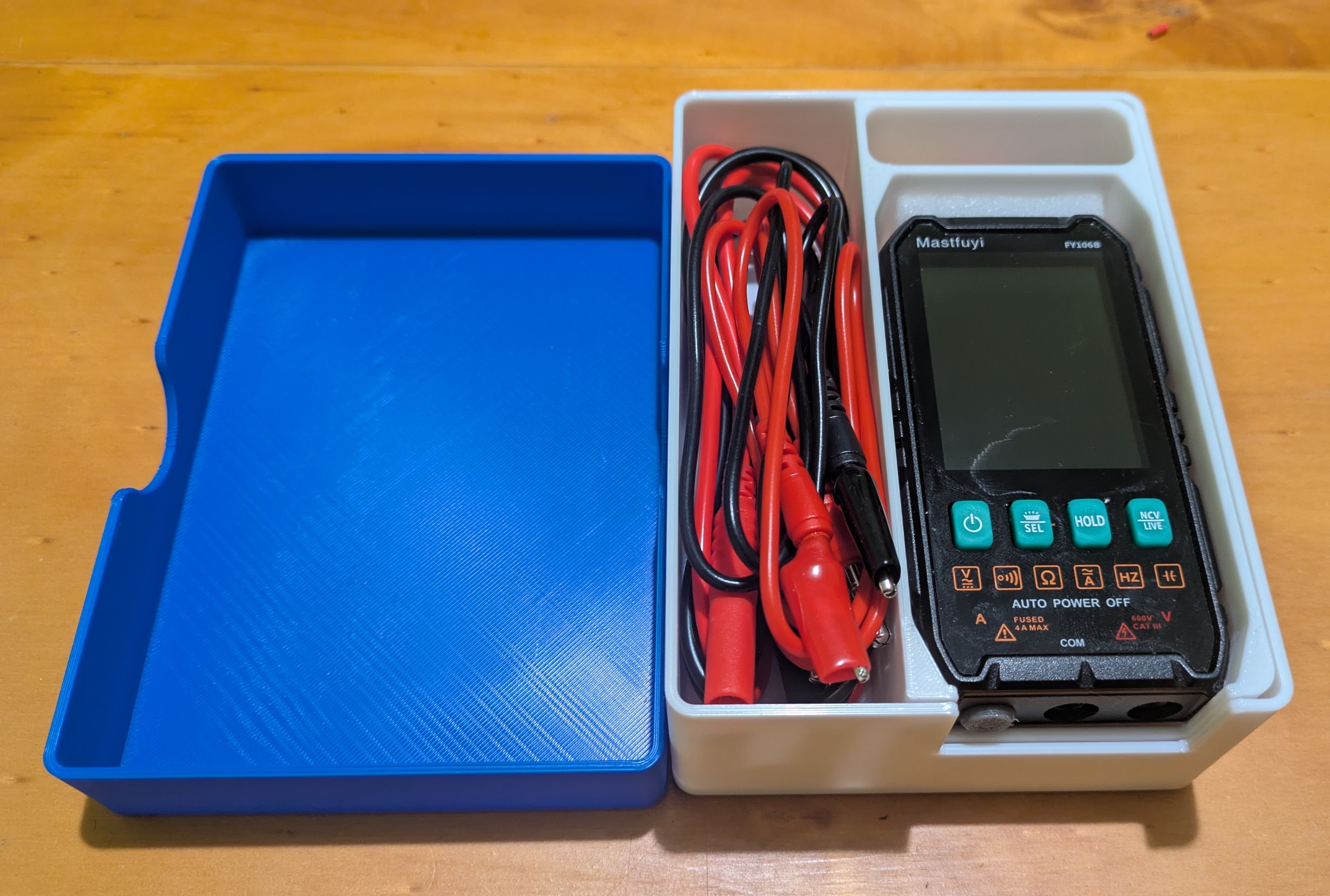

Organizer for a multi meter, probes and user's manual. The lower box has a cut out so that multi-meters with  probe connectors on the bottom do not have to be taken out of the cradle to be used.  There is a false bottom for the user's manual, a large compartments for probe cables and and a smaller compartment for probe tips.

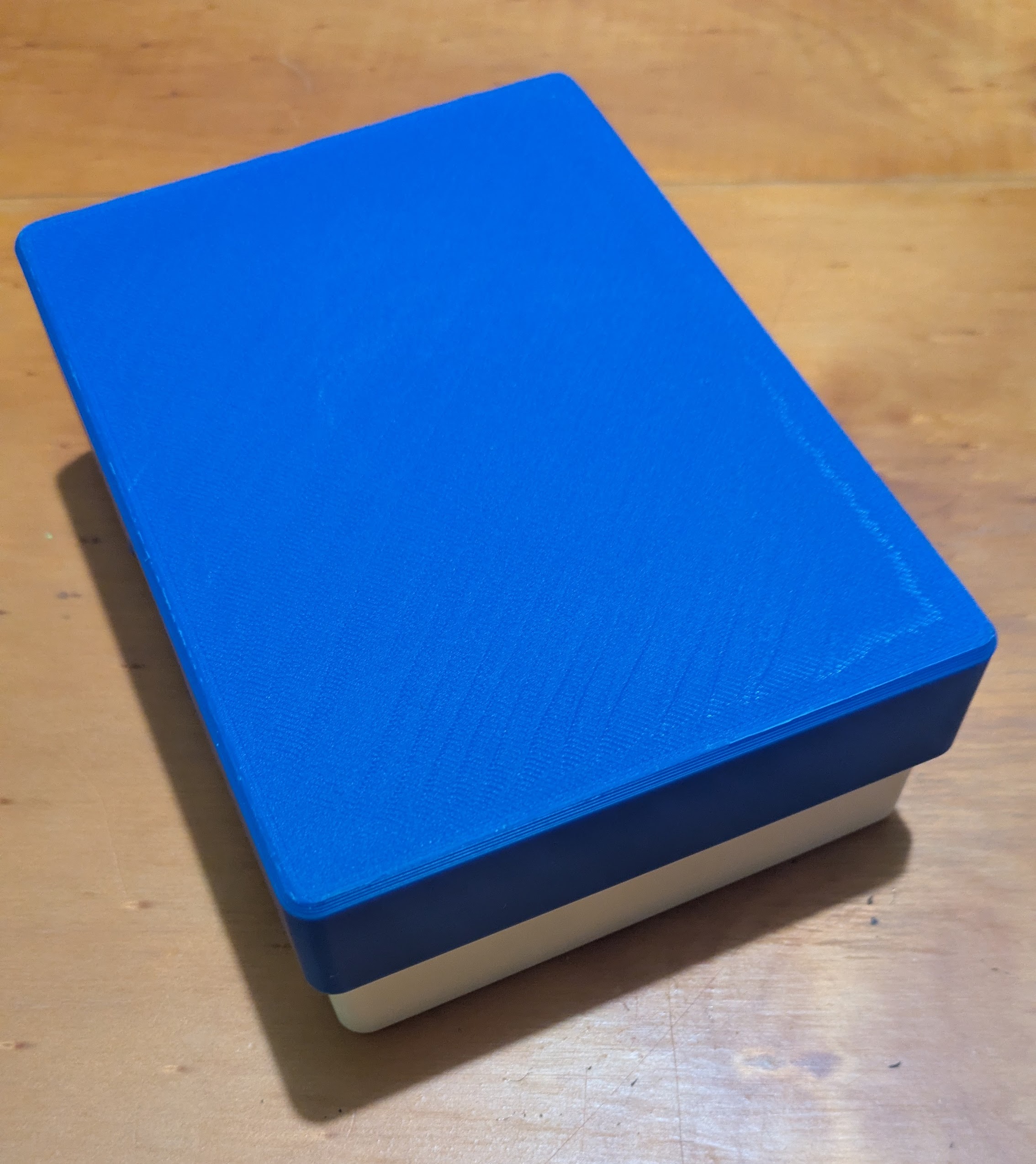

The bigger compartment has enough room for two sets of cables with probes. The lid may be used as a stand to tilt the multi meter during use.

I've found this organizer very convenient.

Dimensions (inner):

Lower Box:  140mm long x 100mm wide x 45mm deep

Lid: 145mm long x 105mm wide x 25mm deep

DMM compartment : 113mm long x 56 mm wide x 25 mm deep
