OpenPVS14
https://github.com/chanmin723/OpenPVS14
Open-source DIY PVS-14 compatible housing.

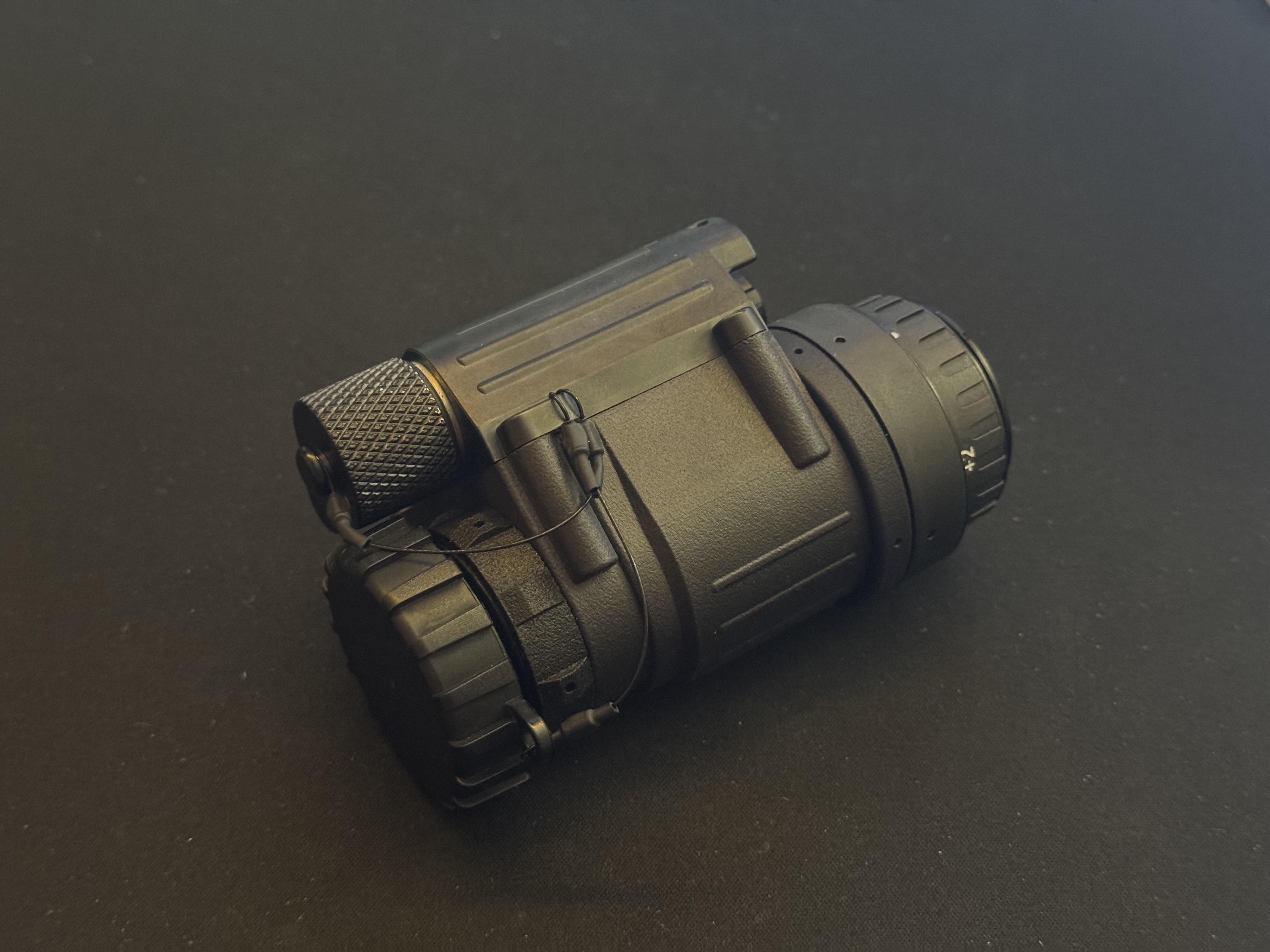

Works well with MJF printing—optimized for PA12S, but PA12 may also work. The upper housing shown in the photo above is a printed example.

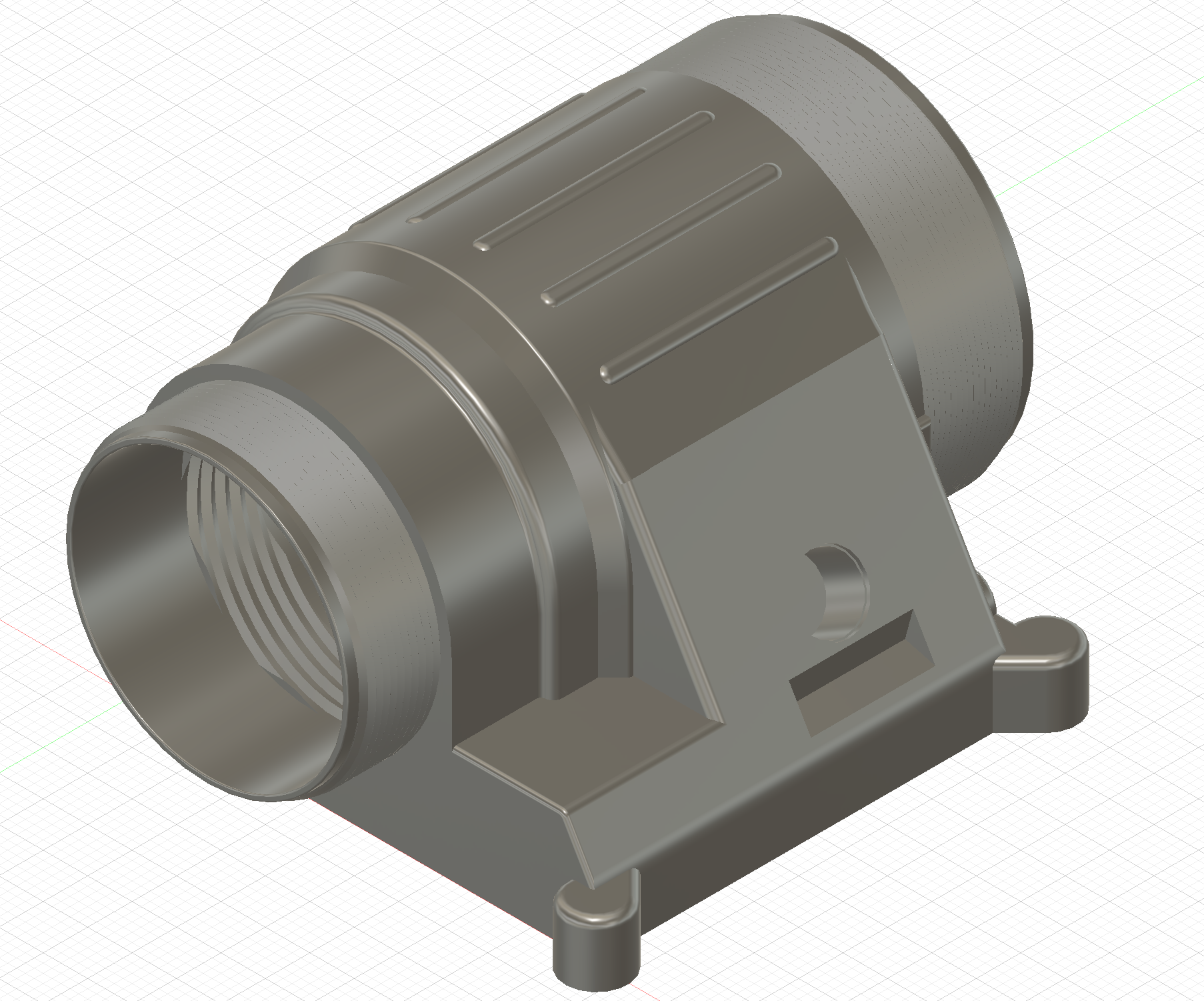

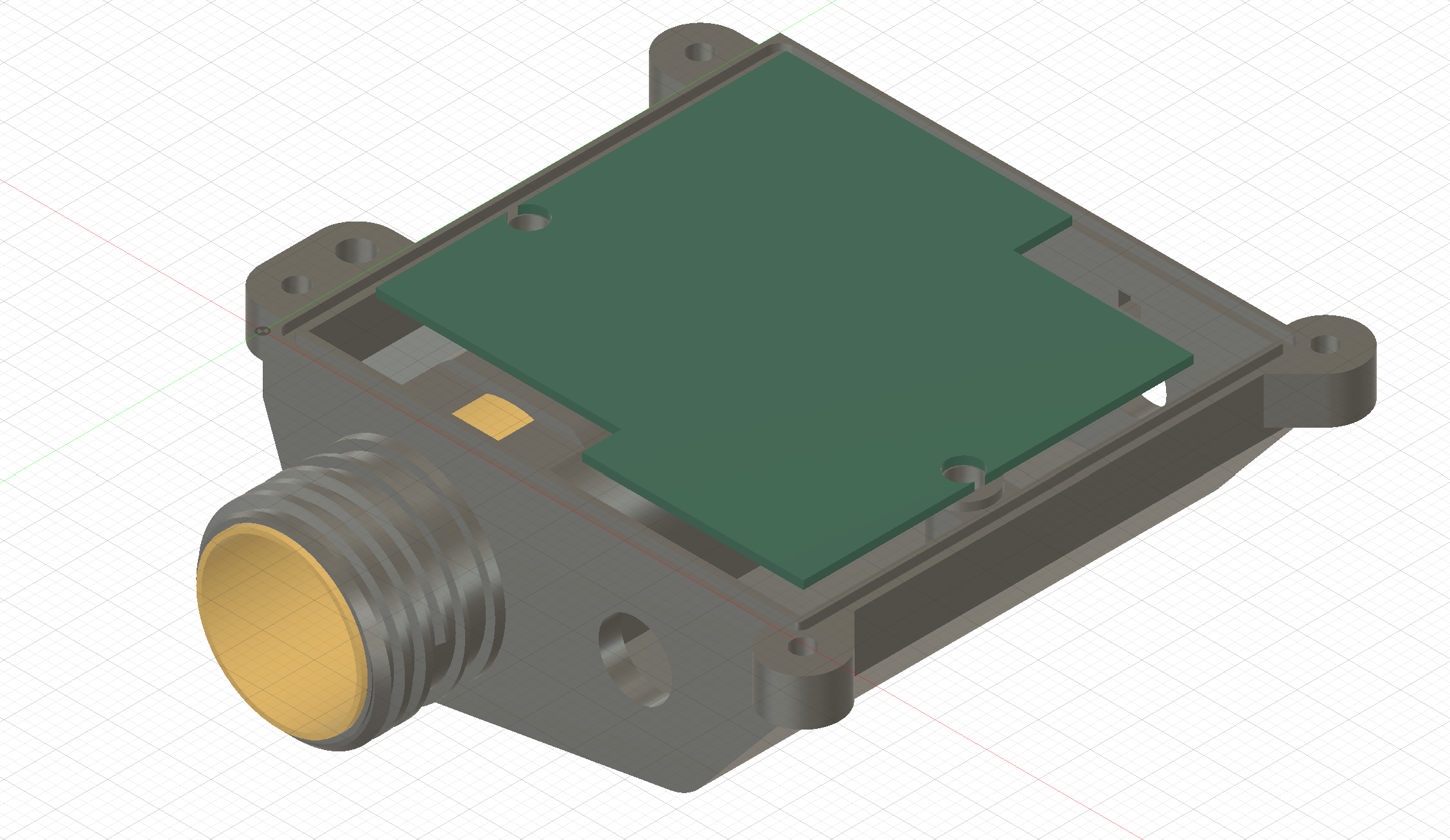

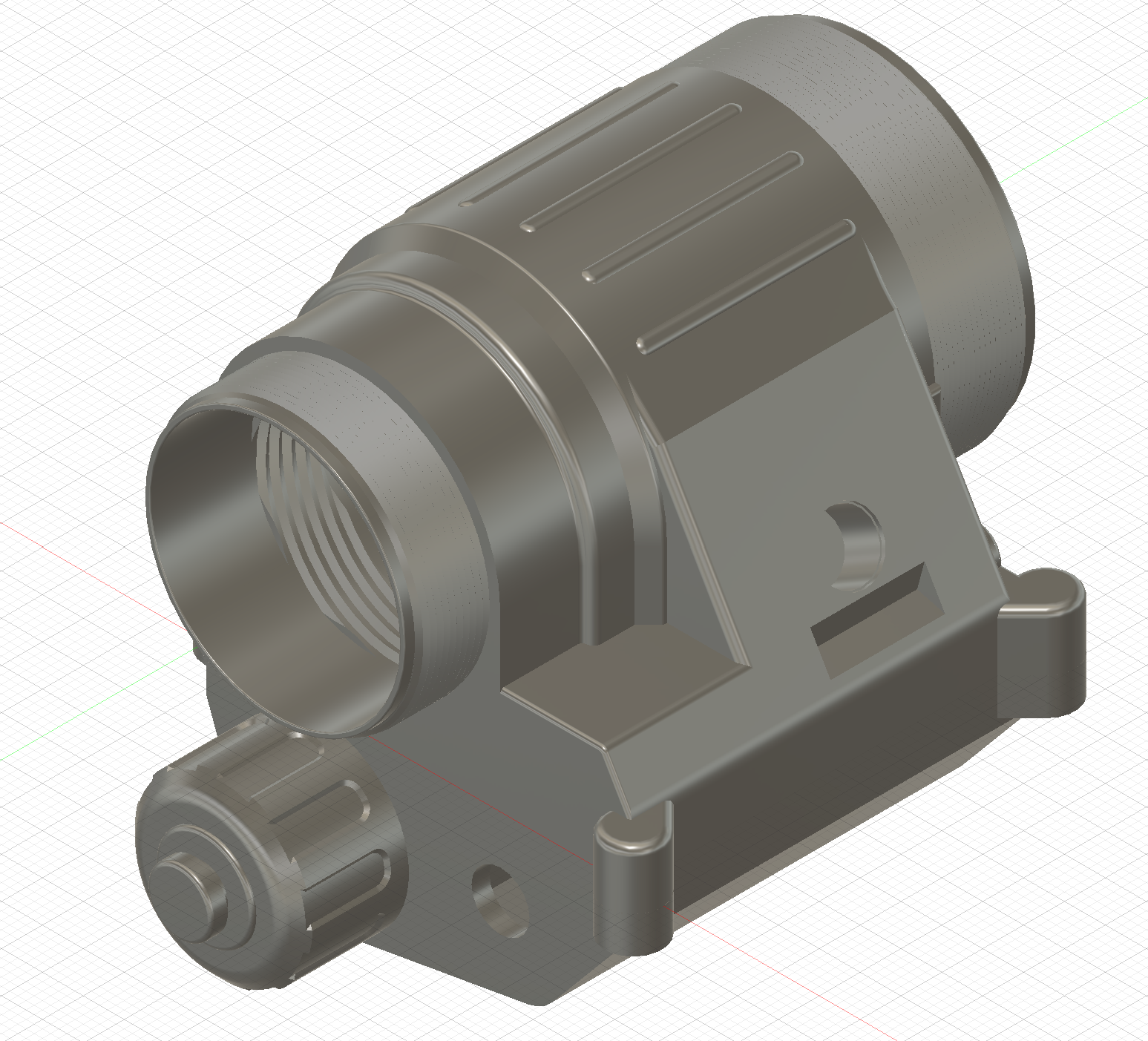

3D Model Status
Currently, only the Chinese (EON/Norinco) compatible version is available, not sure if US originals (Carson, ITT, etc) will fit.
Will update once I get a US housing.

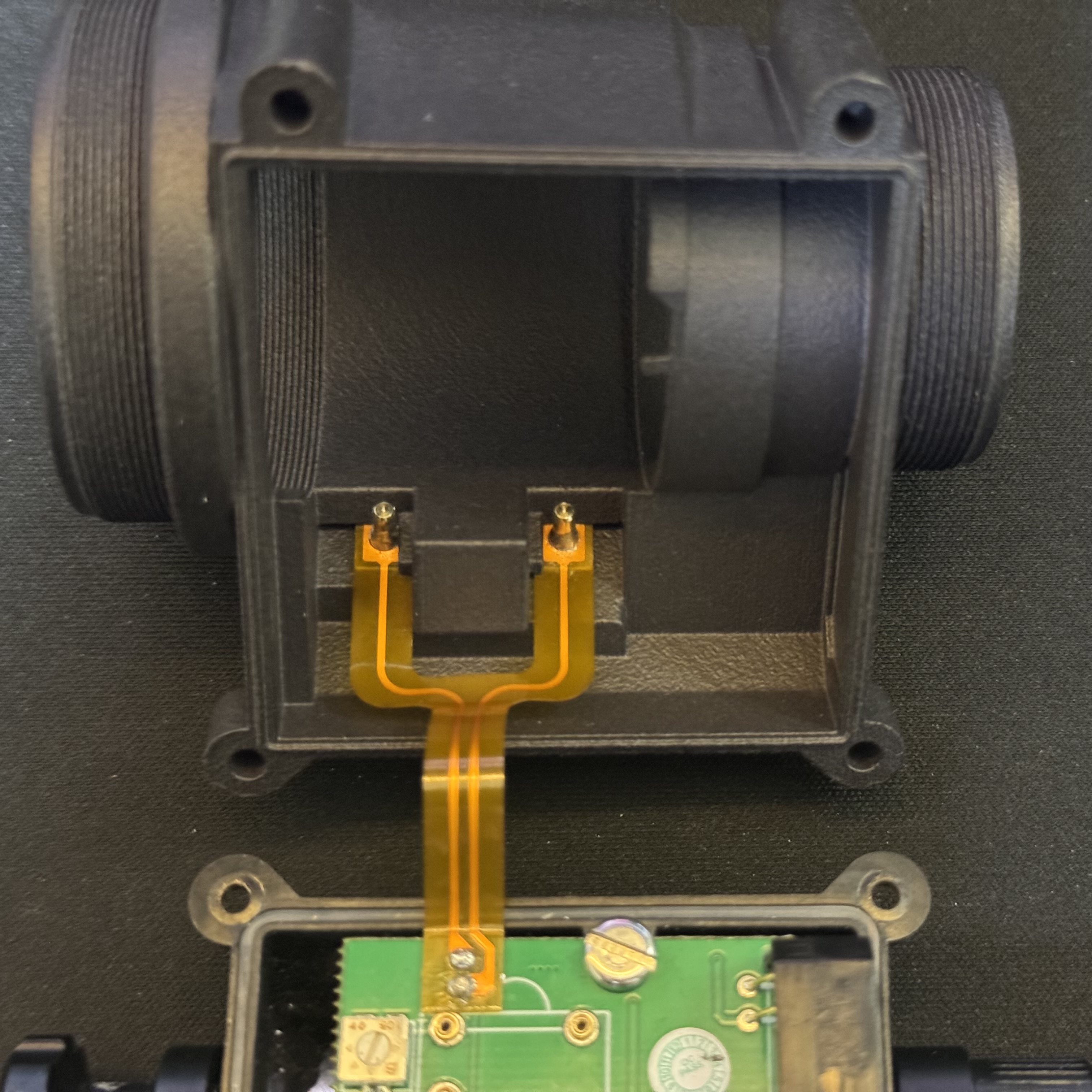

PCB Status

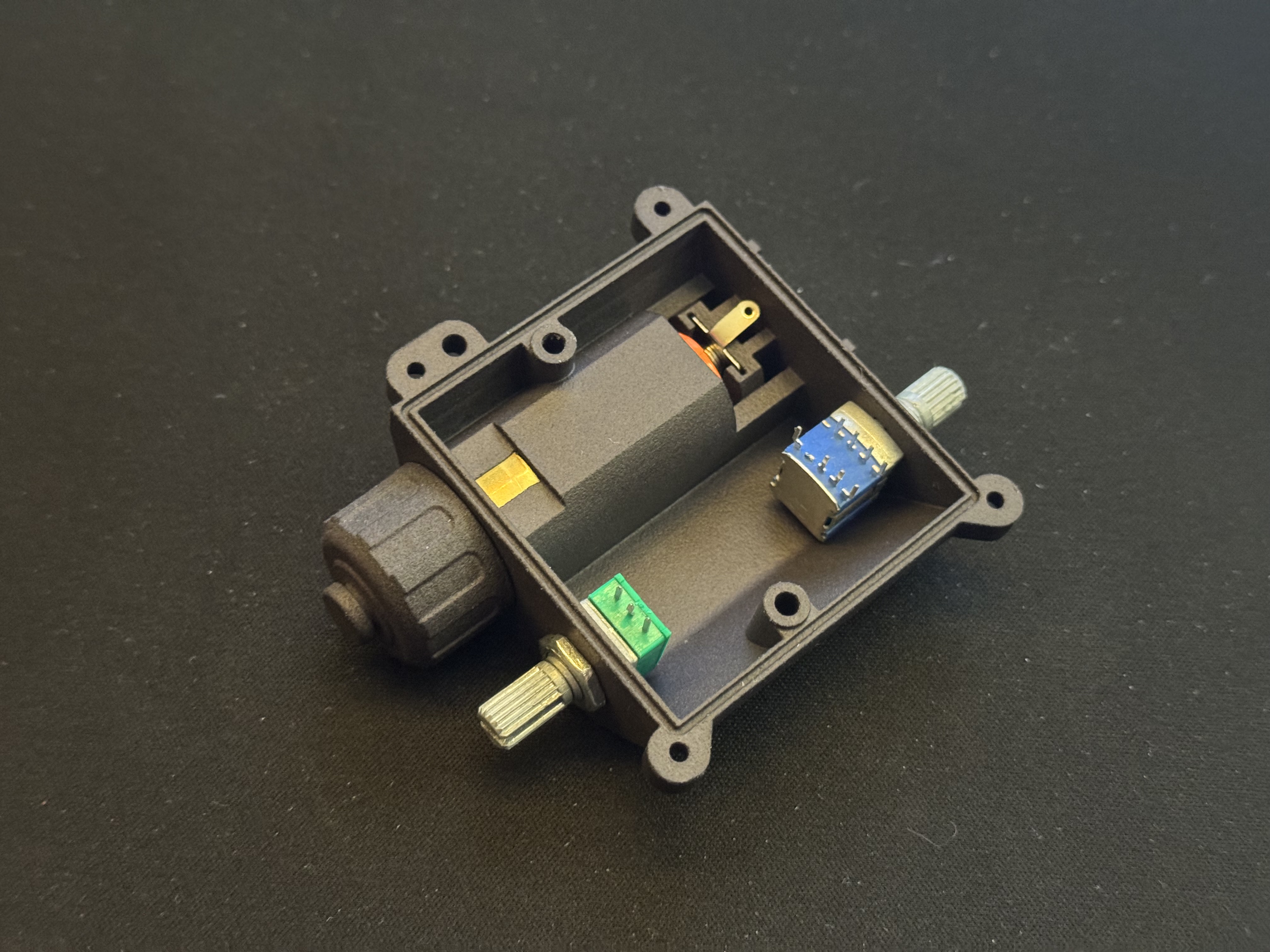

PCB beta version is now available.
The beta version supports 2.5V voltage regulation, a low battery alarm and manual gain.
Over voltage and reverse polarity protection will be added in future revisions.
BOM (Bill of Materials)
Part | Option | Qty | Link |
|---|---|---|---|
M2 SHCS | 3.5 < L < 7 | 4 | - |
M3 SHCS | 8mm | 4 | - |
M2 heat insert | OD: 3.2, L < 4 | 4 | - |
Brass tube | OD: 16, ID: 15 | 1 | - |
AA battery spring | - | 1 | |
1/4 UNC heat insert | OD: 8, L: 5 | 1 | |
Micro switch socket | Hat style | 4 | |
RK097N Potentiometer | 250K | 1 | |
RS1010 Rotary switch | 2P3T | 1 |
