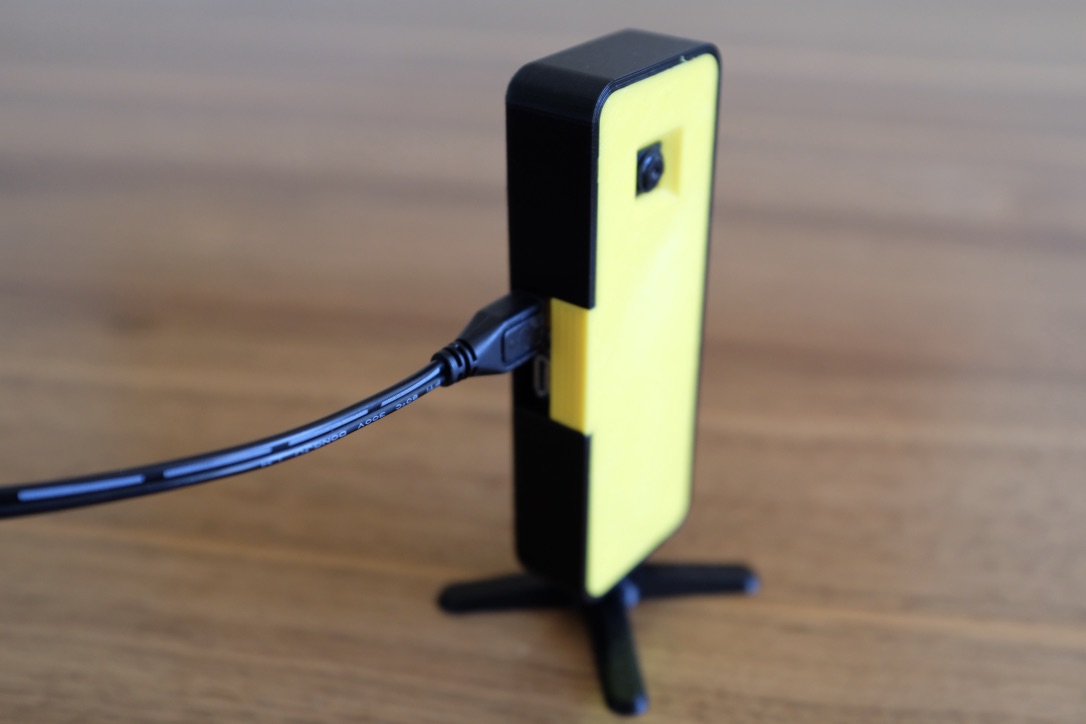

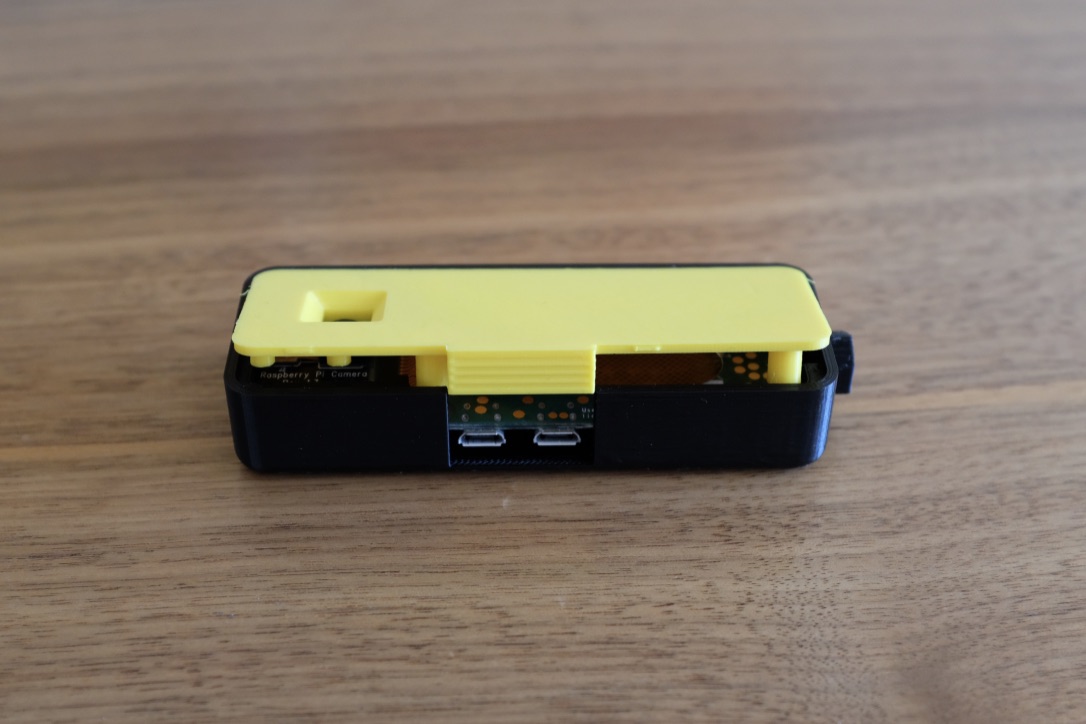

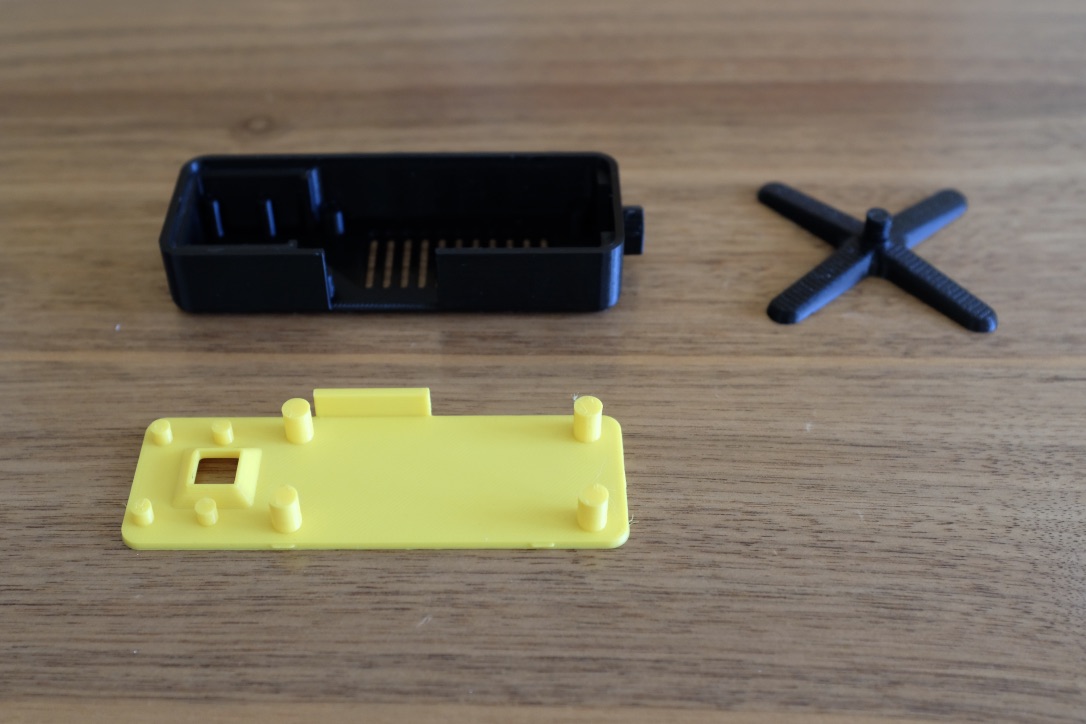

This is the 3D-printed enclosure of my open-source HomeKit camera. This snap-fit enclosure can be assembled without any screws.

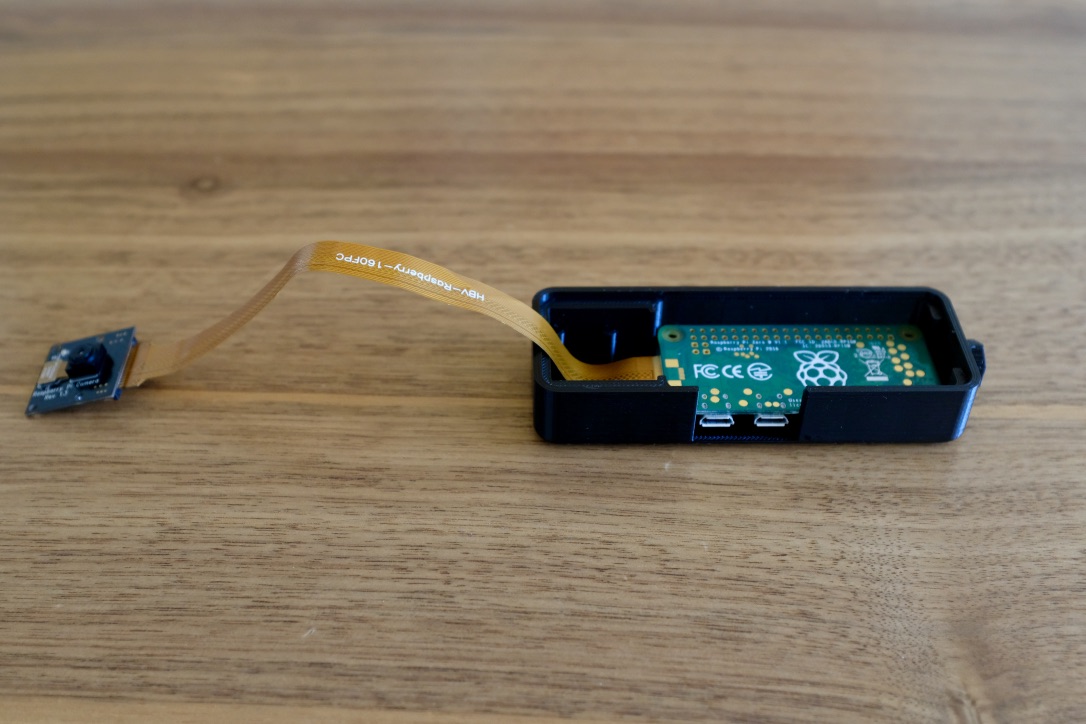

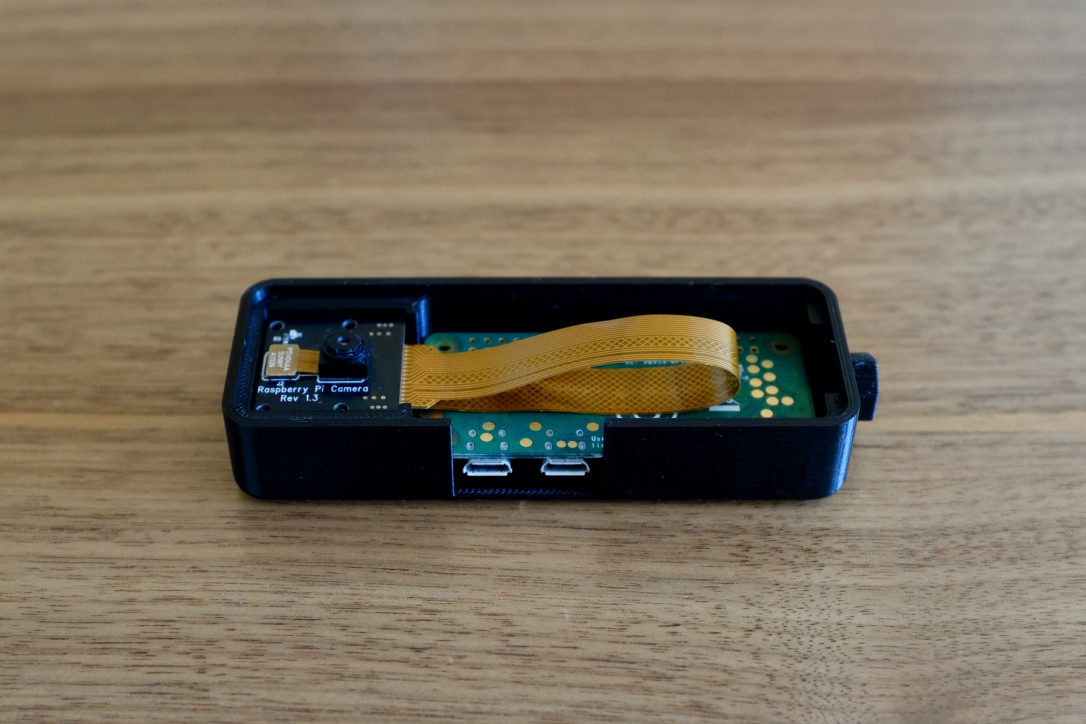

Hardware

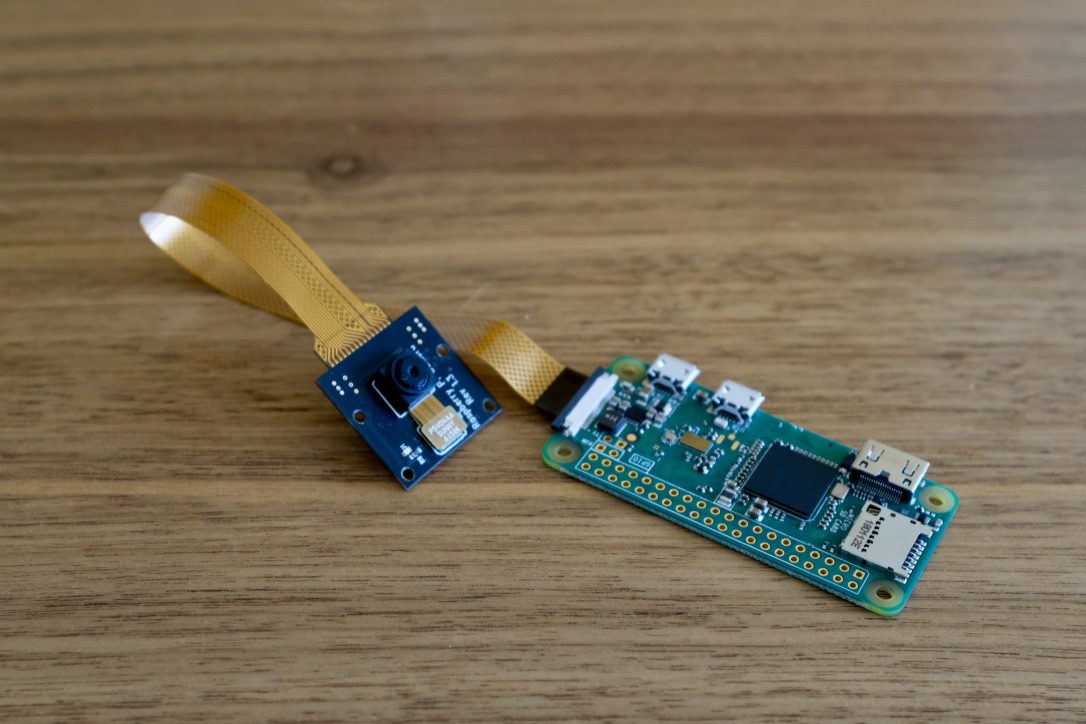

- Raspberry Pi Zero W
- Camera Module
- Camera Cable compatible with Raspberry Pi Zero
- 5.1V micro USB Power Supply
- MicroSD Card

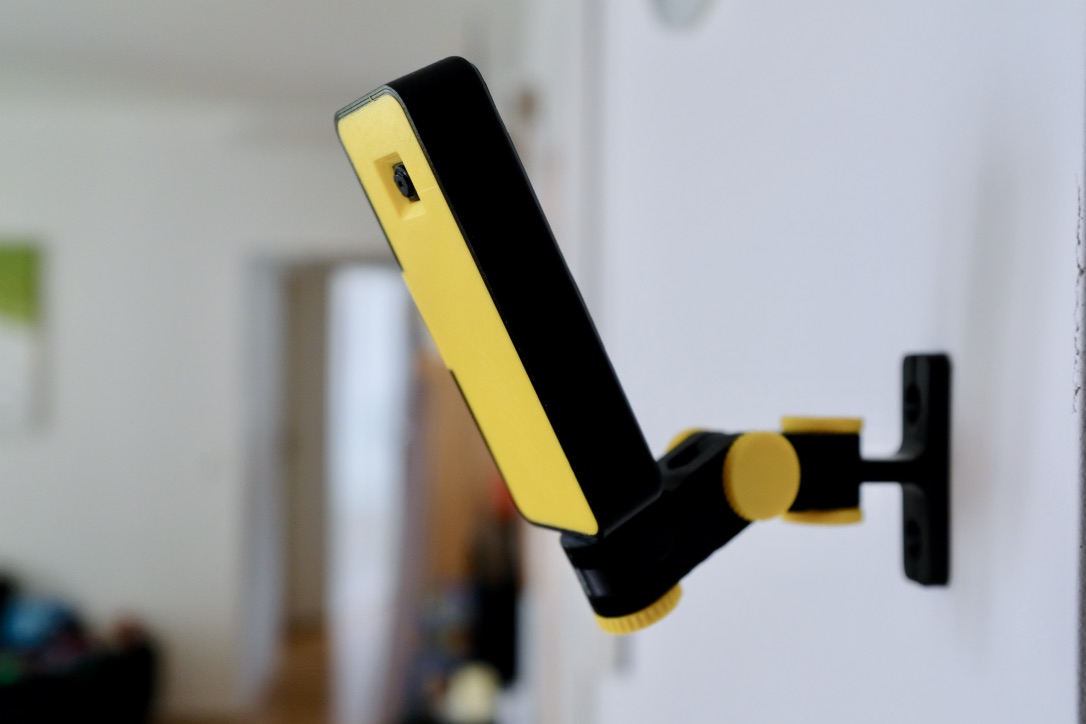

At the bottom of the enclosure there is an inner thread to attach the 3D-printed stand. The threading is compatible with the Articulating Raspberry Pi Camera Mount. This means you can combine different brackets to mount the camera at your favourite spot.
Software
The easiest way to get started is to use the pre-configured Raspbian image.
Learn more on the website.
Print instructions
- 0.2mm layer height works fine.
- 20% infill for body and lid.
- 100% infill for stand.
