This is a hook that can be connected to the top tether mount. It fits well in my nx4 Hyundai tucson.

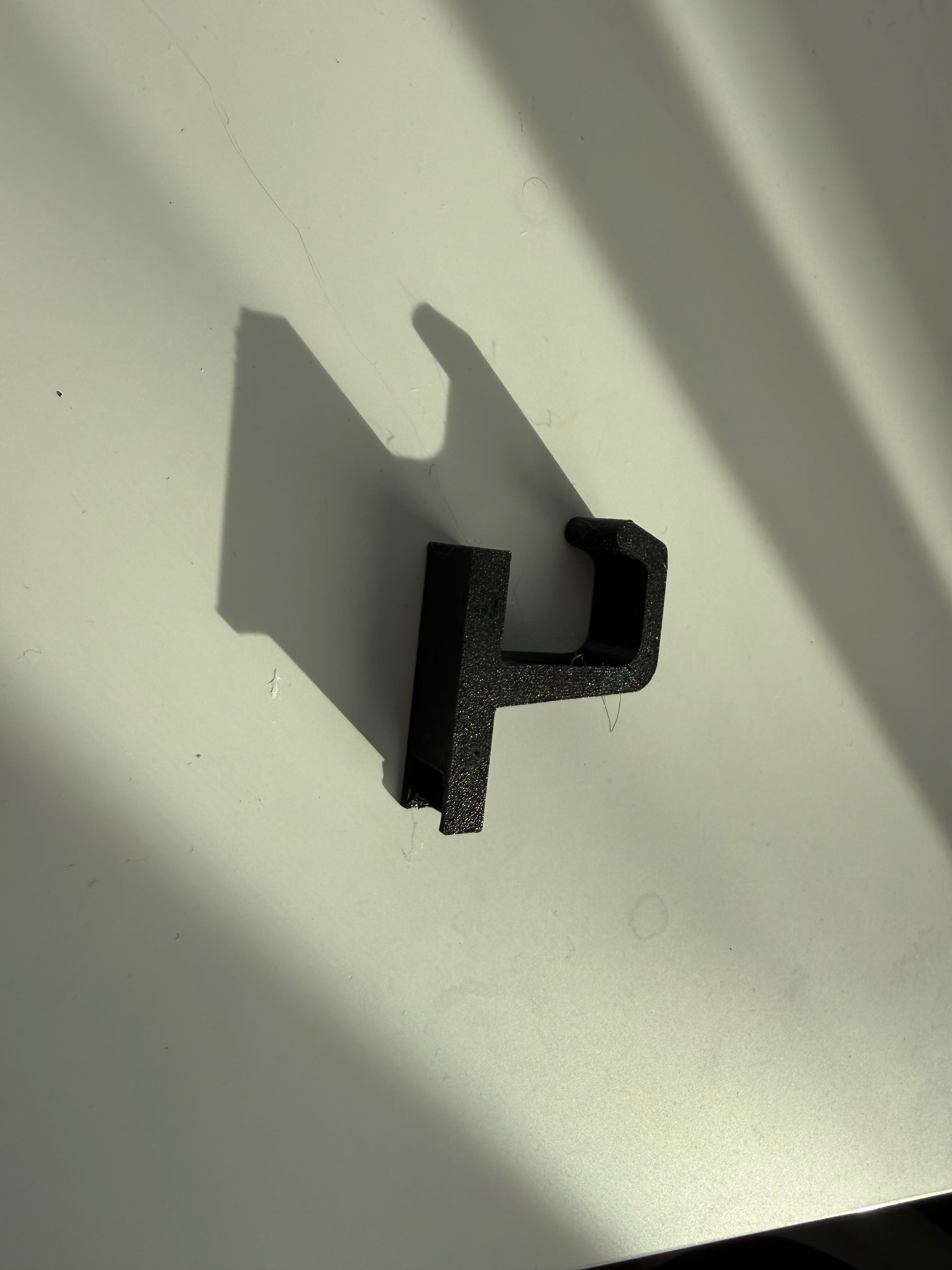

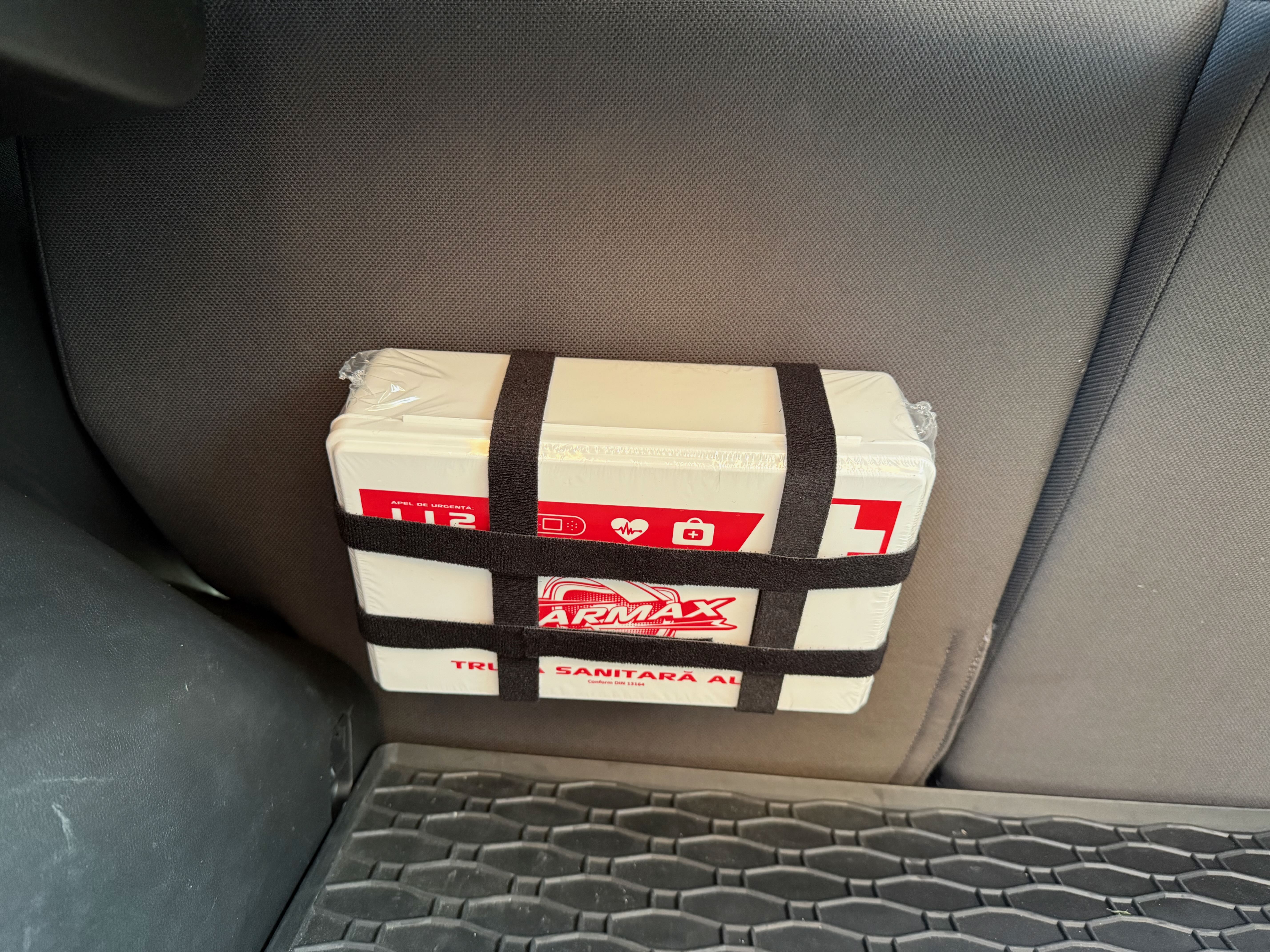

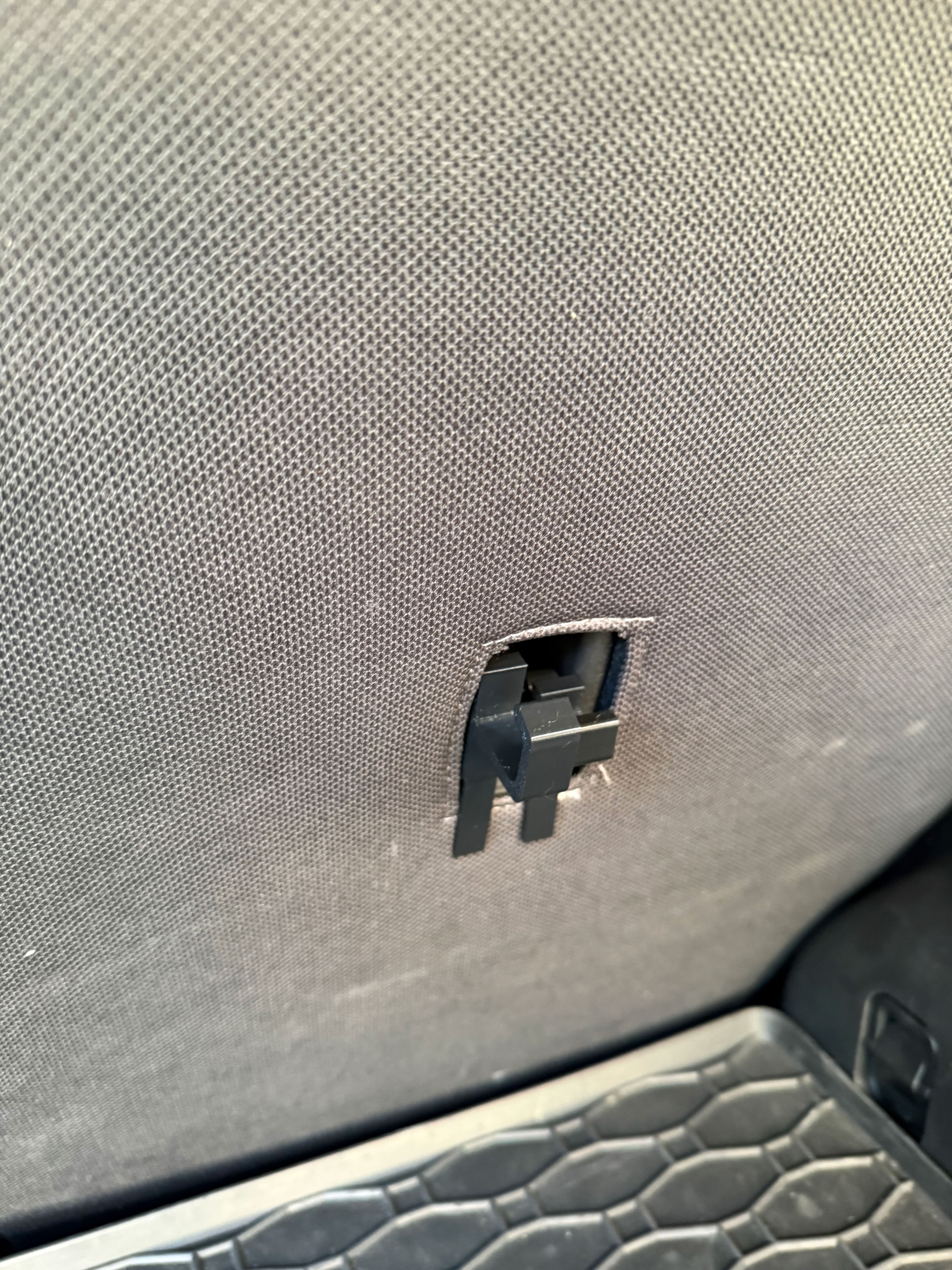

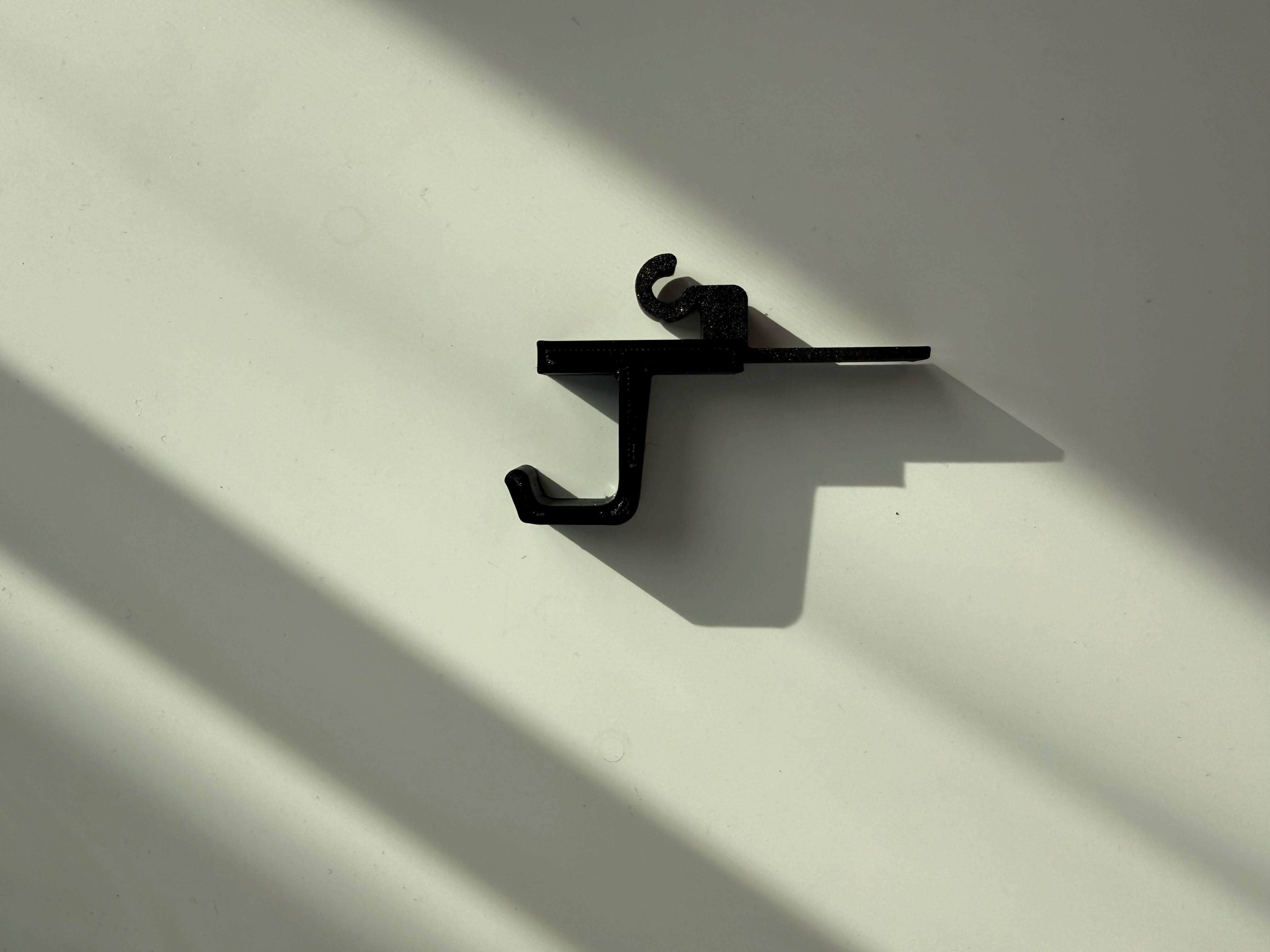

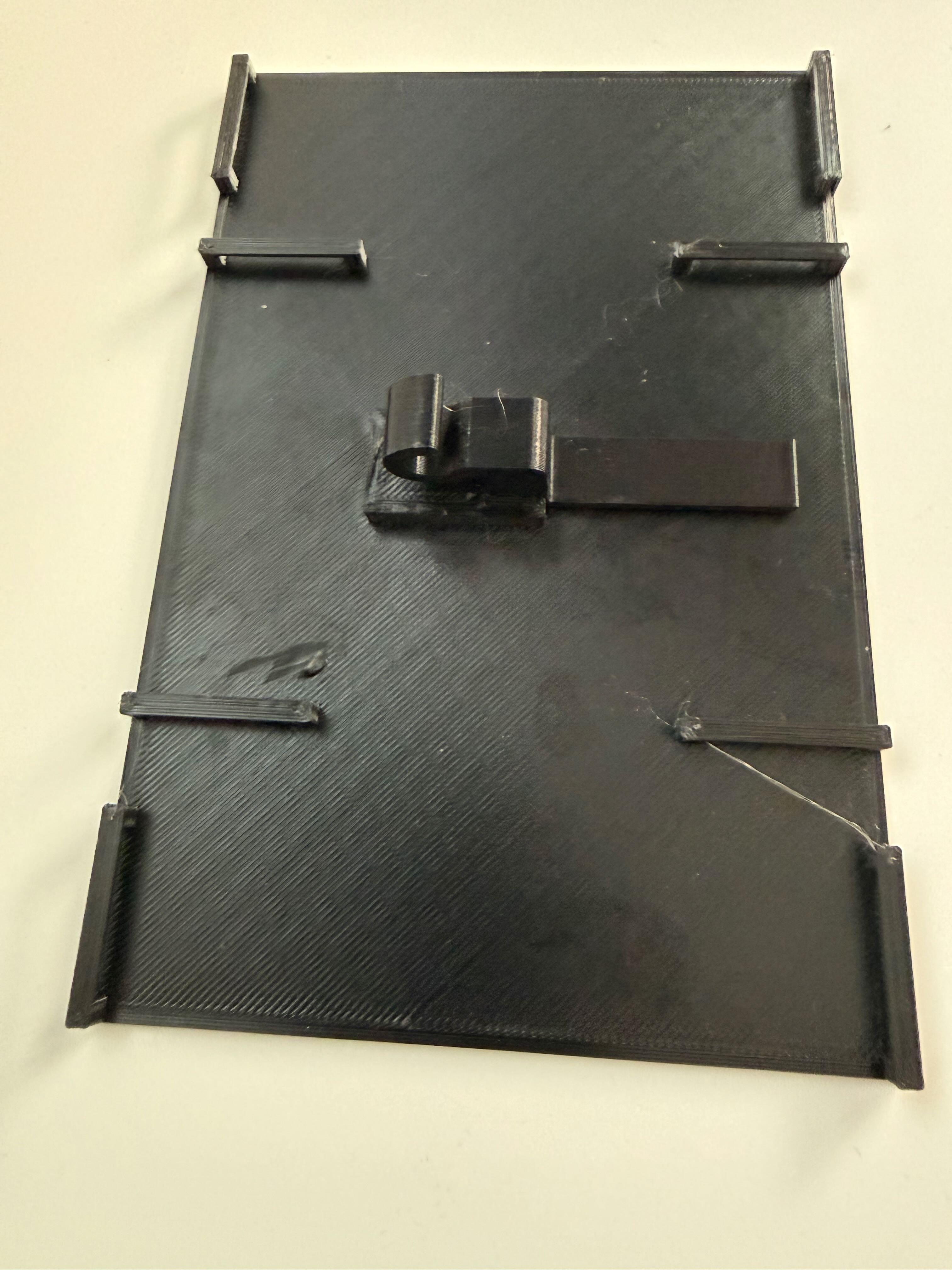

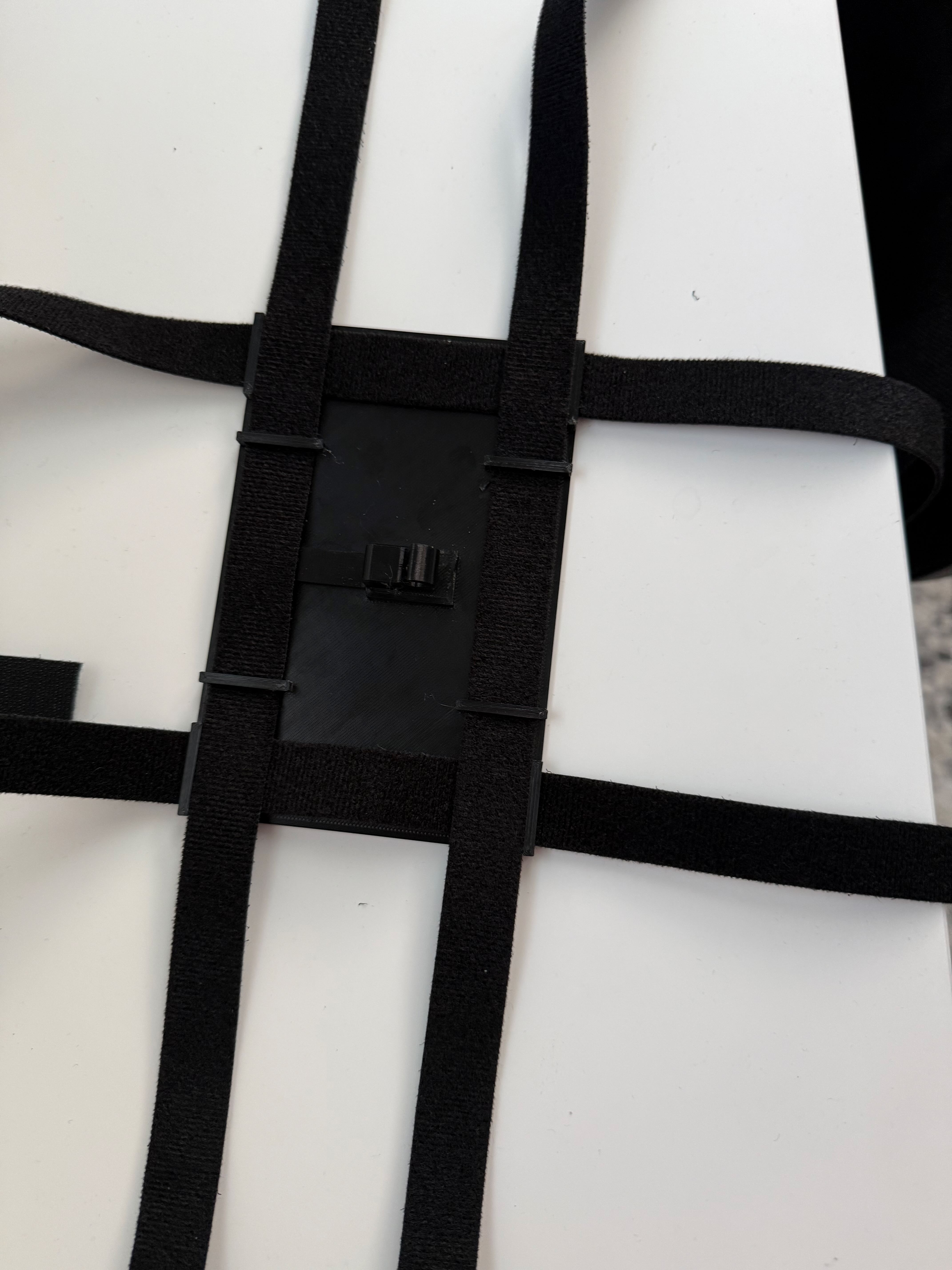

There are 2 parts to the connector: a mount that clips on to the top tether rod and an accessory that holds whatever you want to secure and is connected to the mount. I've uploaded one for holding a med kit (this also require some 20mm velcro or other straps) and a hook for holding bags.
There are tho versions of the mount. The difference is that the center post in one is 9 mm and the other is 7. I used the longer one because I have seat covers that add a bit to the thickness.
I printed them in petg (will change to asa if petg doesn't behave) with the following settings:
nozzle: 0.4
layer height: 0.2
wall loops: 5
top/bottom layers: 3
sparse infill: 30% gyroid
supports: can be used but should also work without
