ESP8266 D1Mini V3 Microcontroller 3D CAD Model (F3D / STEP / STL)
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Accurate ESP8266EX CAD model for enclosure design & PCB mockups. Couldn't find it online, so I made it! F3D, STEP & STL.
- Ocena
- 0 / 5
- Polubienia
- 2
- Pobrania
- 17
- Wydruki
- 0
- Wyświetlenia
- 67
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

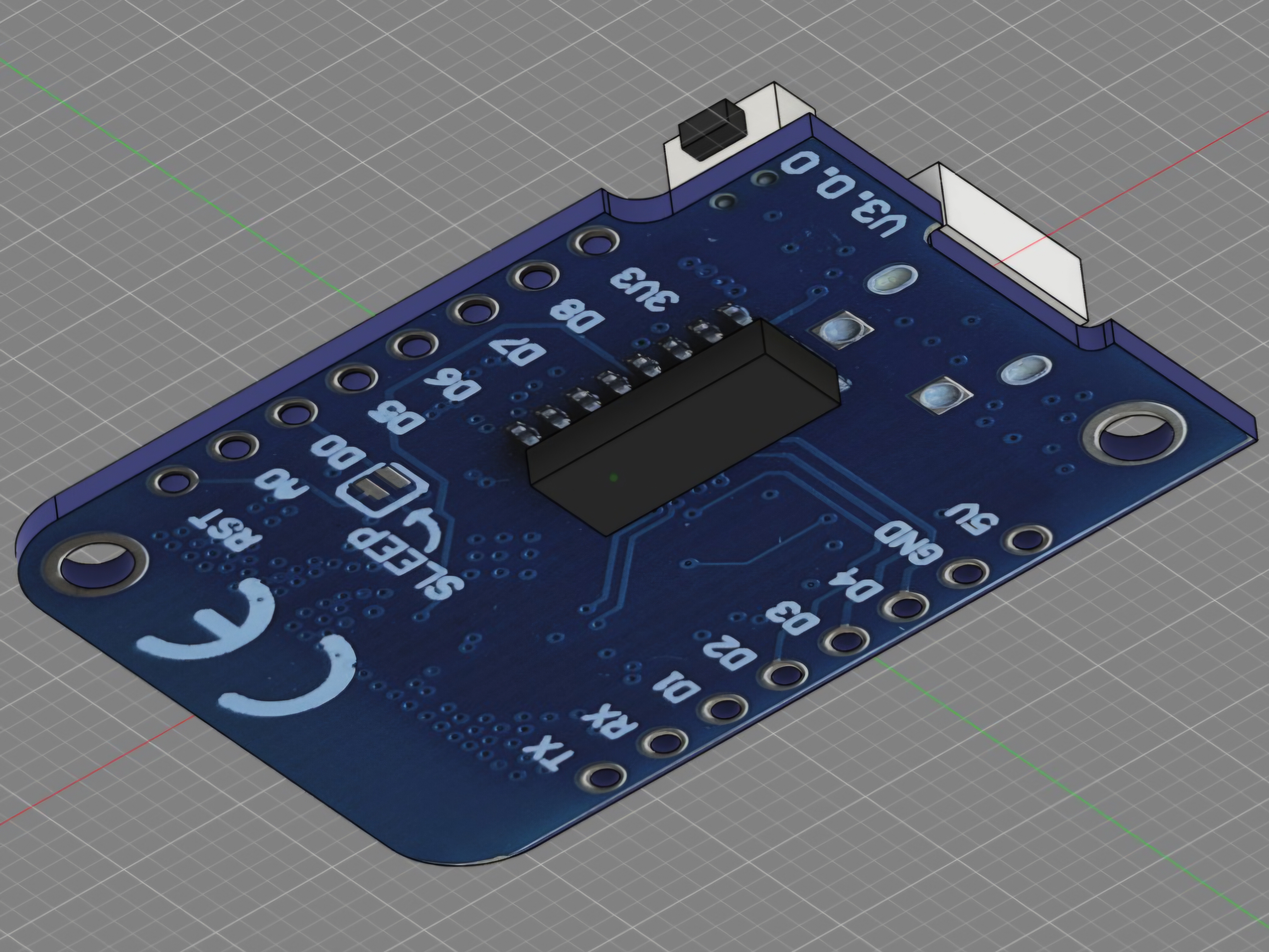

Since I couldn't find an accurate CAD model for the ESP8266EX anywhere online, I decided to model it myself. I'm sharing it with the community so you can use it for your own IoT and electronics projects!
This model is perfect as a mockup/placeholder when you:
Design custom enclosures for your DIY projects.
Need to plan spatial requirements for a custom PCB.
Want a visual reference for your 3D assemblies.
Included Files:
.f3d (Fusion 360): The original source file. Perfect if you want to modify the model or integrate it directly into your Fusion 360 assemblies.
.step: The universal CAD format. Ideal for importing into FreeCAD, SolidWorks, Inventor, or other CAD software without losing quality.
.stl: For quick viewing or if you want to 3D print a physical "dummy chip" for testing (best done with a resin printer or a 0.2mm nozzle on an FDM printer).
Happy making! If this saved you some time, I’d appreciate a like and seeing your makes!
