Pouring resin and/or IPA back into the bottles is a clumsy mess (for me at least).

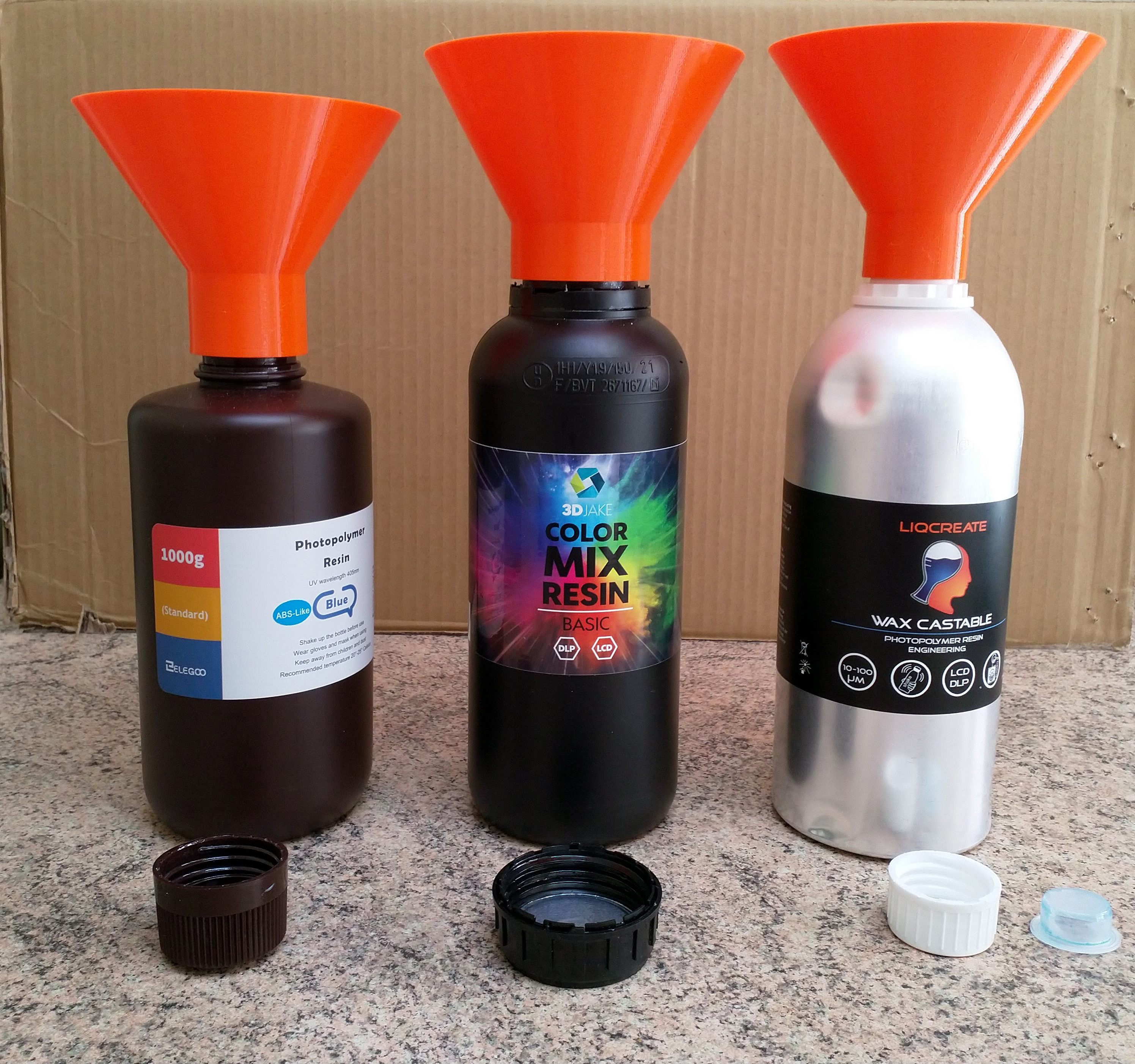

These funnels screw onto the bottle and have a replaceable filter, making for a more stable target to pour into.

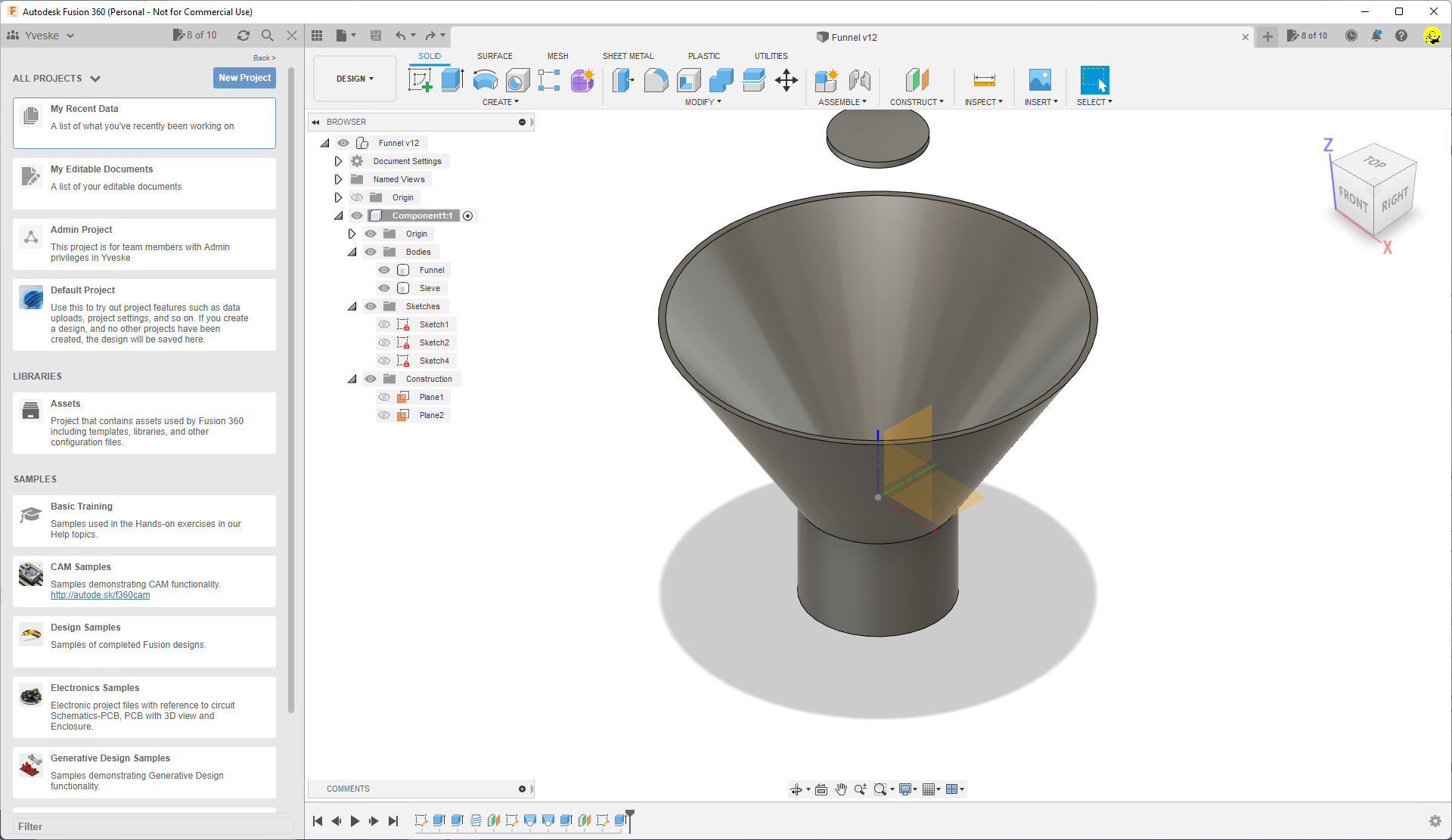

Warning: If you change the parameters within the Fusion 360 project, don't forget to change the diameter of the thread in the timeline also !!!
Note: To add non-standard threads in Fusion 360 you have to supply your own thread parameters in a separate XML file. Change the extension of the included MyISOMetricprofile.txt to .XML. and place it in the directory below (substitute <YourNameHere> and <YourFusion360DirectoryCodeHere> with your values)
C:\Users\<YourNameHere>\AppData\Local\Autodesk\webdeploy\production\<YourFusion360DirectoryCodeHere>\Fusion\Server\Fusion\Configuration\ThreadData
I've used http://theoreticalmachinist.com/Threads-MetricMProfile.aspx to calculate the dimensions of the threads (calculate twice, once for 6g and once for 6H)
2022/04/19 Picture of FerdoClean added
