3x4 Downspout Gutter Offset

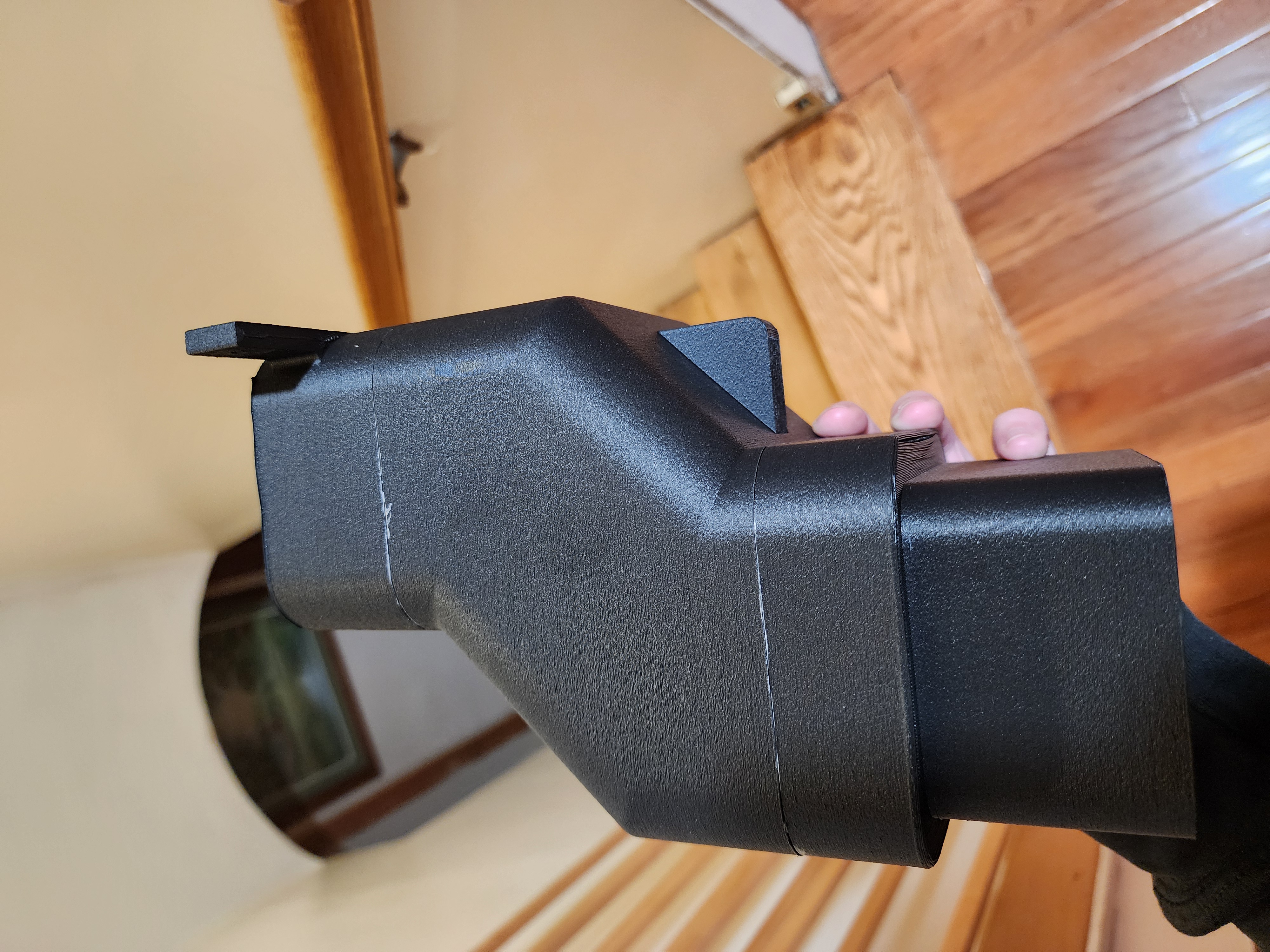

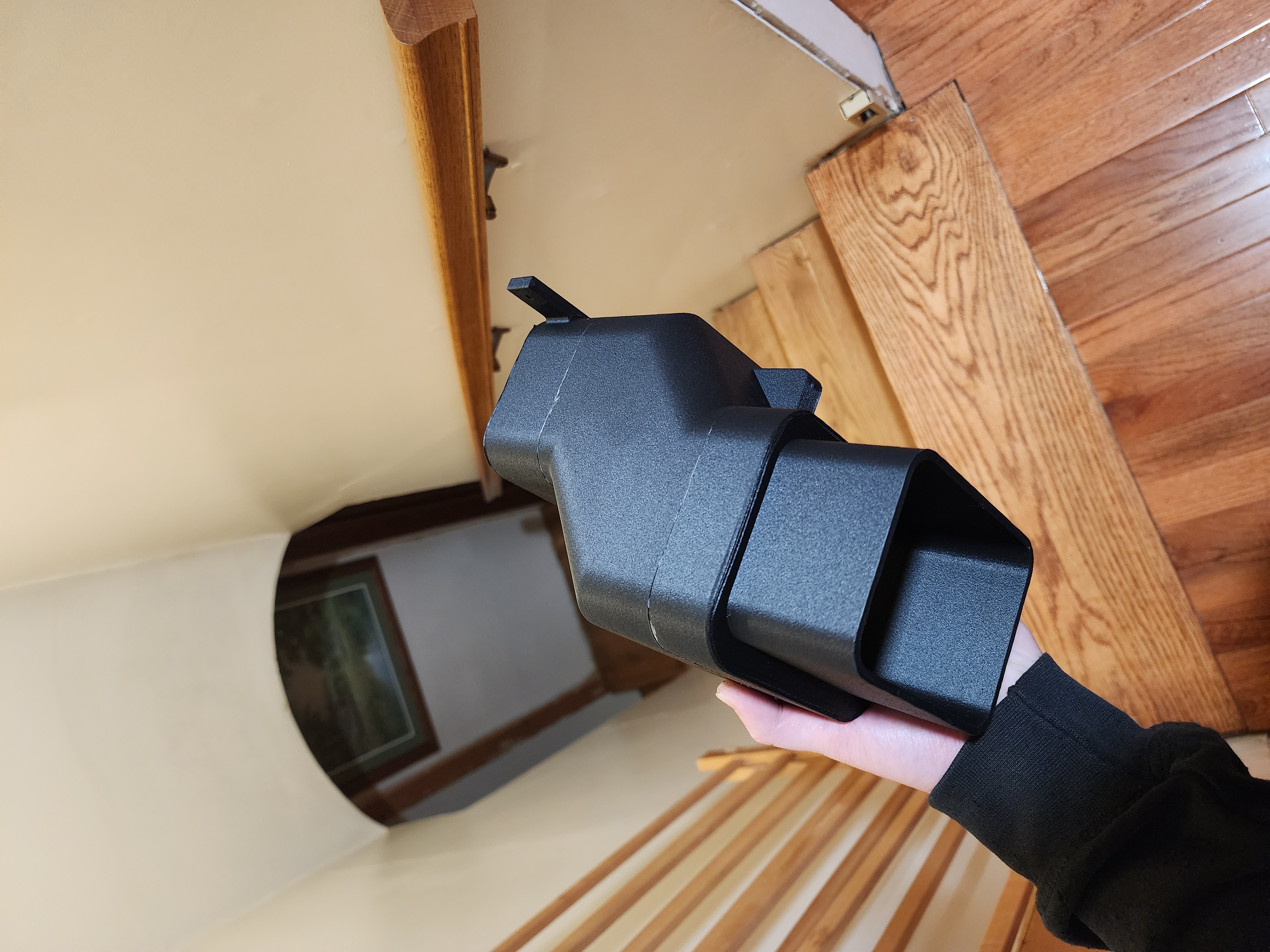

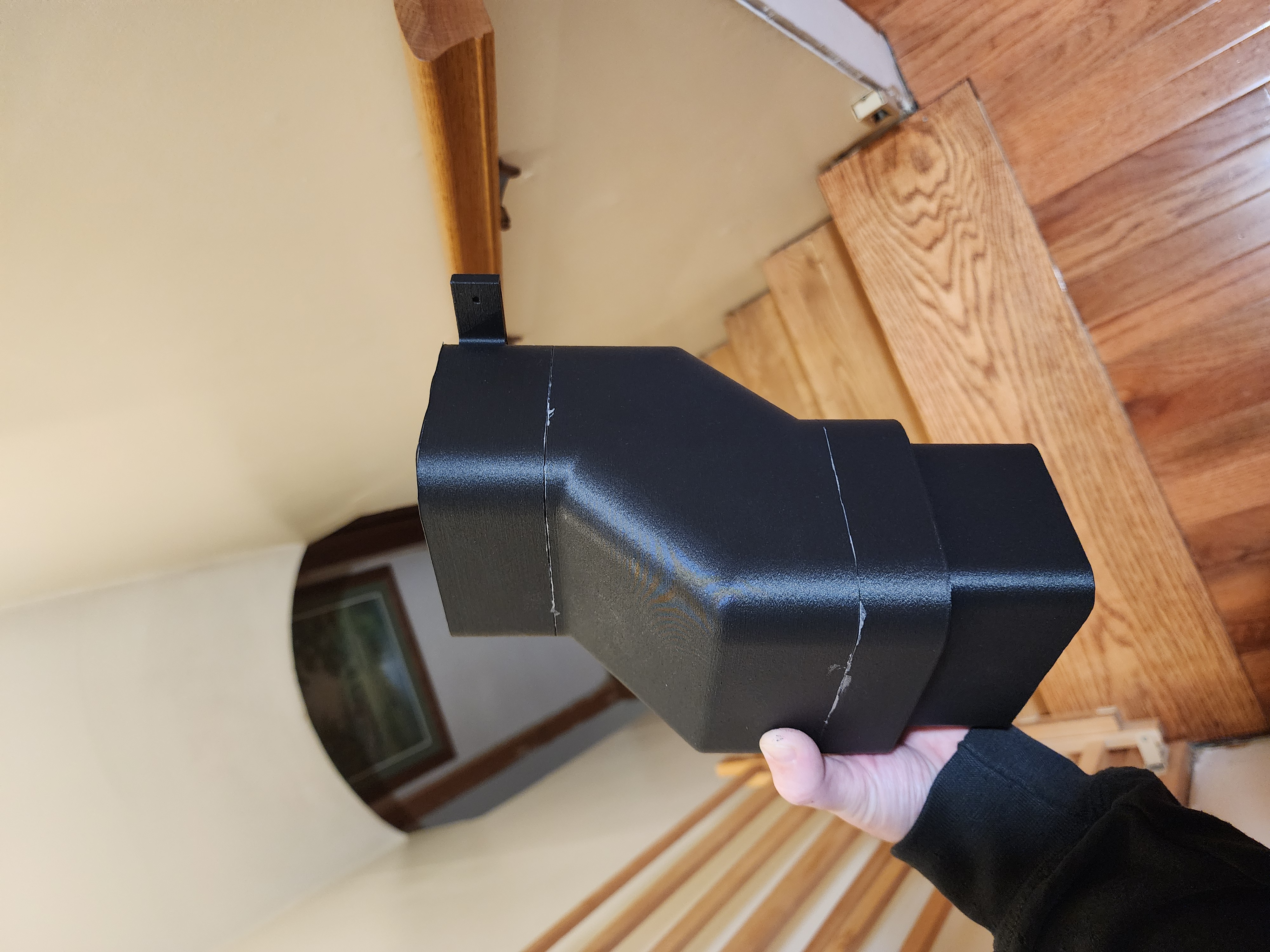

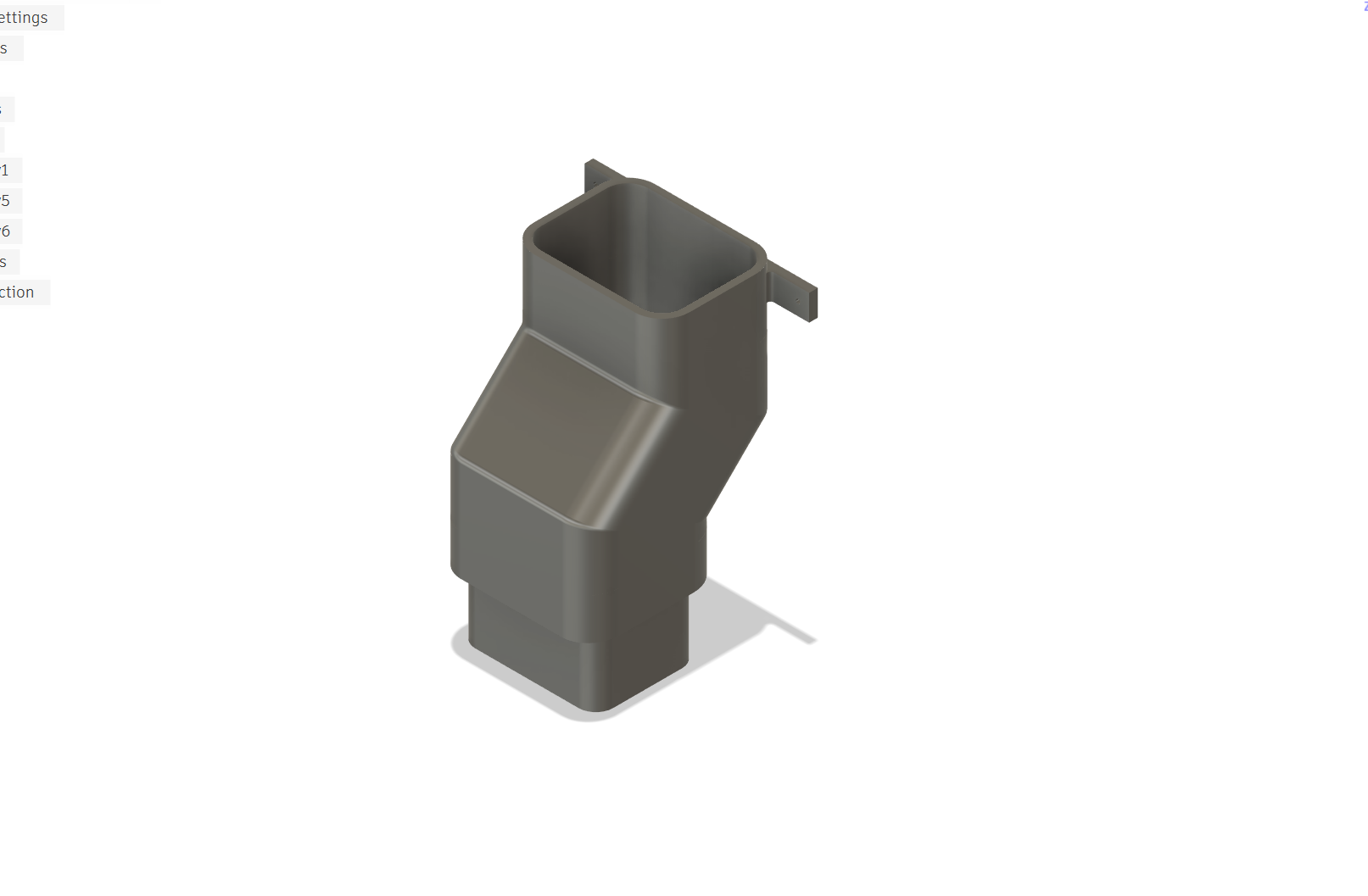

Gutter offset / adapter I designed in Fusion. Offsets 45 degrees. I'll update the model with new pictures when the wood trim is finished, and the offset can be fully mounted. Gutters are 3x4".

I melted the supports in acetone until I got a toothpaste like texture and used the mixture to glue the pieces together.

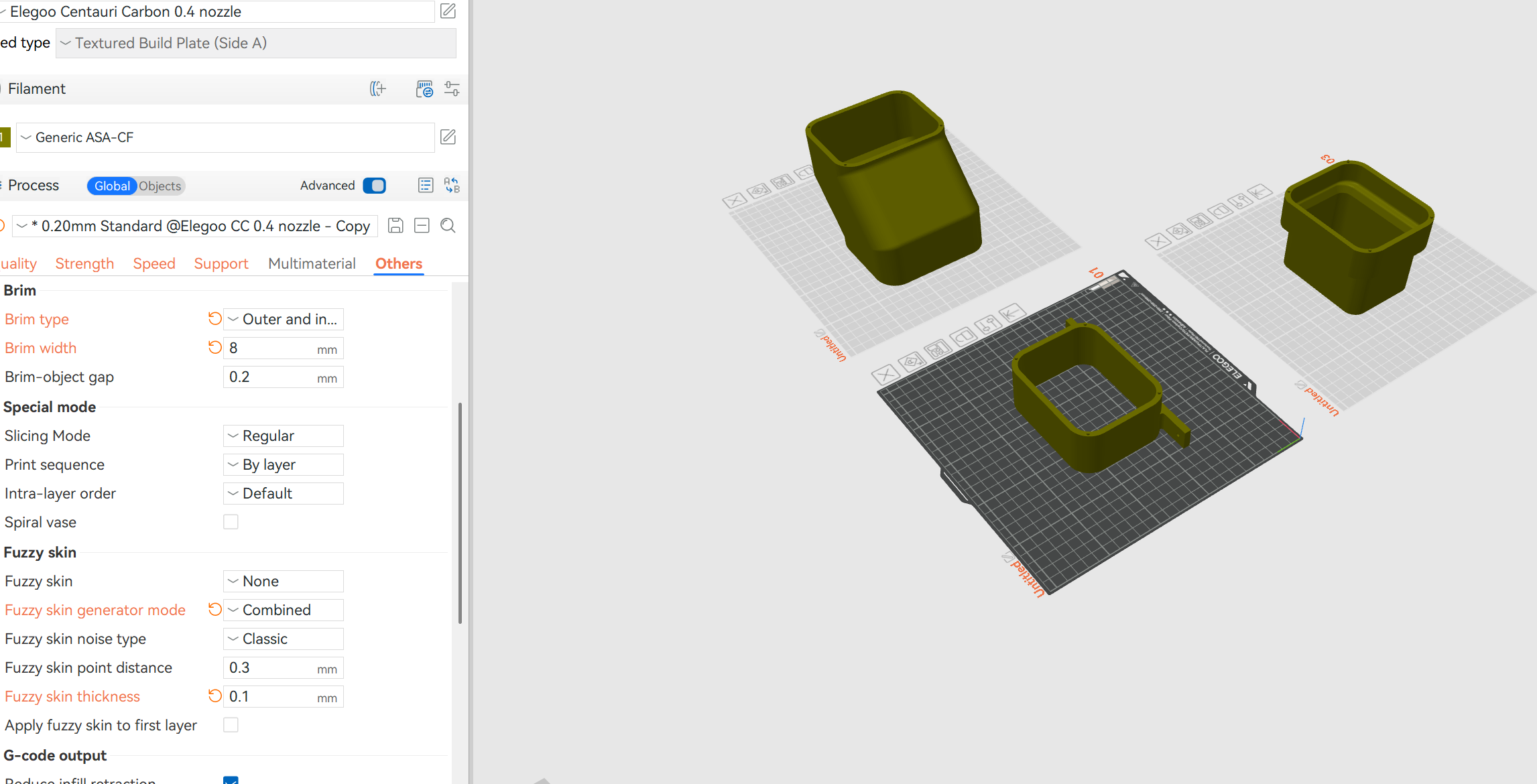

Polymaker ASA-CF (About 2 days of printing)

• Slow down first couple of layers

• arachne walls

• Use tree supports (slim to cut down on wasted material and keep supports to make glue later)

  • 45 degree angle

  • Iron support interface: Rectilinear

  • Top Z Distance: 0.18mm

  • Base Battern: Rectilinear at 45 degree angle (pulled off nice with minimal scarring)

• I like the look of fuzzy skin on this one. Contour only. You can mess with the settings to get the look you want.
