Flexispot drawer

Made a drawer for my flexispot standing desk.

Uses the premium keypad as handle for opening the drawer (I think it comes as standard on pro desks).

Drawer inside dimensions 255x110x100mm (LxWxH)

Made to hold calipers, rulers, and other stuff from desk.

Designed an opening for a usb cable on the right side of the drawer so that you can run a cable from keypad usb-c port inside the drawer.

Also added tab cutouts on top of the drawer so you can print custom attachments or organisers for things inside.

Originally i wanted to make the drawer large enough for my 30cm ruler, but later I decided to mount it on the side with the side bracket part, that snaps into place and has embedded d12x3 magnets inside it. (haven't printed this peace yet). This part is also used for as cable holder for keypad power.

This drawer does require super glue and the dovetail parts to put it together, but I found that setting baking paper on the table, then adding glue to all mating faces and dovetail parts, and then pressing the dovetails in was the simplest way to assemble it, and the drawer comes out very sturdy.

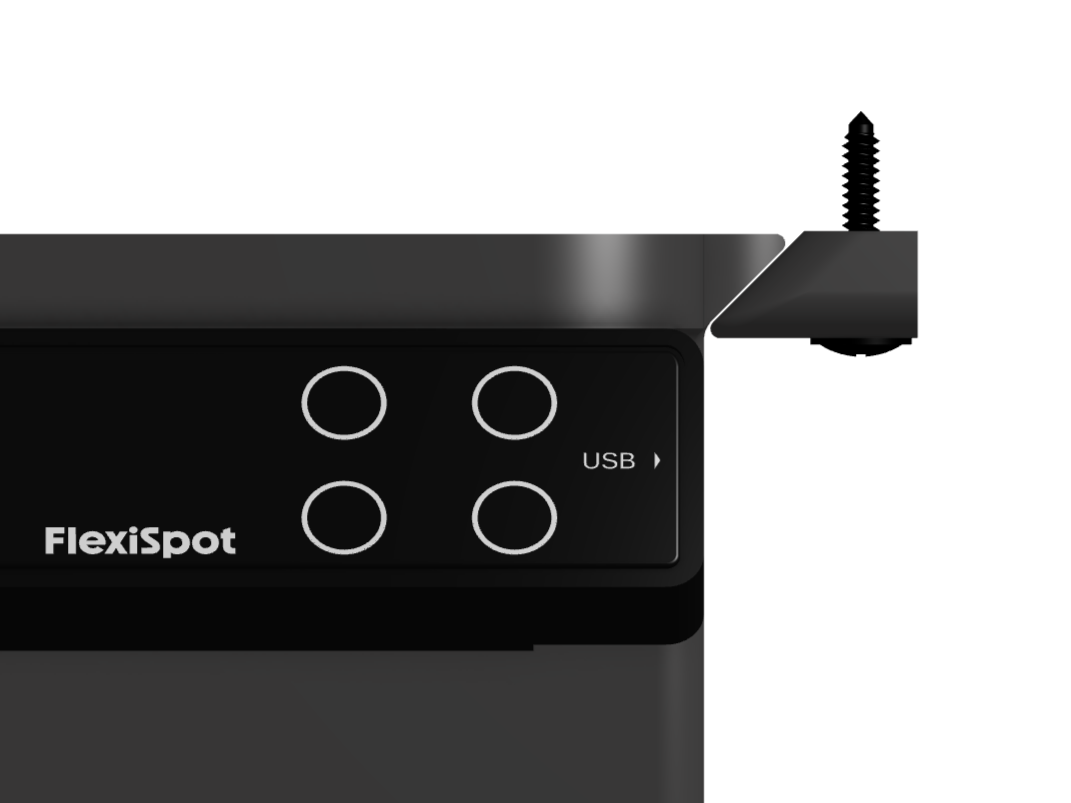

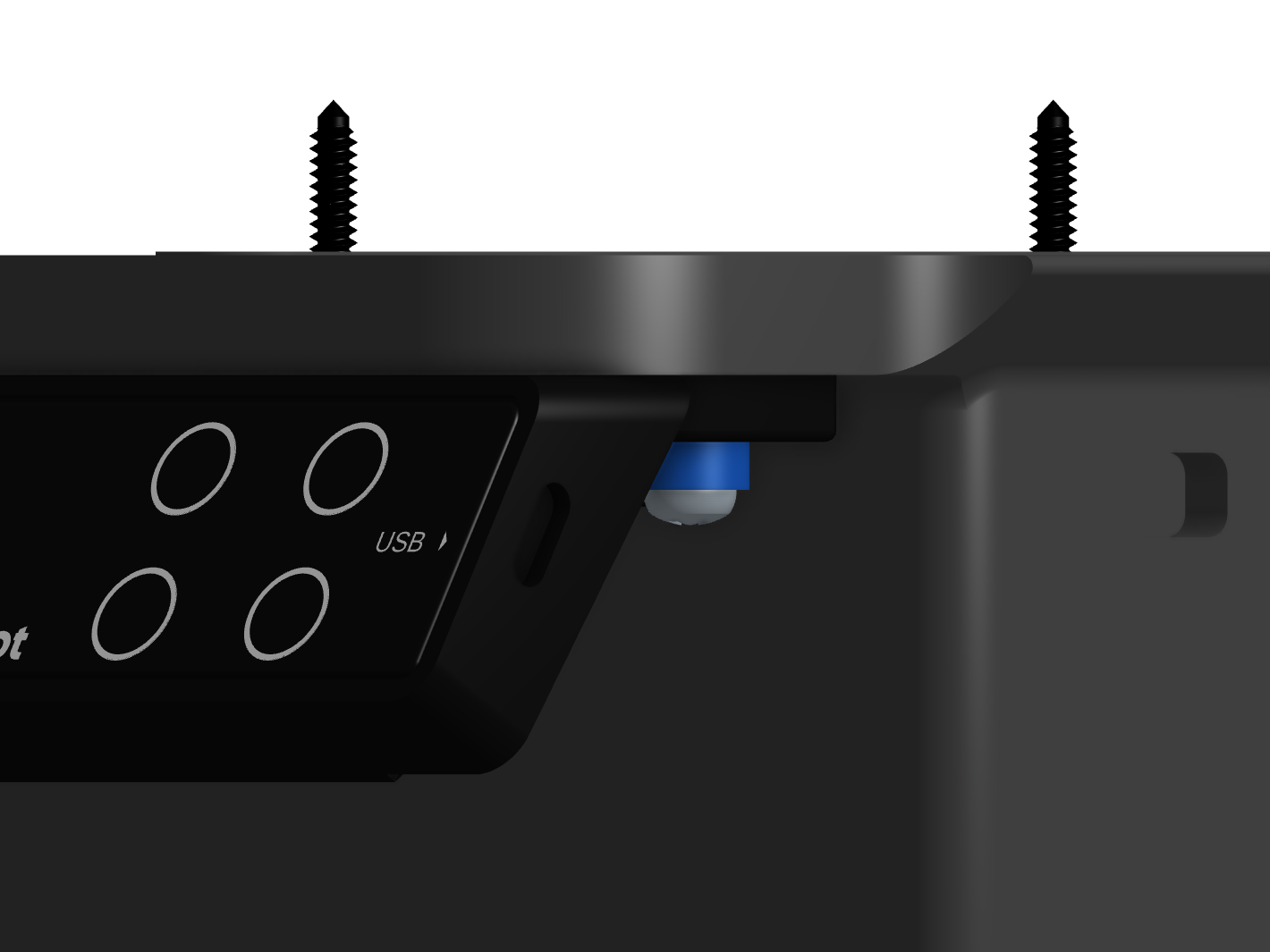

For Flexispot keypad attachment I used the original wood screws it came with, just added small spacers to them so they don't protrude too far.

Printed everything in Sunlu PLA+, whole assembly took 11 hours to print and 450 grams of filament.
