C1L Steelsheet Holder

Update: The wrong scale is solved, the linked Sheet Holder got updated, i uploaded the old files. The update has no advantage for the Feet Mount, because it only extend the Surface the Plate is inserted to, only helps with unconnected mount.

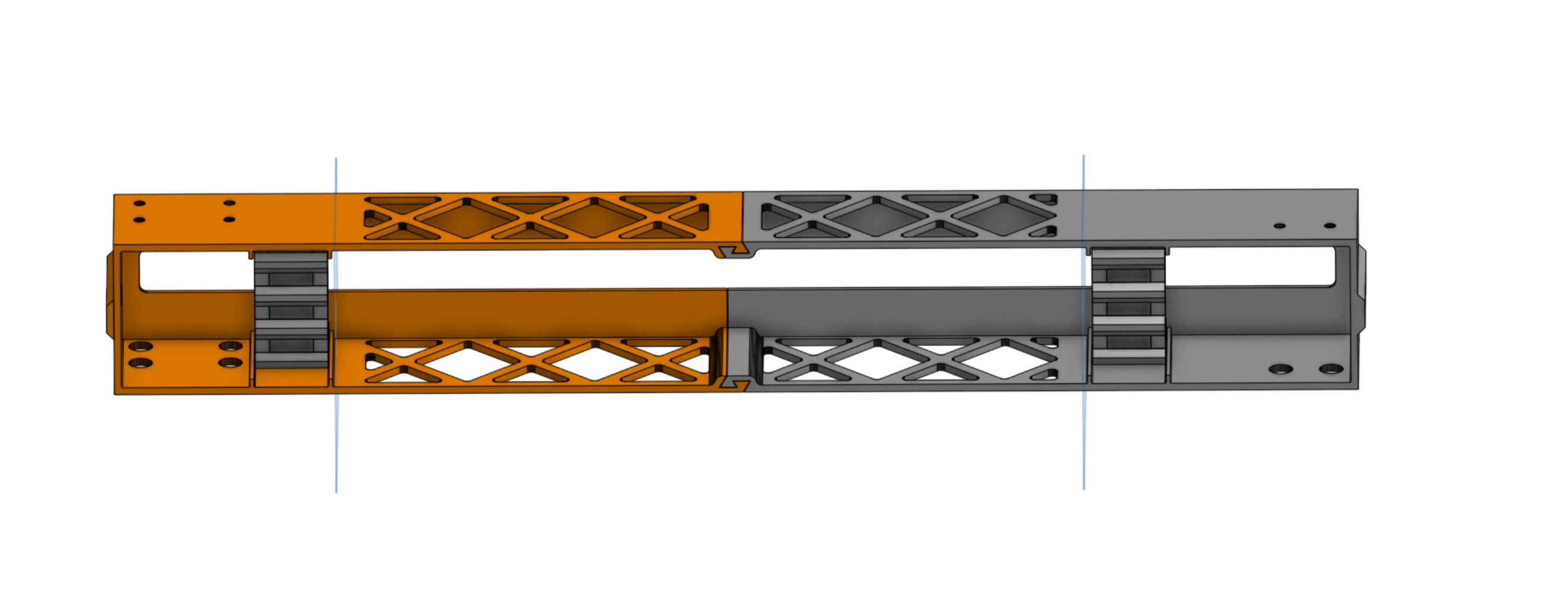

Scaled everything for the Core One L (Squashball and OEM Feet, Backframe for Holder, magnettower)

Feedback is highly appreciated.

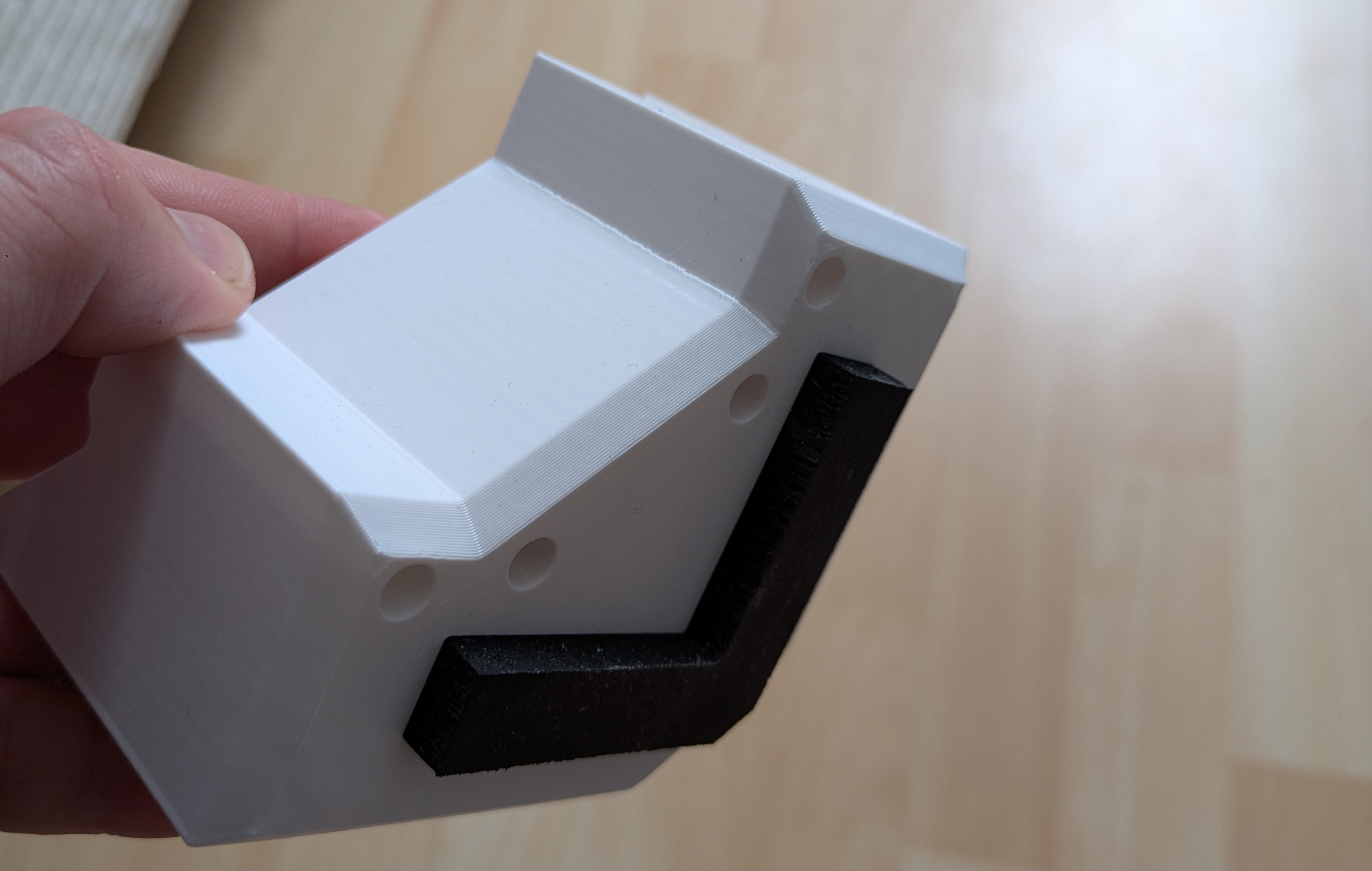

I made Squashballfeet (red dot ones) and OEM Feet for the Core One L. If you dont want the Holder included just print the backfeet twice.

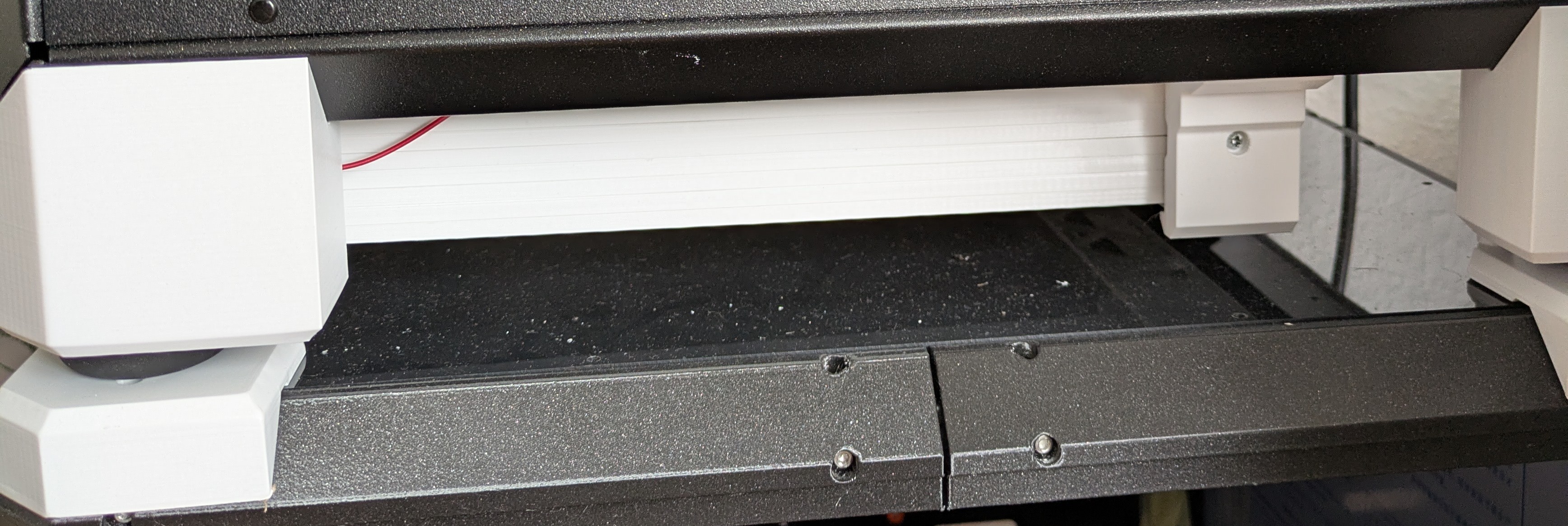

Use the clamps to mount the backframe to the printer. Screw the Sheetholder to the Frontfeet.

Added a Magnetic Tower to the back so the sheets arent that loose anymore. I used 12x6x3mm magnets.

Also a version with a hole in the right foot so you can insert a button to power on and off the printer, instead of reaching to back.  Use a metal momentary button like the one in the link: https://it.aliexpress.com/item/4000043687021.html?spm=a2g0o.order_detail.order_detail_item.3.2ea2582fBL9YYn&gatewayAdapt=glo2ita

I used this Sheetholder

And these to make it more safe on the Inbxx

Edit: The Sheetholder were updated and my feet dont fit the new ones. I uploaded the old version, works perfectly fine.
