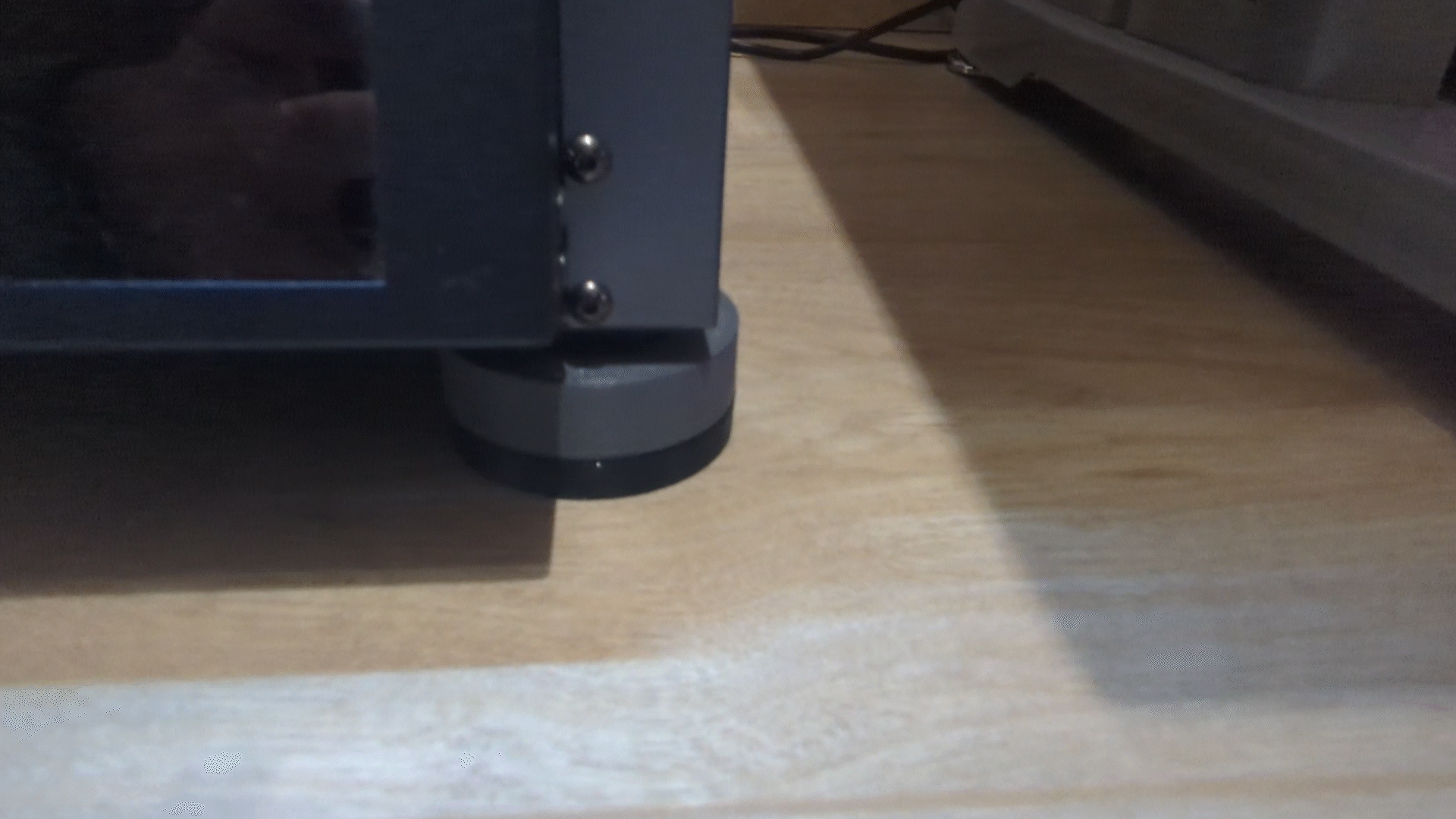

I made Hula inspired feet for my machine, but it can be adapted to be used on onther machines as I included a step file for easier design.

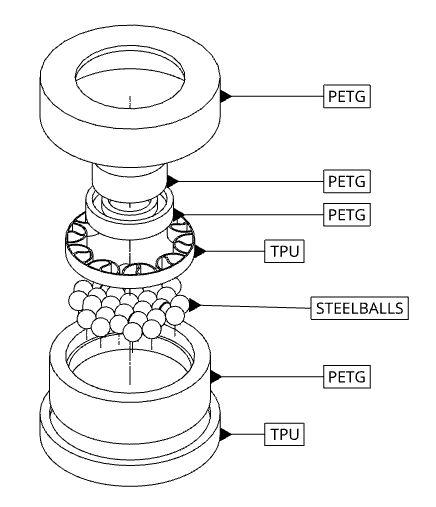

I user 6mm steel balls for rolling, PETG for the structural parts and TPU for the damper and the feet.

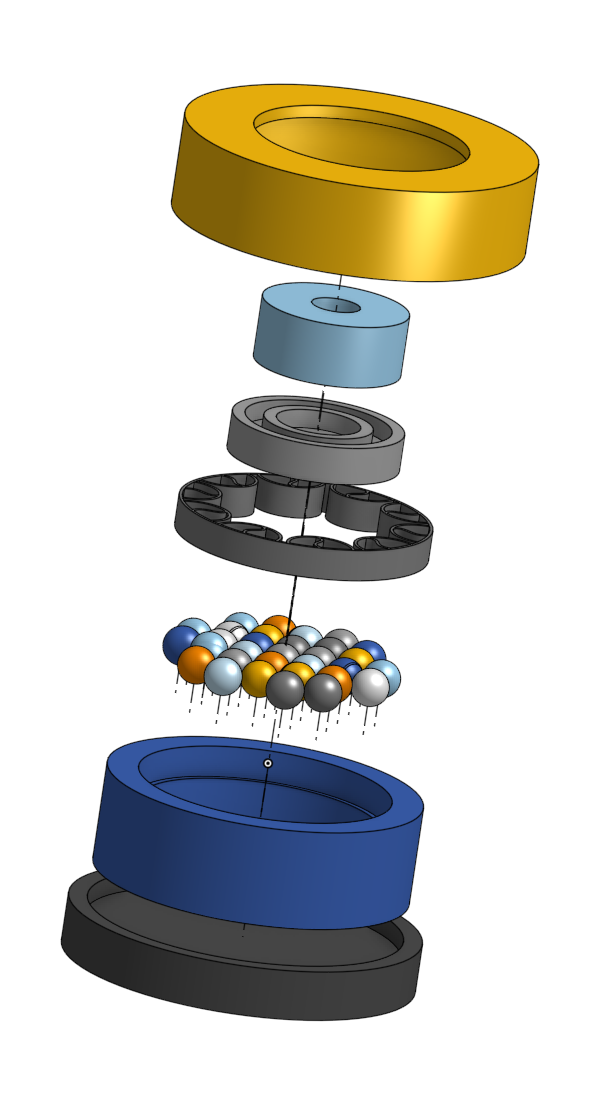

For assembly you will need to fasten the light blue PETG part with the TX existing screw and washer, then pop the light grey PETG part on it.
I printed the dark grey parts in 95A TPU.
The 30 6mm steel balls go into the blue PETG part along with some lubricant, something with PTFE should work the best, I only had some spray with PTFE in it and it seems to work for the moment.
Make sure your printer is calibrated for skew, flow and other calibration as the parts have zero tolerance/clearance except for the upper cover(the yellow part) so they will interface well.
