MODBOX Modular Storage Boxes for Small Components

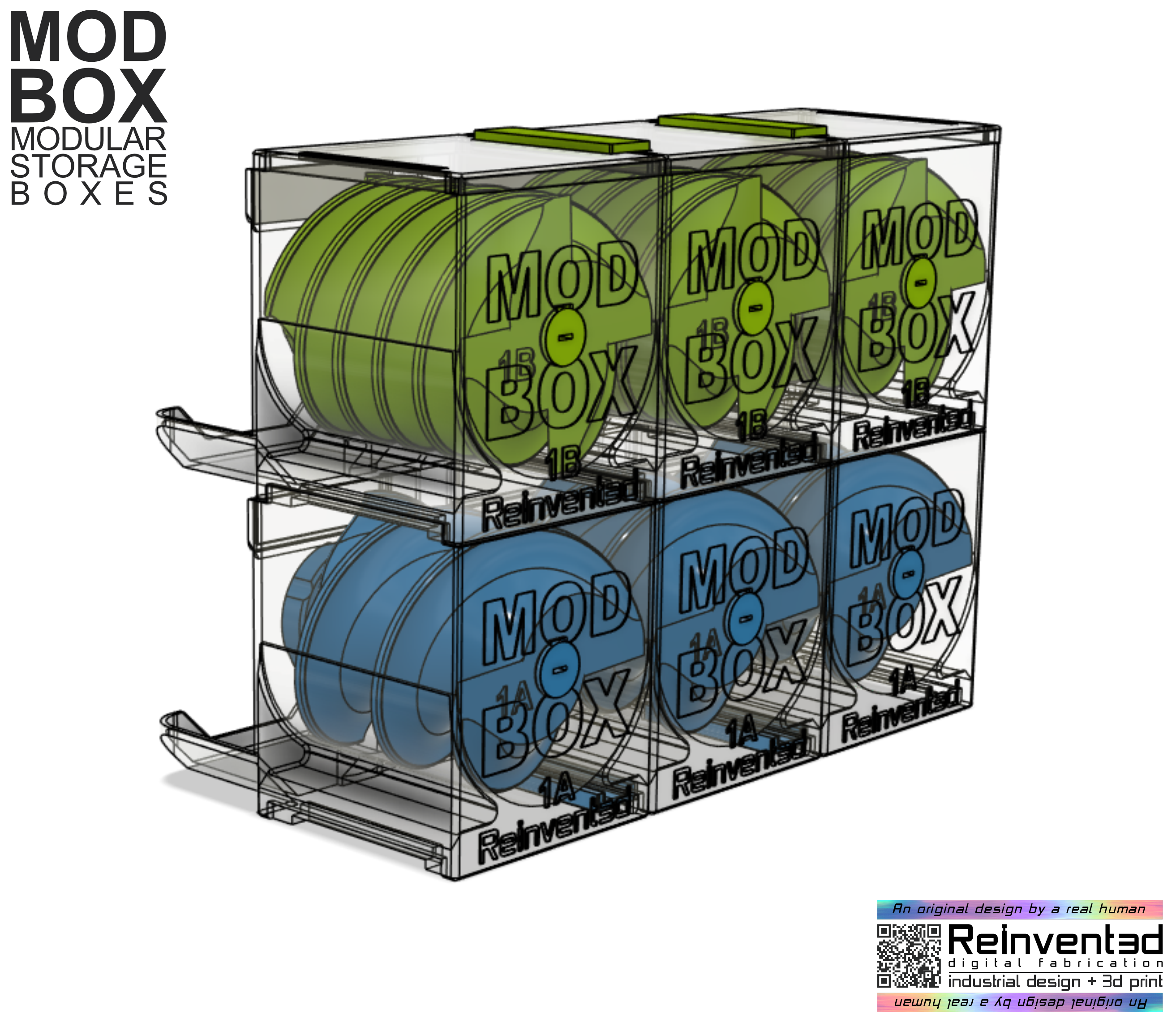

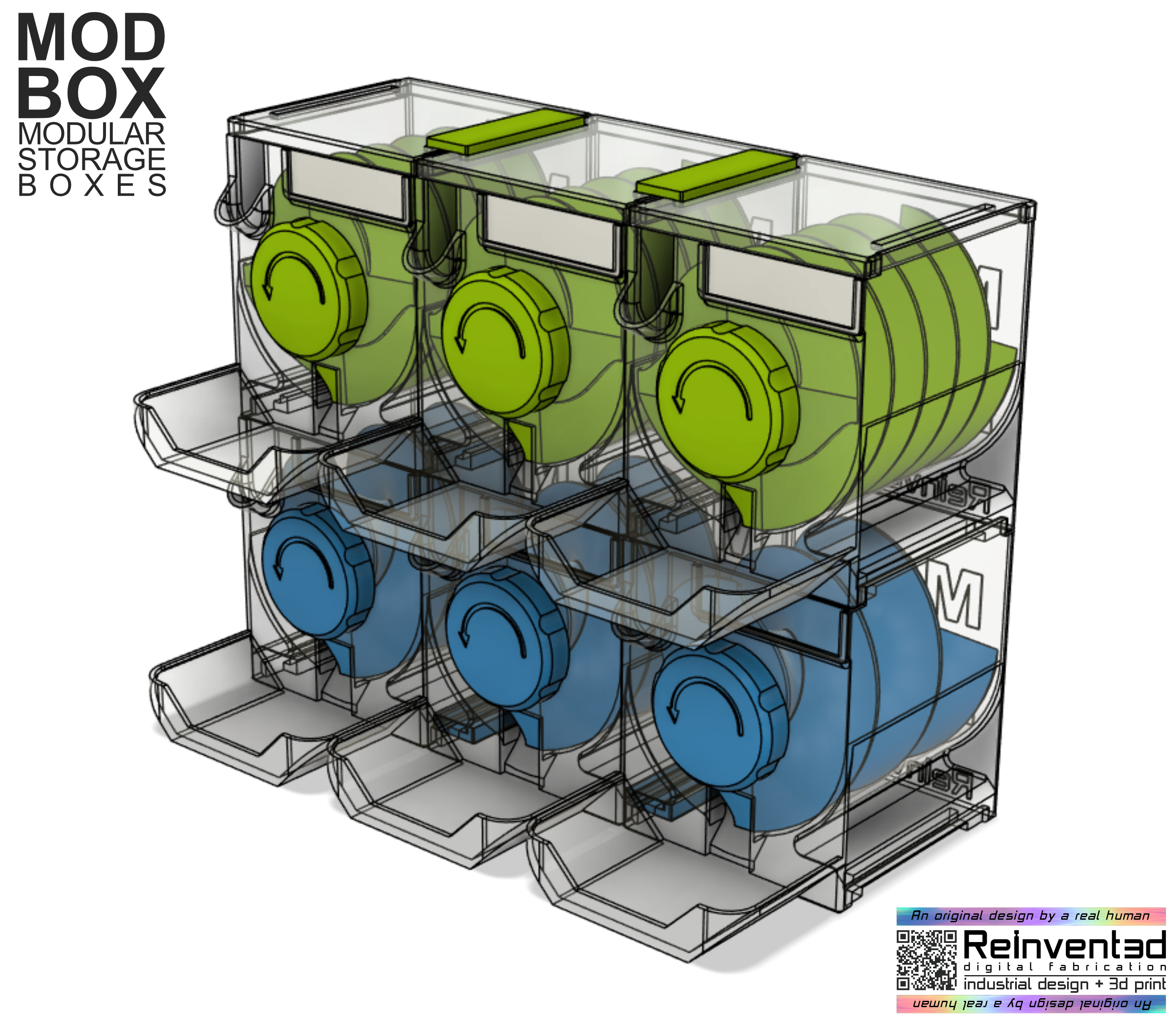

Introducing the ModBox, a unique stackable storage system which features an inner screw to easily release small amounts for picking out when required.

This system is aimed at organising small parts and components and creating an easy way to pick low amounts when required.

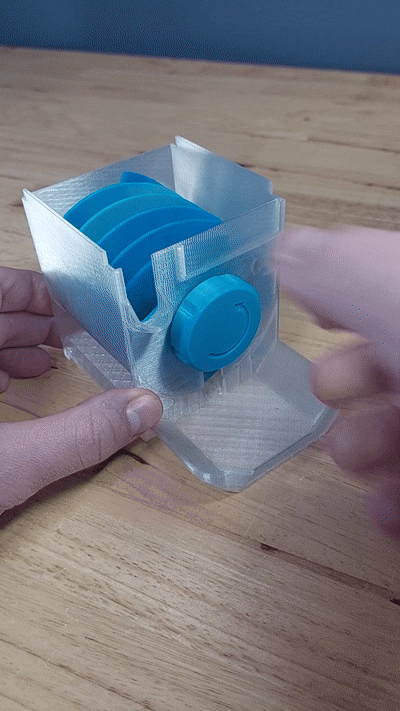

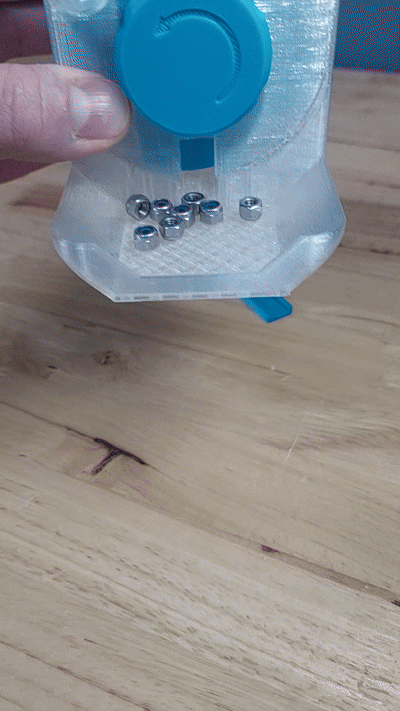

The core of this system is the inner screw that can be turned slowly, releasing small amounts into the front tray to be easily picked - no more fumbling with trying to pick small parts up out of open top trays.

If too many parts are released, there is a small chute in the top corner to drop them into.

The screw also acts as a open/close doorway - by simply rotating the knob clockwise/right, it will close off the opening to stop more parts from falling out.

There is also a small holder in the top right corner for paper labels to drop into. The label size is 47mm W x 14mm H.

Notes

• There are no additional fasteners required when assembling.

• When assembling, simply drop the screw into the body - with the embossed label facing the rear. The front knob has a LEFT HAND thread (this will feel weird to screw in). Then simply screw in the rear plug.

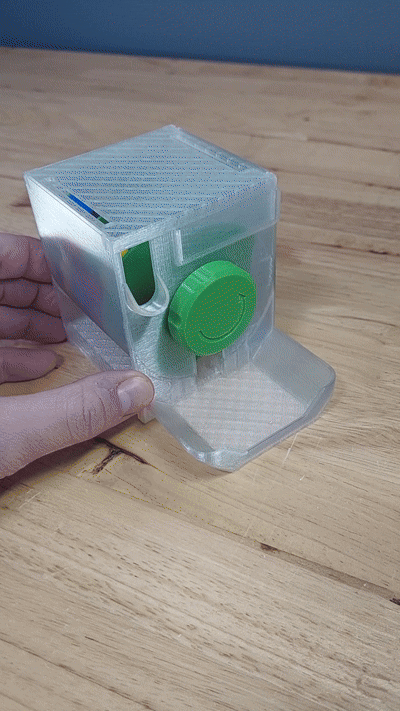

• Turn the knob to the left to start releasing parts gradually. Turn to the right to close off the opening.

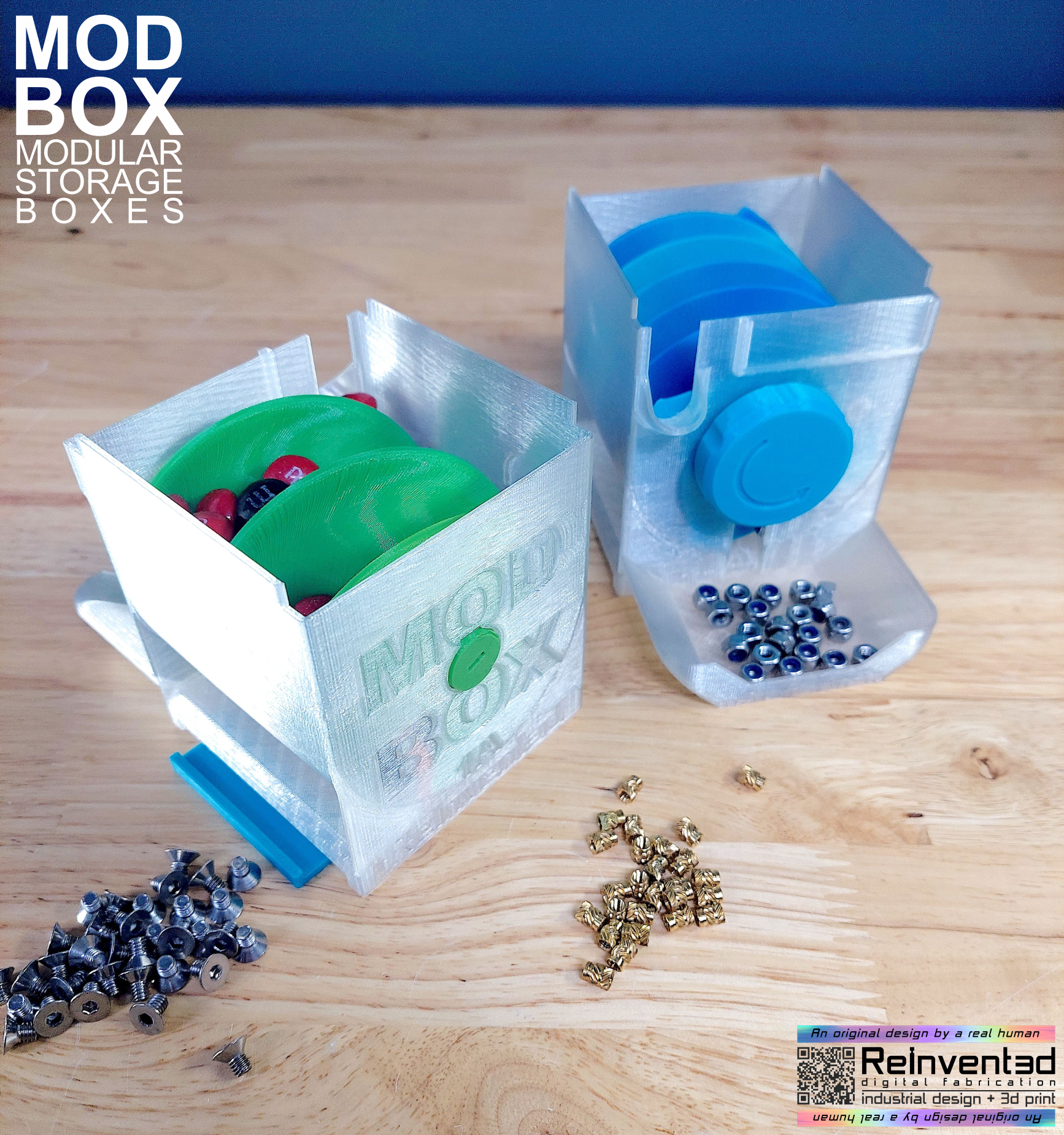

• Best suited for small components - M2, M3, M4, M5 screws, bolts, heat inserts etc. And of course, M&M's!

• When filling, only fill to under half-way. Make sure to give a shake and turn the screw a couple times to ensure the parts settle and don't jam.
