Hera improved grip with replaceable inserts
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Ideas
- Licencja
- Creative Commons — Attribution

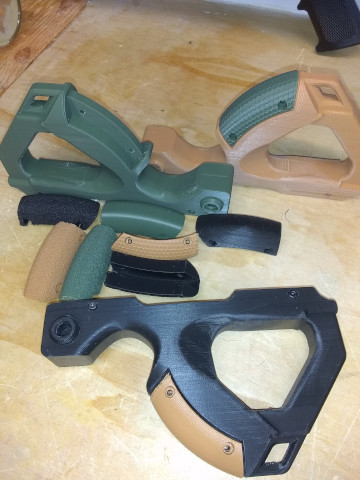

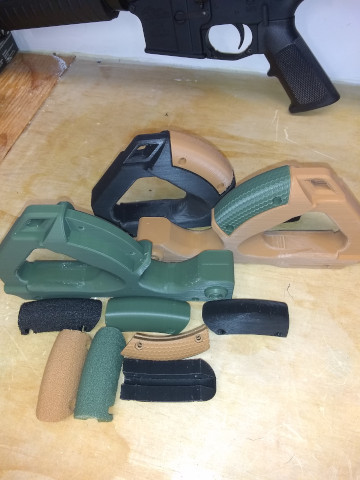

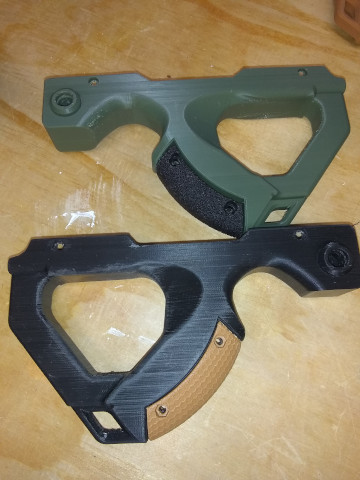

Hera grip with replaceable inserts! I added:

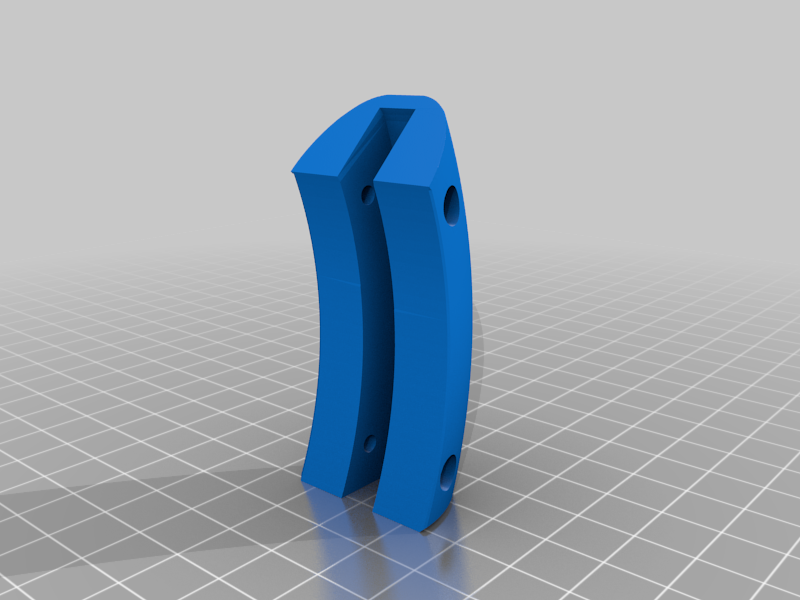

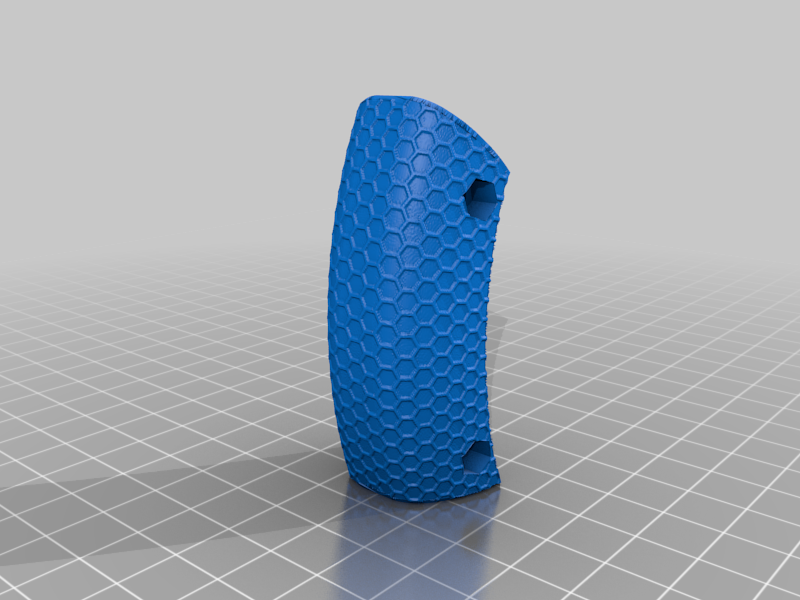

- Replaceable inserts with 3 different patterns: smooth, stippled, and hex stippling
- QD mount points
- Recesses for M3 screws and nuts spaced at standard Picatinny mount spacing
- Smoothed and mirrored recess in thumb/web grip area
Print Settings
Printer Brand:
Creality
Printer:
Ender 3 Pro
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2
Infill:
50-100%
Filament: eSun PLA+ Any
Notes:

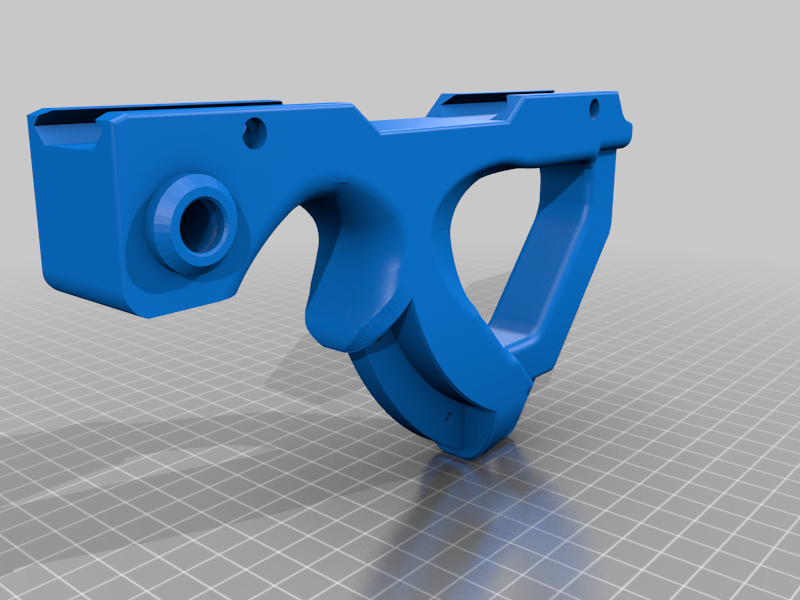

Supports recommended for the main grip to avoid bridging issues. 50% infill has held up well to general handling.
Inserts can be printed without support with the flat end down, in the "most vertical" orientation. This is recommended to eliminate cleanup issues when using the inserts.Category: DIY
