Stackable Box Basic Double Tall
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Get your things organized with tactical precision! The Tactical Storage Crate Drawer
- Ocena
- 0 / 5
- Polubienia
- 10
- Pobrania
- 56
- Wydruki
- 0
- Wyświetlenia
- 190
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Sports
- Licencja
- Standard Digital File License
📈 Help me growing!
☕Or buy me a coffee: https://buymeacoffee.com/psoa
This model is free to download for personal use under the standard Printables license.
If you'd like to support my work — and help me keep designing and sharing more models — you can purchase it through my store for $5. Think of it as a tip or donation: you get the exact same files, and I get to keep doing this.
Either way, thanks for printing! 🙏
🔩 Stackable Storage Box System — One System, Everything Organized
A modular, interlocking drawer system for your desk, workshop, bench or safe. Snap the boxes together side-by-side or stack them tall — build the exact drawer array you need and expand it whenever you want. Smooth sliding drawer, front label slot, and a clean rugged look.
Yes, it started as an ammo box — but it's really a "store anything" system:
🔋 batteries · 🔩 screws & nuts · 🧲 magnets · 📎 paper clips · 💇 hair clips · 🪵 clothes pins · 🗒 post-its · 🎣 tackle · 💊 pills · 🧵 sewing bits · 🔫 ammo & calibers · …basically anything small that keeps getting lost.
👉 Every box in the family lives on my profile — check the full lineup and grab the sizes you need.
.
.
.
.
.
.

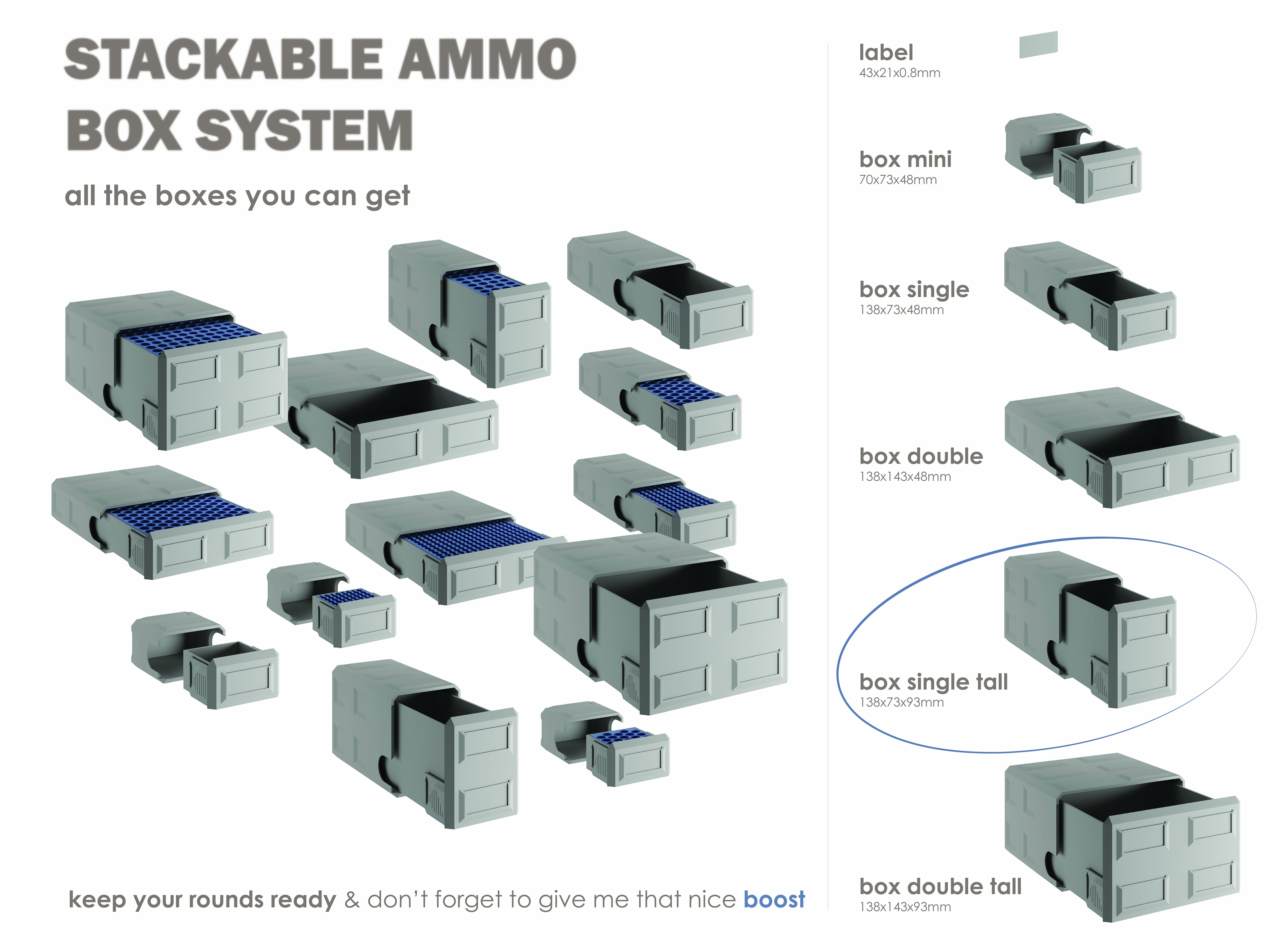

📦 The full lineup
Box | Outer size (mm) | Outer size (Inches) |
|---|---|---|
Label | 43 x 21 x 0.8 mm | 1.69 x 0.83 x 0.03" |
Mini | 70 x 73 x 48 mm | 2.76 x 2.87 x 1.89" |
Single | 138 x 73 x 48 mm | 5.43 x 2.87 x 1.89" |
Double | 138 x 143 x 48 mm | 5.43 x 5.63 x 1.89" |
Single Tall | 138 x 73 x 93 mm | 5.43 x 2.87 x 3.66" |

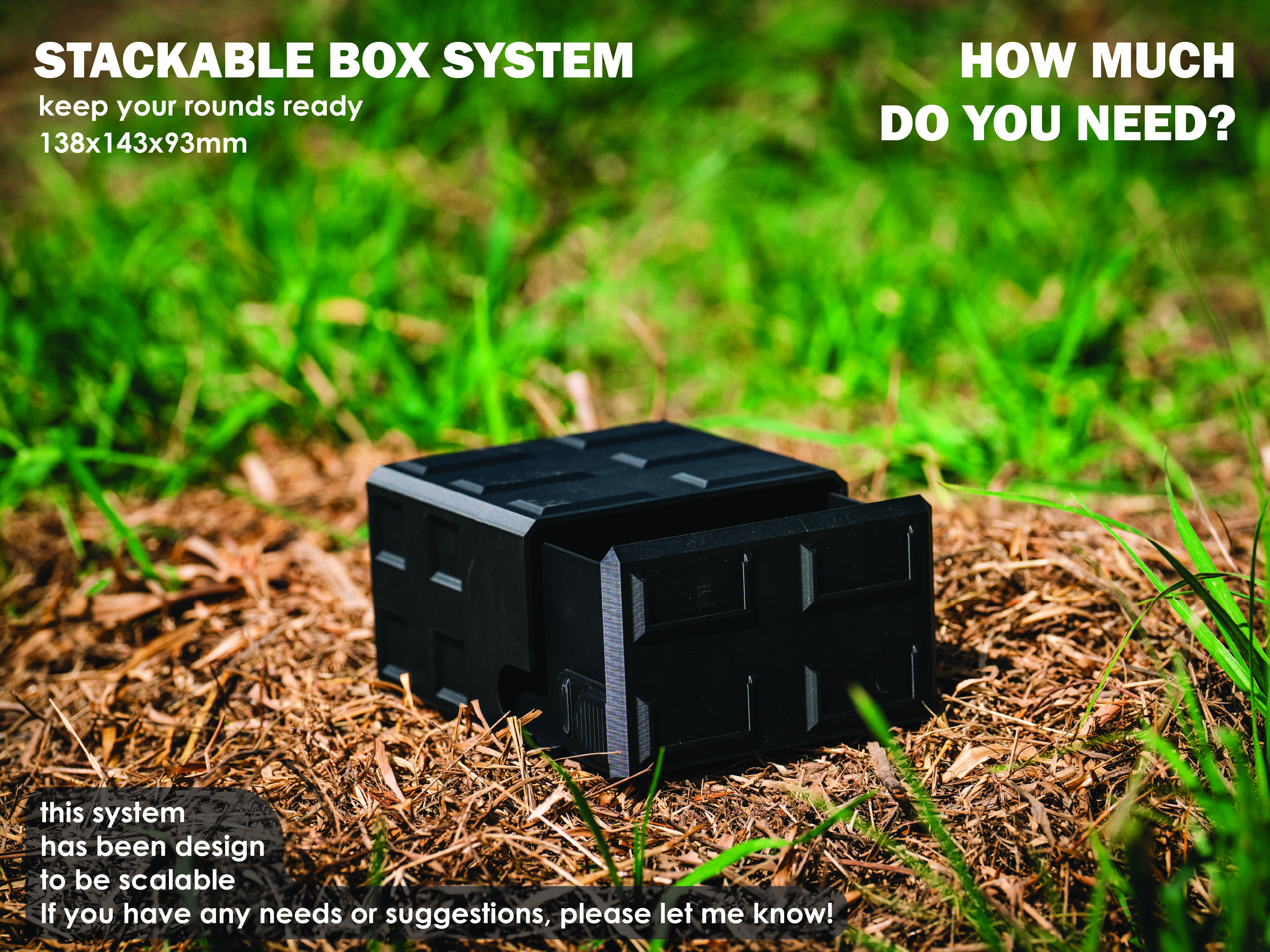

Double Tall | 138 x 143 x 93 mm | 5.43 x 5.63 x 3.66" |
Single Tripple Tall | 138 x 73 x 138 mm | 5.43 x 2.87 x 5.43" |
Double Tripple Tall | 138 x 143 x 138 mm | 5.43 x 5.63 x 5.43" |
All boxes share the same interlocking system, so you can mix and match freely — a wall of minis next to a couple of tall drawers, whatever your stuff needs.
🎯 Custom inserts — already made, more on request
Each box can carry a custom insert to hold its contents in place — think caliber trays for ammo, or dividers and grids for screws, batteries, bits and beyond. I've already modeled a few (like .22LR and 9mm) and I keep adding to the set.
Need an insert that isn't here yet — a caliber, a battery size, a specific screw tray? Drop it in the comments and I'll model it and share it. Tell me the box size + what you want to store, and it goes on the list.

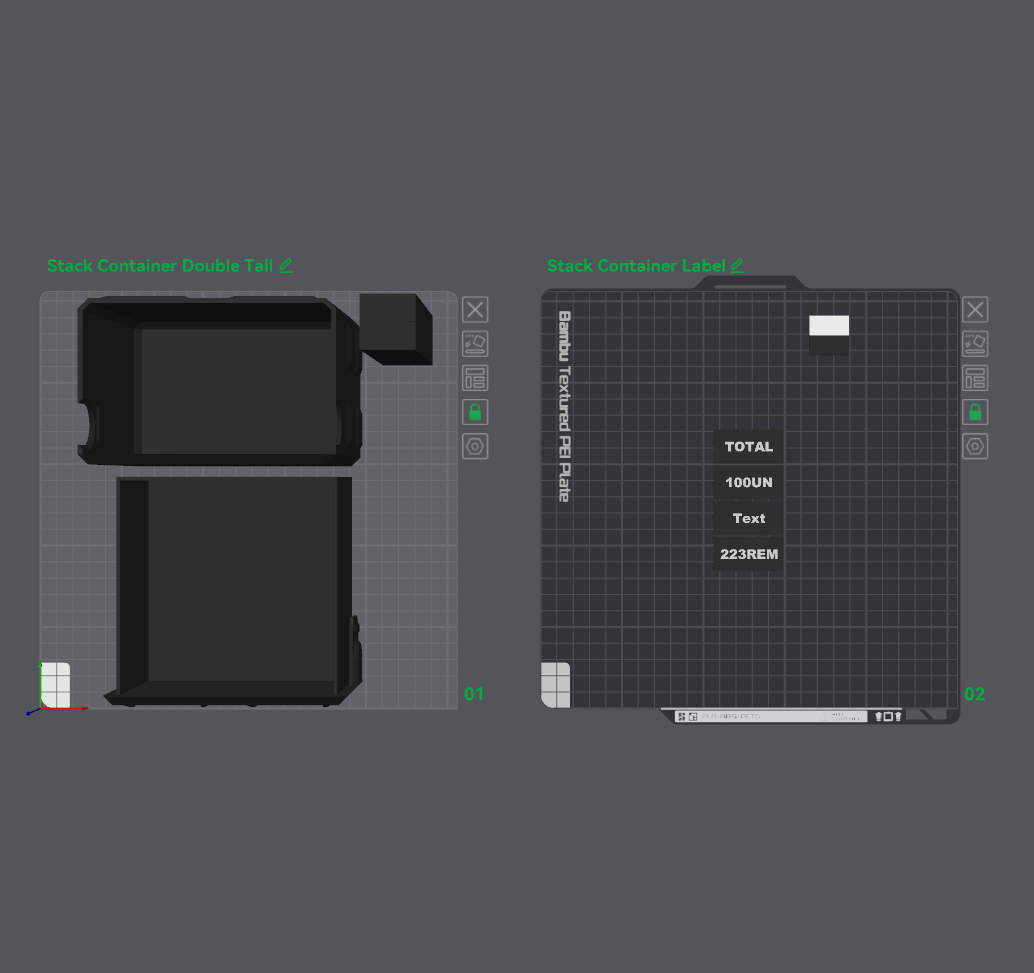

🧵 Print settings (why the .3MF is set up this way)
The included .3MF is dialed in and ready to slice — this took a lot of test prints to get right, so you don't have to:
Model in PLA (printed here in PLA Matte) — clean finish, tight tolerances.
Box support in PETG — I deliberately print the drawer's support in PETG because it pops off far cleaner than PLA-on-PLA. No fused, torn supports, no fighting the drawer free. This is the single trick that makes the sliding fit feel right.
Bambu Lab P1S + AMS, 0.4 nozzle, 0.2 mm layers, 2 walls, 15% grid infill, tree supports.
No AMS / single-color printer? You can still print everything in one material — you'll just spend a bit more time cleaning the drawer support.
⭐ Support the project
If this saves you time, a like, a boost and a follow genuinely help — and they're what let me keep pumping out new sizes and new inserts. Keep everything in its place, and don't forget to give me that nice boost. 🚀
