Rostock mini - customised

Ive been considering building the Rostock mini for a while now but wanted to rework some of the parts

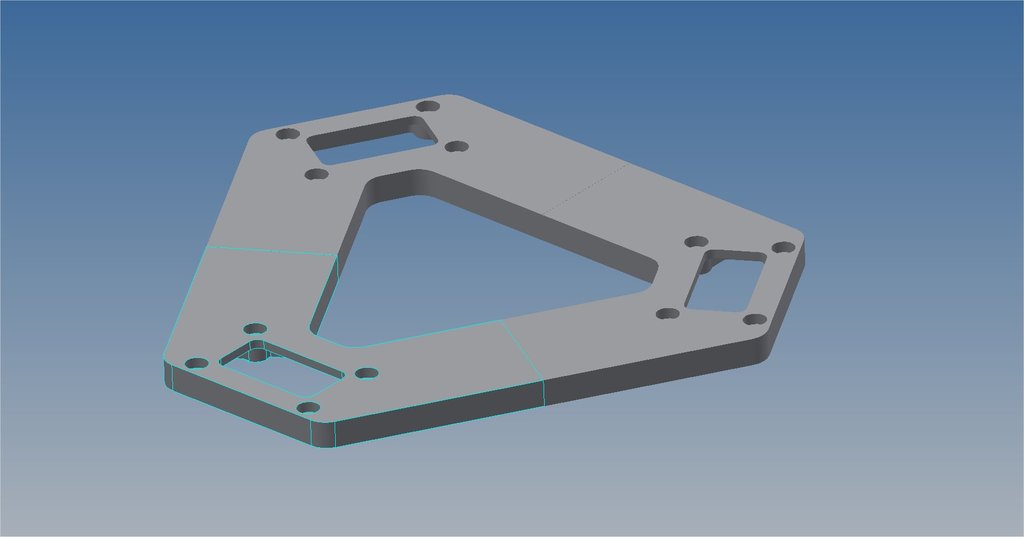

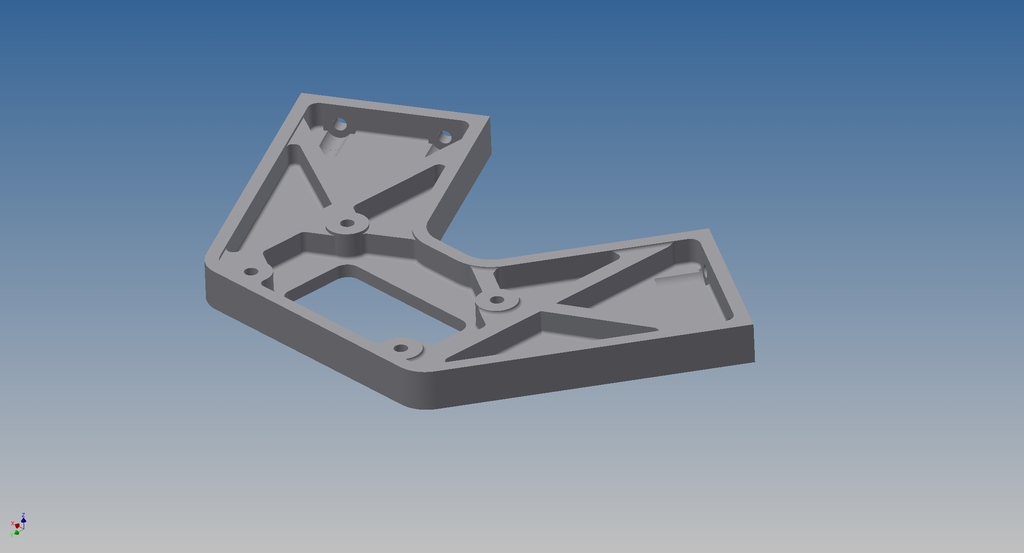

Inspired by Victors printable base plate http://www.thingiverse.com/thing:675477 ive started my own adaptation.

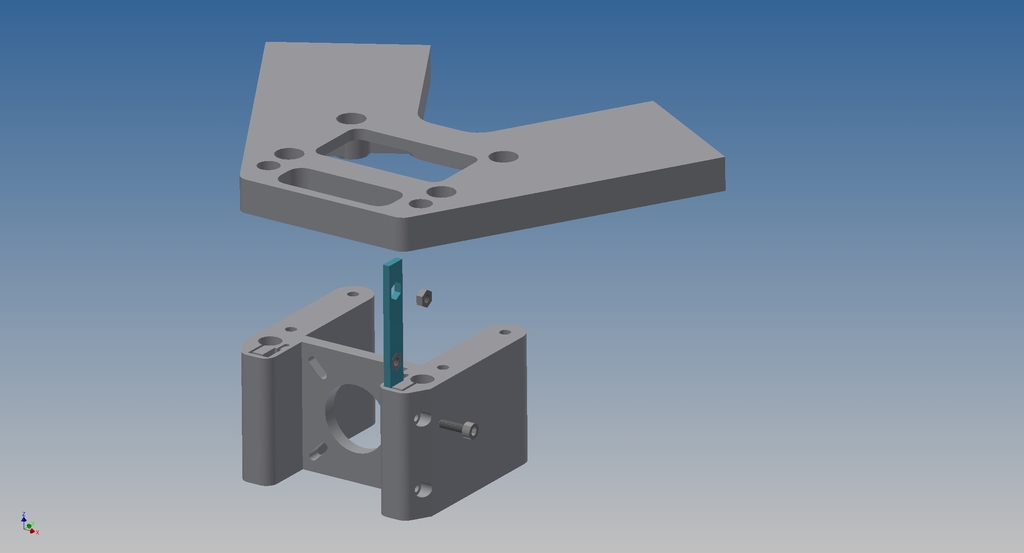

Also pictured some concept ideas for motor ends to conceal some of the bolts-hardware and an extended printable base plate.

More in the coming weeks

Update 1st March 2016

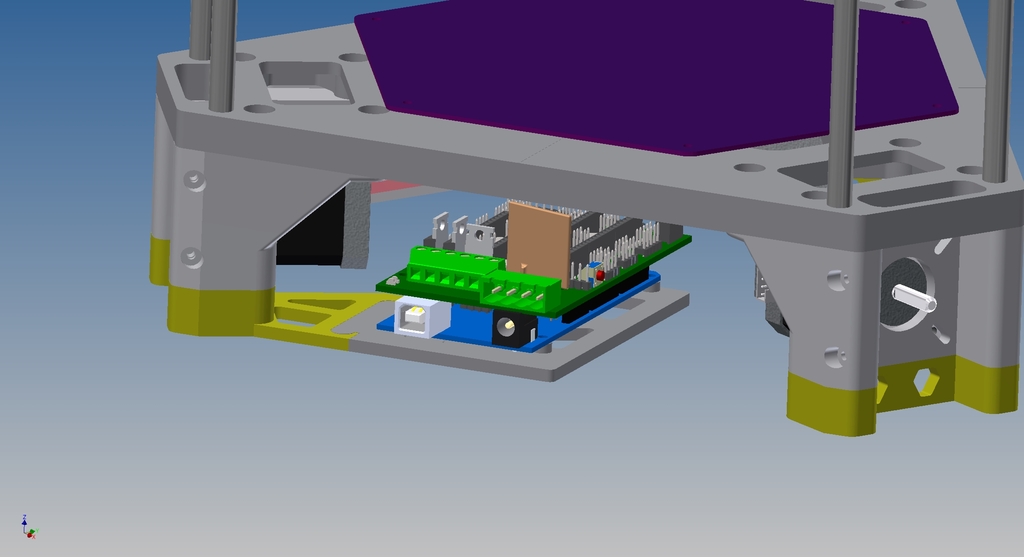

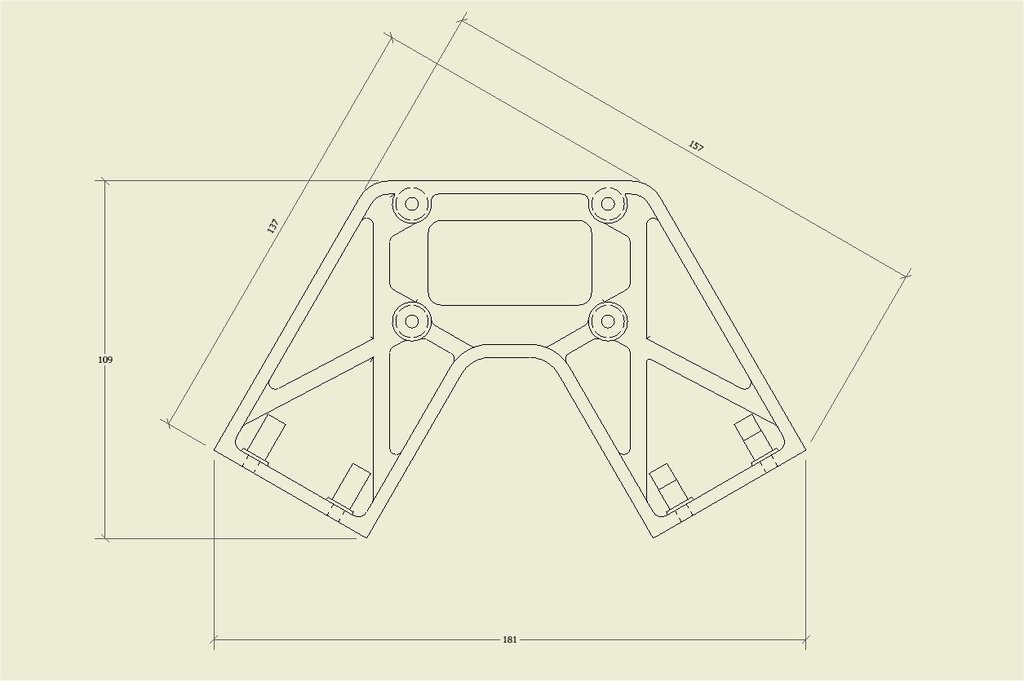

On request have added a ramps 1.4 base and an adapted foot riser to match

---

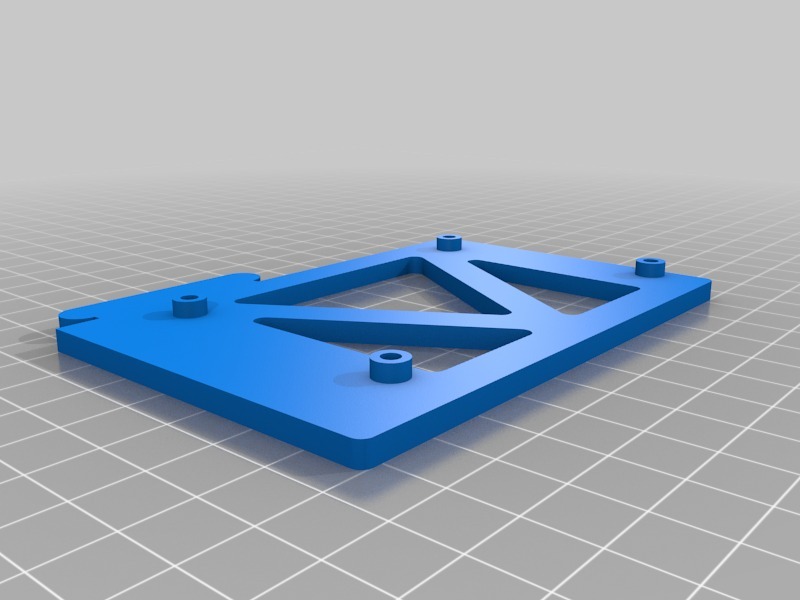

Update 3 April 2015 > added a base plate for a Ramps 1.4 controller and an adapted 15 mm high foot with simple jig saw style connection to the ramps plate.

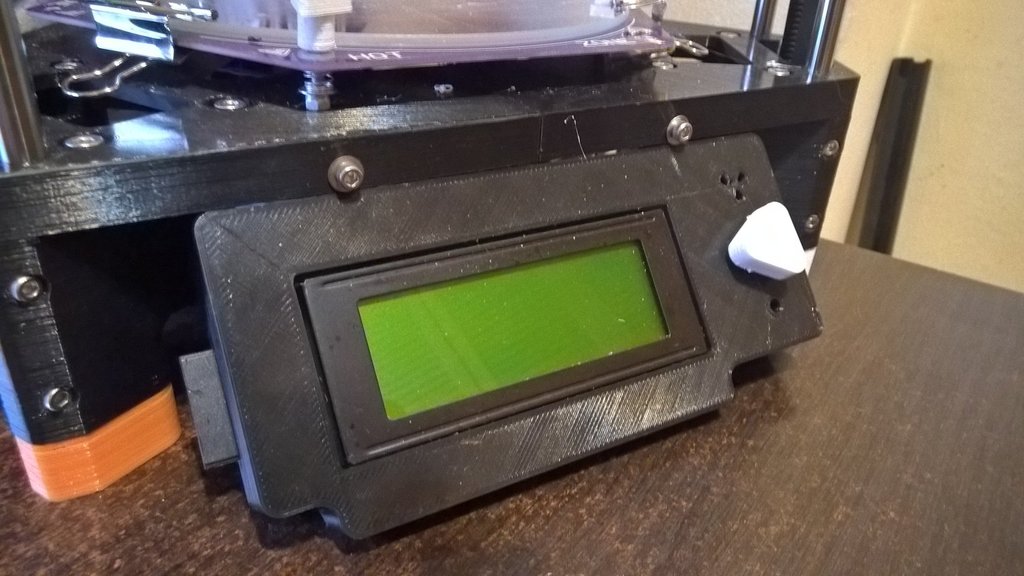

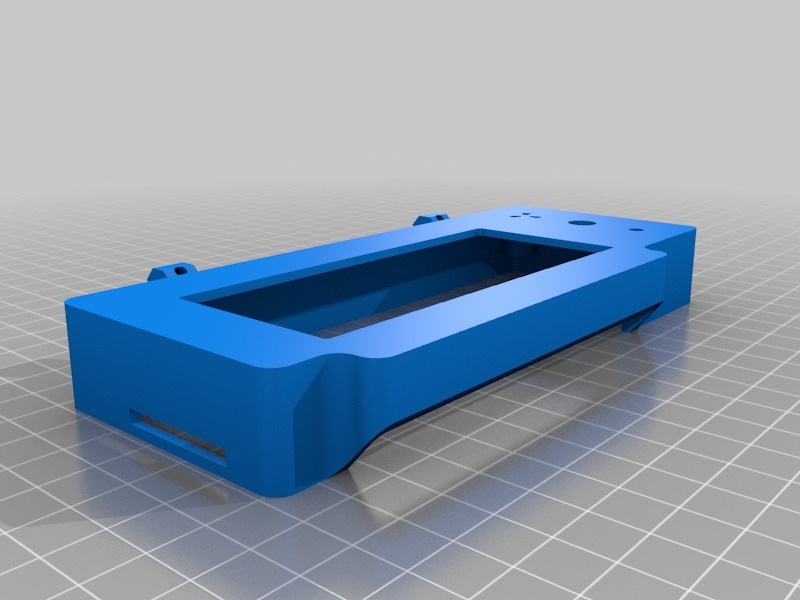

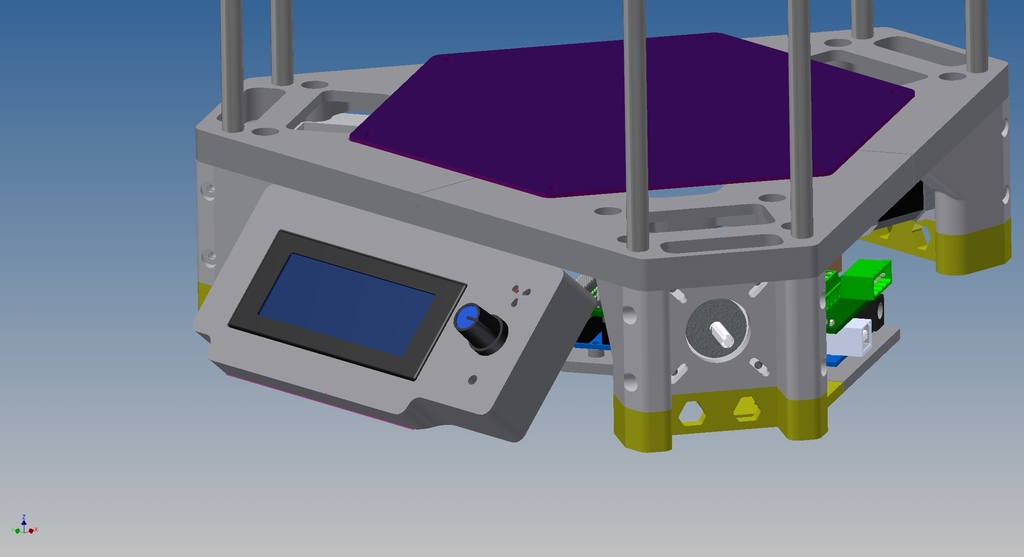

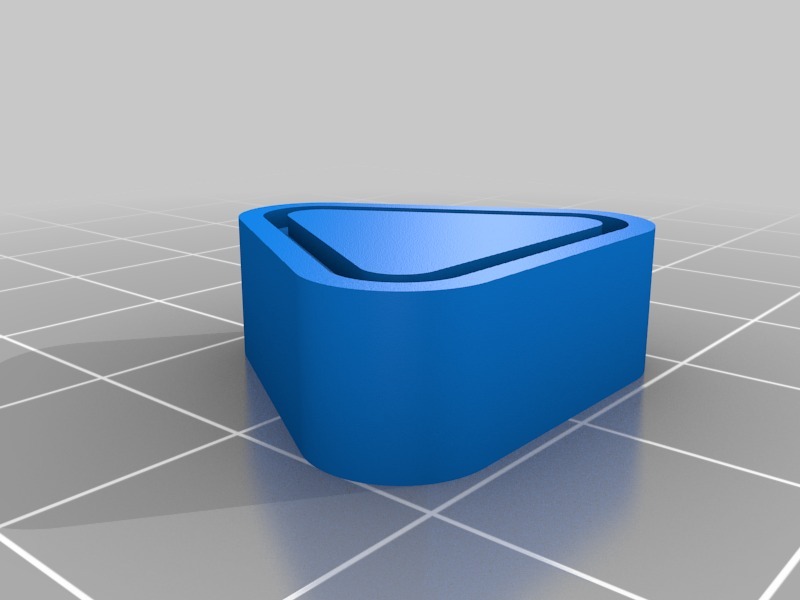

Added LCD enclosure . Does need 2 holes to be drilled in the bottom frame pieces ...see photo

---

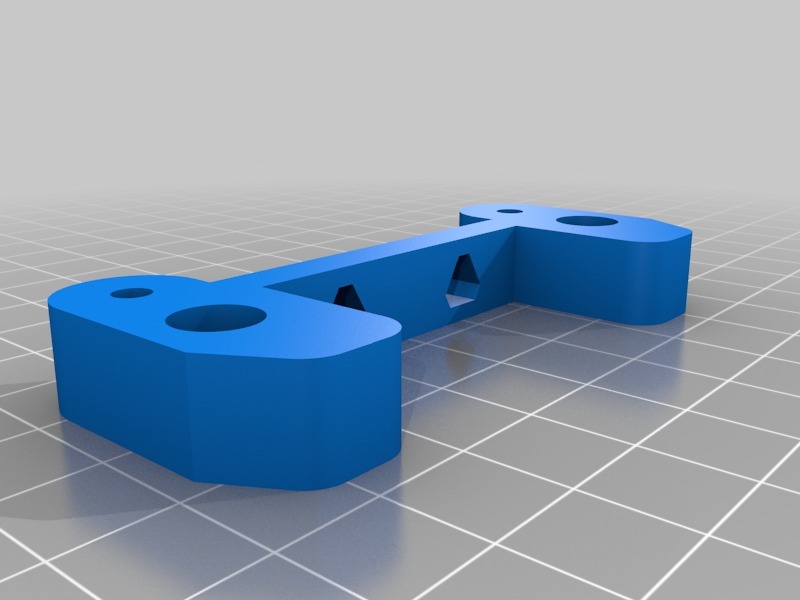

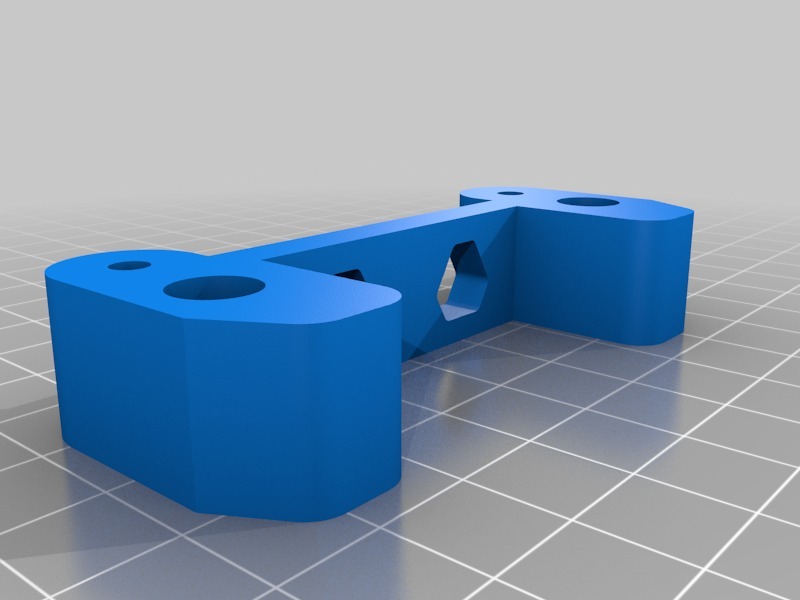

Update 11th March 2015 > found the 20mm base foot to be too much so ive added 15 & 10 mm versions as well

---

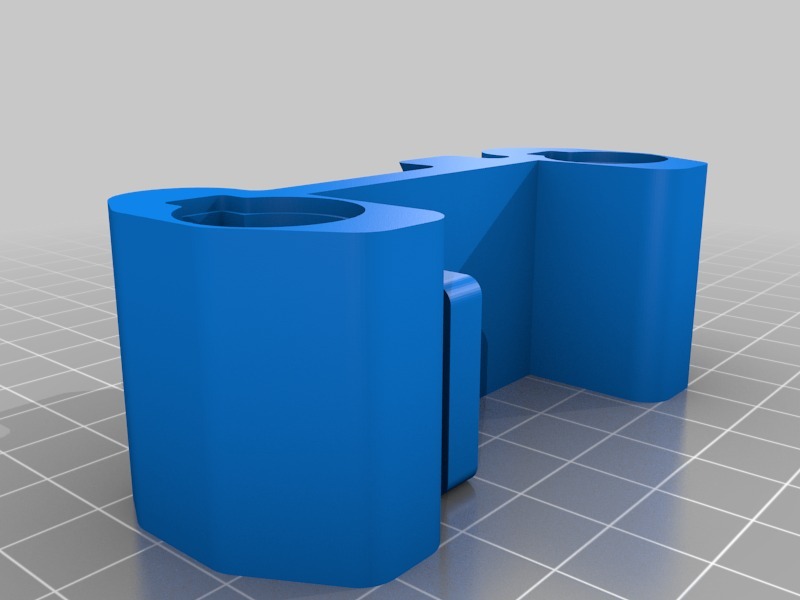

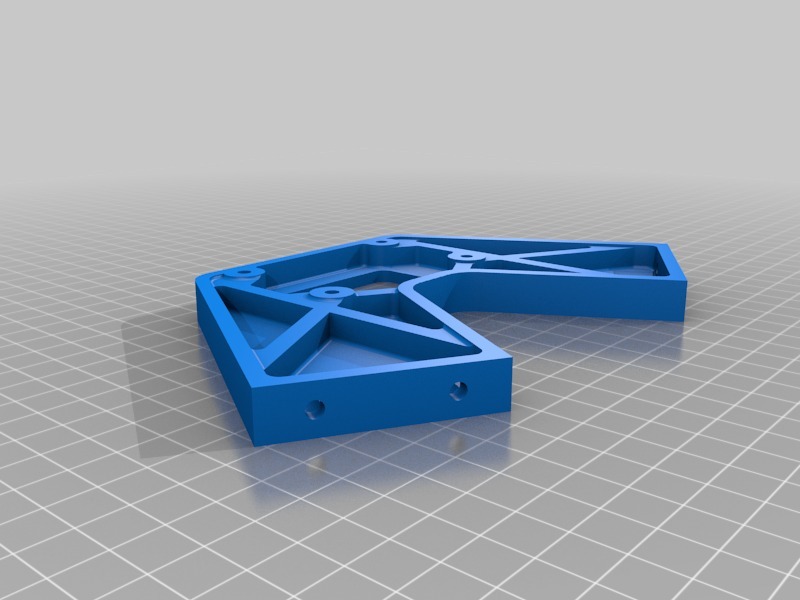

Update 10th March 2015 > uploaded the rest of the parts ive reworked

---

All printed and running on a dry run ( see video)

Realised i cant comfortably fit the ramps board under the standard height base so ive added 20 mm feet

I've used the end effector from http://www.thingiverse.com/thing:318685

vid of a dry run > https://www.youtube.com/watch?v=13fSS7Sio0M

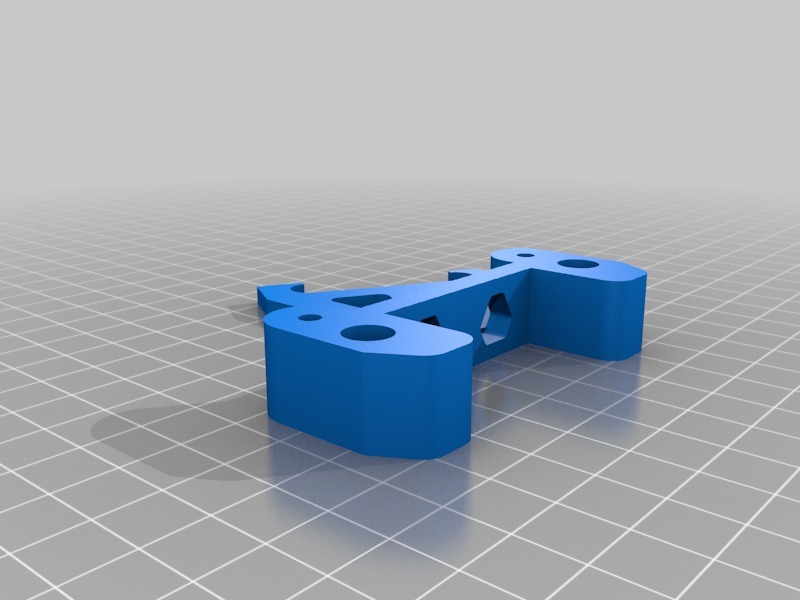

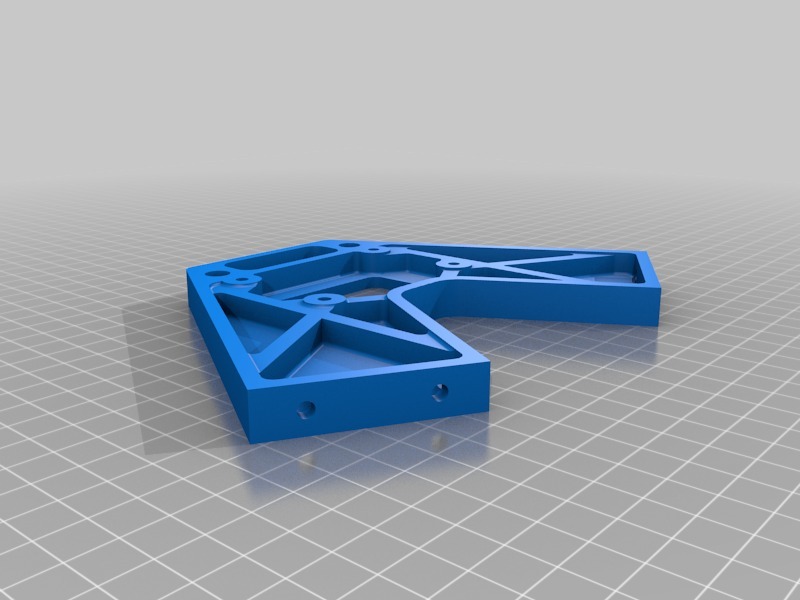

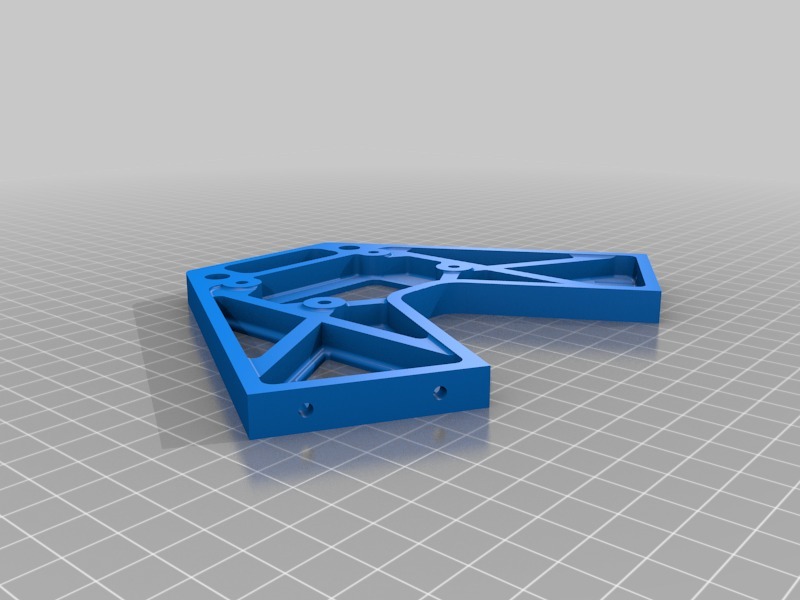

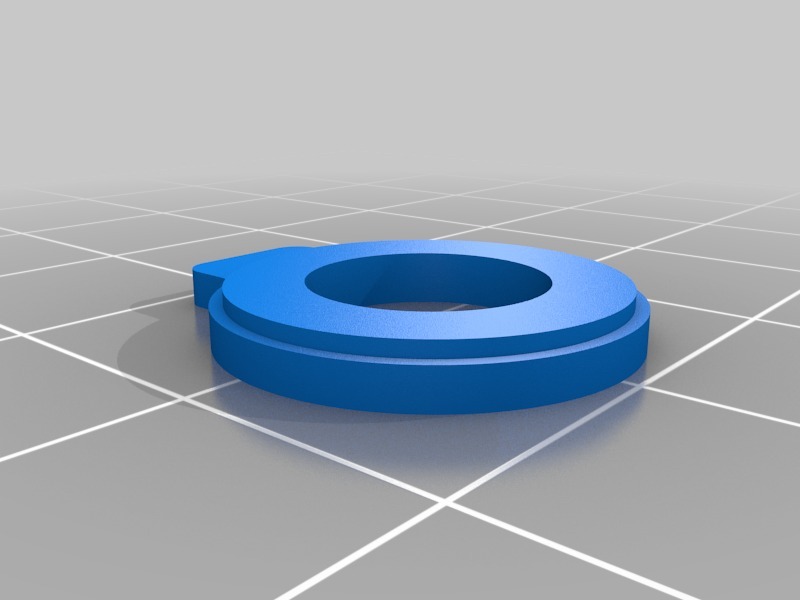

Update 27 Feb >> Printed out the base plates with extension and a motor carrier with the concealed nut trap . Works well so ive uploaded the STL's
